What are these parts from the top half of my 1981 kz250 ltd?

  • Buschpush
  • Buschpush's Avatar Topic Author
  • Offline
  • User
  • Forgive me if I sound dumb, new to this
  • Posts: 36
  • Thanks: 0

What are these parts from the top half of my 1981 kz250 ltd?

29 May 2024 18:42
#899992
Just wondering what this hole is/parts to my engine. Got given the engine half apart and these were in the bin. Do they even belong on the engine I mean obviously the valve on the side does but if so the other parts where?

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4267
  • Thanks: 2119

Re: What are these parts from the top half of my 1981 kz250 ltd?

29 May 2024 20:28
#899996

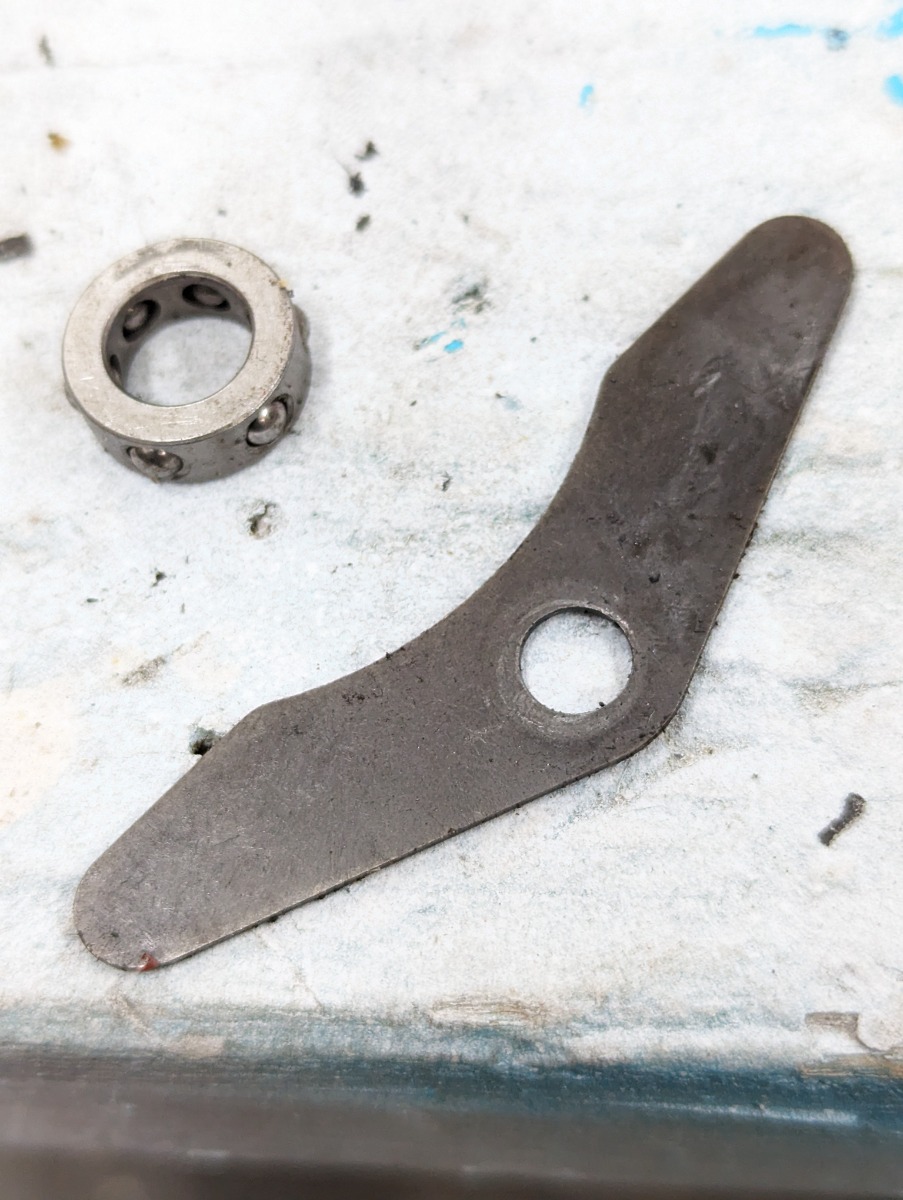

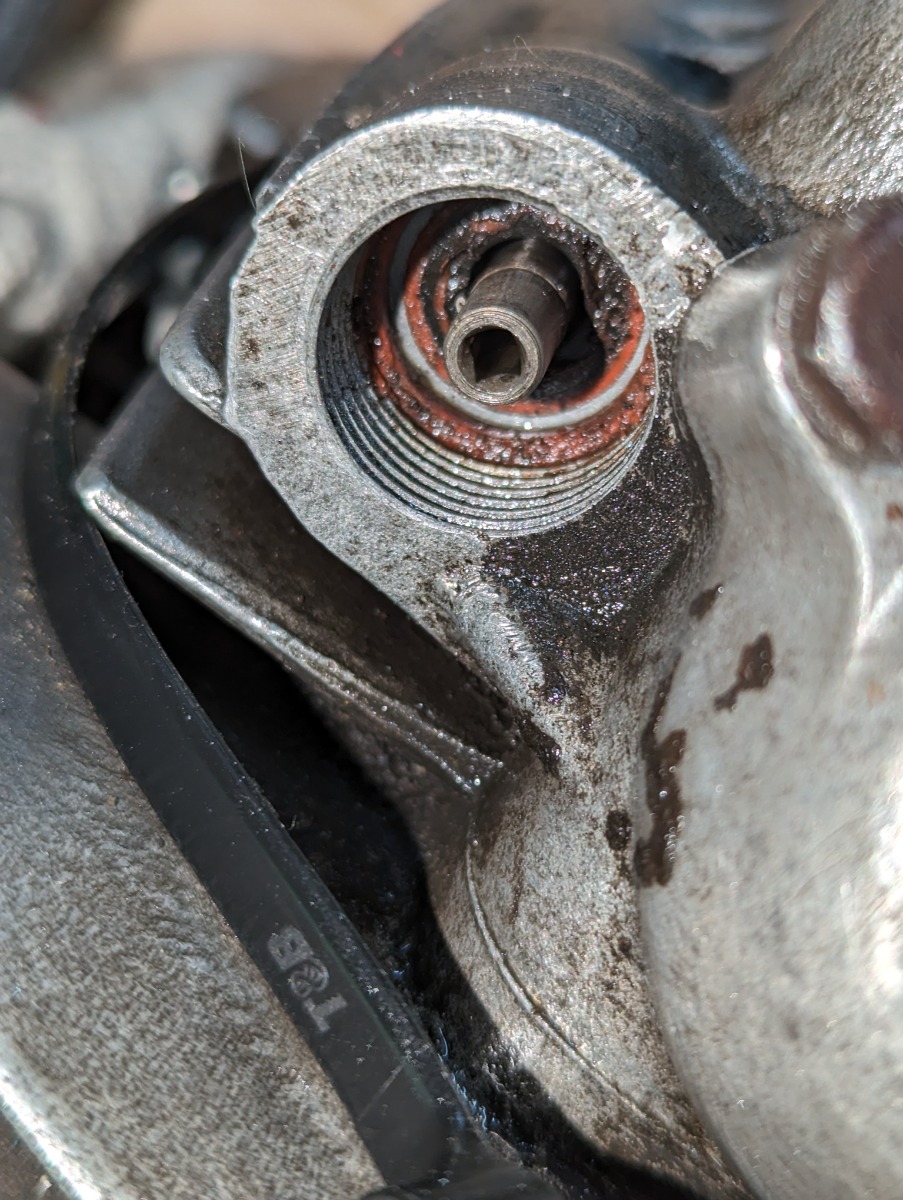

Picture #1 shows the rev meter drive on the cyl. head.

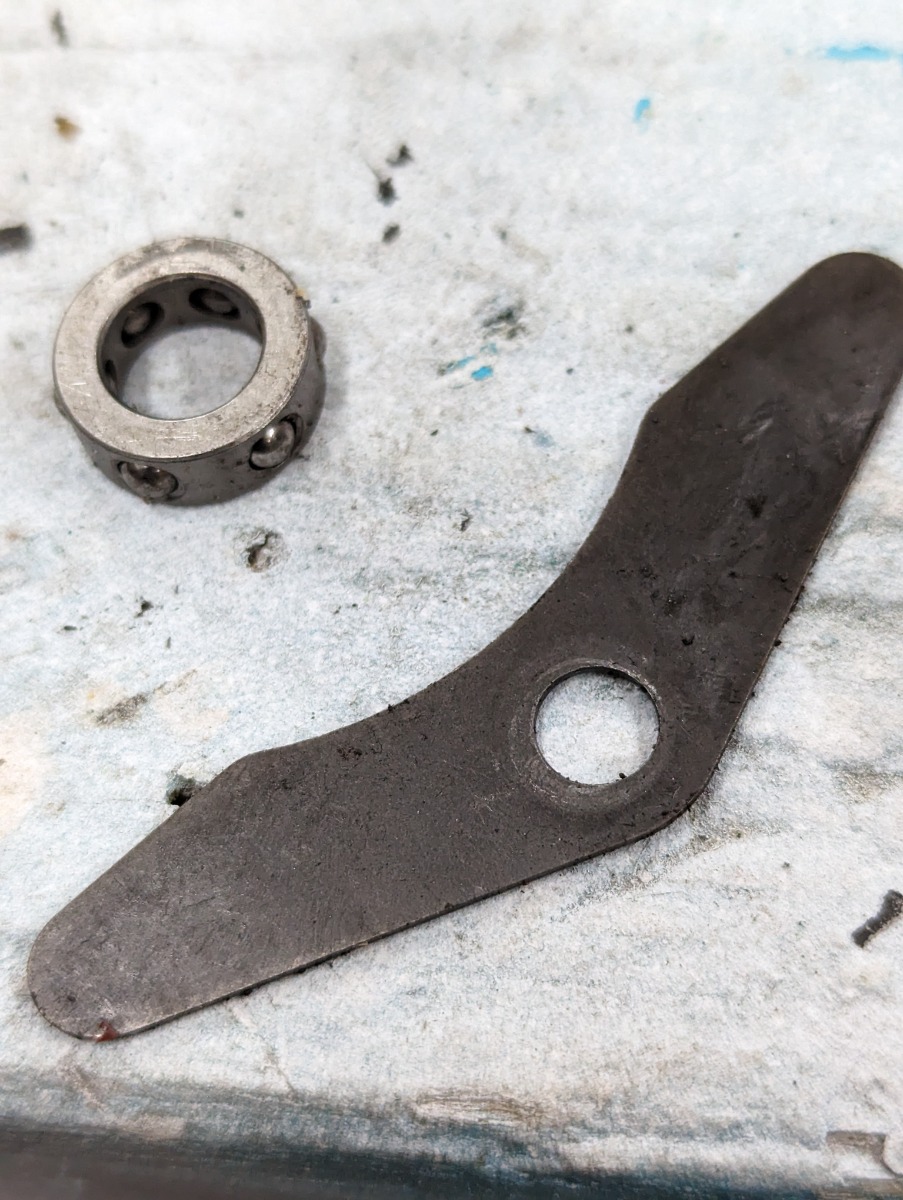

Picture #2 & 3 belongs to engine internals. What bike we are talking about?

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: What are these parts from the top half of my 1981 kz250 ltd?

30 May 2024 05:23 - 30 May 2024 05:27
#900006
From the diagrams at Partzilla:  14014-034 Positioning Plate.

1980 KZ250-D1 LTD Rocker Arms/Valves >>  www.partzilla.com/catalog/kawasaki/motor...er-arms-valves-80-d1

1981 KZ250-D2 CSR Rocker Arms/Valves >>  www.partzilla.com/catalog/kawasaki/motor...er-arms-valves-81-d2

ps: you might want to verify what model it is. I didn't see a 1981 250-Ltd at partzilla. It's listed as a csr and has electronic ignition. the 1980 Ltd has points ignition. I think the engines are essentially the same, though.

Last edit: 30 May 2024 05:27 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Buschpush
  • Buschpush's Avatar Topic Author
  • Offline
  • User
  • Forgive me if I sound dumb, new to this
  • Posts: 36
  • Thanks: 0

Re: What are these parts from the top half of my 1981 kz250 ltd?

02 Jun 2024 15:03
#900120
I'm working on a 1981 kz250 ltd but I got given it with the engine half apart:/

Please Log in or Create an account to join the conversation.

  • Buschpush
  • Buschpush's Avatar Topic Author
  • Offline
  • User
  • Forgive me if I sound dumb, new to this
  • Posts: 36
  • Thanks: 0

Re: What are these parts from the top half of my 1981 kz250 ltd?

02 Jun 2024 18:31
#900125
I think your right I just followed the word on the person that gave it to me, any idea what the thing is that isn't the rocker arm? The small bearing?

Please Log in or Create an account to join the conversation.

  • roadhazard
  • roadhazard's Avatar
  • Offline
  • User
  • Posts: 12
  • Thanks: 4

Re: What are these parts from the top half of my 1981 kz250 ltd?

03 Jun 2024 04:27
#900141
That small bearing looks like the inside part of an automatic cam chain tensioner. It grabs the shaft to keep it from backing out if the chain goes slack. There is on inside my kz1300 tensioner..
The following user(s) said Thank You: martin_csr, Buschpush

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: What are these parts from the top half of my 1981 kz250 ltd?

03 Jun 2024 06:07 - 03 Jun 2024 09:53
#900146
By roadhazard: That small bearing looks like the inside part of an automatic cam chain tensioner.

1981 KZ250-D2 CSR >> see retainer pic >>  www.partzilla.com/product/kawasaki/14020...64a2bd4cc80381e79ade
Last edit: 03 Jun 2024 09:53 by martin_csr.
