KZ650 Hydraulic Clutch 06 Aug 2018 16:08 #788345

  • GrantKZ650
  • GrantKZ650's Avatar Topic Author
  • Offline
  • User
  • Posts: 22
  • Thank you received: 10
Weird things happen when you stare at your bike too long.  The previous owner had ditched the electric starter, leaving a gaping hole in the side cover. The mismatched / road-rashed levers looked goofy. I had just installed an APE HD clutch and push rod roller kit. And there was an Honda RC51 clutch slave cylinder in my parts bin...








The following user(s) said Thank You: Wozza, Scirocco, Saablord

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 06 Aug 2018 16:44 #788349

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
A "nice" uprising sun Japanese war flag design.
Who made this hydraulic sprocket cover???

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 06 Aug 2018 18:13 #788361

  • GrantKZ650
  • GrantKZ650's Avatar Topic Author
  • Offline
  • User
  • Posts: 22
  • Thank you received: 10
Thanks, I designed it in SolidWorks (top picture) and my buddy machined it out of 6061 aluminum
The following user(s) said Thank You: Nessism, Scirocco

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 07 Aug 2018 16:54 #788425

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Can you duplicate this for a KZ 900/1000 sprocket cover???
I like the design and want to do a hydraulic clutch conversion on my Z1???

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

KZ650 Hydraulic Clutch 07 Aug 2018 18:34 #788432

  • GrantKZ650
  • GrantKZ650's Avatar Topic Author
  • Offline
  • User
  • Posts: 22
  • Thank you received: 10

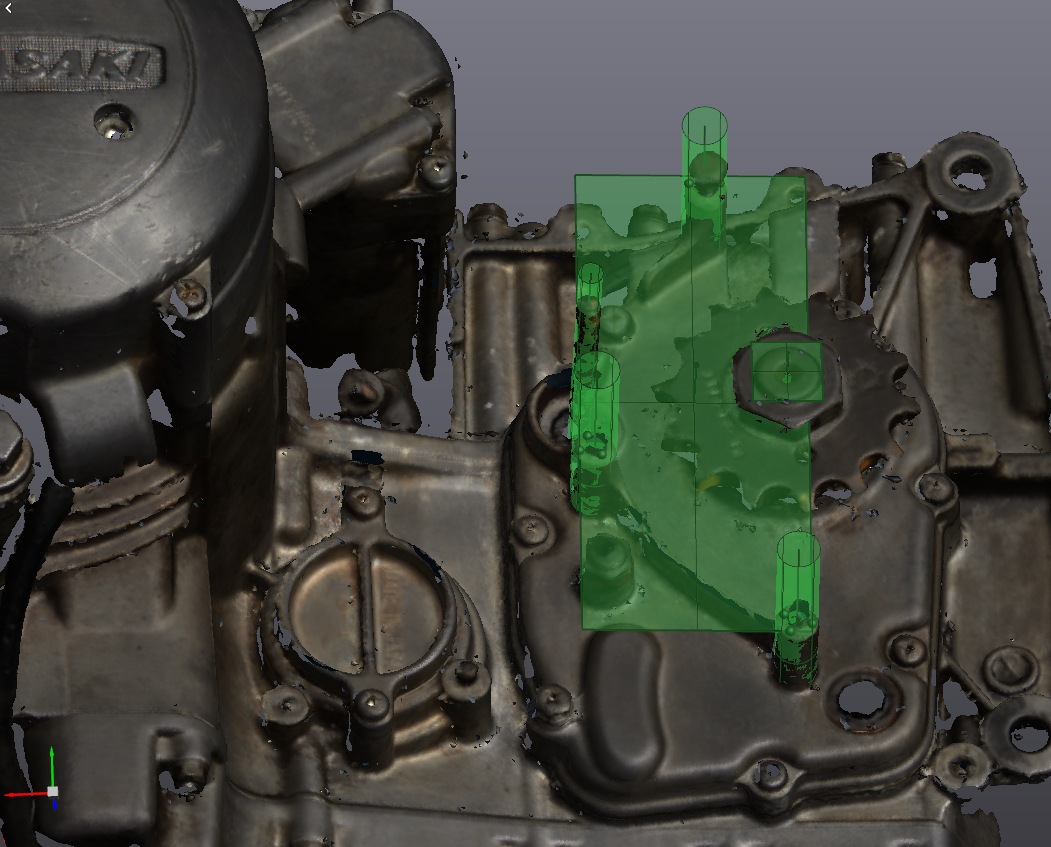

I only have access to my KZ650 for design work. If I come across a Z1 I'll try to borrow it long enough to scan the motor and pull dimensions!

Attachments:
The following user(s) said Thank You: Saablord

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 18 Jun 2020 19:15 #828427

  • Saablord
  • Saablord's Avatar
  • Offline
  • User
  • Posts: 222
  • Thank you received: 59
Hey Grant, if you're still active on here by chance, could you send me a drawing with the bolt pattern of the kz650 clutch cover? Thinking about using a zx9 slave on mine.

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 18 Jun 2020 20:22 #828429

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828

Saablord wrote: Hey Grant, if you're still active on here by chance, could you send me a drawing with the bolt pattern of the kz650 clutch cover? Thinking about using a zx9 slave on mine.


Egads - why? Since the maintenance and potential failure rate of a hydraulic clutch makes it much less desirable on a KZ650 than a cable clutch, what is the reason to switch? Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

KZ650 Hydraulic Clutch 18 Jun 2020 23:39 #828434

  • davido
  • davido's Avatar
  • Offline
  • User
  • Posts: 1570
  • Thank you received: 285

Saablord wrote: Hey Grant, if you're still active on here by chance, could you send me a drawing with the bolt pattern of the kz650 clutch cover? Thinking about using a zx9 slave on mine.


I had real problems trying to get a ZX9r set up working on my Z1000. I spent ages messing around with the spacing,moving it out and moving it in trying to find the sweet spot. Couldnt do it. The reason,I was told, was that there wasnt enough travel in the ZX9r slave cylinder. I was advised to try a Ducati unit. Dont know how true this is but In the end,I got fed up with it and went back to the original cable set up.
If you get it working,Id be very interested in how you manage it.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 18 Jun 2020 23:56 #828435

  • cb900f
  • cb900f's Avatar
  • Offline
  • User
  • Posts: 109
  • Thank you received: 30

Scirocco wrote: ...I like the design and want to do a hydraulic clutch conversion on my Z1???


One of these would be a lot simpler:

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 19 Jun 2020 06:09 #828447

  • Saablord
  • Saablord's Avatar
  • Offline
  • User
  • Posts: 222
  • Thank you received: 59

cb900f wrote:

Scirocco wrote: ...I like the design and want to do a hydraulic clutch conversion on my Z1???


One of these would be a lot simpler:


Link doesnt work for me.

I have a heavier clutch and i wanted to give hydraulic a shot as i've never used one before.

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 19 Jun 2020 08:59 #828457

  • GrantKZ650
  • GrantKZ650's Avatar Topic Author
  • Offline
  • User
  • Posts: 22
  • Thank you received: 10
Hey Saablord, I can send you dxf or step files - let me know if you can work with those.

I haven't had any problems with the hydraulic clutch in last two years and it worked first try (but I did spend a fair bit of time reverse engineering all the components first). I'll agree it has greater potential for catastrophic failure than a cable, but I have no more cable to lube or adjust :)

This hydraulic unit was used by Honda for the better part of a decade, so I guess I'll trust it to work and have replacement parts. Not that any of this is reason to do the switch. I really just did it so see if I could.

I'm not sure that style actuator linked will be that simple since we don't have that nice lever arm on our bikes

Attachments:
The following user(s) said Thank You: Saablord

Please Log in or Create an account to join the conversation.

KZ650 Hydraulic Clutch 19 Jun 2020 09:06 #828458

  • Saablord
  • Saablord's Avatar
  • Offline
  • User
  • Posts: 222
  • Thank you received: 59

Hey Saablord, I can send you dxf or step files - let me know if you can work with those.

I use Inventor so either would work... send both? thank you! It will save me so much time.

I'm not sure that style actuator linked will be that simple since we don't have that nice lever arm on our bikes

...Yeah that style of slave (i opened the link in a new tab... now it works) would have to be mounted to the lever on the existing clutch rod actuator... sounds complicated and ugly.

I really just did it so see if I could.

hahaha. right there with you.

Please Log in or Create an account to join the conversation.

Last edit: by Saablord.
