Head gasket installation
17 Apr 2017 15:54 - 17 Apr 2017 16:24

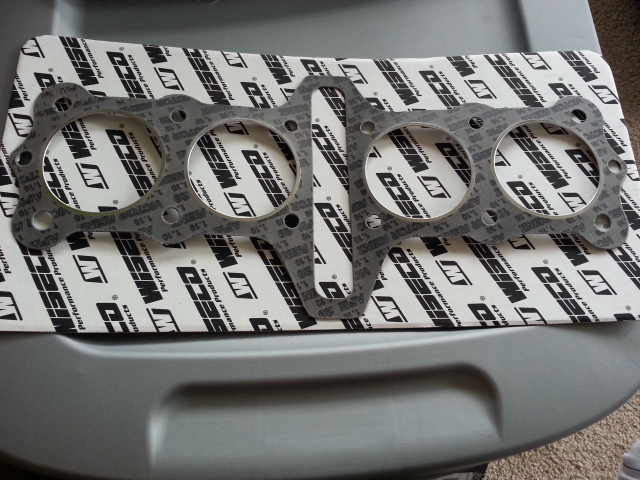

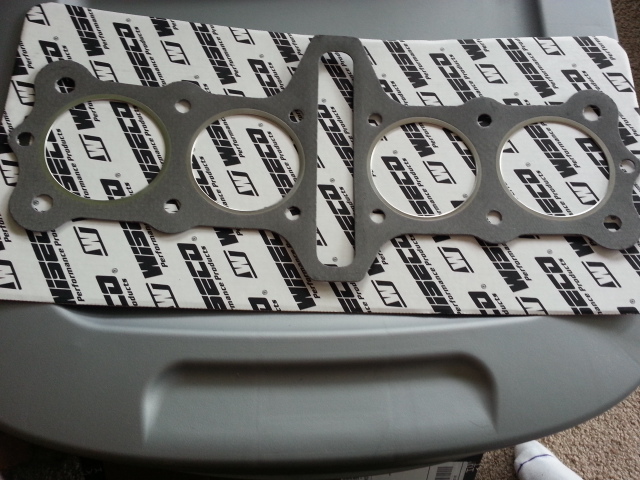

I just finished installing my Wiseco 72mm pistons and the cylinder. Now, I'm trying to determine which side of the head gasket goes up or whether it matters or not. I don't see any lettering on the gasket and the metal rings seem to be the same width on either side. Please help. Here's a couple of pics.
'78 Kawasaki KZ 1000
'02 Harley FXDWG
'16 Harley Street Glide
'02 Harley FXDWG
'16 Harley Street Glide
Attachments:
Last edit: 17 Apr 2017 16:24 by loneagle.
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23450
- Thanks: 2917
Re: Head gasket installation
17 Apr 2017 16:21
I go with the print facing up. Be sure it covers the front of the cam chain tunnel.
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: loneagle
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23450
- Thanks: 2917
Re: Head gasket installation
17 Apr 2017 16:22
Are you filling the O ring groove?
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Please Log in or Create an account to join the conversation.
- loneagle
-
Topic Author
- Offline
- User
-
Registered
- Posts: 76
- Thanks: 3
Re: Head gasket installation
17 Apr 2017 16:28
Thanks, Steve! Yes, I'm filling the groove with RTV and trimming with a razor blade. I want to make sure I'm doing everything correctly.
'78 Kawasaki KZ 1000
'02 Harley FXDWG
'16 Harley Street Glide
'02 Harley FXDWG
'16 Harley Street Glide
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23450
- Thanks: 2917
Re: Head gasket installation
17 Apr 2017 16:50
I fill it with high temp copper silicon and install it wet.
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: loneagle
Please Log in or Create an account to join the conversation.
- loneagle
-
Topic Author
- Offline
- User
-
Registered
- Posts: 76
- Thanks: 3
Re: Head gasket installation
18 Apr 2017 11:11
I have another question, should the sprocket rubber dampers be trimmed level with the block or will they compress enough?
'78 Kawasaki KZ 1000
'02 Harley FXDWG
'16 Harley Street Glide
'02 Harley FXDWG
'16 Harley Street Glide
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23450
- Thanks: 2917
Re: Head gasket installation
18 Apr 2017 12:15
I leave them be. They need to be tight.
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: loneagle
Please Log in or Create an account to join the conversation.
- missionkz
-
- Offline
- Sustaining Member
-
Registered
- Posts: 1622
- Thanks: 184
Re: Head gasket installation
18 Apr 2017 19:11
With my one piece head gasket and 1075cc kit, I ground my damper pads a tiny bit but not as much as I've seen written to do.
I filled my o'ring groove with high temp Ultra Black and sprayed both sides of my head gasket with a thin coat of Copper Coat sealer. Assembled it all tacky.
So far, and thousand of miles later, no unusual cam or chain noise and no leaks!!
I filled my o'ring groove with high temp Ultra Black and sprayed both sides of my head gasket with a thin coat of Copper Coat sealer. Assembled it all tacky.
So far, and thousand of miles later, no unusual cam or chain noise and no leaks!!
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
The following user(s) said Thank You: GPz550D1, loneagle
Please Log in or Create an account to join the conversation.
- loneagle
-
Topic Author
- Offline
- User
-
Registered
- Posts: 76
- Thanks: 3
Re: Head gasket installation
18 Apr 2017 19:17 - 18 Apr 2017 19:18
Thanks for the help!... Got the cylinder head installed and everything torqued to spec. Now it's time to degree the cams....
'78 Kawasaki KZ 1000
'02 Harley FXDWG
'16 Harley Street Glide
'02 Harley FXDWG
'16 Harley Street Glide
Last edit: 18 Apr 2017 19:18 by loneagle.
Please Log in or Create an account to join the conversation.
Moderators: Street Fighter LTD
