Stock cam lift?

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 1013
  • Thanks: 117

Stock cam lift?

17 Aug 2015 13:54 - 17 Aug 2015 13:56
#686109
Helping a friend out. Bike has 16k plus miles. We were checking the valve clearance and found all but one at .006 to .007.
We know they should be between.002 and .004.
He measured the cam lope and the it measure 362mm.
Is 362 the original cam lift?
My 79 kz1000 had z4 cams and it required.004 to .006 valve clearance.
So either he has after market cams or his cams are worn out.
Thoughts? His bike is a 78kz1000
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project
Last edit: 17 Aug 2015 13:56 by spdygon.

Please Log in or Create an account to join the conversation.

  • OnkelB
  • OnkelB's Avatar
  • Offline
  • User
  • Posts: 1011
  • Thanks: 80

Re: Stock cam lift?

17 Aug 2015 15:05 - 17 Aug 2015 15:20
#686119
spdygon wrote: .
...He measured the cam lope and the it measure 362mm...

Umm, I think you mean 36.2 mm - 362 mm = 36.2 cm which is more than a foot long (1 foot = 304.8 mm/30.48 cm).

Is 362 the original cam lift?...

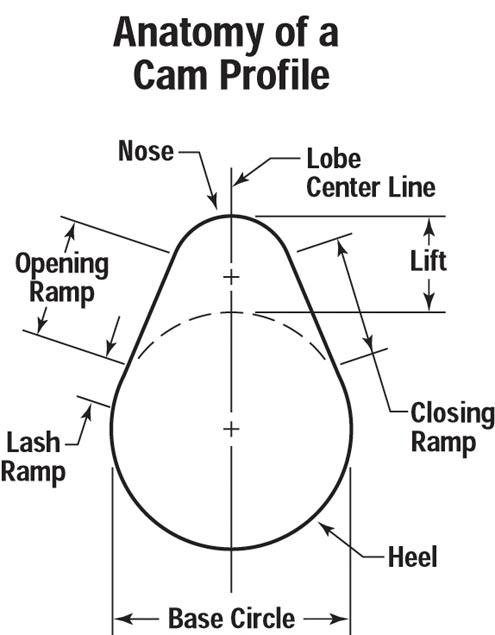

No, neither is 36.2. Measure the base circle, perpendicular to the lobe center line, then subtract that measure from the lobe heel-to-nose measure you already took (36.2 mm), the result is the lift.
