Help ID 3 wheels please?

05 May 2021 20:21 - 06 May 2021 04:58
#848067

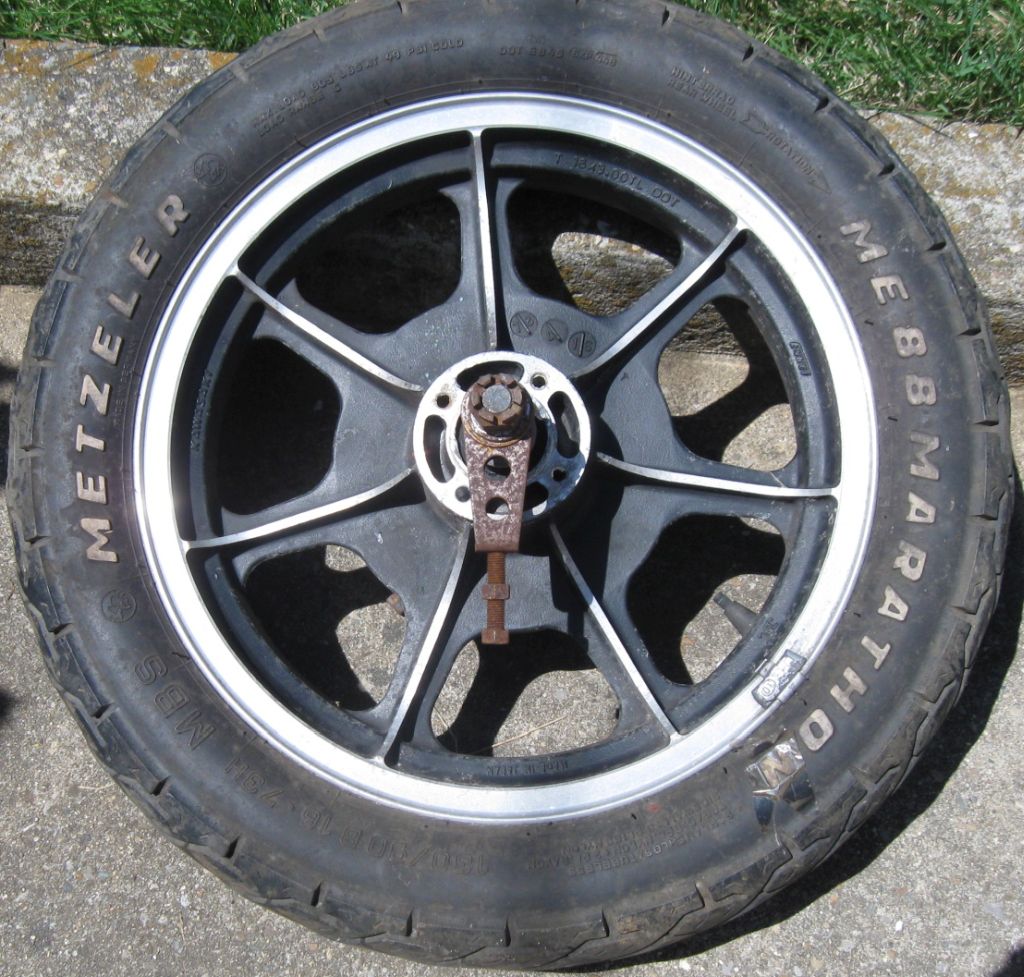

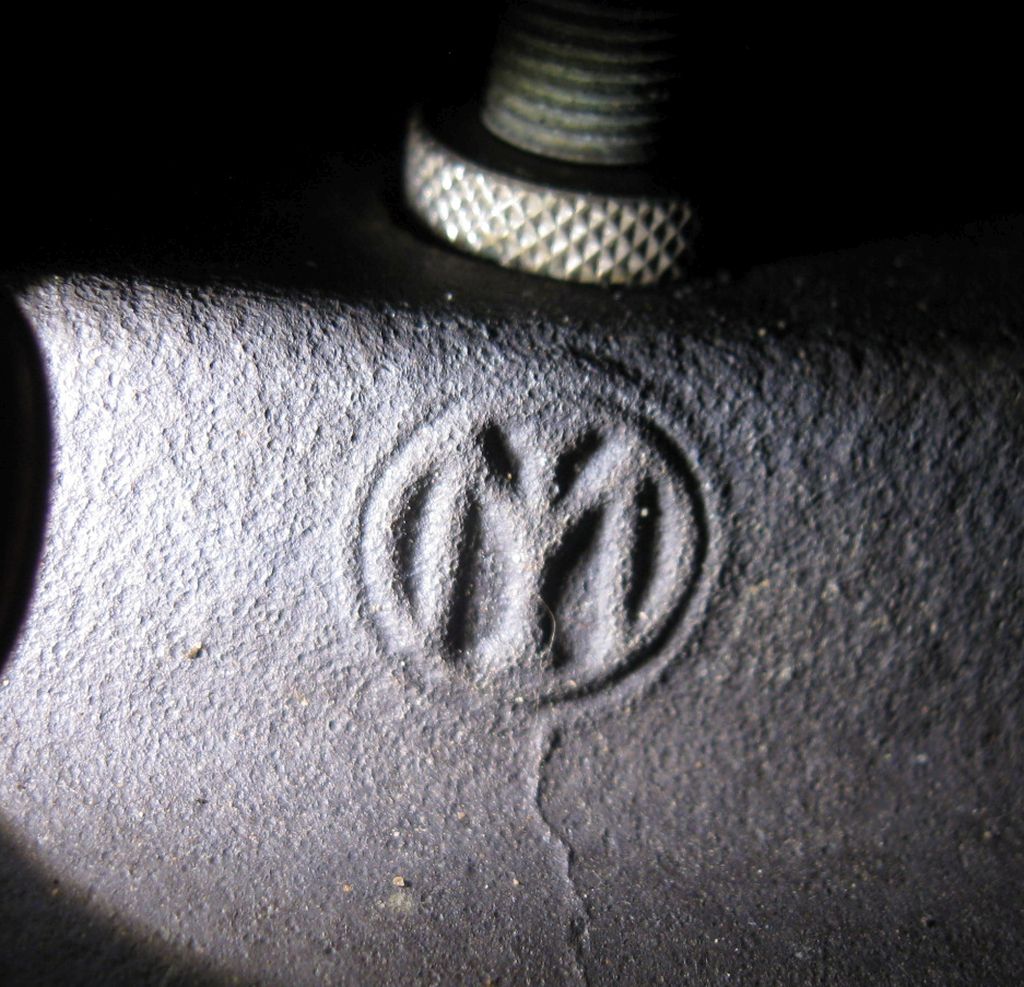

Wheel 1.Only marking is an 'M' inside a circle.  Bearing holders are removable.  Paper taped to tire reads "1976 KZ900".  Morris Mag?

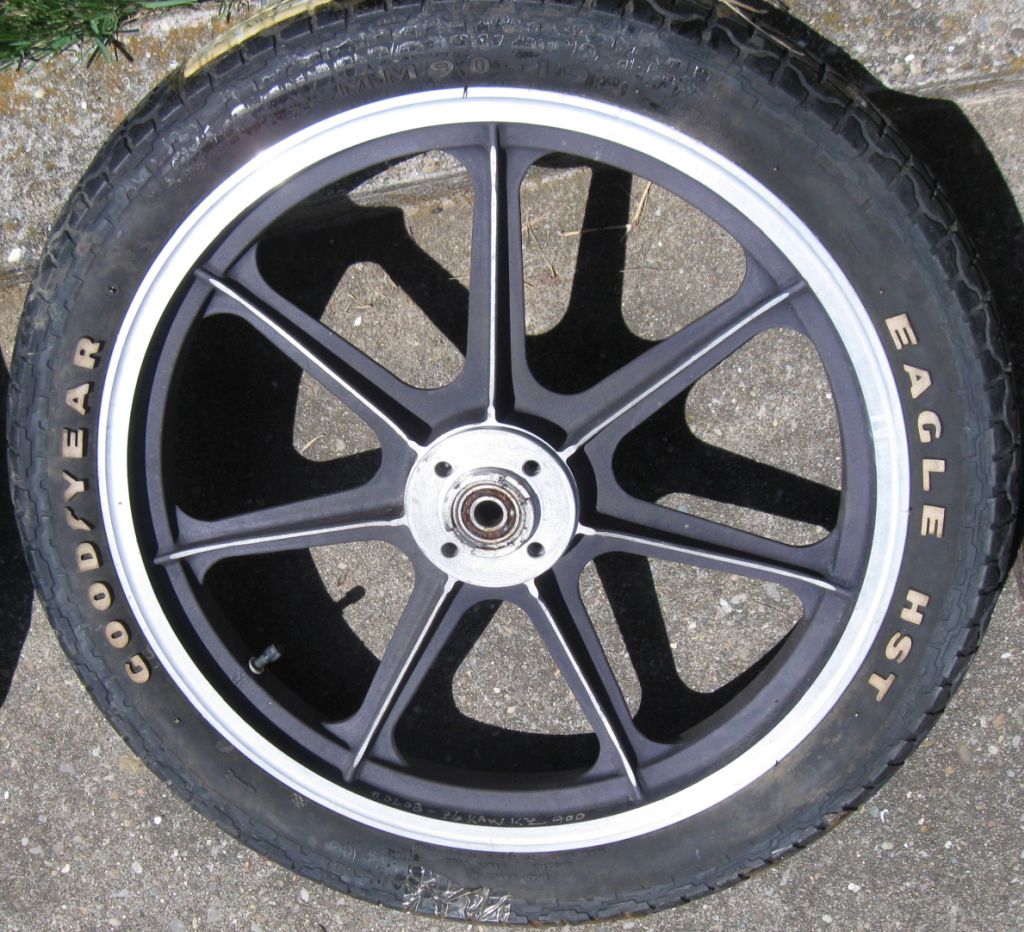

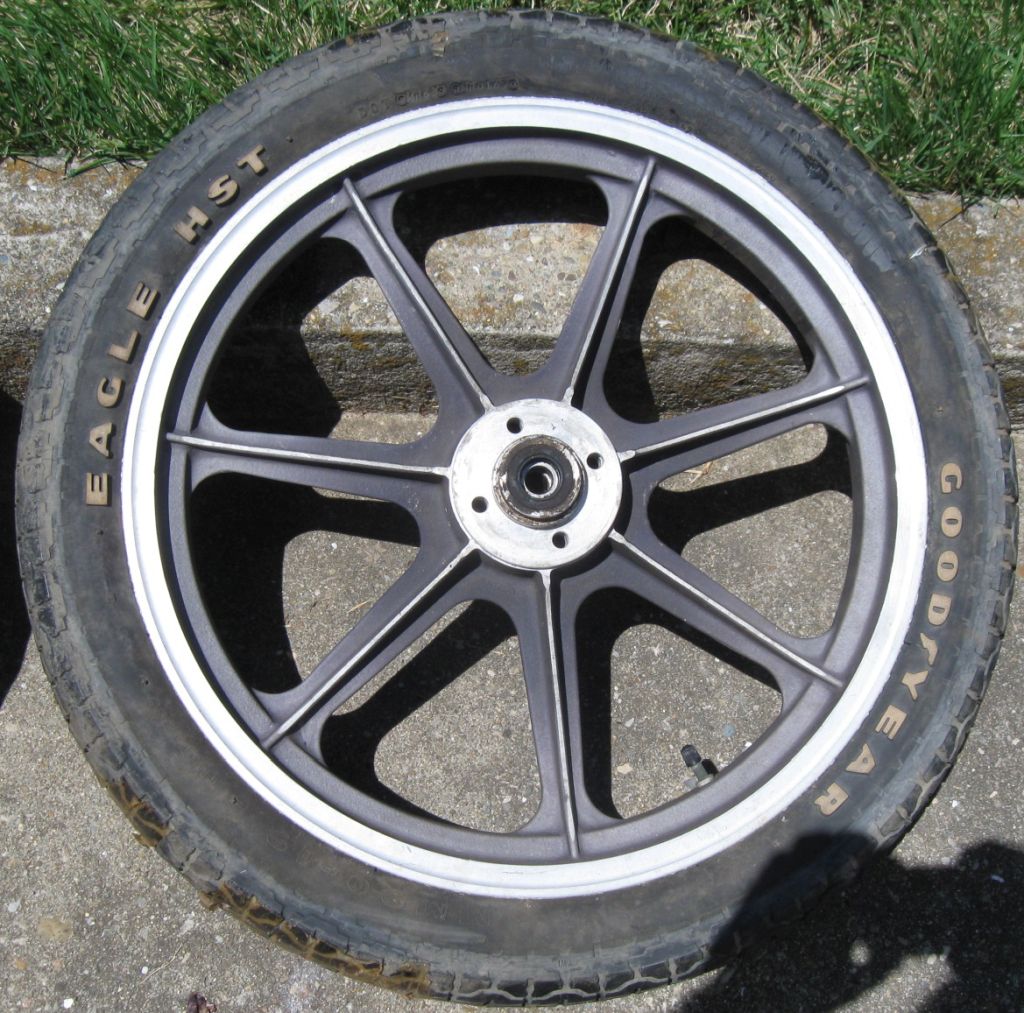

Wheel 2.'Kawasaki' is cast in.

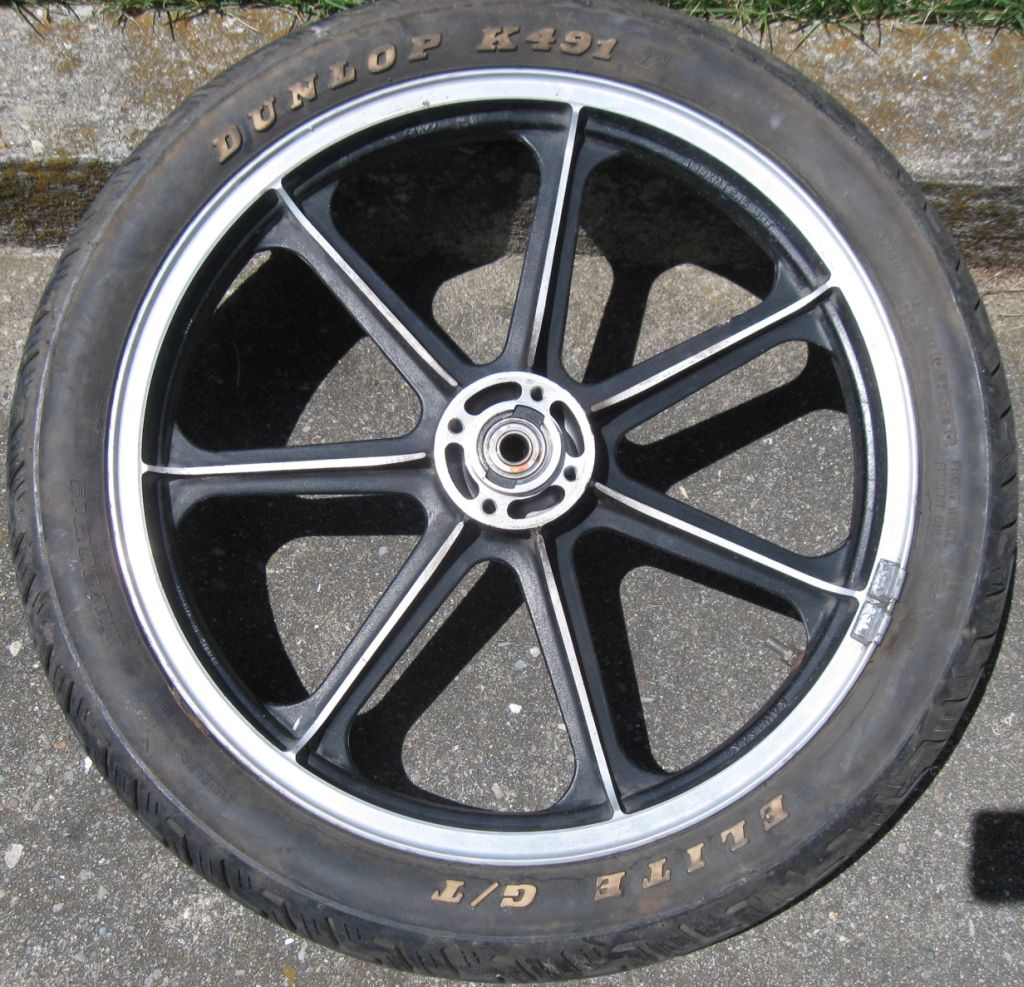

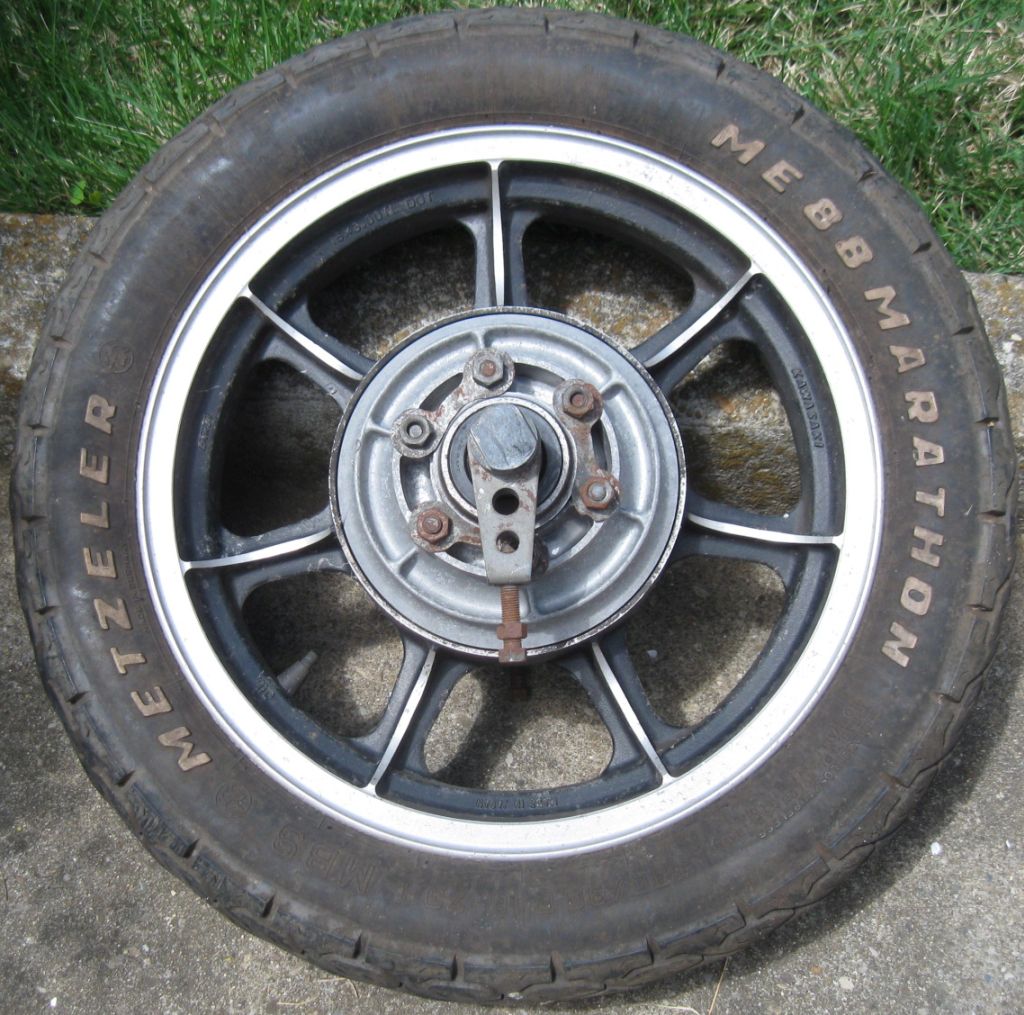

Wheel 3.'Kawasaki' is cast in.



Thank You.
Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com/index.html/
A Forum tightly focused on all things Z1 and Z2.
Last edit: 06 May 2021 04:58 by slmjim+Z1BEBE. Reason: Better detail pic

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Help ID 3 wheels please?

05 May 2021 20:29 - 05 May 2021 20:32
#848068
Wheel 1 is a 1976 Kz900 LTD Morris front. Wheel 2 ? Z1R. Wheel 3 appears the be a 1977-80 rear LTD Enkei mag.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 05 May 2021 20:32 by Mikaw.
The following user(s) said Thank You: slmjim+Z1BEBE

Please Log in or Create an account to join the conversation.

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1265
  • Thanks: 583

Re: Help ID 3 wheels please?

06 May 2021 06:21
#848078
wrote:
Wheel 1 is a 1976 Kz900 LTD Morris front. Wheel 2 ? Z1R. Wheel 3 appears the be a 1977-80 rear LTD Enkei mag.
I agree with 1 and 3.

It looks like #2 is a 19" wheel, which would make it a matching set with #3.  I believe the 77-80 LTD should have Enkei Kawasaki mags, 19" front and 16" rear.  The '79-'80 MkII and '80 Z1R also had 19" front Enkei Kawasaki mags which I think were basically the same.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: slmjim+Z1BEBE

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Help ID 3 wheels please?

06 May 2021 07:05
#848081
wrote:
wrote:
Wheel 1 is a 1976 Kz900 LTD Morris front. Wheel 2 ? Z1R. Wheel 3 appears the be a 1977-80 rear LTD Enkei mag.
I agree with 1 and 3.

It looks like #2 is a 19" wheel, which would make it a matching set with #3.  I believe the 77-80 LTD should have Enkei Kawasaki mags, 19" front and 16" rear.  The '79-'80 MkII and '80 Z1R also had 19" front Enkei Kawasaki mags which I think were basically the same.
DOHC, you might be right on #2. What thru me off was the valve stem location. On my 1978 Kz1000 LTD rear wheel the valve stem is equal distance from the spokes. I assumed the front would be the same, until I looked thru photos and found one of my front wheel. The valve stem is offset toward one spoke. I’m thinking DOHC is correct and #2 is the front match to #3
