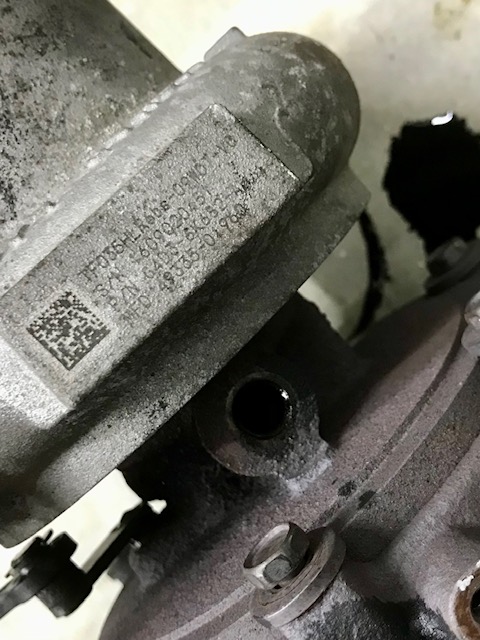

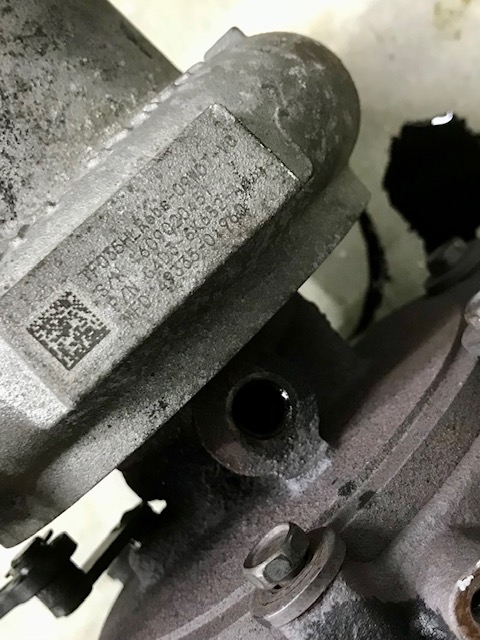

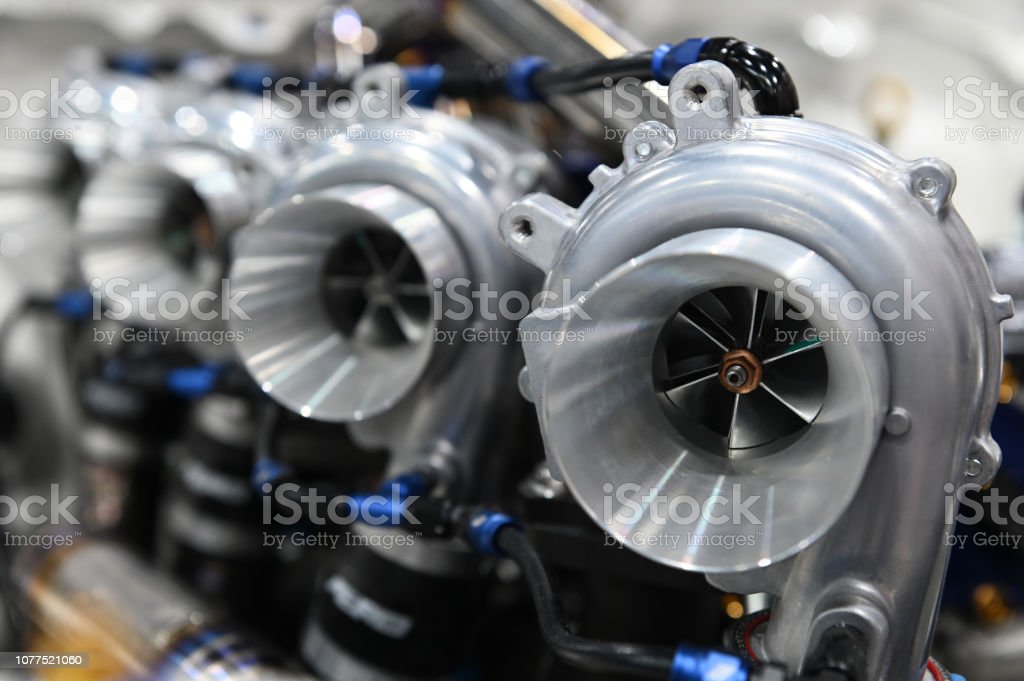

These have been around as OEM in the car world for a long time now, it's not so much about absolute power as it is about drivability. There are a set of shutters in the exhaust turbine housing which at low revs and throttle opening close of the exhaust passage - restricting the flow increases the pressure and gas speed ( kind of like putting your thumb on the end of a hosepipe) which spools the turbo much quicker, as the engine speed and throttle opening increase the shutters open up to allow full gas flow through the turbo. This means a power delivery more like a supercharger but without the mechanical losses. In the picture below, the linkage in the bottom left corner is what operates the shutters and is controlled by the engine management (this is the one I blew at Christmas on my diesel Jaguar  )

wrote:

I designed your intake system

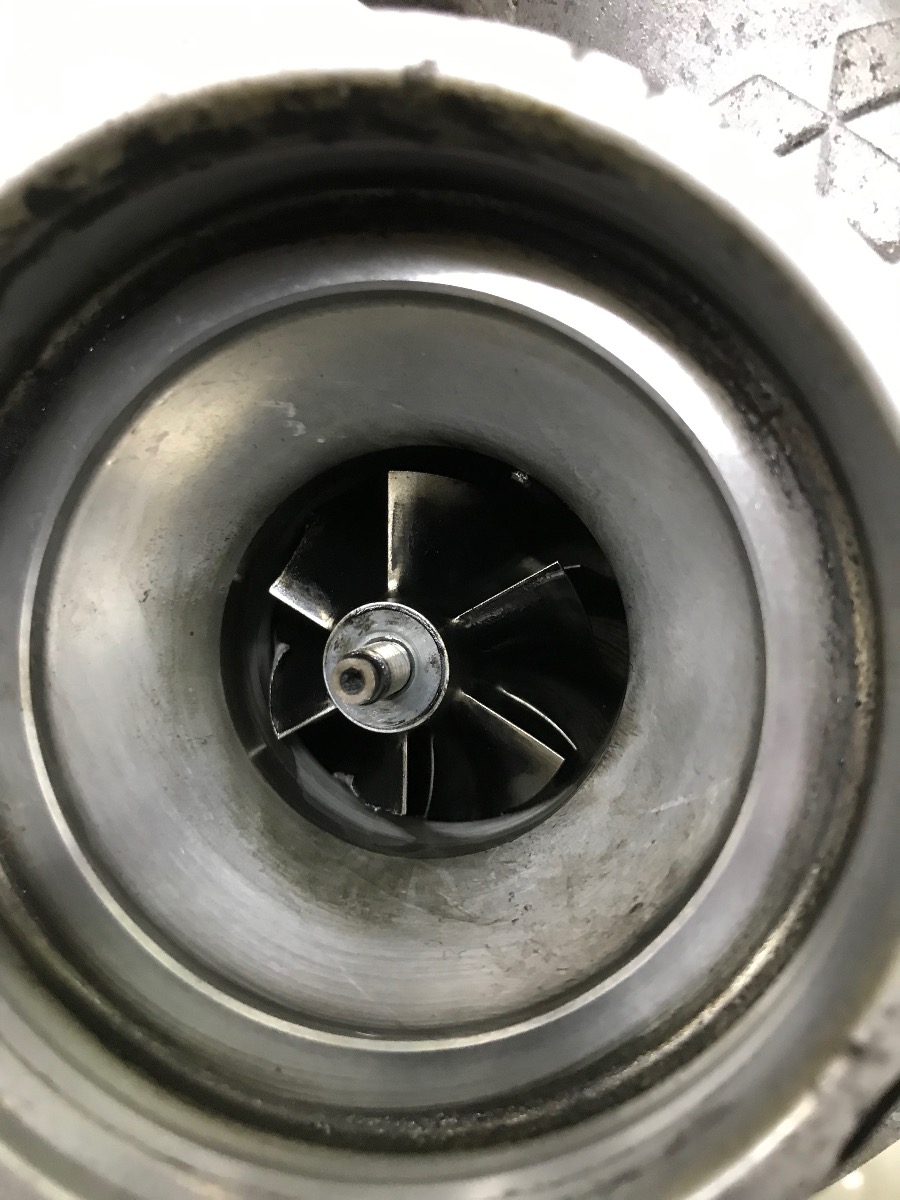

Those look a whole lot healthier than mine did (spot the missing impeller nut

)






wrote:

I designed your intake system


WOWSERS!
What say you for a carb, Dave?
Go for the HSR? go against everything and make it run with a super E? old school SU? A CV? there is TOOO many carbs out there.



Looks like your turbo axle bearing are also worn out and some of your impaller wings get in love with the aluminum intake housing.

wrote:

Looks like your turbo axle bearing are also worn out and some of your impaller wings get in love with the aluminum intake housing.

You are not wrong, the shaft was broken luckily so the impeller came to rest there. Half a day to replace it and two days to clean the debris and contents of the sump out of the intake system. You could do with three elbows and the hands of a five year old child to work on modern cars. Glad I don't have to do it for a living any more (I got lucky and found the missing nut in the EGR valve !!)


Alright
My final answers is................
Im going tried and true PULL THROUGH now.
I want this on the road this summer.If I go down the road of blow through I see too many carb/tuning issues for myself to remedy and enjoy my summer.
I am still going to make my own pipes.Going black with some polished stainless heat shields.I have a carbon seal kit ordered as well now.
Now I'm on the hunt for a HSR Mikuni.

wrote:

Alright
My final answers is................
Im going tried and true PULL THROUGH now.
I want this on the road this summer.If I go down the road of blow through I see too many carb/tuning issues for myself to remedy and enjoy my summer.
I am still going to make my own pipes.Going black with some polished stainless heat shields.I have a carbon seal kit ordered as well now.
Now I'm on the hunt for a HSR Mikuni.


42 mm

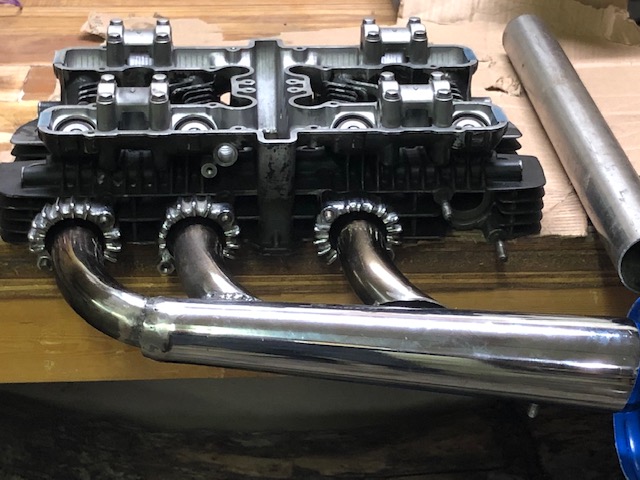

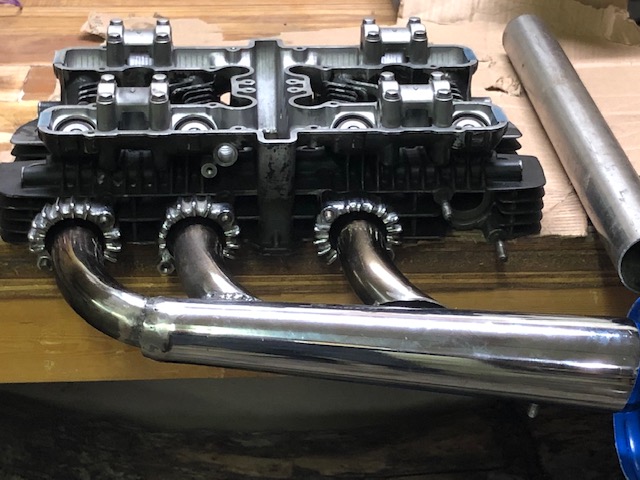

I started on the head pipe, will take some sanding to look good.working on smalls again in the evenings. They aint perfect, but I will not pay a thousand dollars for plumbing pipes when I can make some.I understand that the performance on this exact design is not tested but I am going close to MR Turbo head pipe and I figure they did some math on it. Also if you are wondering, the tapered bit is a trumpet exhaust muffler.
Be well

I love your philosophy, "what's the worst that could happen"

PS: I mean this in a supportive way (as opposed to a "it will end in tears" kind of way)

Im no fragile soul, if someone here KNOWS this is a bad idea.Please call me out on it.
Im still learning a lot with every misstep, Hahahaha.

Also the pics are deceiving, the "collector pipe" is 1 5/8"    to         2 3/8" at the largest O.D. so with the 90 bend coming I do not believe I'm over sized there.As I spoke with Dave, his wisdom rings true. This will fit my power needs ,but in  no way is this a "tuned exhaust".
Be well

Alright folks...
Im back to finish up this monstrosity!
I have new kibblewhite valves,springs,seals, and keepers.
The polished head is going to the machine shop tomorrow.
I have the carbon seal kit for the turbo in hand, along with some electrical goods.
I need to finish up my exhaust/turbo set up.....
Then we shall assemble the trike and run!
Im sure there is more to it than this but updates are coming soon.
I also have to build a wheelie/drag bar for the back end.This trike is NOT front heavy.
I also built a 20x20 moto shop cause the trike takes up a LOT of room.
I will get pics up as the progress comes along.
Be Well everybody.



I love the craziness of this project
Q: what do you do with an evil handling machine that wants to kill you ?
A: give it 50% more horsepower
