KZ650 cafe-racer
- gazzz
- Topic Author
- Offline
- Sustaining Member
Less
More
04 Apr 2022 13:44 #864903
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
When assembled it looks like this:

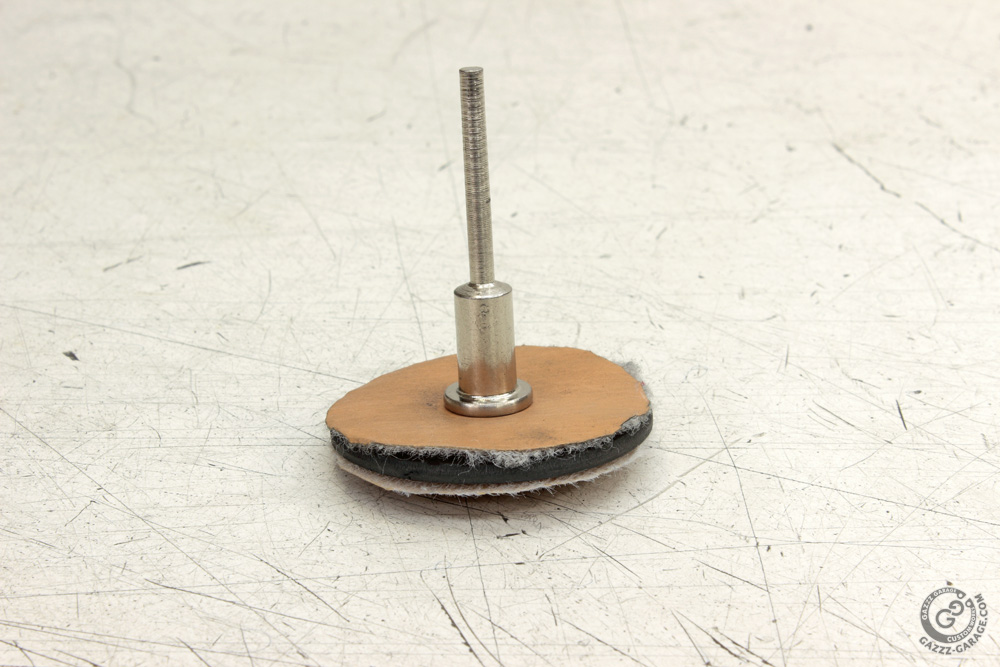

Sandpaper could be installed on any side of the disc or on both sides simultaneously.
Sandpaper could be installed on any side of the disc or on both sides simultaneously.
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
04 Apr 2022 13:46 #864904
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
And last but not least attachment for rotary tools. Actually it's the most useful tool especially when it comes treating pipes or holes from inside (including ports of cylinder head). But it could be used on outer surfaces, ribs and grooves as well.
Most of "universal" sets of accessories for rotary tools come with pretty useless drill bits. Usually they might be used on wood or plastic but they are no good for metal.

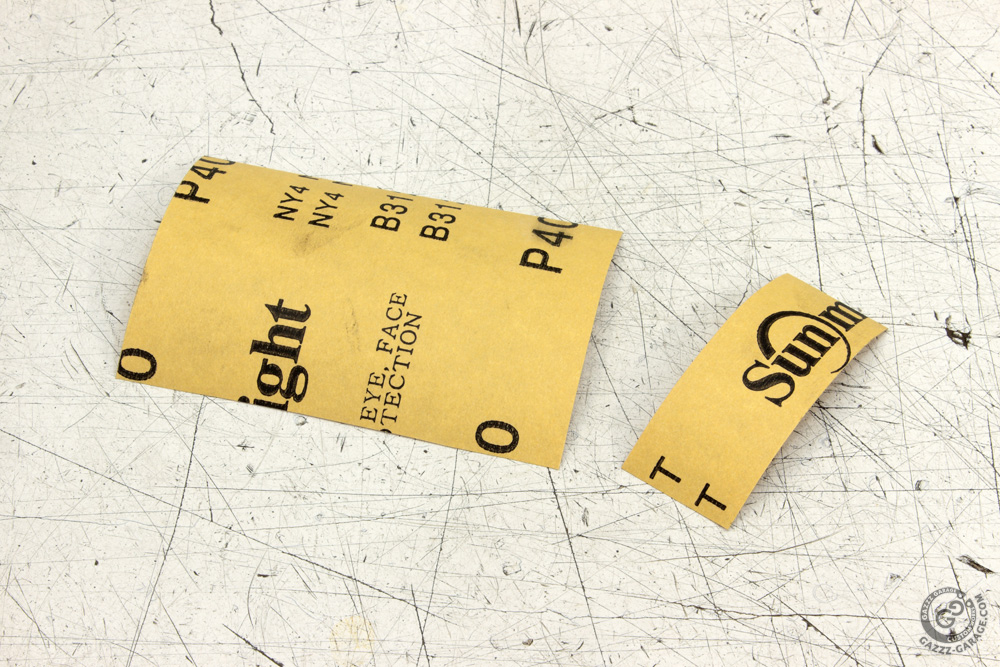

We need two things to turn these drill bits into useful attachments. First is a rectangle of sandpaper (cut from sheet or roll).
Most of "universal" sets of accessories for rotary tools come with pretty useless drill bits. Usually they might be used on wood or plastic but they are no good for metal.
We need two things to turn these drill bits into useful attachments. First is a rectangle of sandpaper (cut from sheet or roll).
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
04 Apr 2022 13:47 - 04 Apr 2022 13:47 #864906
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer

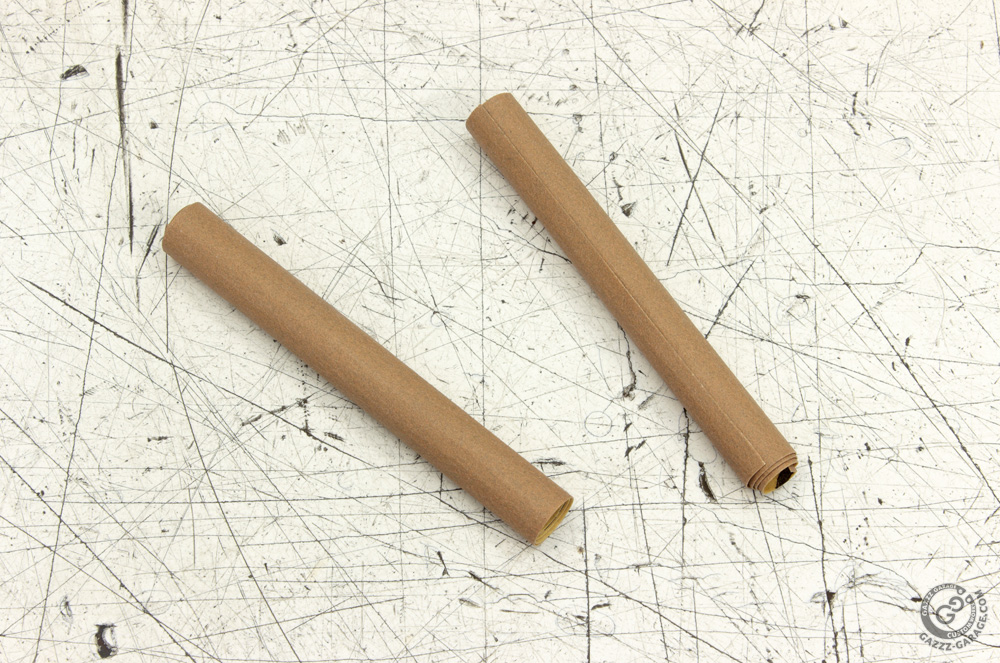

Diameter and length of future depend on dimensions of sandpaper rectangle.
It has to be rolled in tube like this:
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Last edit: 04 Apr 2022 13:47 by gazzz.
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
04 Apr 2022 13:48 #864907
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer

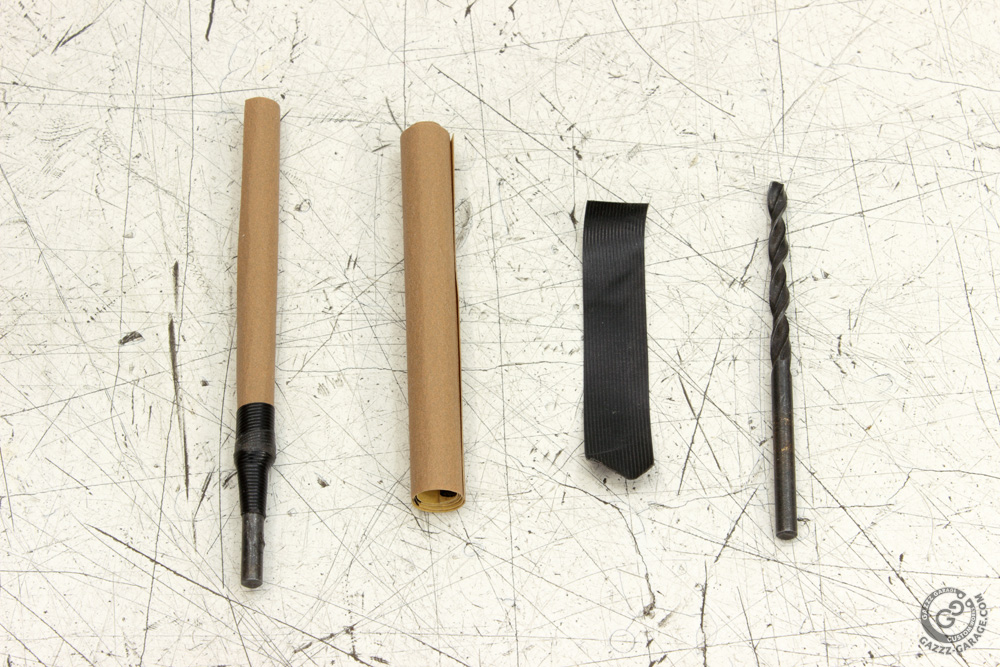

Roll of sandpaper has to have an internal diameter suitable for the drill bit, so the drill bit may be screwed into the roll with little force. Second thing we need for the tool is a strip of paper tape or vinyl tape or duct tape. With the help of that strip we have to fix sandpaper to drill. Mind direction of rotation.
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
04 Apr 2022 13:49 #864908
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
This tool doesn't like side loads because it essentially is paper. But it could last for quite a long time, since after the upper layer is worn it may be torn off exposing a new layer of fresh sandpaper and so on and so forth until the end of layers. Same thing with the working end of the tool: once it wears, it may be cut off with scissors. Wide range of sandpaper grit make this tool truly universal. Here are some examples of worn or half worn sandpaper attachments I have used some time ago:
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
The following user(s) said Thank You: linuxrob
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
04 Apr 2022 13:50 #864909
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
And here is the most illustrative example of work I did using all four types of tools. I believe you have already seen it.
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
The following user(s) said Thank You: linuxrob
Please Log in or Create an account to join the conversation.
- kzstreetfighter71
- Offline
- User
- Atlantic West Coast
Less
More
- Posts: 876
- Thank you received: 250
04 Apr 2022 14:19 #864911
by kzstreetfighter71
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
Replied by kzstreetfighter71 on topic KZ650 cafe-racer
Its like a piece of art.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
The following user(s) said Thank You: gazzz
Please Log in or Create an account to join the conversation.
- Forrest
- Offline
- Sustaining Member
- The Mad Duck
Less
More
- Posts: 783
- Thank you received: 180
04 Apr 2022 15:47 #864916
by Forrest
KZ RIDER RELAY FLAG CARRIER #55
1977 KZ650B Ready & Fit to Roll Anywhere!
1974 F7 175 -first bike and still own, full resto soon!
2002 ZRX1200R -Red the faster color
2011 Concours 14 -Now a Snarling Wolf in Sheep's Clothing!
Replied by Forrest on topic KZ650 cafe-racer
Absolutely beautiful work.
KZ RIDER RELAY FLAG CARRIER #55
1977 KZ650B Ready & Fit to Roll Anywhere!
1974 F7 175 -first bike and still own, full resto soon!
2002 ZRX1200R -Red the faster color
2011 Concours 14 -Now a Snarling Wolf in Sheep's Clothing!
The following user(s) said Thank You: gazzz
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7572
- Thank you received: 2236
04 Apr 2022 19:08 #864923
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic KZ650 cafe-racer
Thank you for sharing your custom tools. I may never rival your skill, but these tools will improve my work considerably.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: gazzz
Please Log in or Create an account to join the conversation.
- linuxrob
- Offline
- User
Less
More
- Posts: 91
- Thank you received: 46
05 Apr 2022 07:24 #864944
by linuxrob
1980 Z500 B2 owned from new 78260 miles
1980 Z500 B2 in bits since 1982 23000 miles
2004 GSF1200S Bandit K4
2000 GS125 ESD
Replied by linuxrob on topic KZ650 cafe-racer
Many many thanks for sharein your methods. I look forward to making a few of these myself.
Our thoughts are with you all
Rob B
UK
Our thoughts are with you all
Rob B
UK
1980 Z500 B2 owned from new 78260 miles
1980 Z500 B2 in bits since 1982 23000 miles
2004 GSF1200S Bandit K4
2000 GS125 ESD
The following user(s) said Thank You: gazzz
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
06 Apr 2022 02:18 #865026
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
Well, that was a rather simple decision: knowledge is better to be shared than to be lost.
With the emergence of pictures of massacre in north Kyiv suburbs (Bucha, Irpin) and nearby towns like Borodyanka I feel a black rage I have never felt before. Those atrocities made by Russians, they should never have happened in 21th century.
With the emergence of pictures of massacre in north Kyiv suburbs (Bucha, Irpin) and nearby towns like Borodyanka I feel a black rage I have never felt before. Those atrocities made by Russians, they should never have happened in 21th century.
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
The following user(s) said Thank You: kzstreetfighter71, Scirocco, Wookie58
Please Log in or Create an account to join the conversation.
- gazzz
- Topic Author
- Offline
- Sustaining Member
06 Apr 2022 02:27 #865027
by gazzz
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Replied by gazzz on topic KZ650 cafe-racer
However, here's another little thing I kept forgetting to do. I found the original part list of the 1983 Kawasaki KZ750 (L3) on the Internet some 15 years ago. Since then I managed to forget I found them until one day I was sorting all manuals and lists in my PC. The list is in pictures (JPS, 300dpi), so I ZIPed them in one archive. I loaded scans to my Google Drive and shared them.
Here is a link:
drive.google.com/file/d/1XR9Z3YPX-ES2fjv...gT2/view?usp=sharing
Here is a link:
drive.google.com/file/d/1XR9Z3YPX-ES2fjv...gT2/view?usp=sharing
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
The following user(s) said Thank You: kzstreetfighter71
Please Log in or Create an account to join the conversation.
