Saving a '81 KZ750-E 20 Nov 2019 17:14 #814269

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5484
  • Thank you received: 1605
I reused everything other than the O-rings. The choke setup is fiddly, but it's not too hard to deal with once you figure it out. Study the spring arrangement and take a few photos for reference just in case.

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 20 Nov 2019 17:15 #814270

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

Nessism wrote: Heat on the body will soften the varnish holding the slide.


Nice bit of advise. It worked!
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 23 Nov 2019 14:33 #814416

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

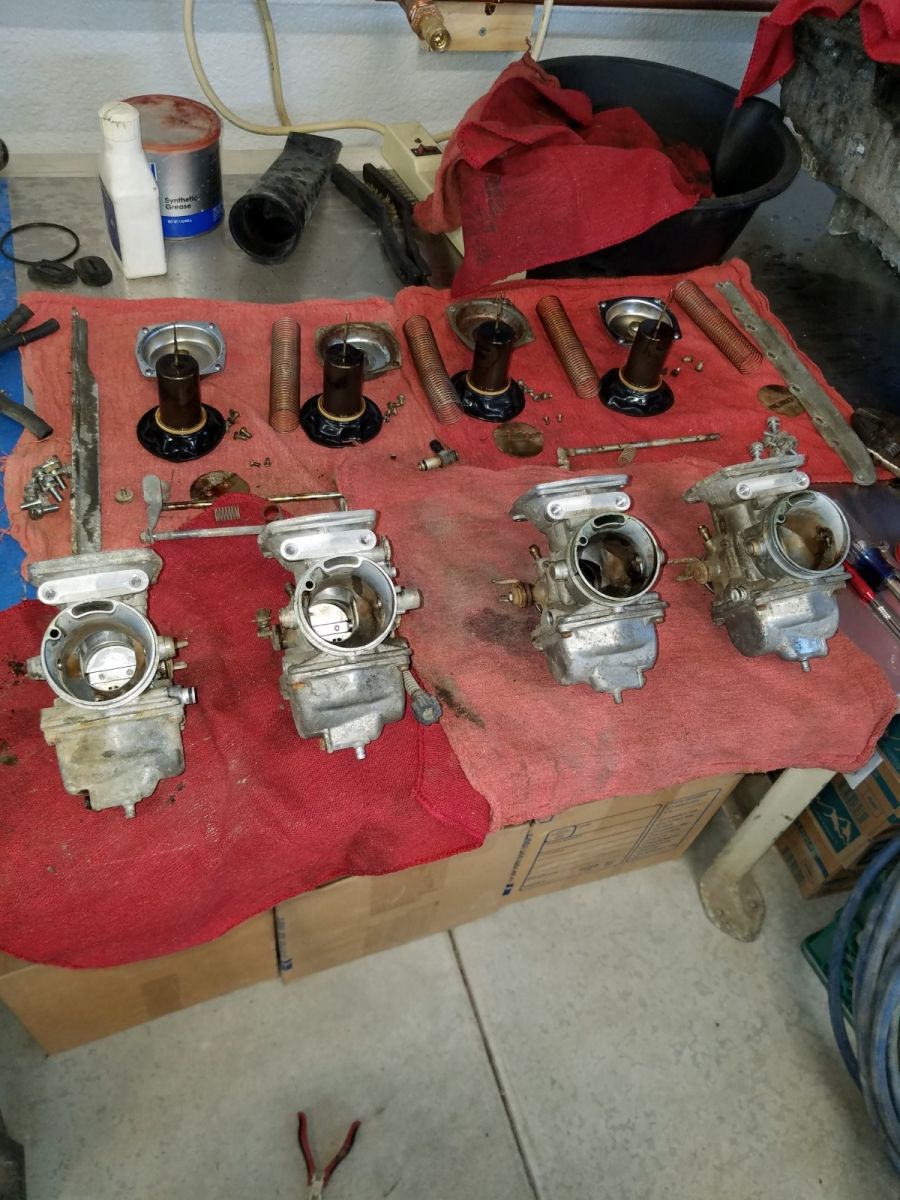

That wasn't too terribly complicated.

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 23 Nov 2019 20:19 #814427

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

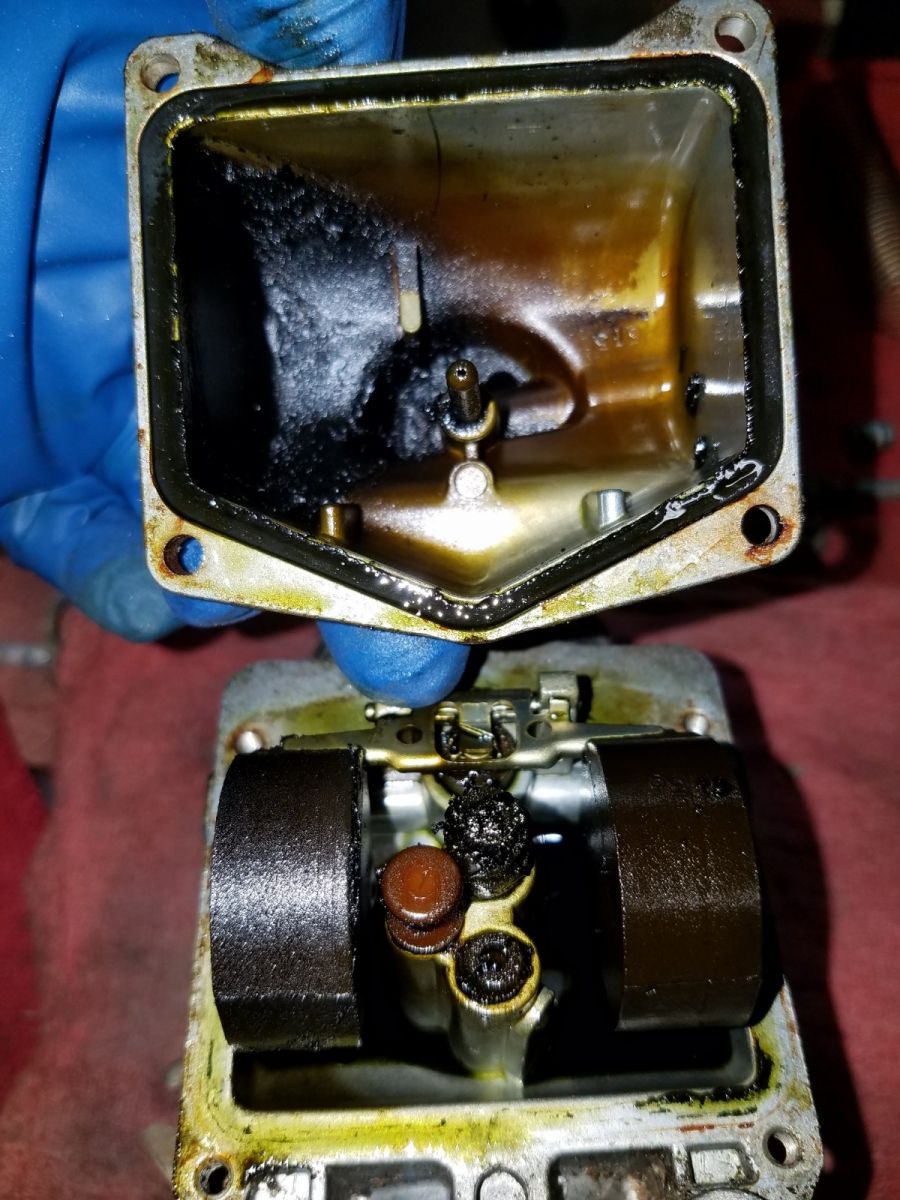

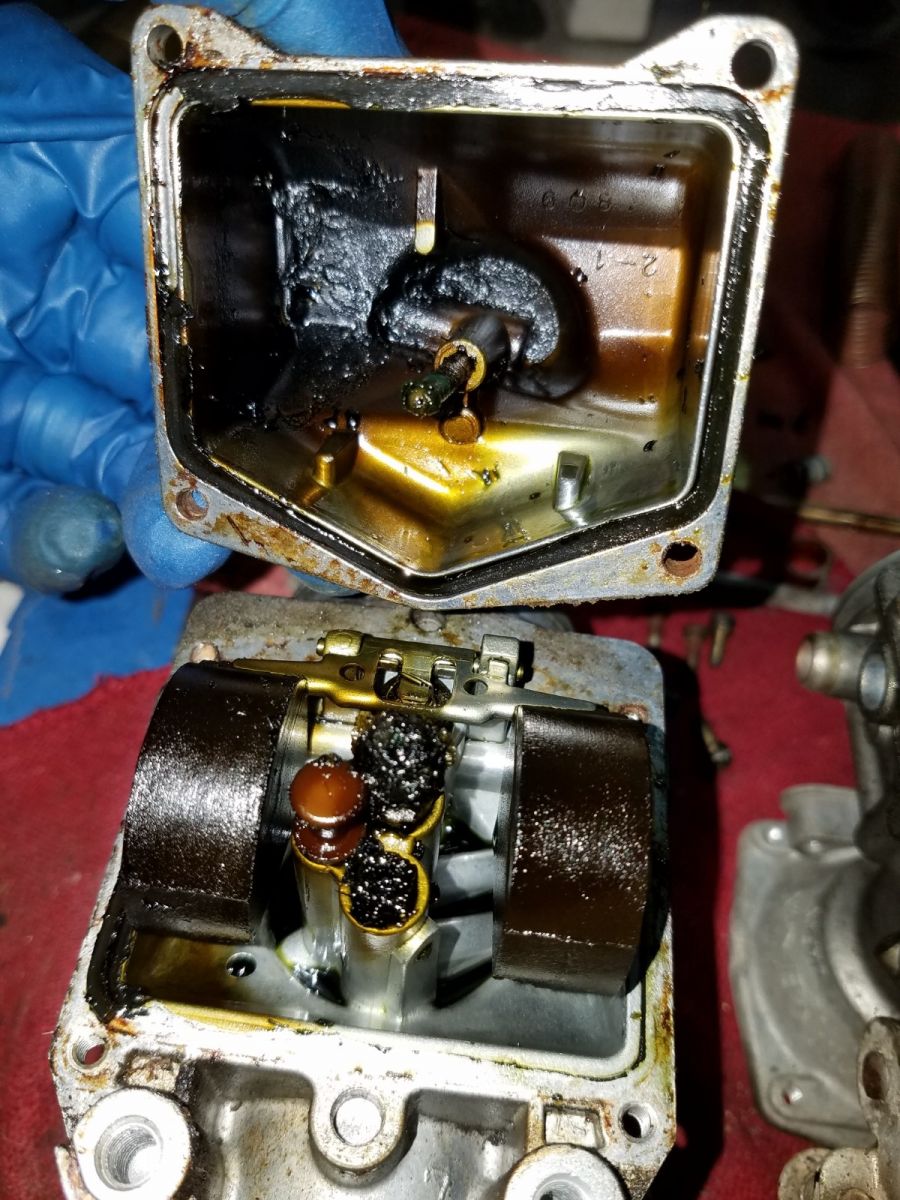

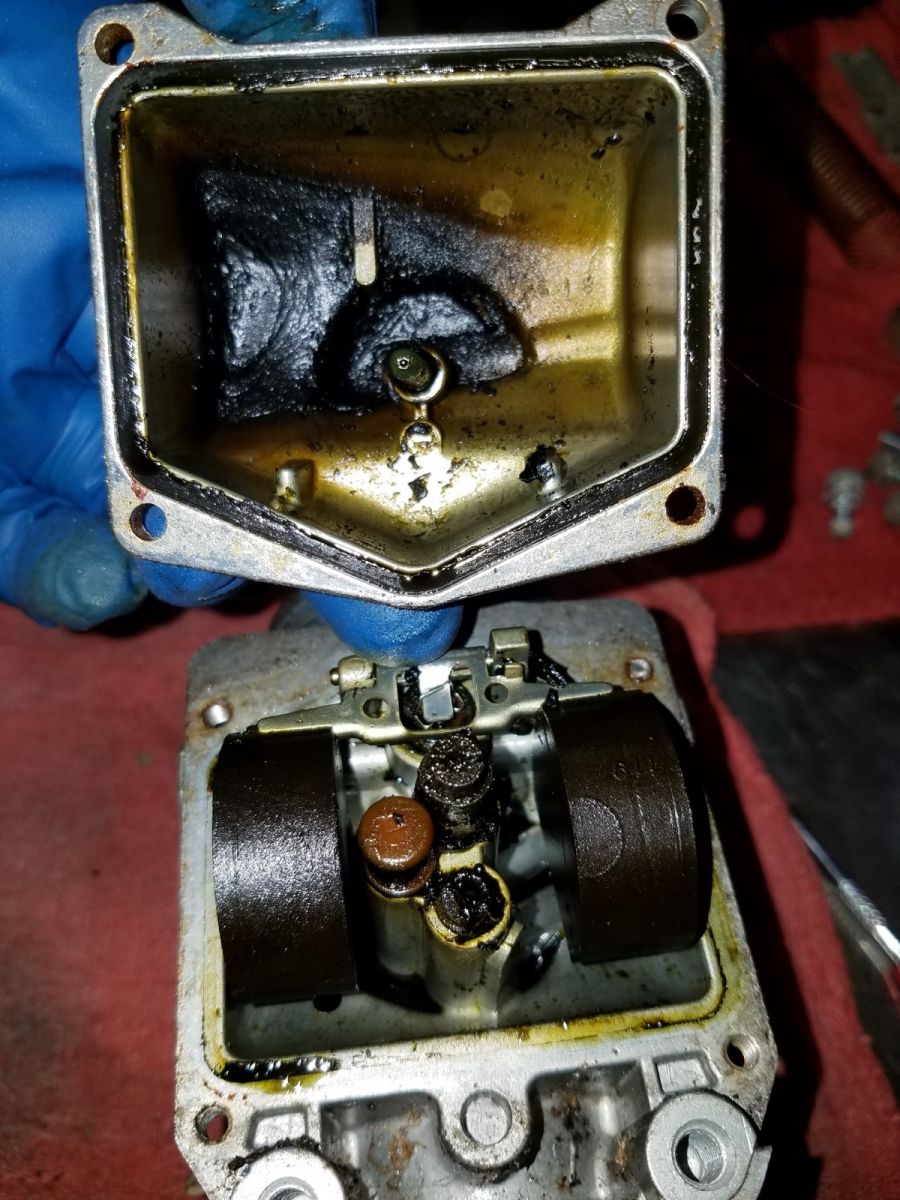

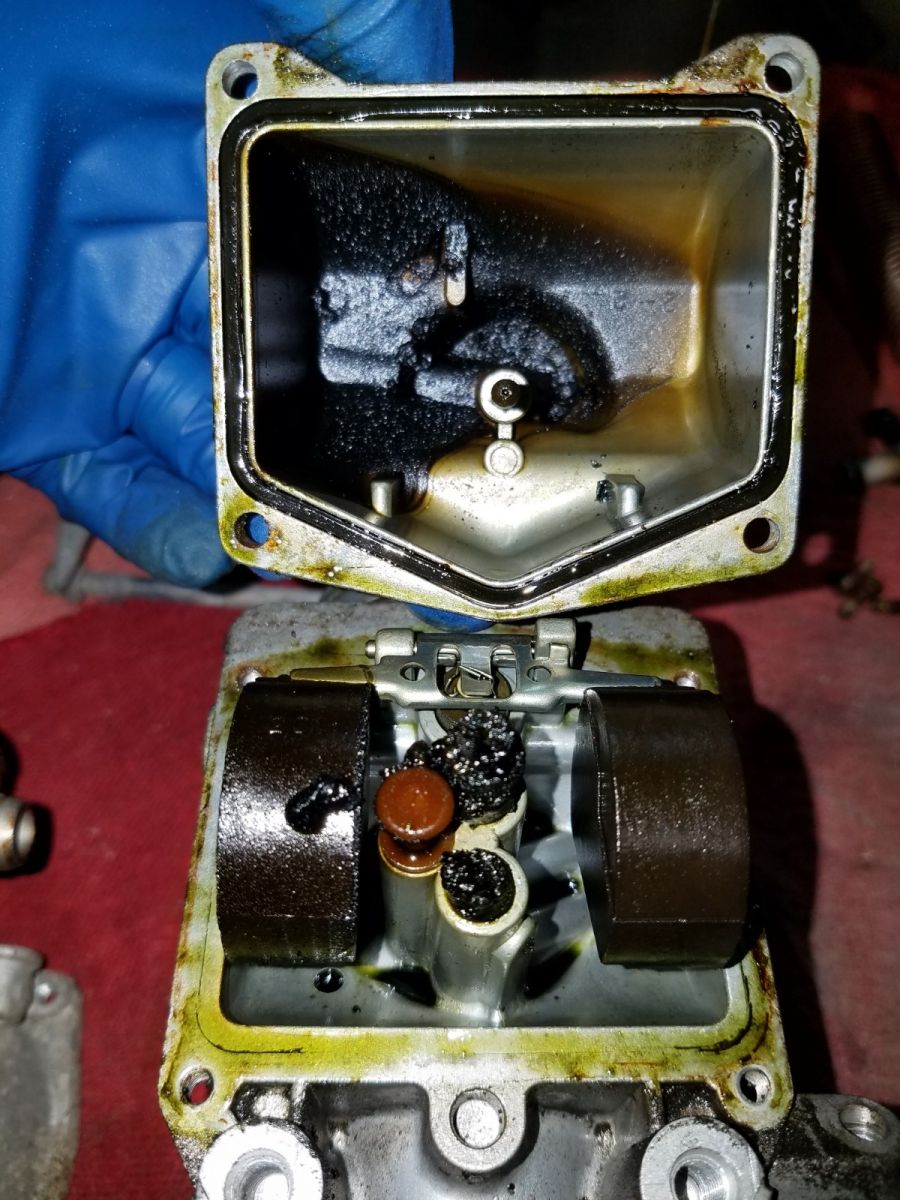

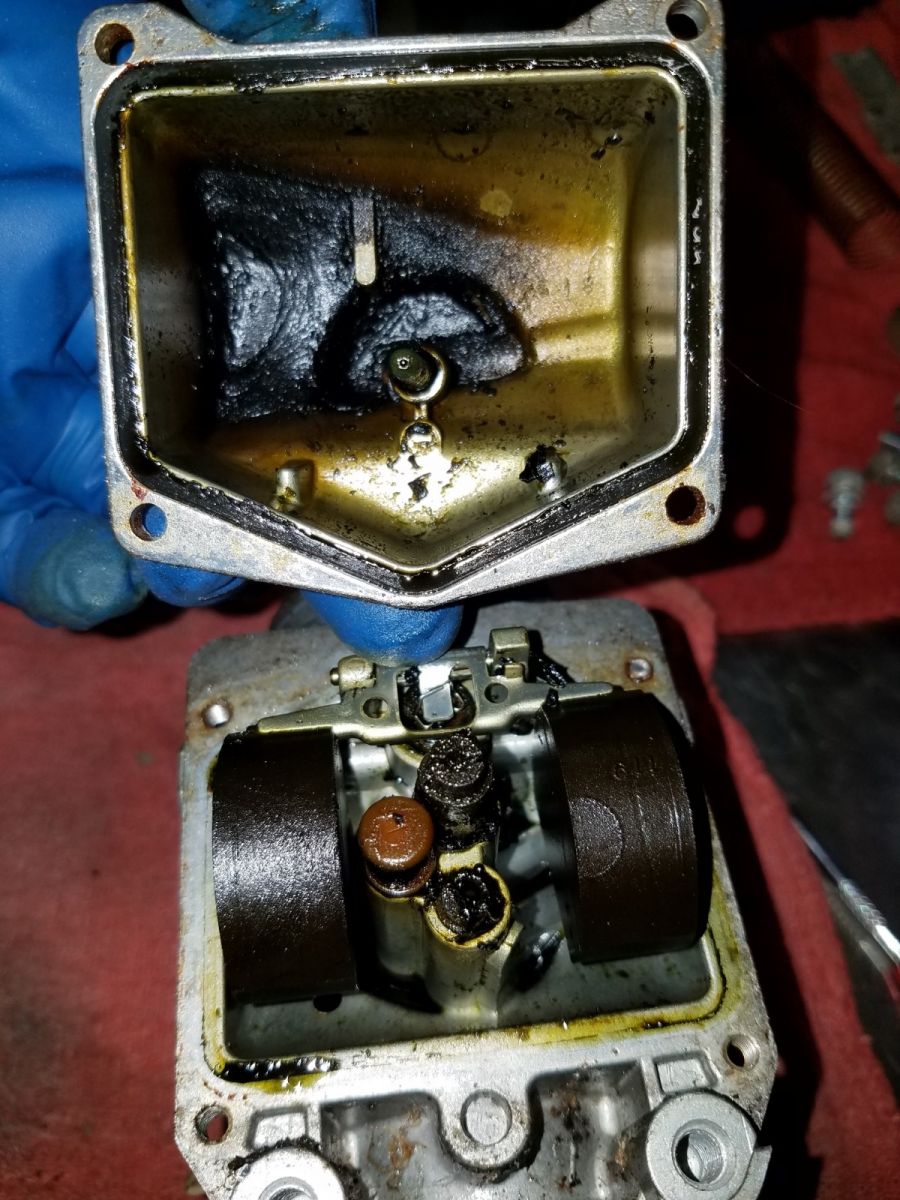

If anyone wonders what happens to gasoline after sitting for 28 years, here is your answer! Getting the float bowl screws out has been the most difficult part so far. 16 possible points, final score - Skidmark =14, float bowl screws =2. At least one broke above the sealing surface, so I won't have to drill it out. The other broke flush. Bummer. This was after soaking with penetrating oil.

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 23 Nov 2019 20:22 #814428

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5484
  • Thank you received: 1605
I've seen worse. Those will be okay.

If you need float needles get Keyster brand. They are the only ones with a spring strong enough to hold up the float like the OEM parts.

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

Saving a '81 KZ750-E 23 Nov 2019 20:29 #814429

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
I have purchased a Dyno Jet kit for these. Going with stage 3. K&N pod filters with a Delkevic 4 into 1 exhaust. I also picked up the stock Keyster rebuild kits with most of the o-rings, float valve needles, etc.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Last edit: by Skidmark.

Saving a '81 KZ750-E 23 Nov 2019 20:39 #814430

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
Any issue with soaking these floats in carburetor cleaner for prolonged periods of time?
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 23 Nov 2019 22:50 #814435

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3028
  • Thank you received: 1325

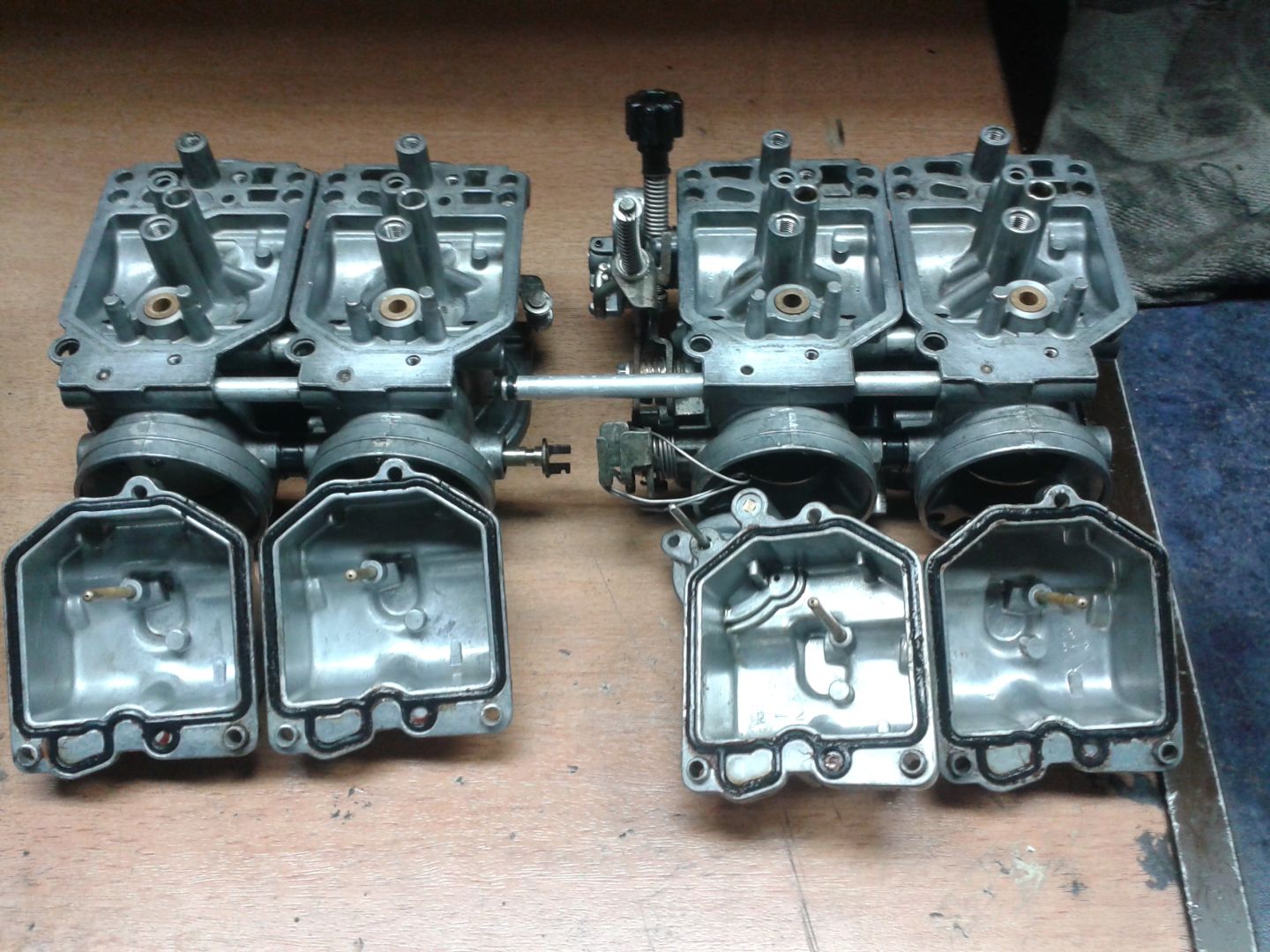

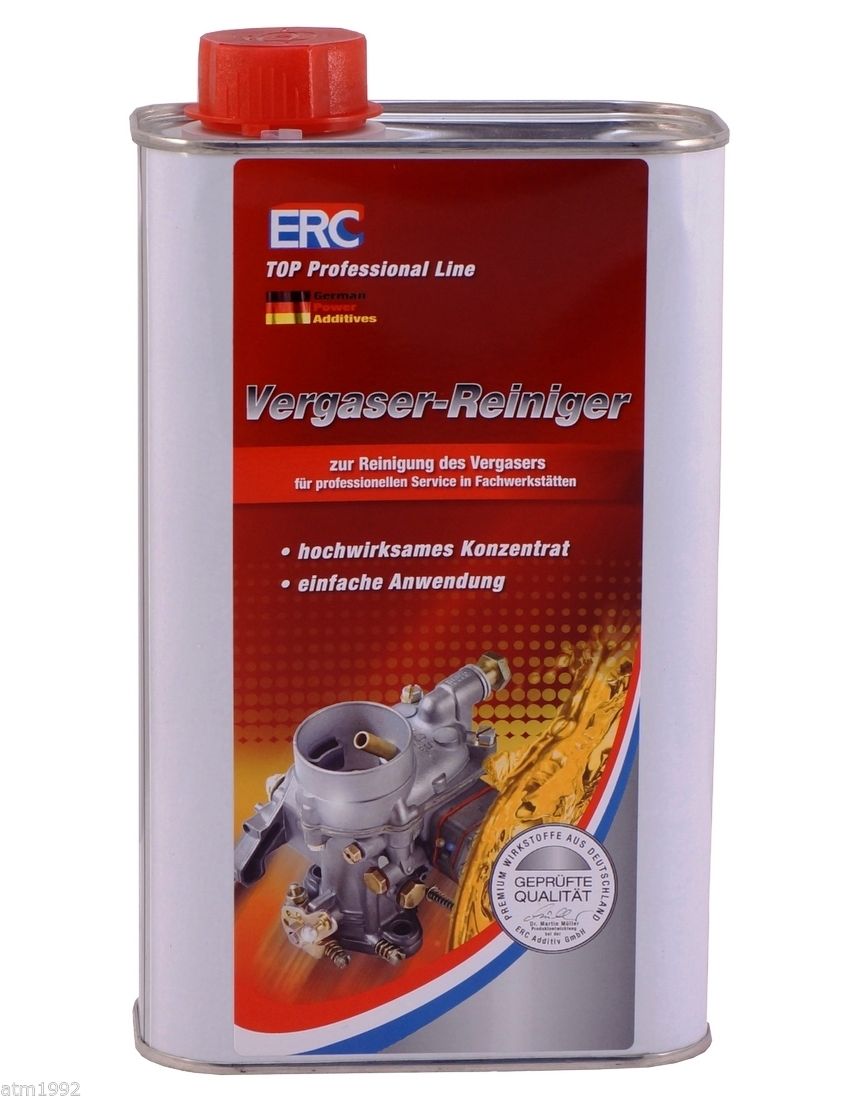

Never had any issue with the floats in carb dip. This carbs (CB 650) are looking like yours before and are clean as new now.


Attachments:
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 24 Nov 2019 05:10 #814439

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5484
  • Thank you received: 1605
I would not soak the floats. There should be no reason. Use some spray carb cleaner in a cup and or jar and keep them wet for a few minutes. That should soften the varnish enough to wipe or scrub away with a toothbrush.

How is the condition of the inlet fuel tee? The plastic inlet part likes to crack. Also, be careful of the pilot jet plugs. They are plastic with a tiny O-ring. Don't soak those either. I've posted all the various O-ring sizes here before in older threads so you can supplement those carb kits. Lastly, be sure to remove the bleed pipes and pilot screws since the orifice through those is tiny. You gotta hold them up to a light to be sure they are open.

Good luck

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 25 Nov 2019 19:42 #814558

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
So I picked up the smallest easy-out I could find, drilled a really centered hole in the screw using my drill press, used penetrating oil for 24 hours, and that bitch just doesn't want to let go. I even tried heating the aluminum to get it to expand. I guess I will try again in a day or two with more applications of penetrating oil. In the mean time, I am soaking the second broken float bowl screw at the same intervals, hoping when I get to that one it will let go easier.

My new mantra...
Old bikes are fun
Old bikes are fun
Old bikes are fun
OOMMMMMMMM.....
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 25 Nov 2019 19:47 #814560

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Away
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

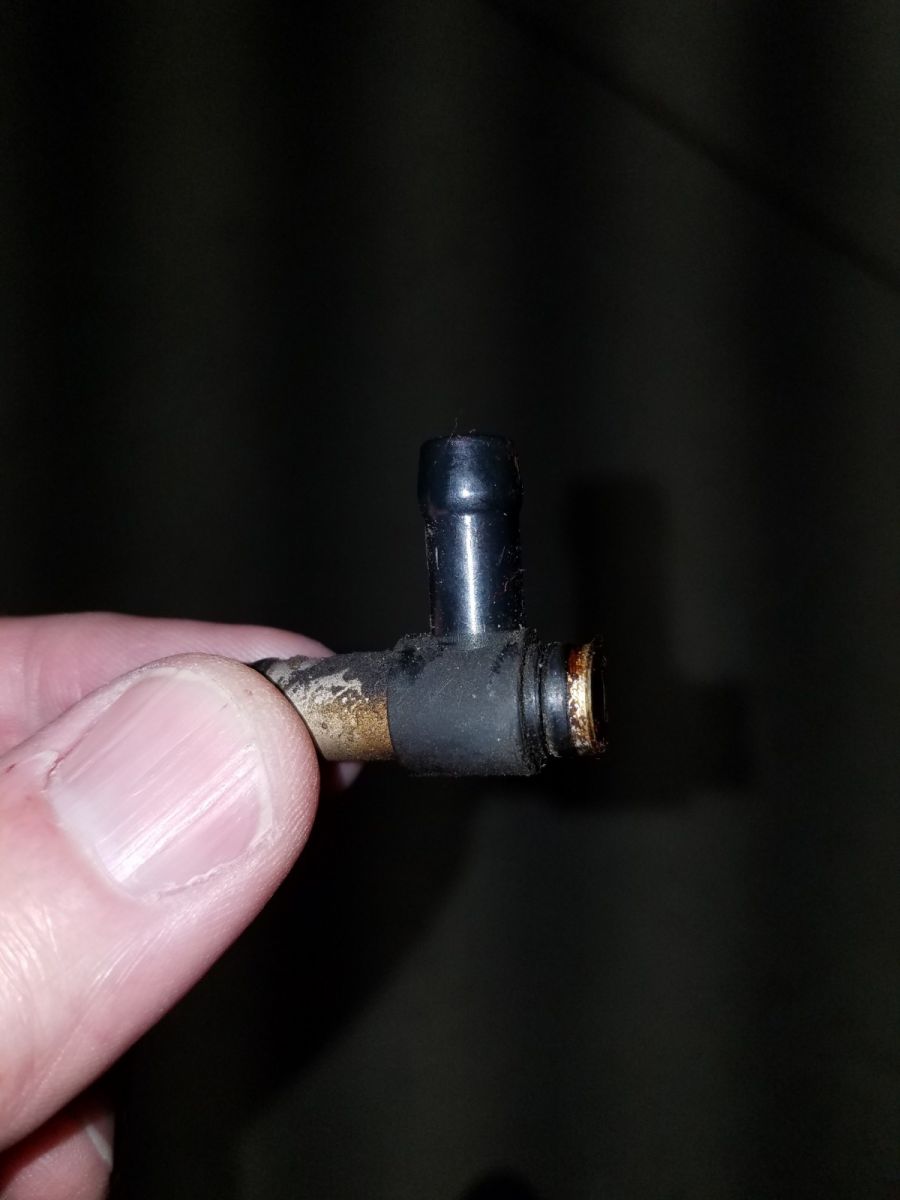

The fuel T looks pretty good, just needs to be cleaned like everything else. I will be extra careful with it as it's probably very brittle.

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 25 Nov 2019 20:12 #814563

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5484
  • Thank you received: 1605
EZ-outs are pure evil. They love to break off. LH drill bits are a lot more reliable method to extract broken screws. Harbor Freight sells a useable set. Start small and work up slowly in size. The screw will typically spin out as the wall thickness thins out.
