Saving a '81 KZ750-E 14 Nov 2019 14:27 #814001

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

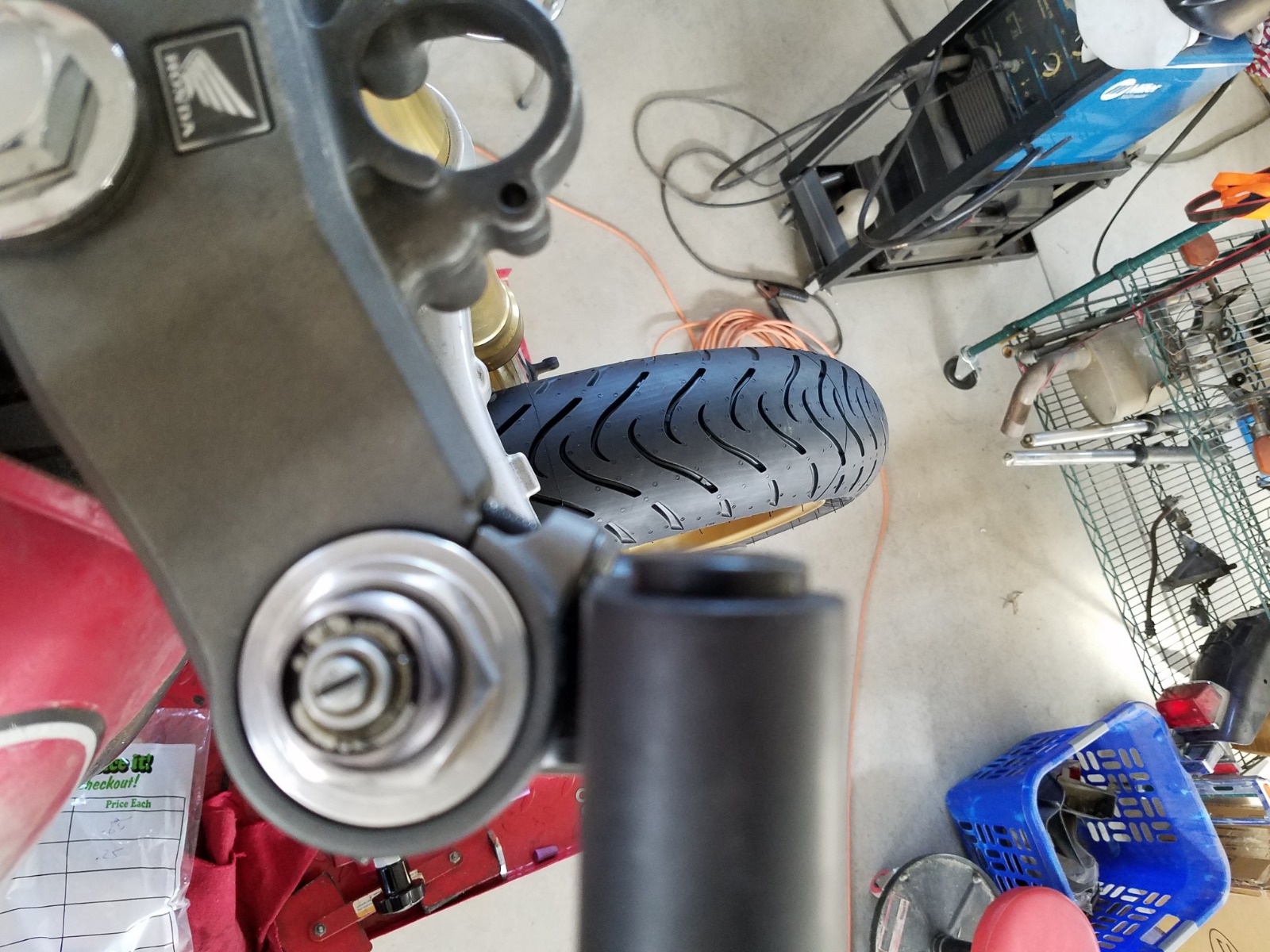

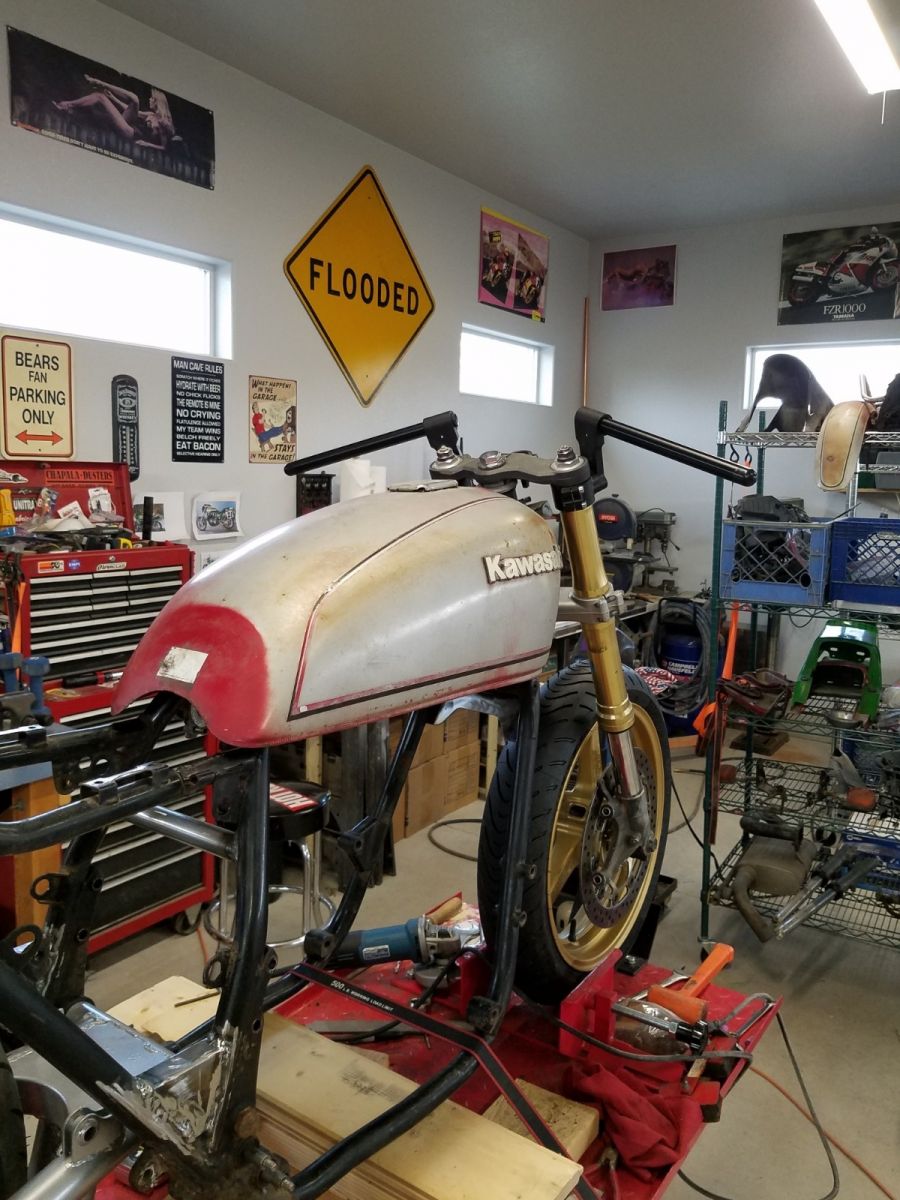

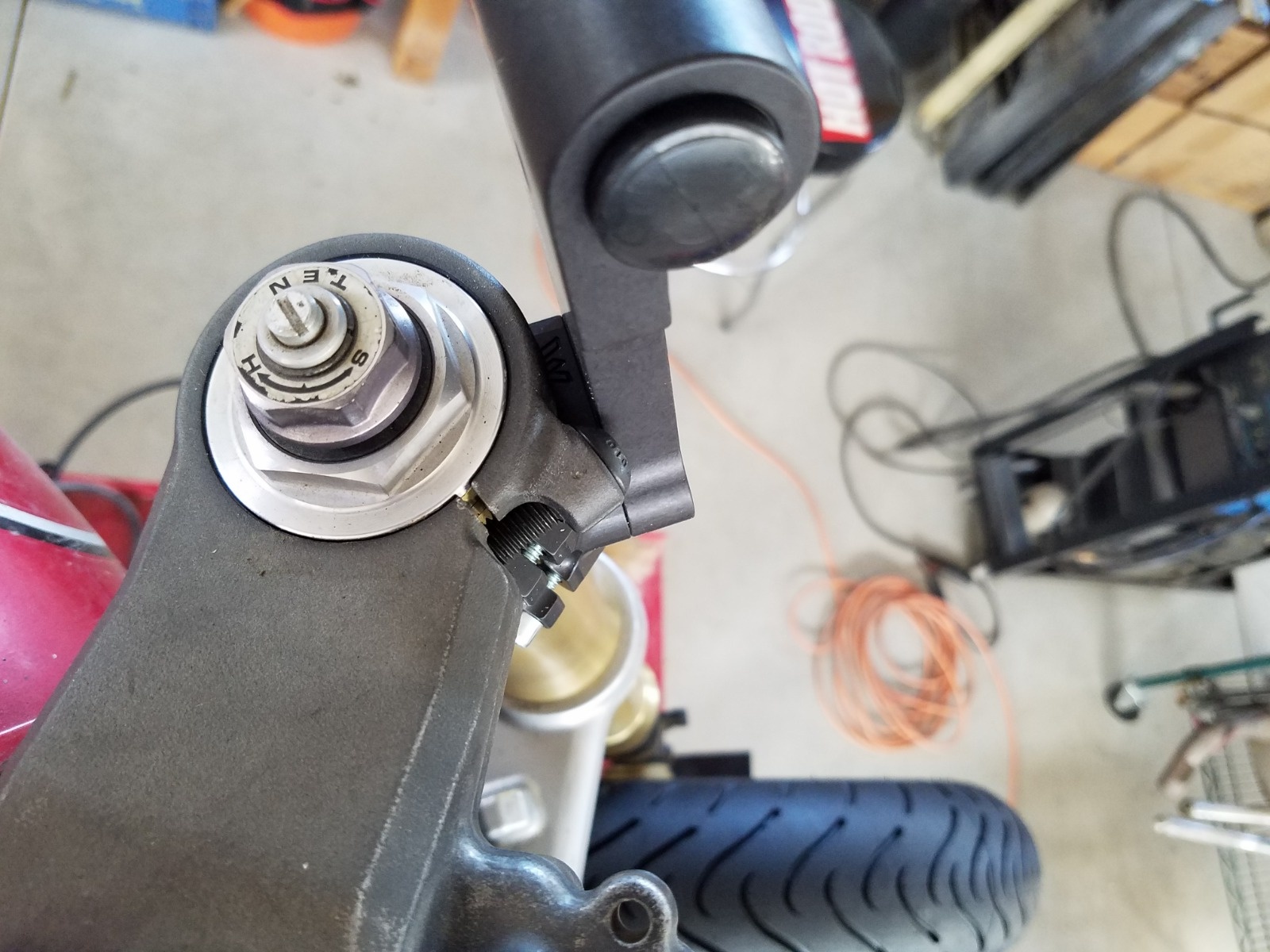

I found some pan head screws today that allowed the bars to move another 3/4" forward. I will use this position to get the steering stops dialed in. I'm planning on about a 1/2" of clearance at the tank at full turn.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 14 Nov 2019 14:33 #814002

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
After the steering stops are finished, I have to make up my mind on what turn signals I will use. The mounts for the turn signals should be the last modification to frame before it can be sent out for powder coating. There is a dizzying amount of aftermarket turn signals out there! I have been hesitant to look at LED units since I doubt the stock relay will blink with such a small load. Has anyone tried upgrading these older systems to an LED style? If so, what blinker relay was used?
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 14 Nov 2019 14:37 #814003

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

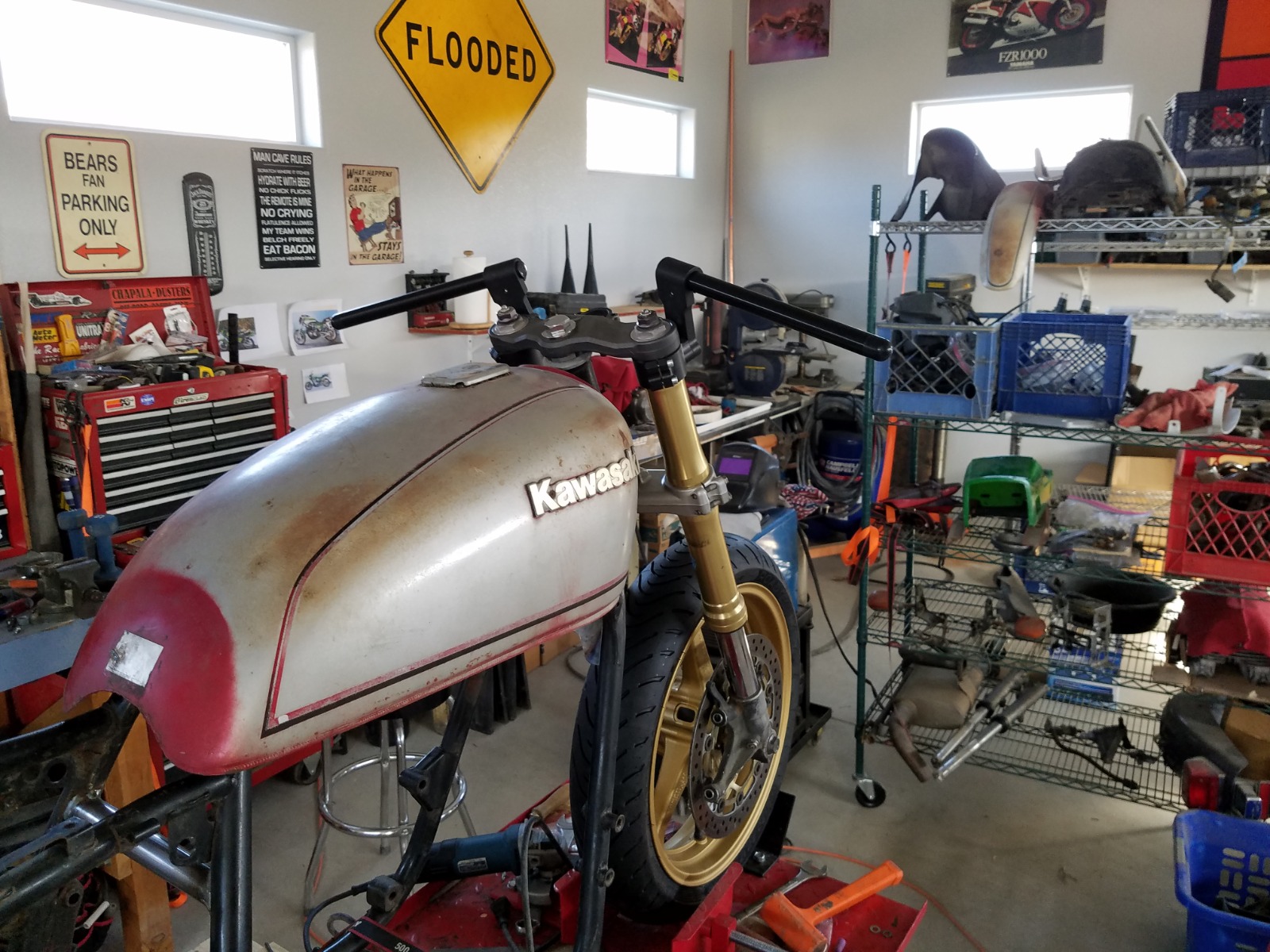

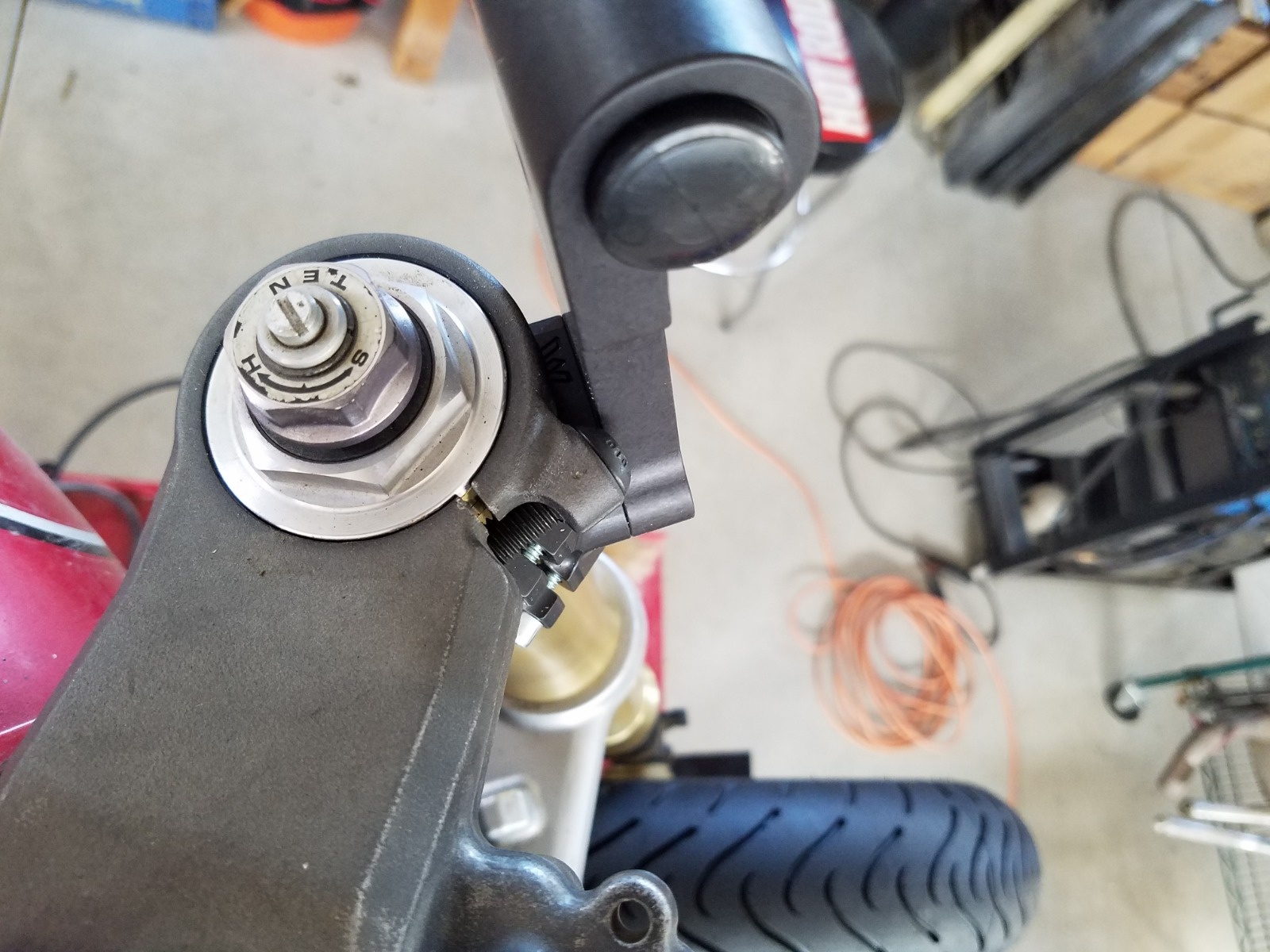

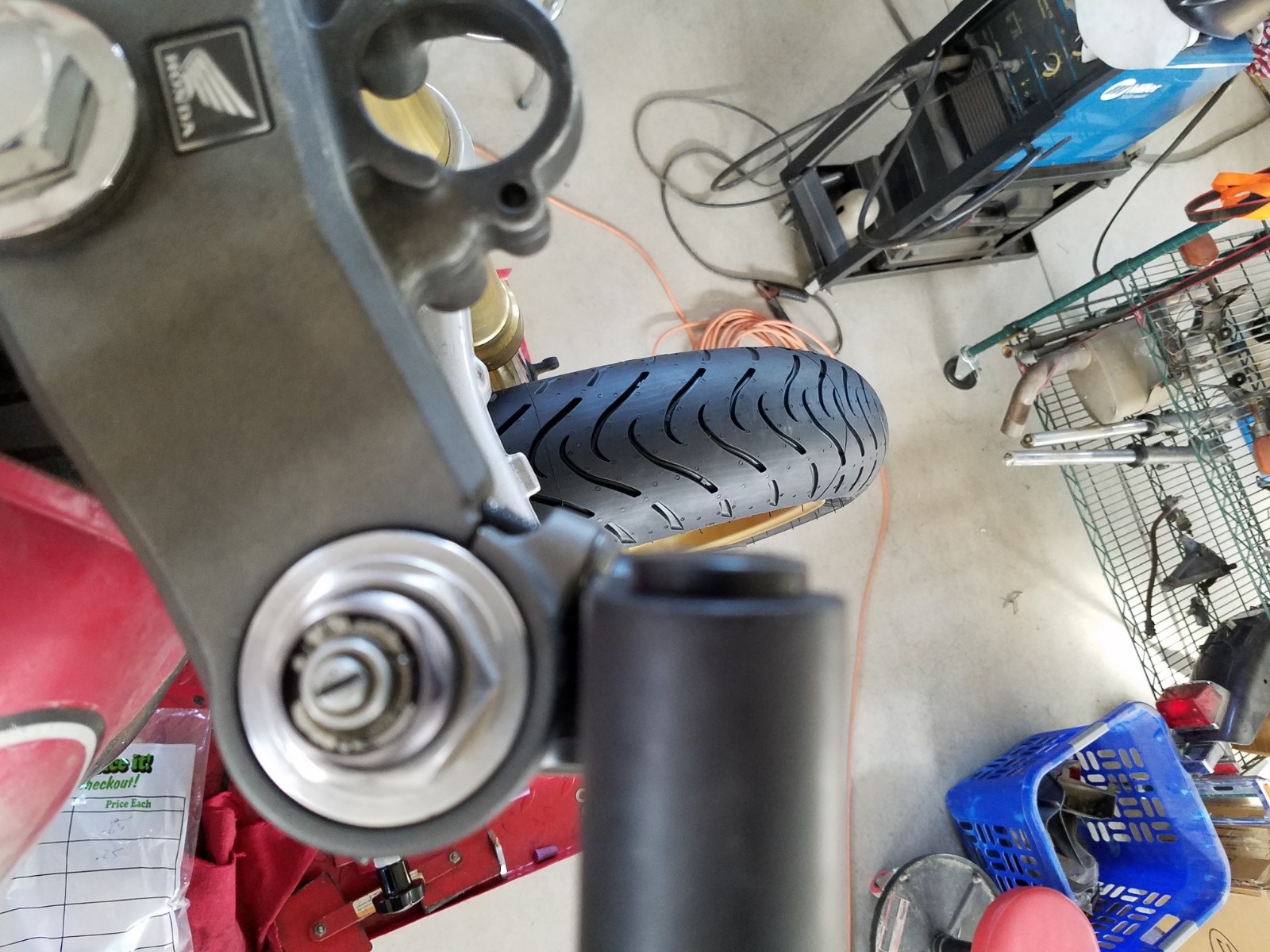

Here is a comparison of the difference in handlebar position with the bolt change.

Before


After
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 14 Nov 2019 14:42 #814004

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3029
  • Thank you received: 1325
LED turn signals only work with an load independent flasher relay.

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

Saving a '81 KZ750-E 14 Nov 2019 14:53 #814005

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
I used LED turn signals on my baja bug, and put in a "no load" relay designed for LED's. It still wouldn't blink with 25 LED's on each circuit. I ended up having to put in a normal bulb side indicator in the front wheel well just to get it to blink. Due to that, I am not sure I trust "no load" relays. If someone has actual experience with a certain brand of relay with these older bikes I would like to know.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 15 Nov 2019 18:21 #814045

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

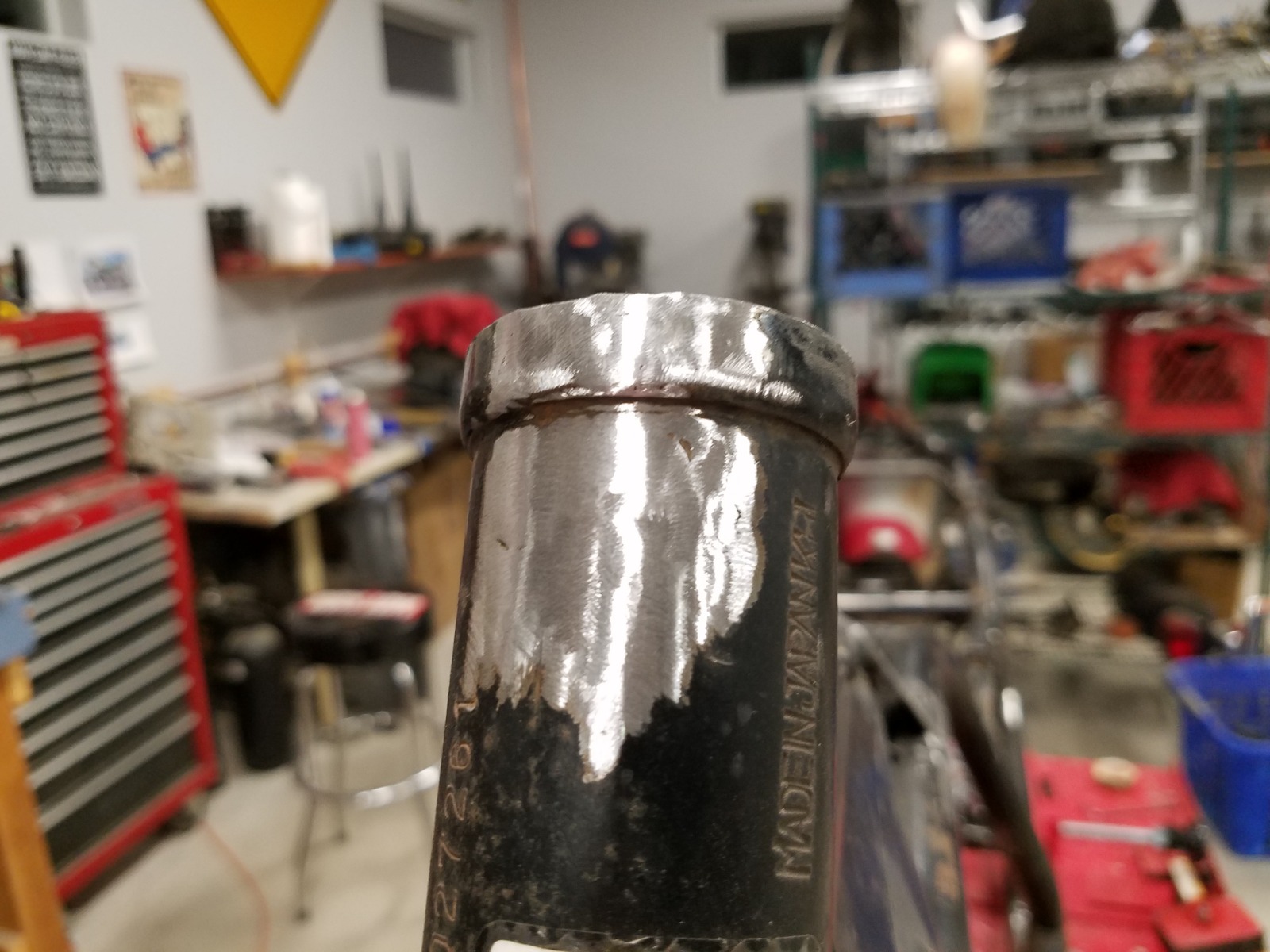

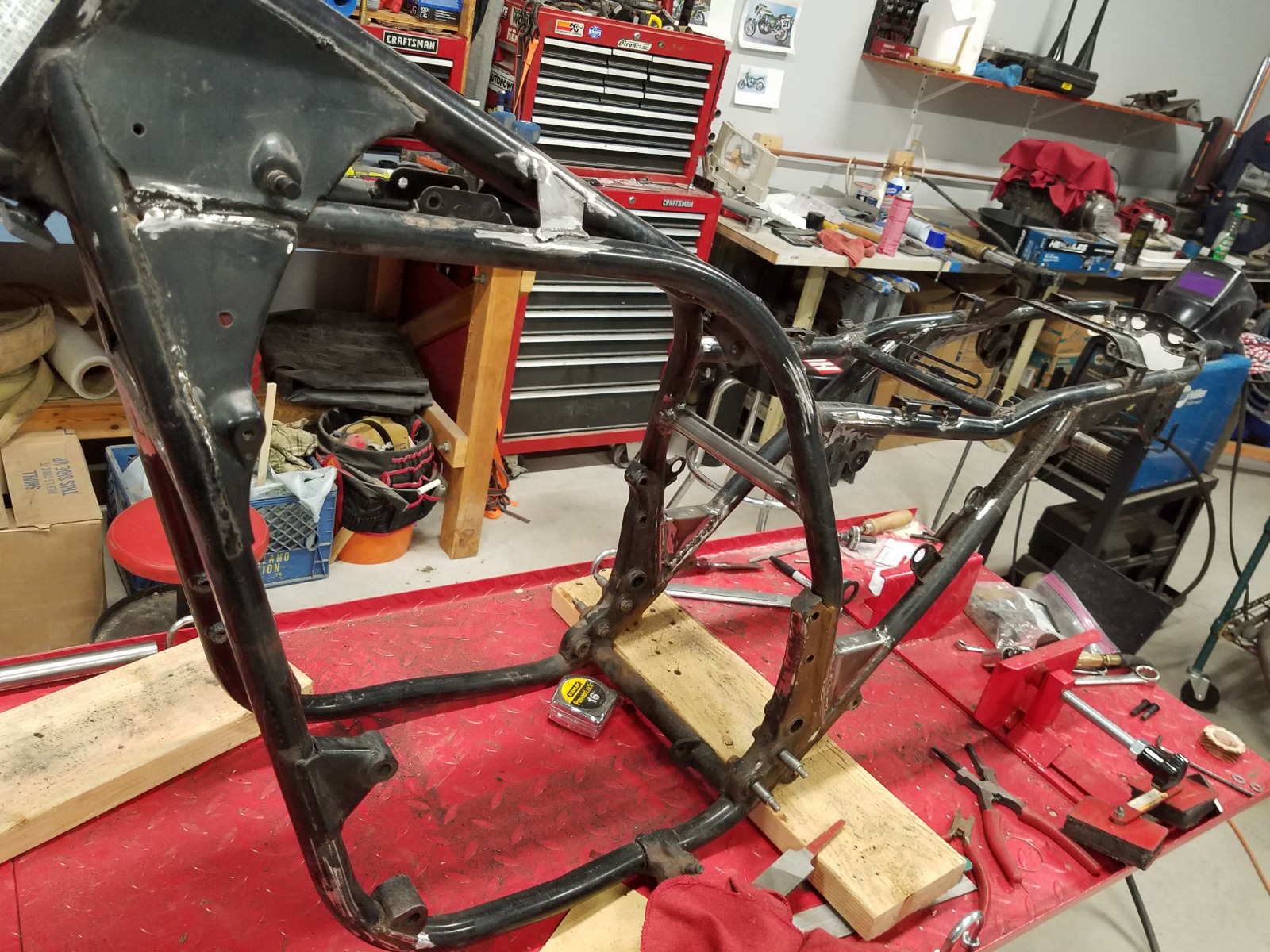

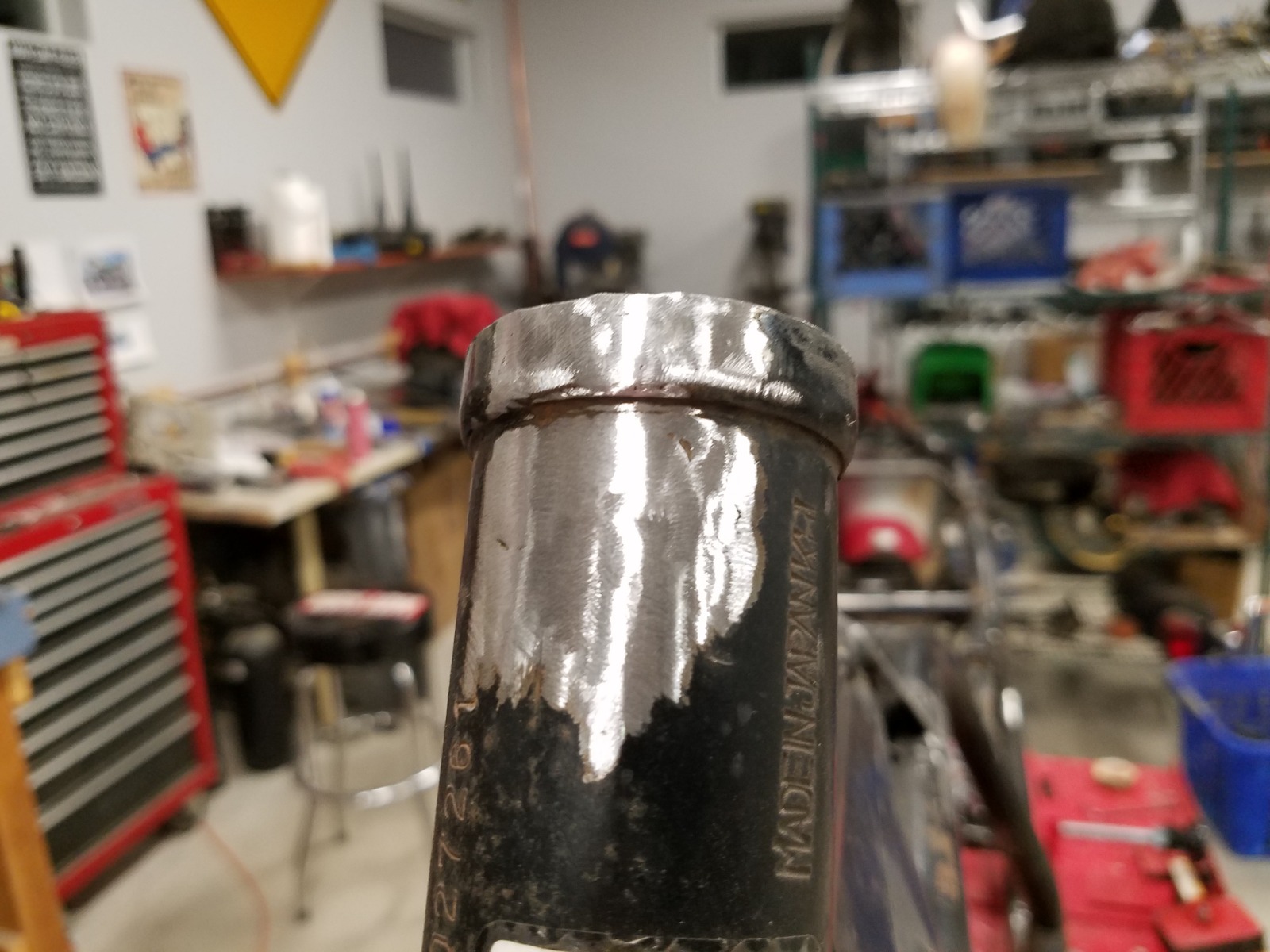

I spent a couple hours today just cleaning up the frame with an air grinder. What Kawasaki left on and around their production welds was pretty disappointing to me. But if I am going to powder coat it, may as well fix all the ugly stuff.

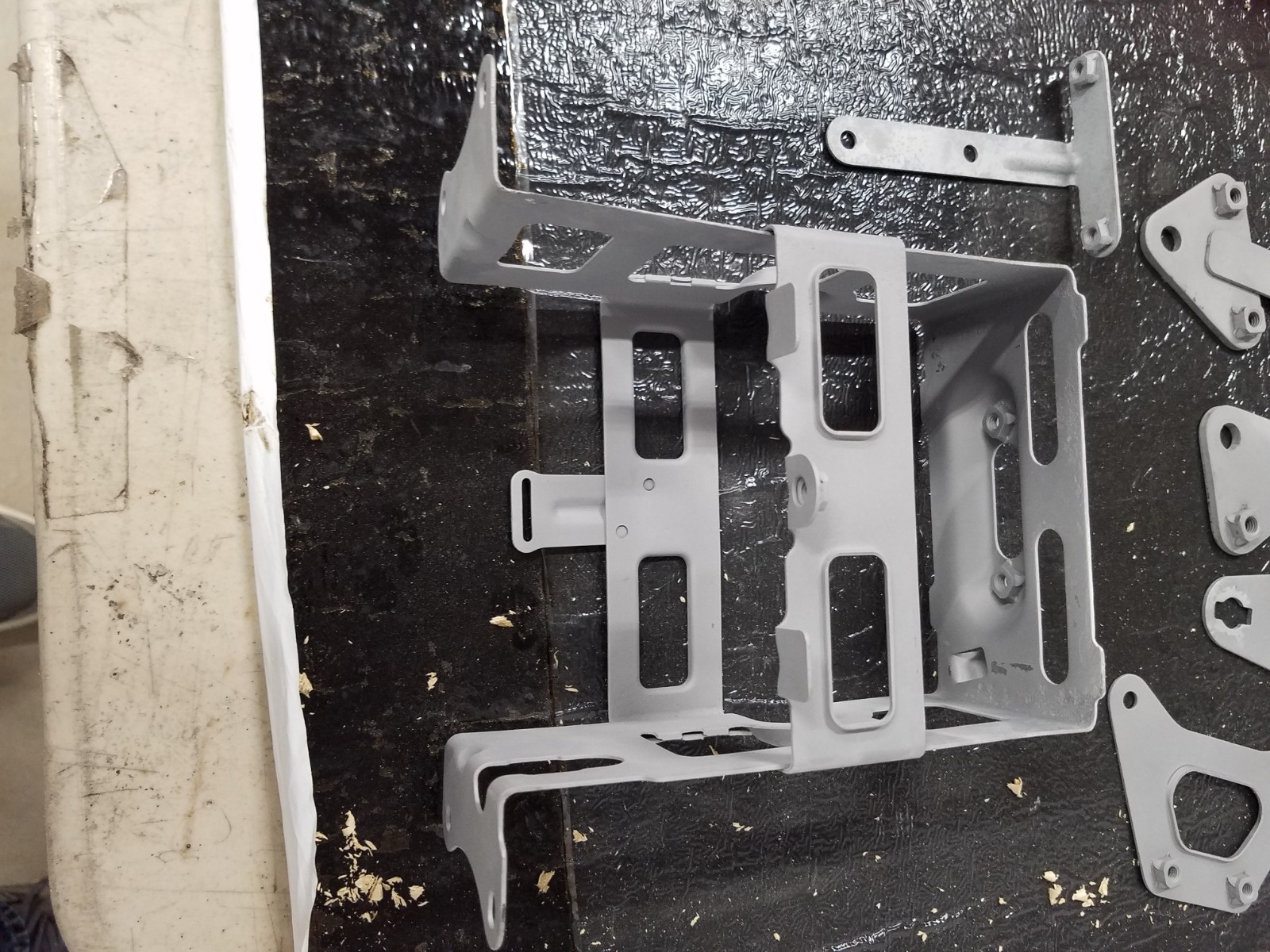

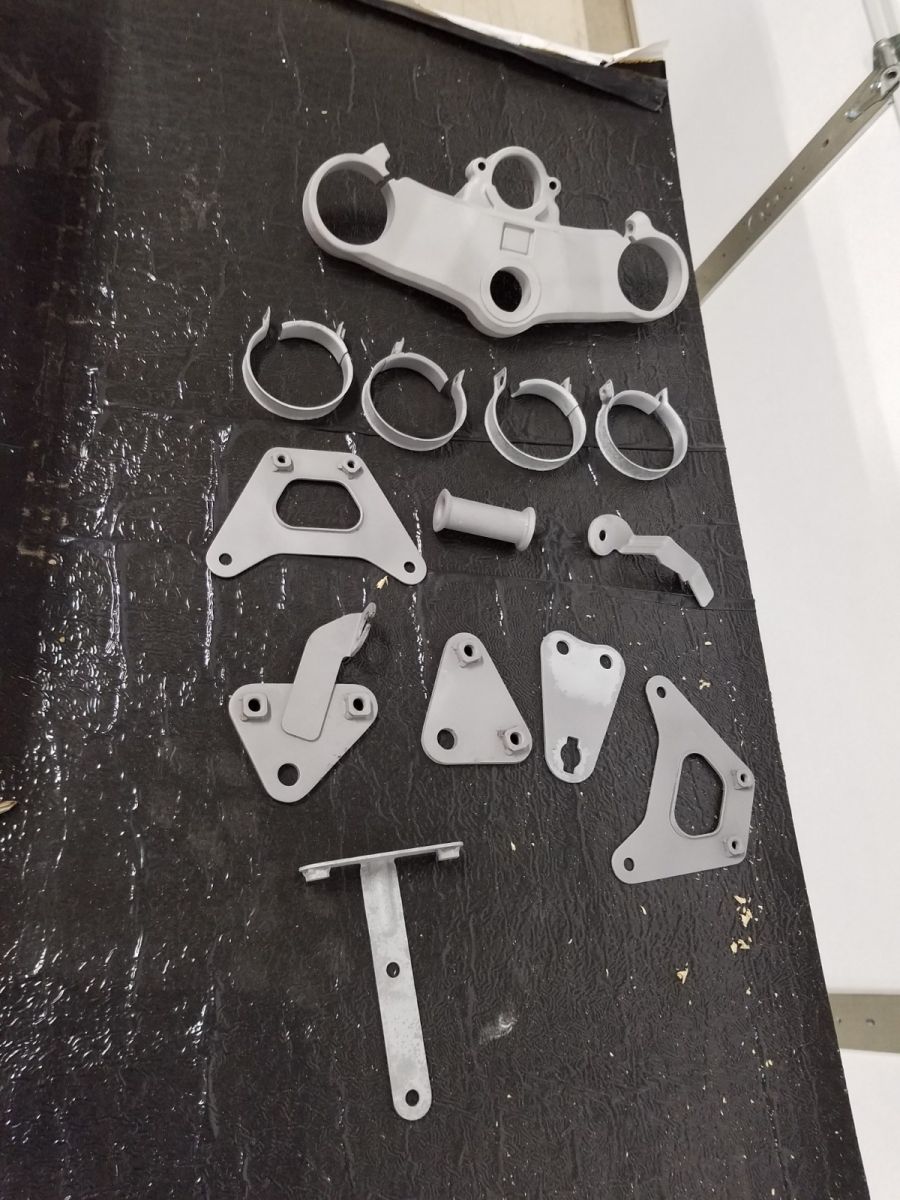

I started to clean all the other bracketry that will get coated with the frame. I love my blast cabinet!
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 15 Nov 2019 18:34 #814047

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 15 Nov 2019 19:00 #814048

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

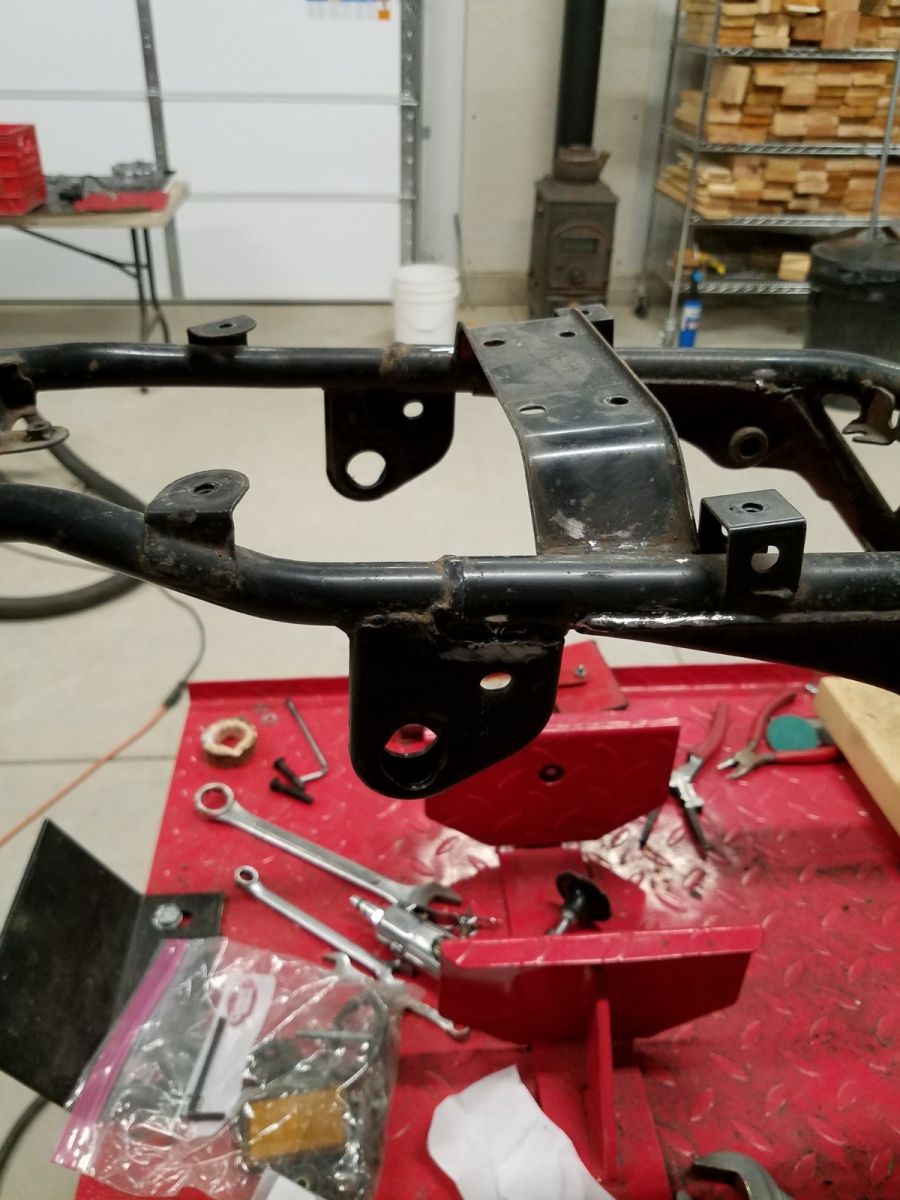

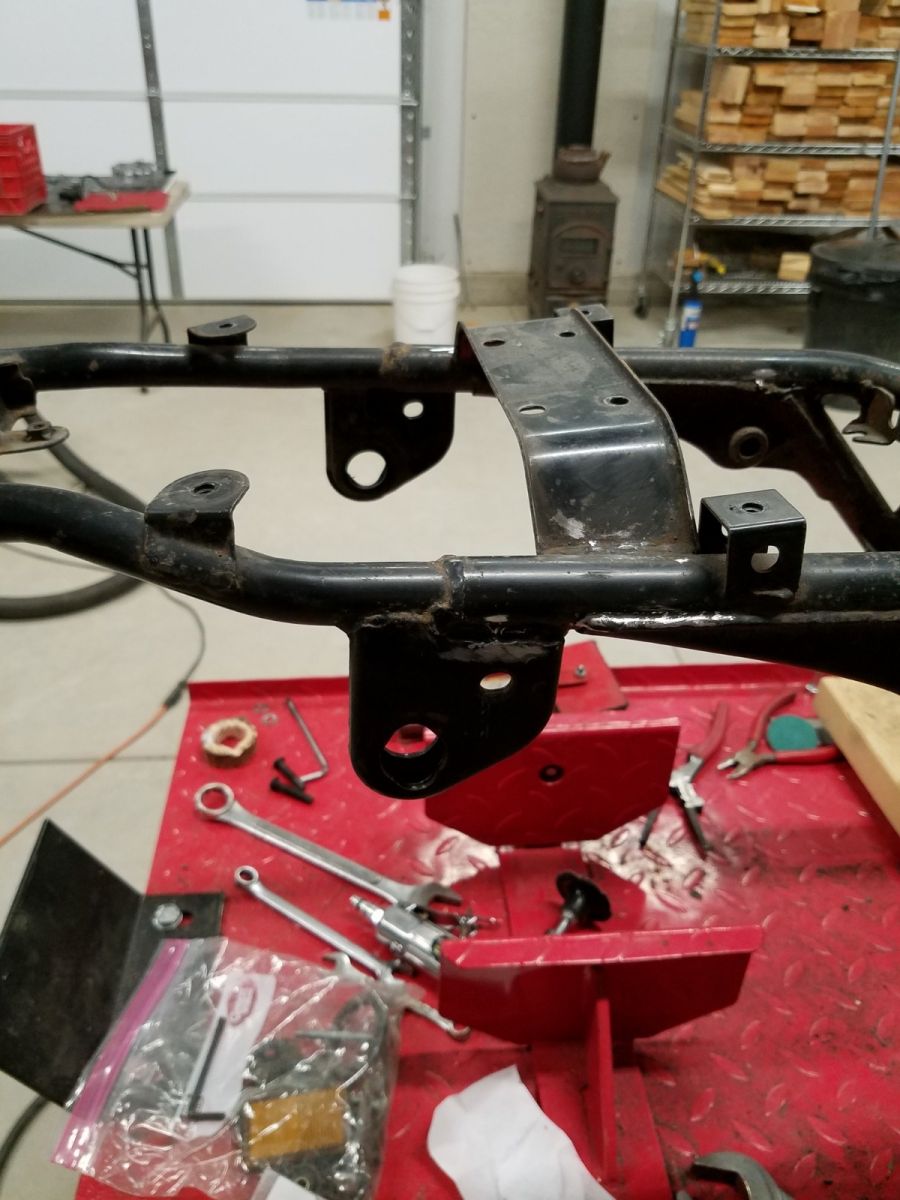

Trying to decide to reduce the size of the stock rear signal brackets, or cut them all the way off and make my own to fit the turn signals I buy. I'm not putting the grab rails back on, or the rear foot pegs. But thinking leaving it optional for a future owner may be a good thing.

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 20 Nov 2019 16:30 #814263

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

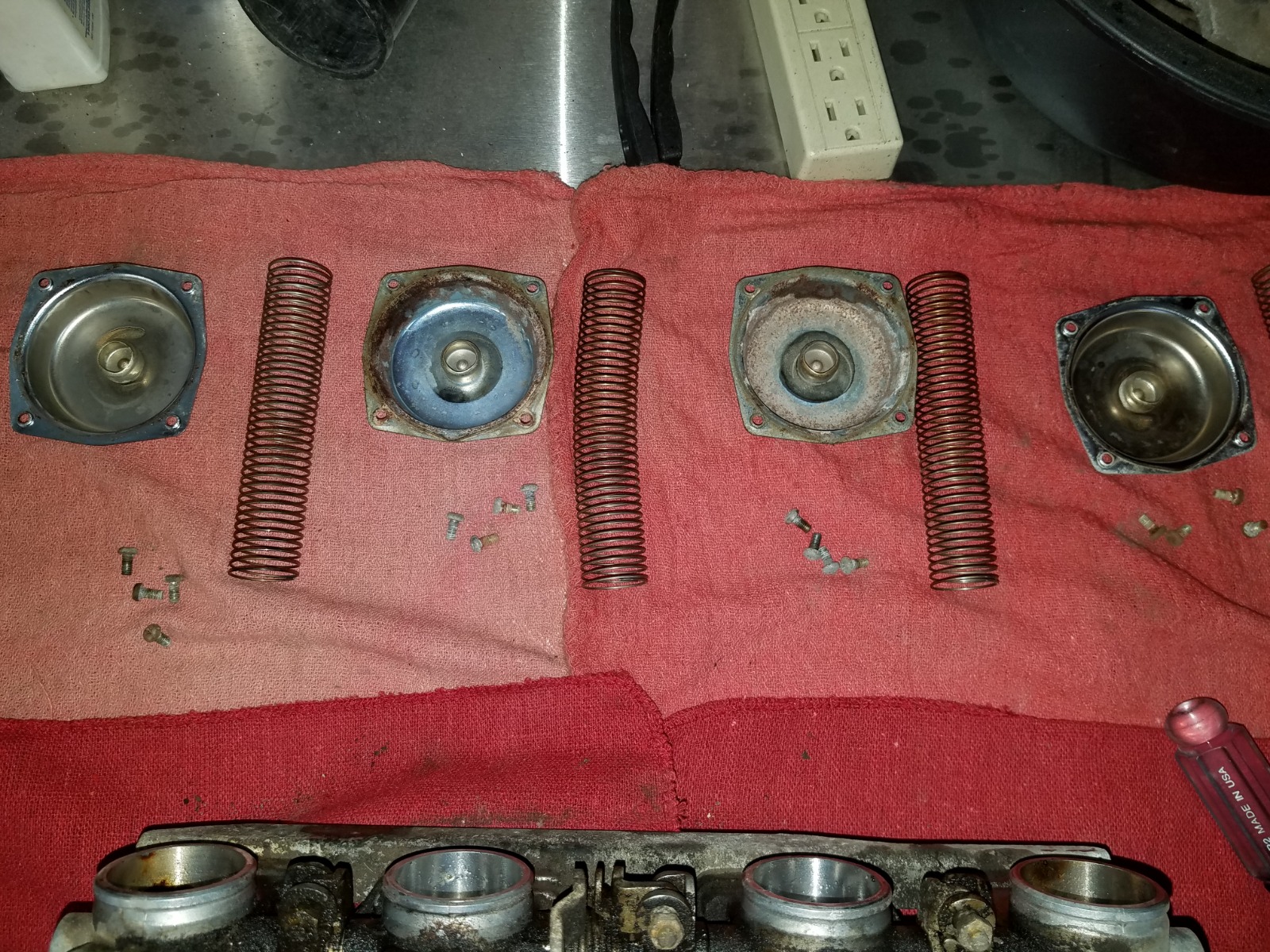

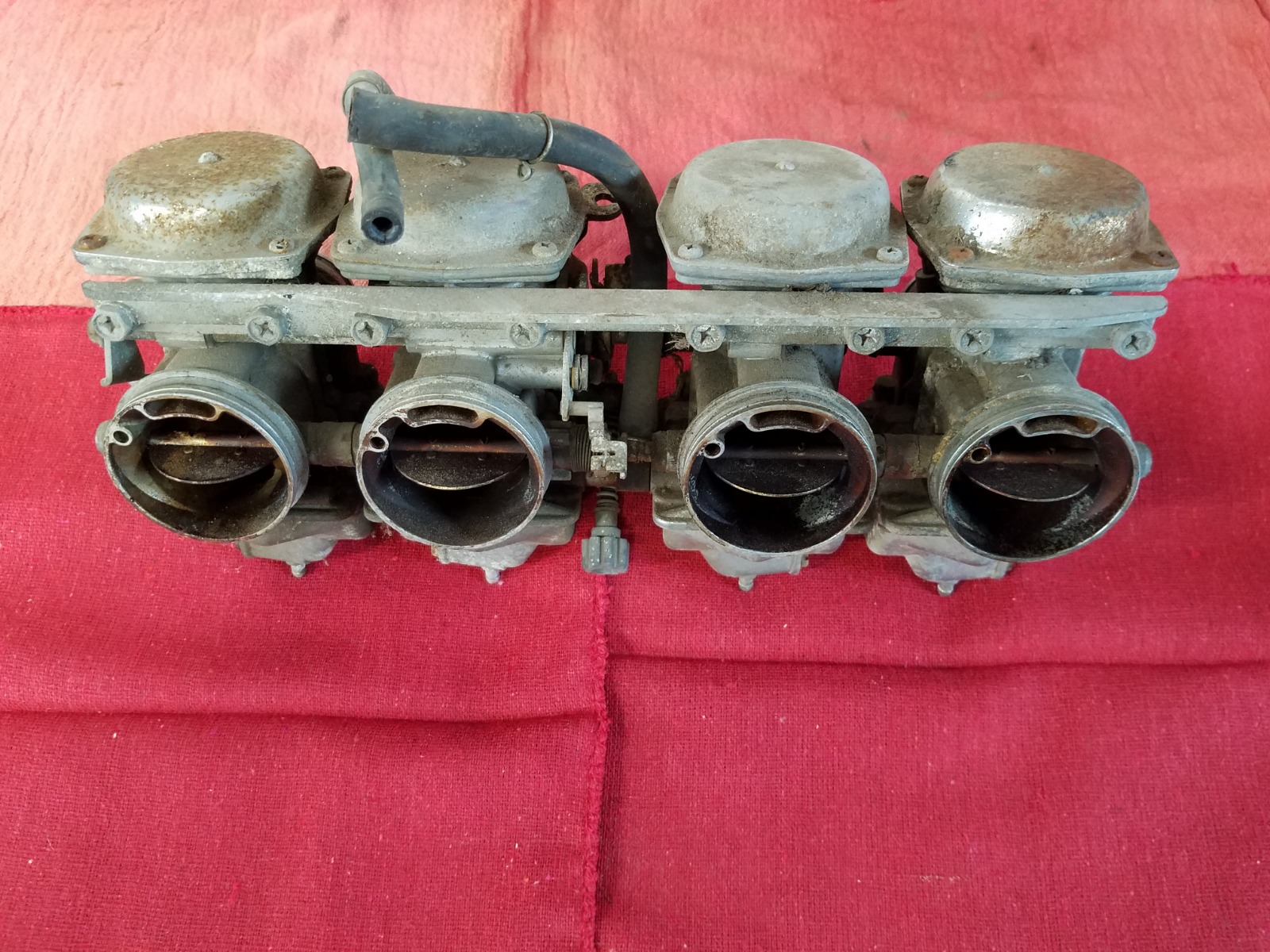

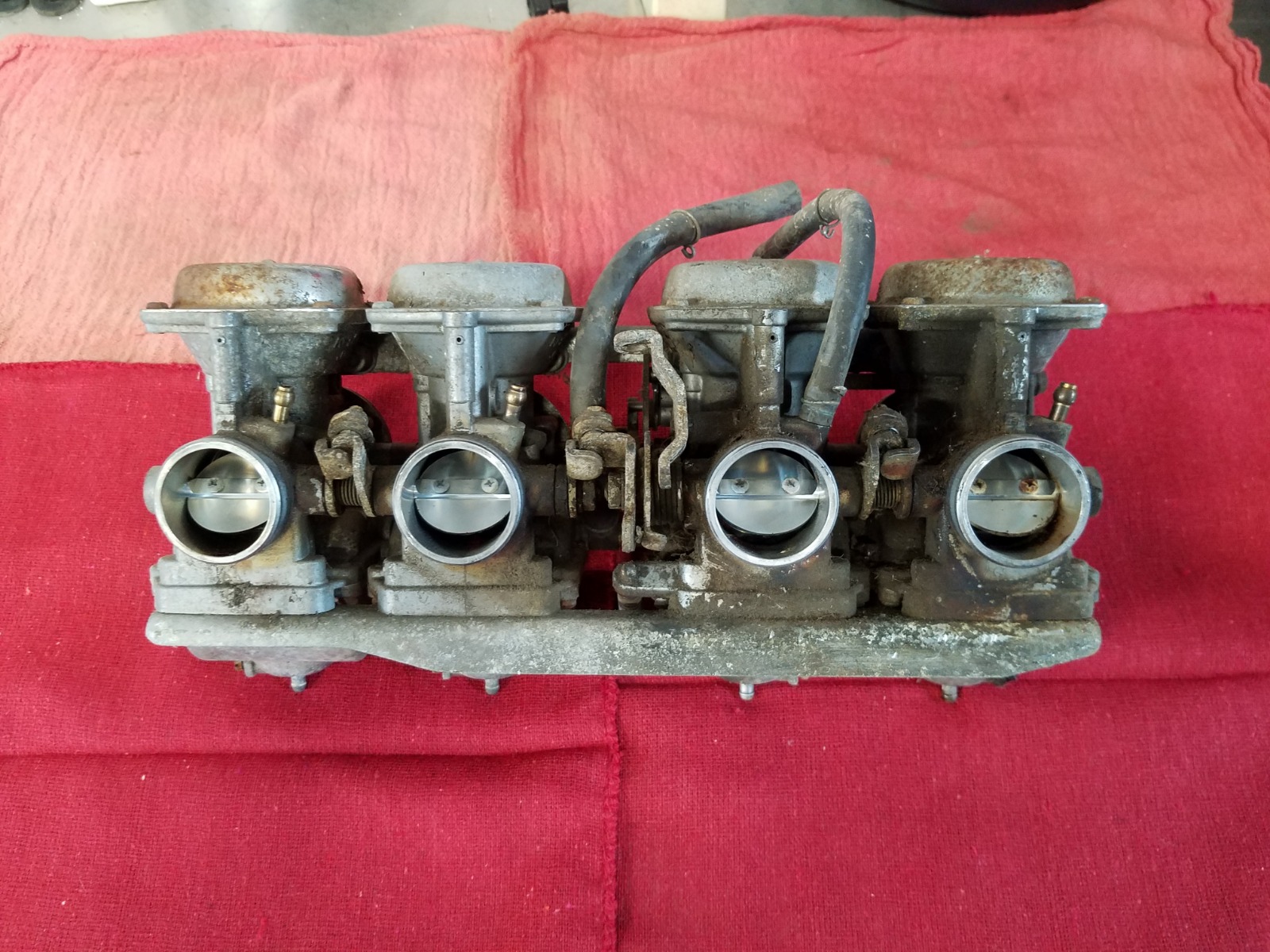

I finally started looking at the carburetors today. With some WD40 I was able to get the choke and throttle shafts moving again. Decided to get the vacuum pistons out and see how the diaphragms are looking. All the pistons were frozen in place. After liberal quantities of WD40, I was able to get 3 of the 4 out. Both outers were more difficult, with one of them being the last remaining. I hope I am up to the task of saving these!

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 20 Nov 2019 16:33 #814264

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109

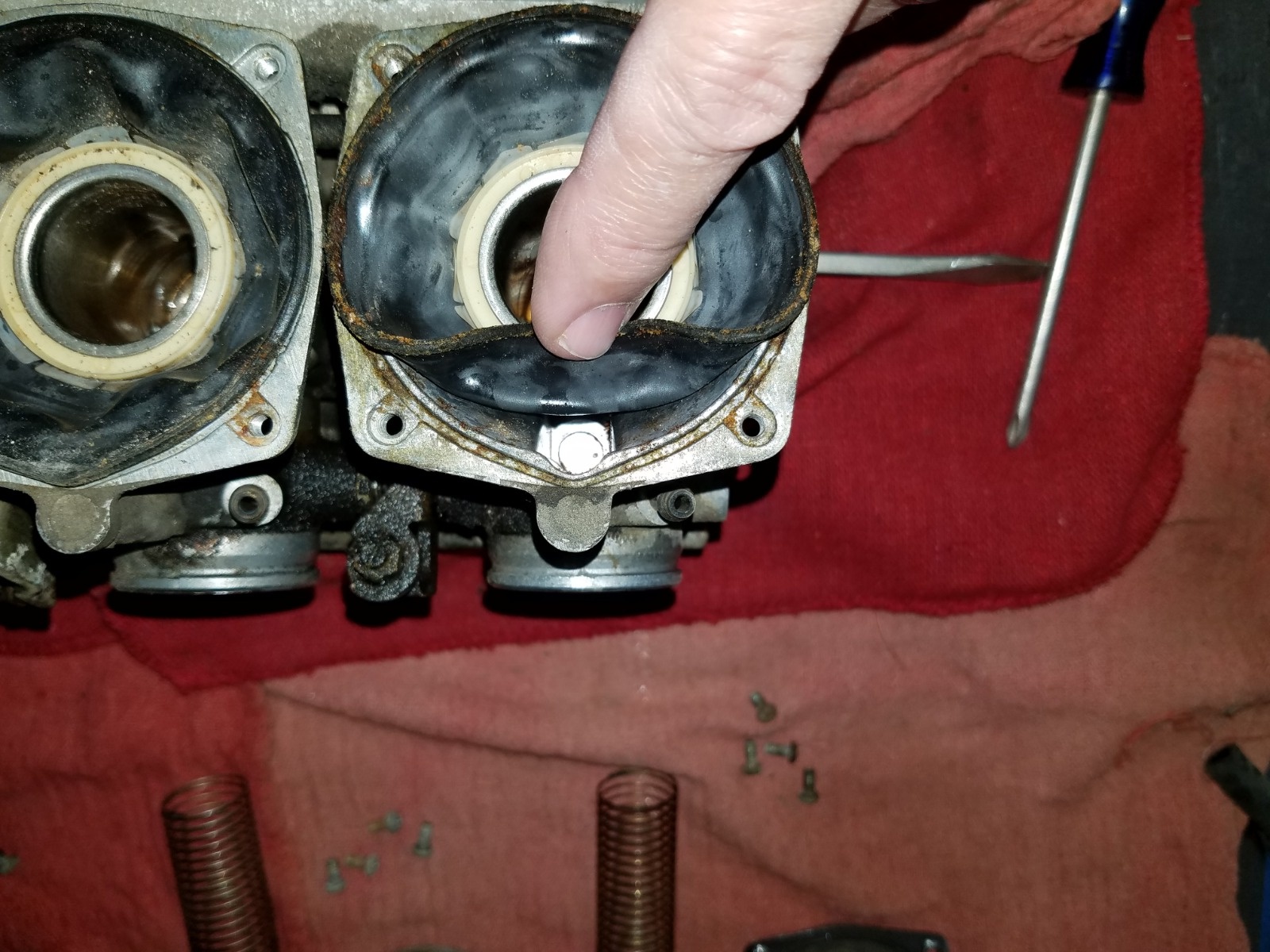

The diaphragms are still pretty pliable and crack free. The corrosion will be the big deal in getting these working or not.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 20 Nov 2019 17:02 #814265

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 5491
  • Thank you received: 1607
Heat on the body will soften the varnish holding the slide.
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 20 Nov 2019 17:09 #814267

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
Have you encountered any problems reusing the choke shaft (if it's corrosion free)? Other than the mushroomed screws you mentioned in another thread?
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.
