Kiwi GPZ 08 Feb 2016 18:06 #710055

  • larriken
  • larriken's Avatar Topic Author
  • Offline
  • User
  • Posts: 558
  • Thank you received: 61
Haha they are very sweet looking GPZ's! That orange is a killer colour.

531blackbanshee wrote: very nice love the mono shock 1100's! :evil:
can't wait to see how this turns out.

i'll just leave these here for "inspiration" :whistle:




Please Log in or Create an account to join the conversation.

Kiwi GPZ 08 Feb 2016 18:15 #710056

  • larriken
  • larriken's Avatar Topic Author
  • Offline
  • User
  • Posts: 558
  • Thank you received: 61

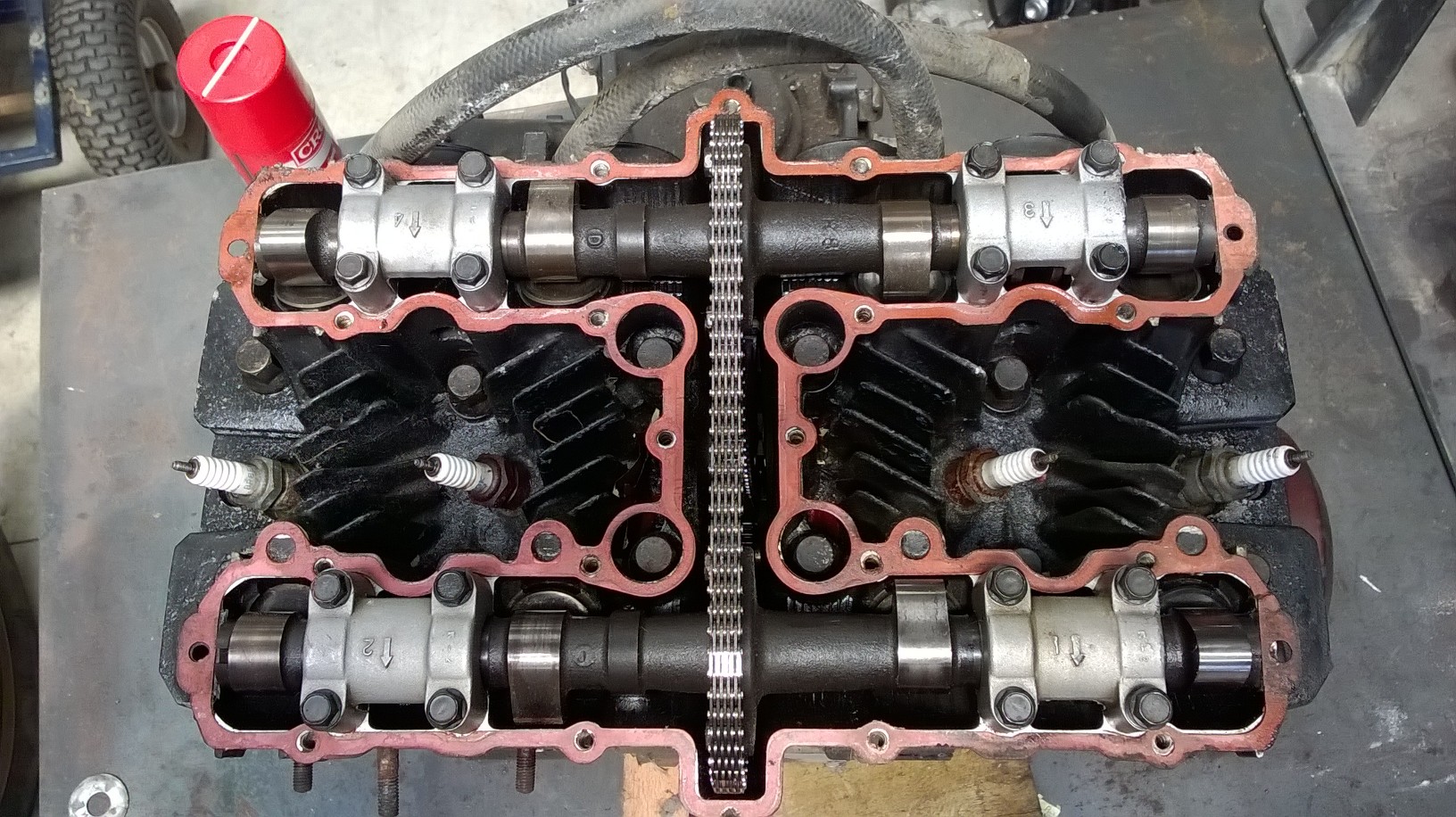

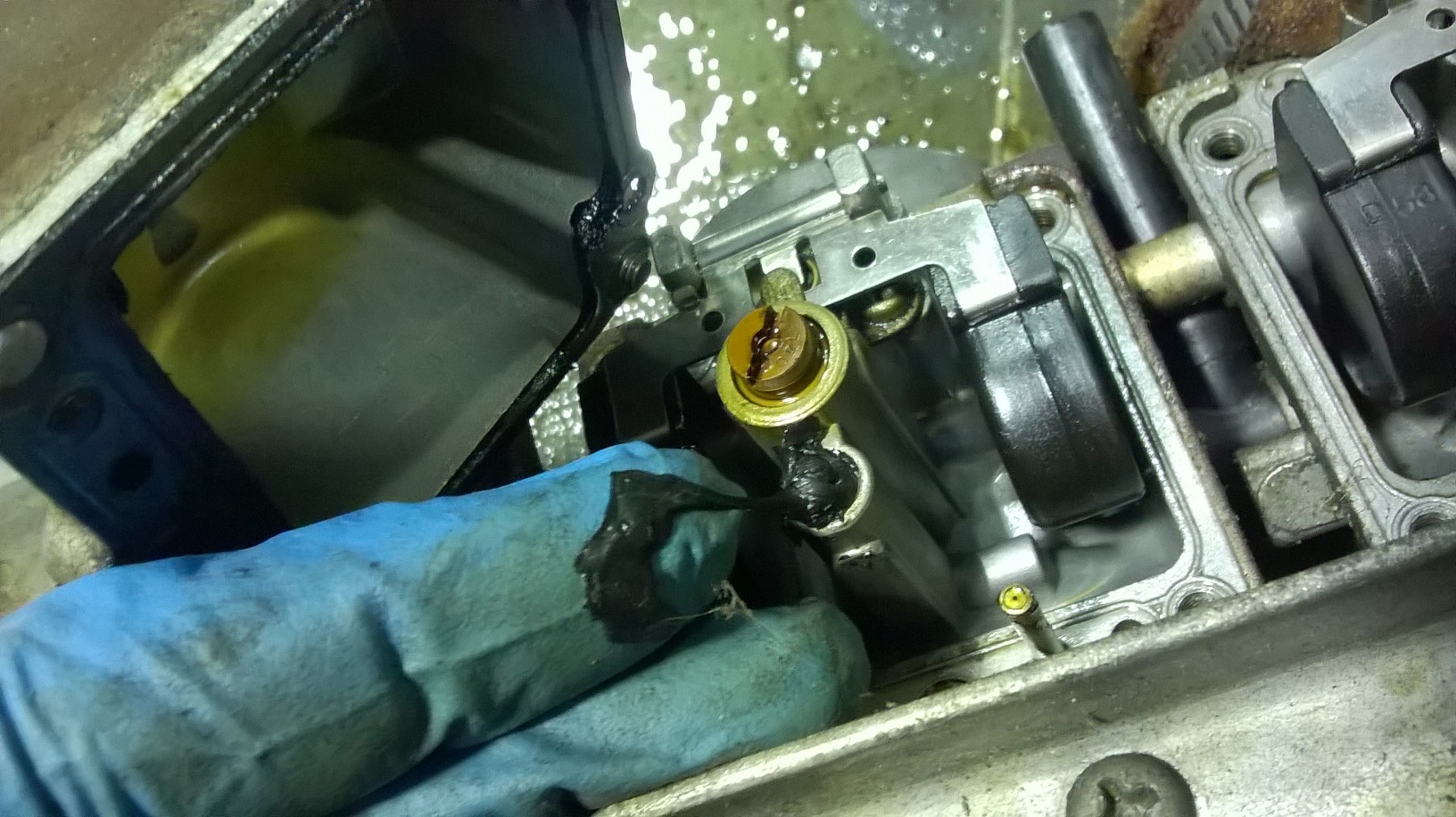

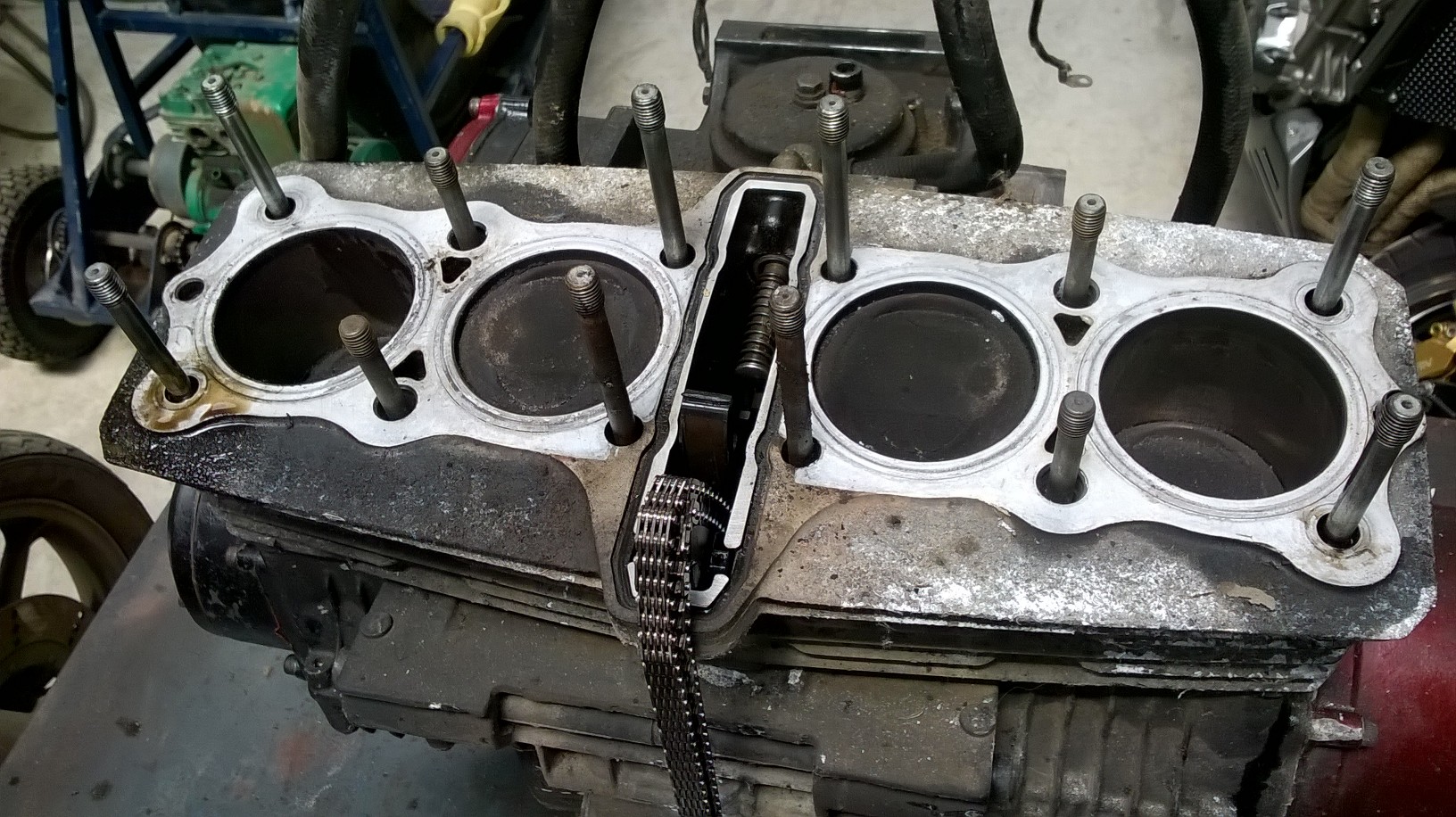

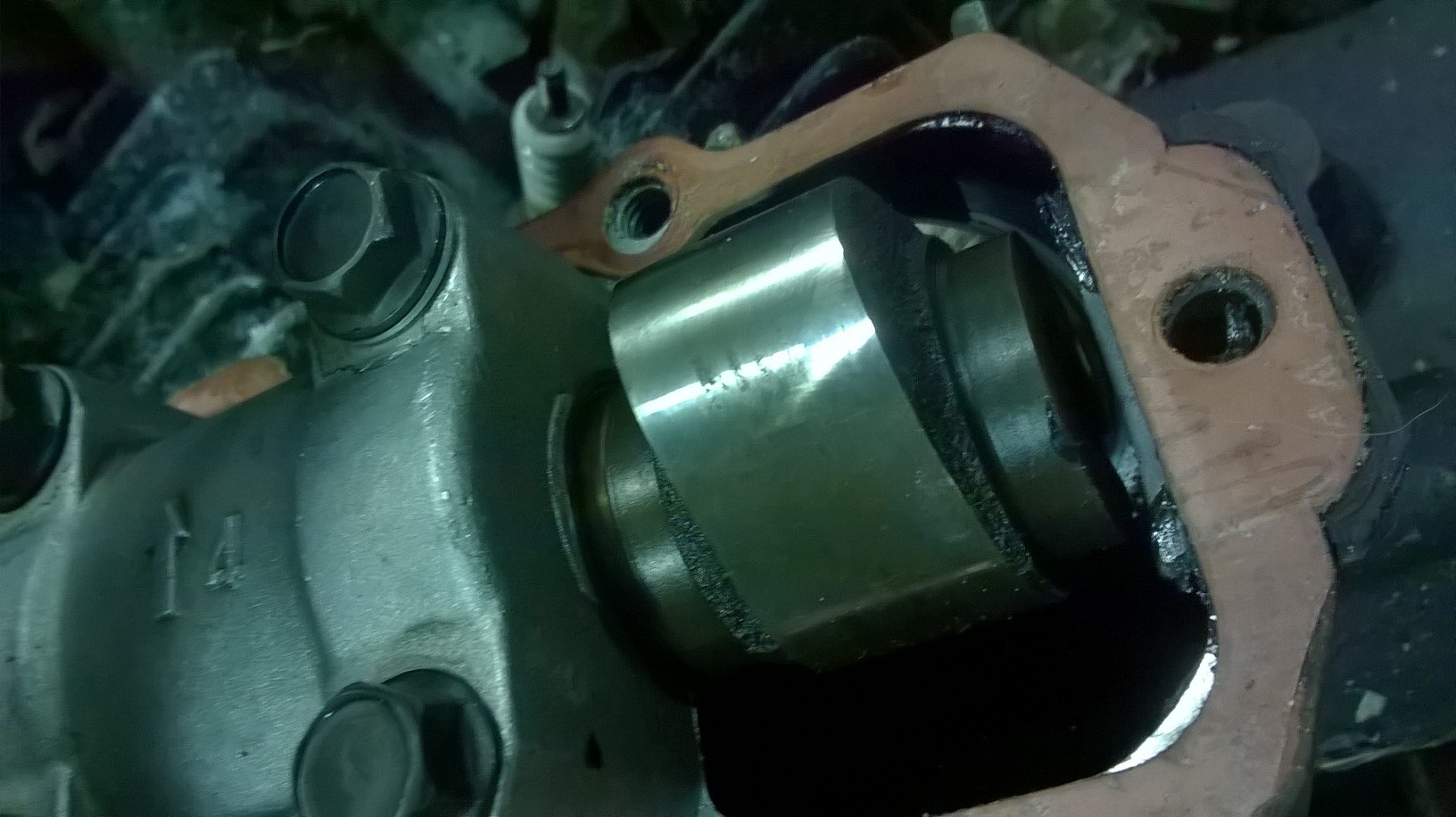

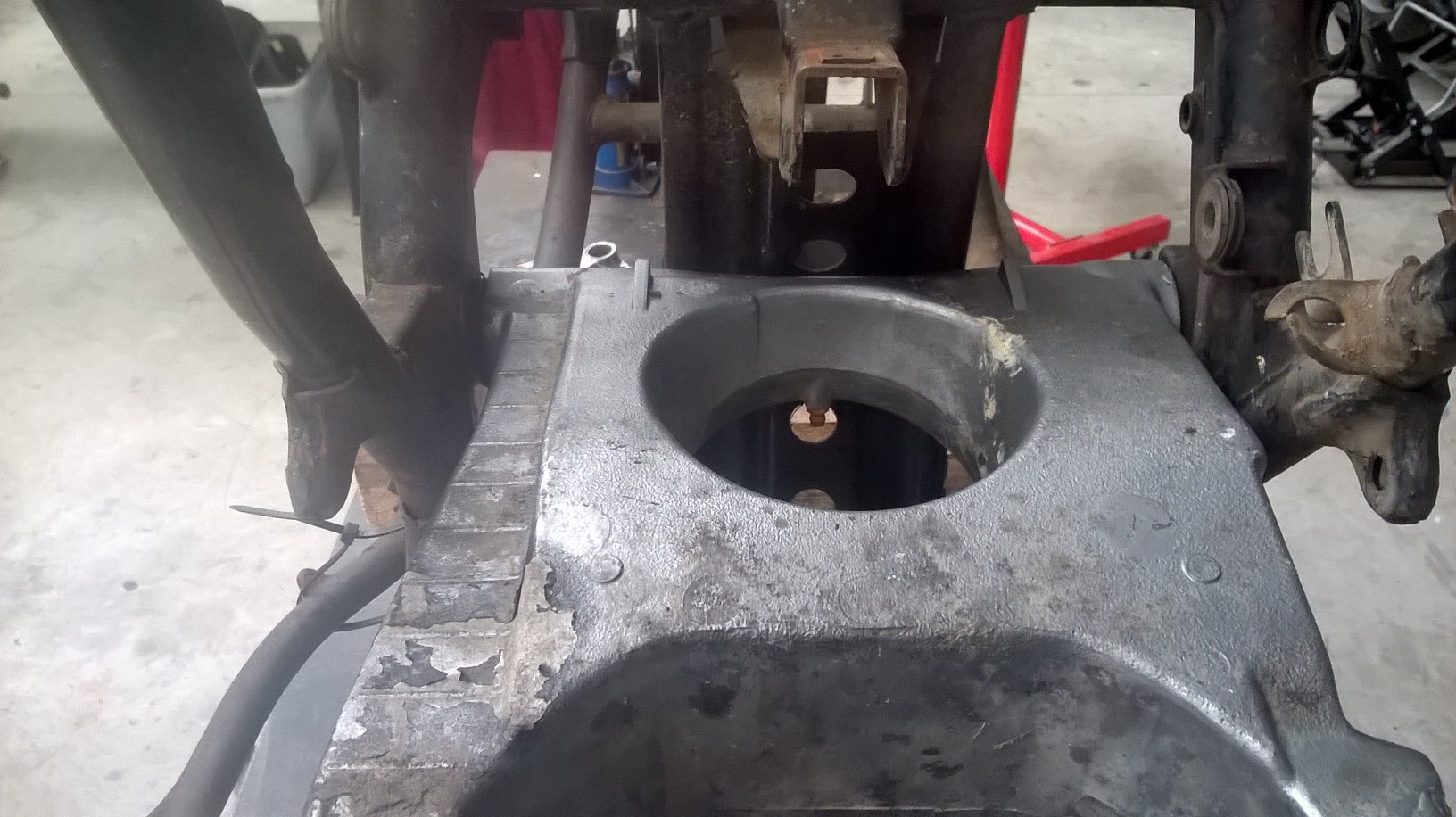

How's this for a clanger. Opened up the carb to see what jetting they had been running and hello...........no pilot jets. All the pilots had been bunged up with silicon (which has now turned into some nasty snot like goo). Weird! Also cracked the motor open.............haven't had a chance to pull the valves yet to check out the head properly but the barrels are in good nick. Bottom end is a bit rugged though, lots of play in the crank. I have a B1 1100 motor that is a little better so might have to do a bit of mix and match with the two engines.






Attachments:

Please Log in or Create an account to join the conversation.

Kiwi GPZ 09 Feb 2016 03:34 #710078

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

larriken wrote: How's this for a clanger. Opened up the carb to see what jetting they had been running and hello...........no pilot jets. All the pilots had been bunged up with silicon (which has now turned into some nasty snot like goo). Weird!

wtf needs his tools revoked!!

some peoples children


leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

Re:Kiwi GPZ 09 Feb 2016 08:23 #710131

  • dom2570
  • dom2570's Avatar
  • Offline
  • User
  • Posts: 408
  • Thank you received: 27
There are supposed to be little plugs there right? They just make their own lol. It is amazing what you find on old bikes.

I'm currently working on an old xs750. The PO couldn't get the front fender off...so they cut the wiring harness with garden sheers then electrical taped it back together. Things like this just blow my mind.
Whip it like a mule!

Please Log in or Create an account to join the conversation.

Last edit: by dom2570.

Kiwi GPZ 09 Feb 2016 21:48 #710241

  • larriken
  • larriken's Avatar Topic Author
  • Offline
  • User
  • Posts: 558
  • Thank you received: 61

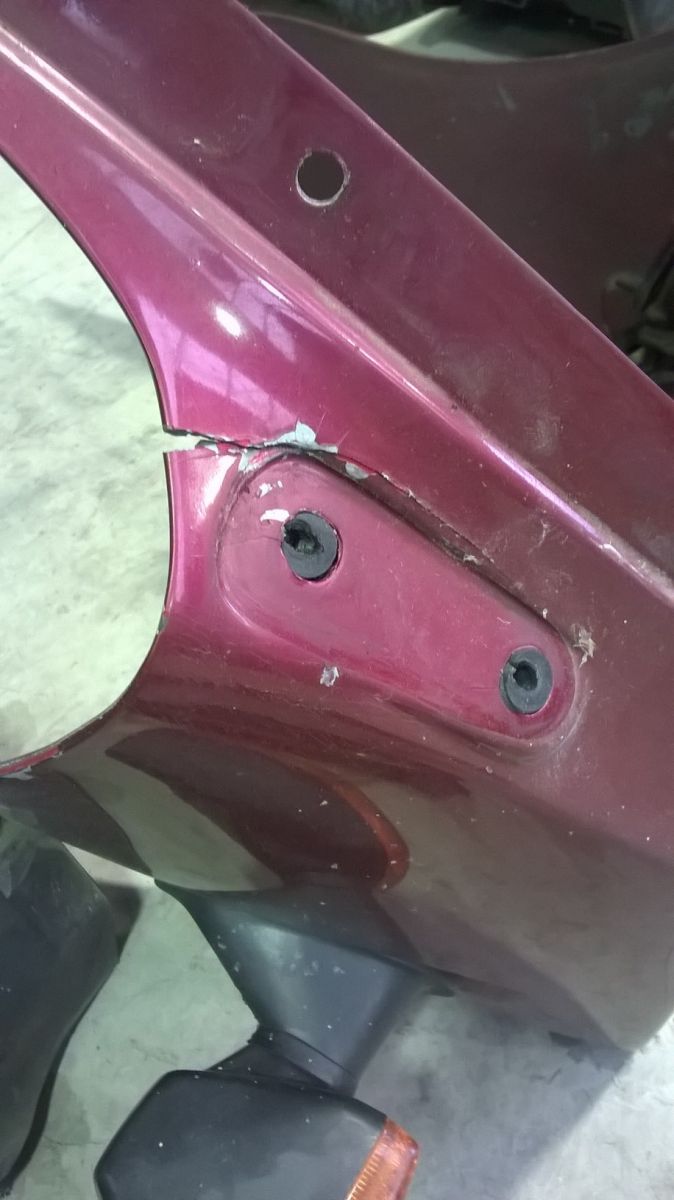

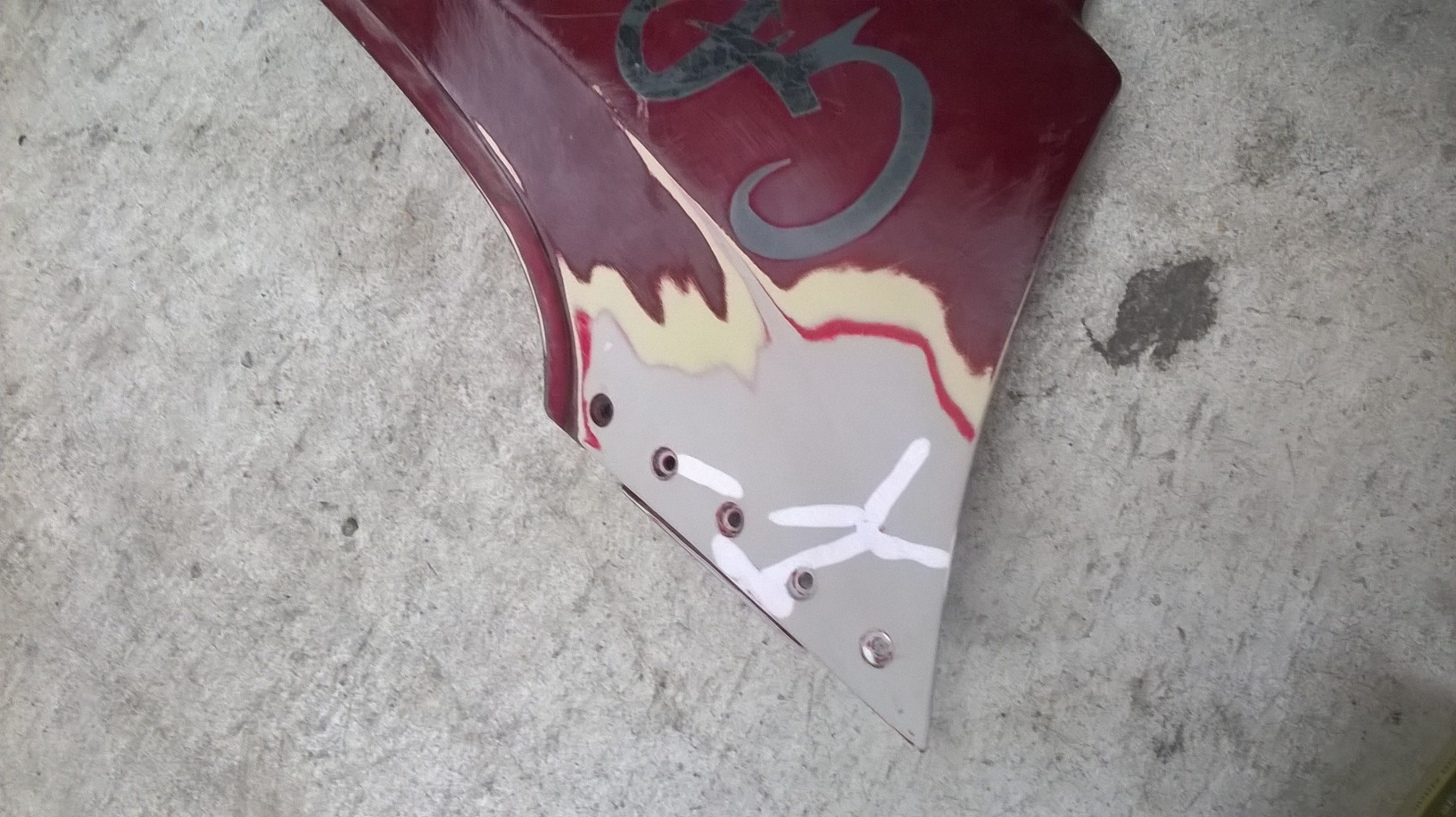

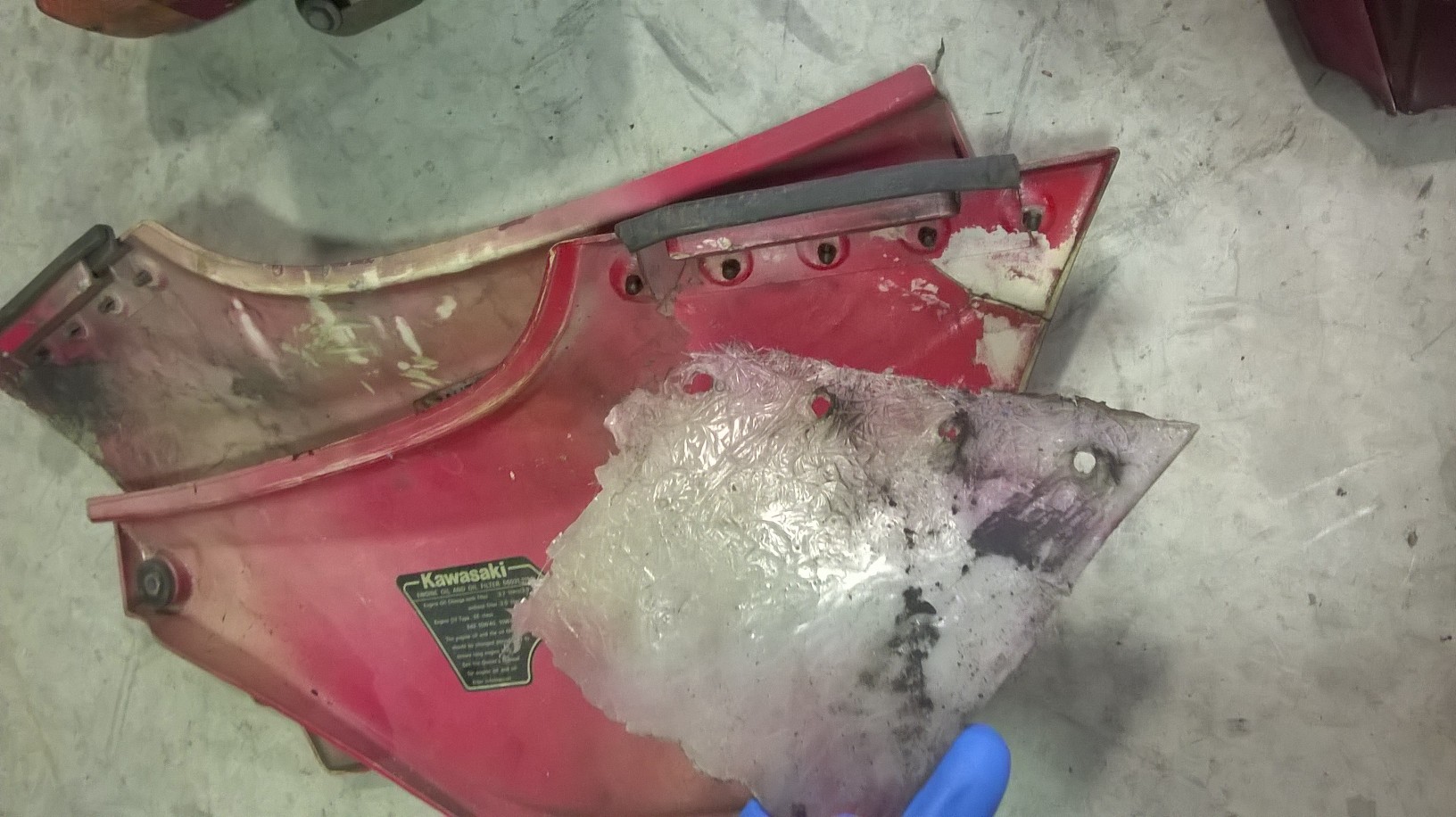

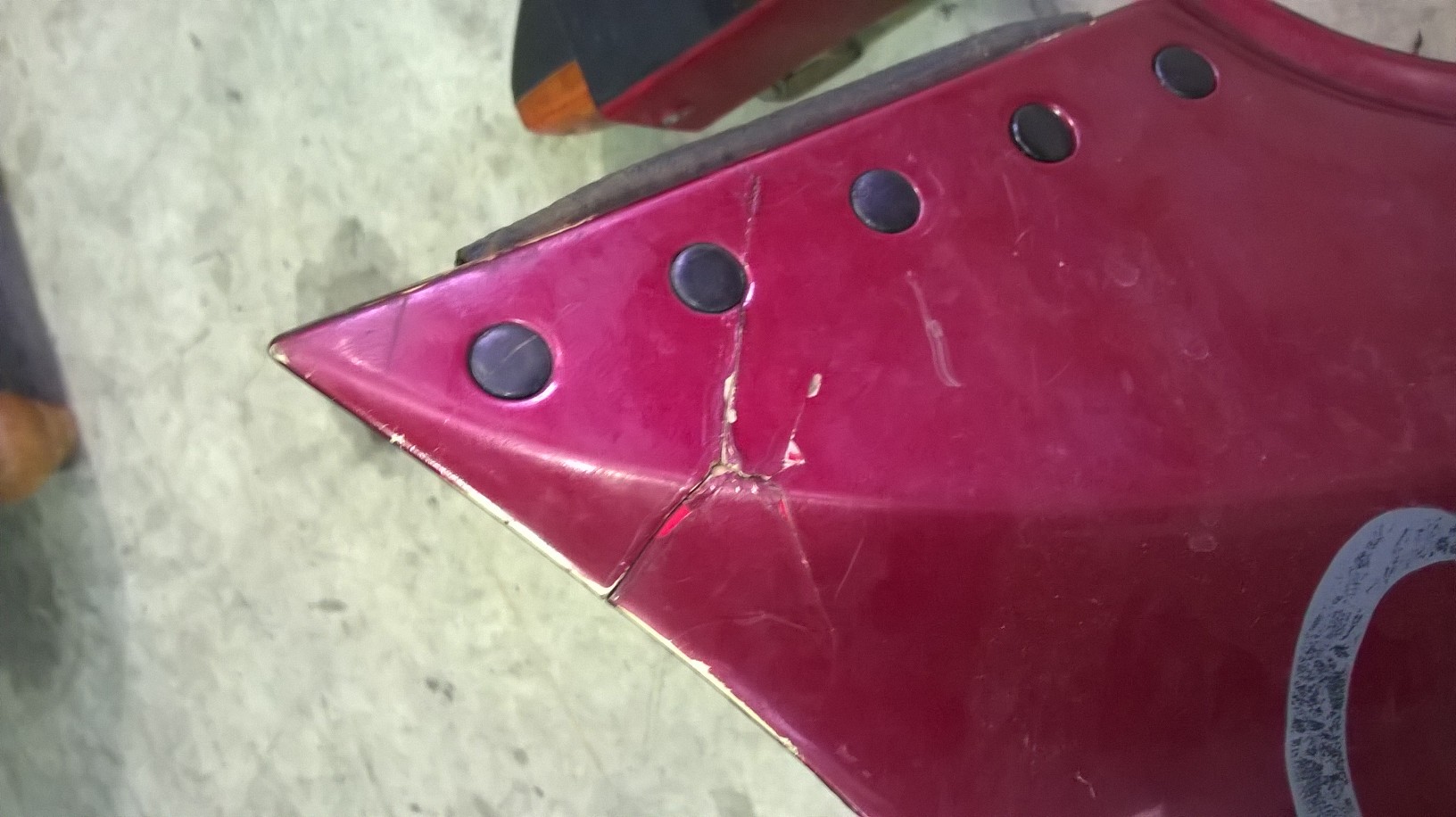

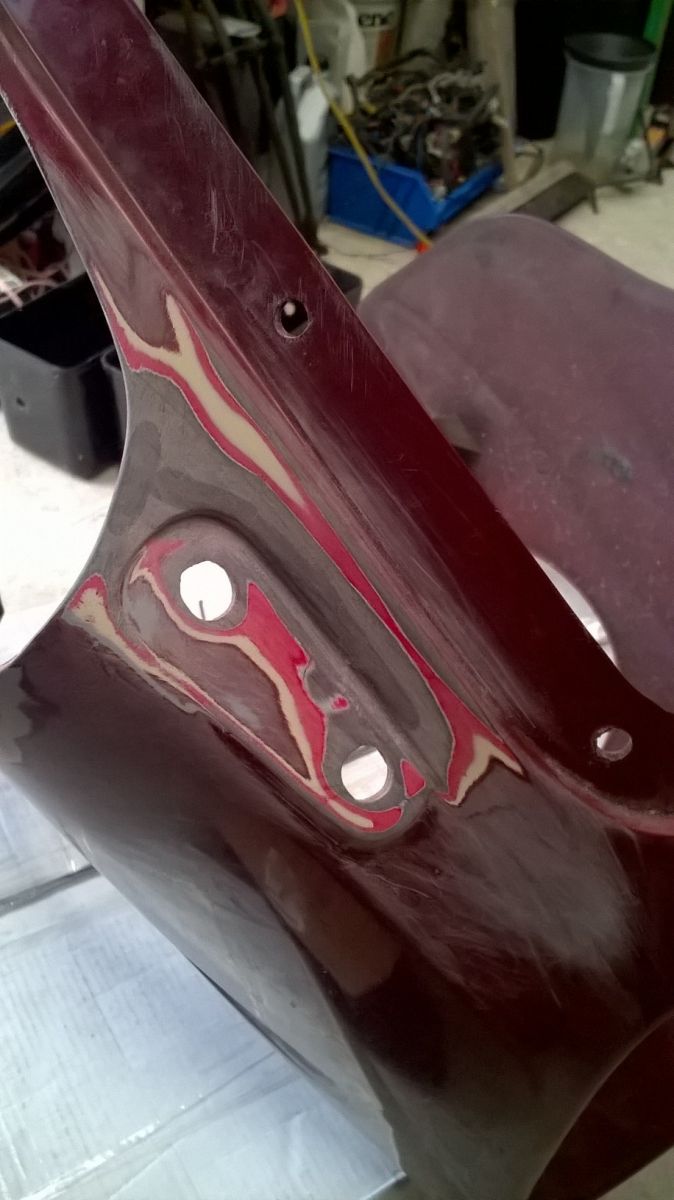

Had a few damaged fairing panels which I dropped off to the plastic welders to get sorted. Got them back today and well stoked, job is very tidy. Clever buggers.









Please Log in or Create an account to join the conversation.

Kiwi GPZ 10 Feb 2016 03:25 #710252

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
dang nice work!

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Kiwi GPZ 17 Feb 2016 17:57 #711176

  • Irish-Kawi
  • Irish-Kawi's Avatar
  • Offline
  • User
  • Posts: 498
  • Thank you received: 37
Awesome build and thread keep up the great work and keep the pics and updates coming :)

Brett
All the gear all the time!

1985 Kawasaki GPz 750 (ZX750-A3) 15,000 original miles www.kzrider.com/forum/11-projects/601230...z750-refresh-project

Father - Husband - Bourbonr - Rider
The following user(s) said Thank You: larriken

Please Log in or Create an account to join the conversation.

Kiwi GPZ 17 Feb 2016 21:49 #711209

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2543
  • Thank you received: 664
after watching your progress on the KZP i am looking forward to see what you do here. nice work
The following user(s) said Thank You: larriken

Please Log in or Create an account to join the conversation.

Kiwi GPZ 29 Feb 2016 22:07 #713155

  • larriken
  • larriken's Avatar Topic Author
  • Offline
  • User
  • Posts: 558
  • Thank you received: 61

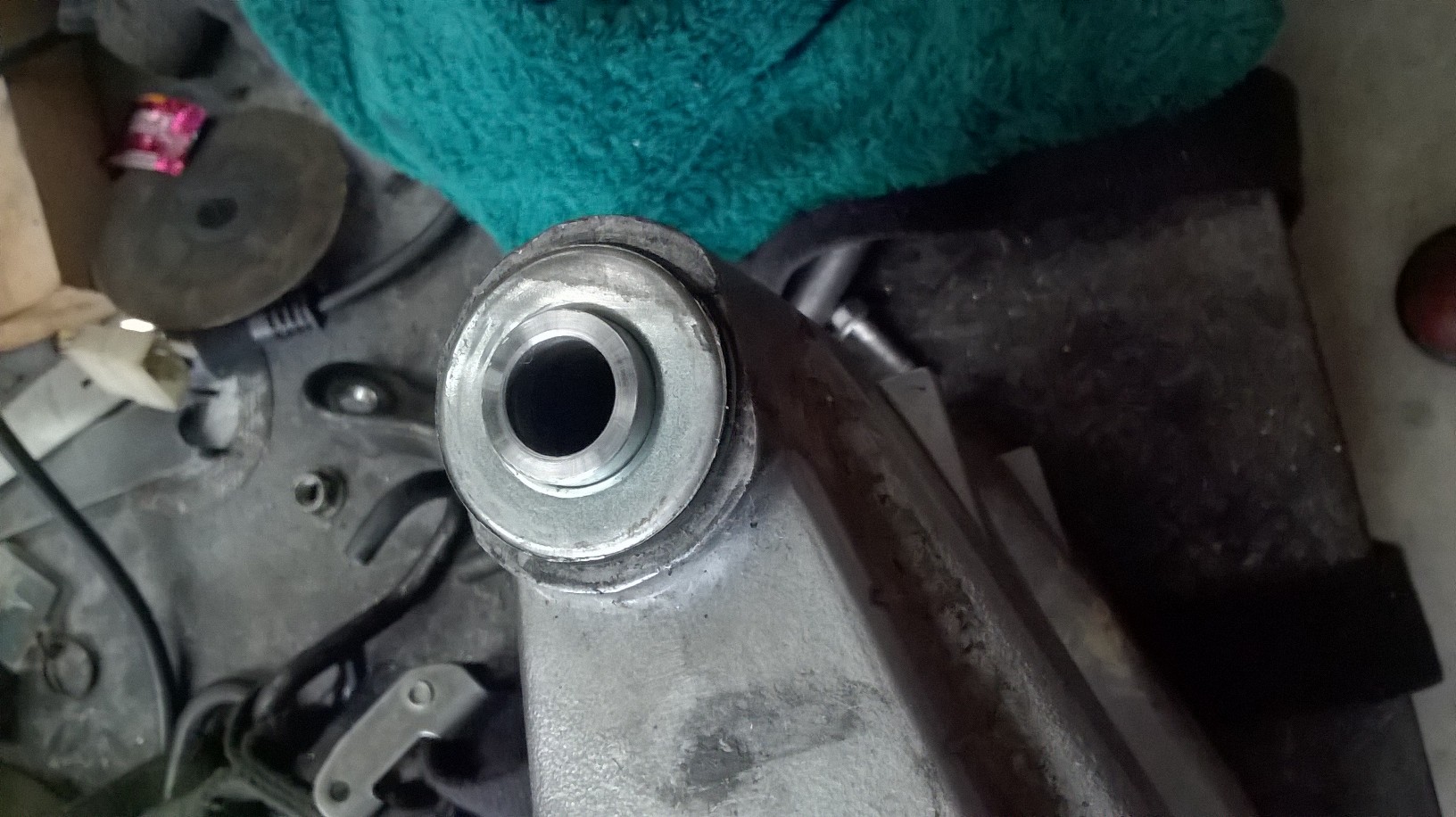

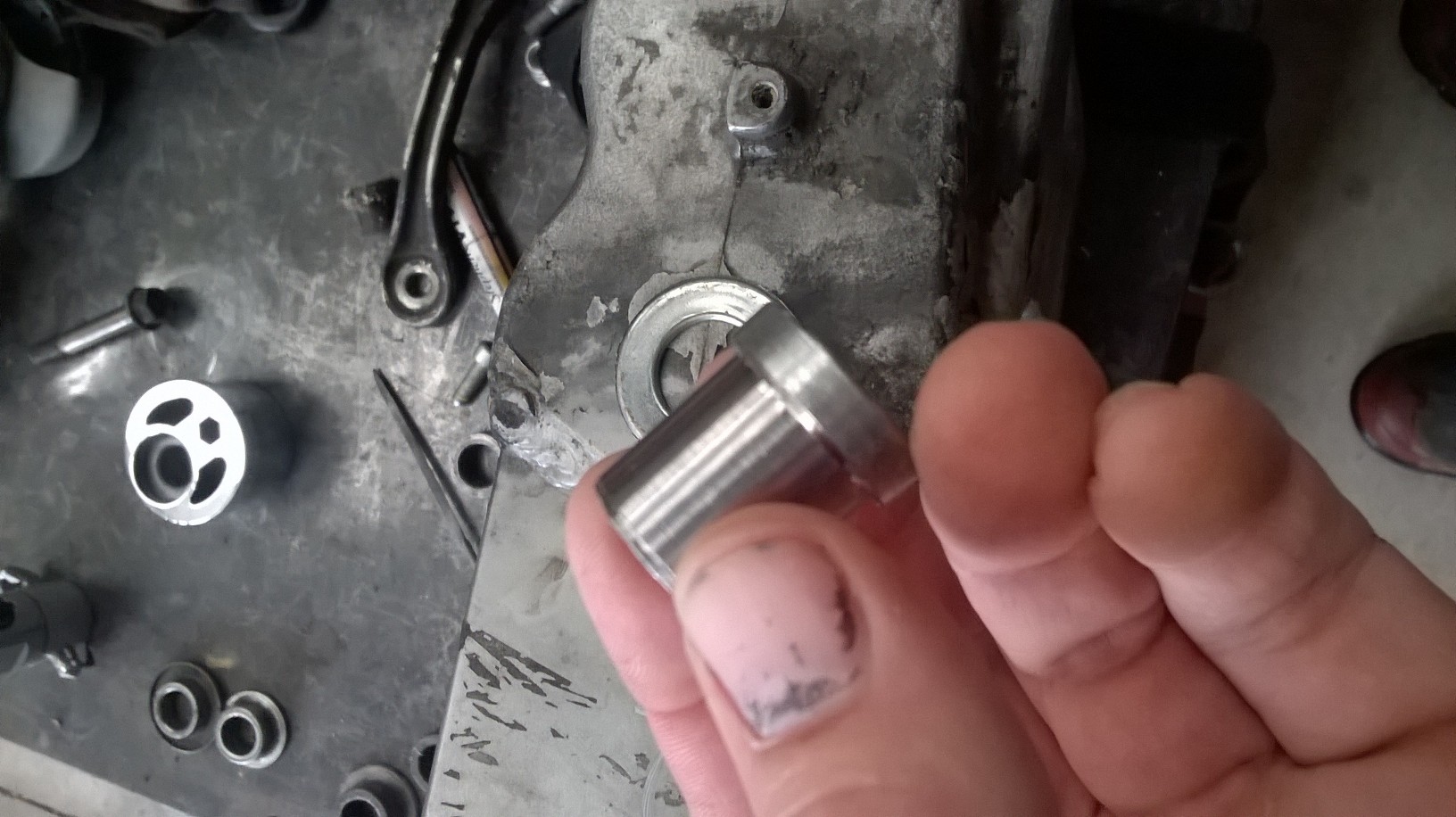

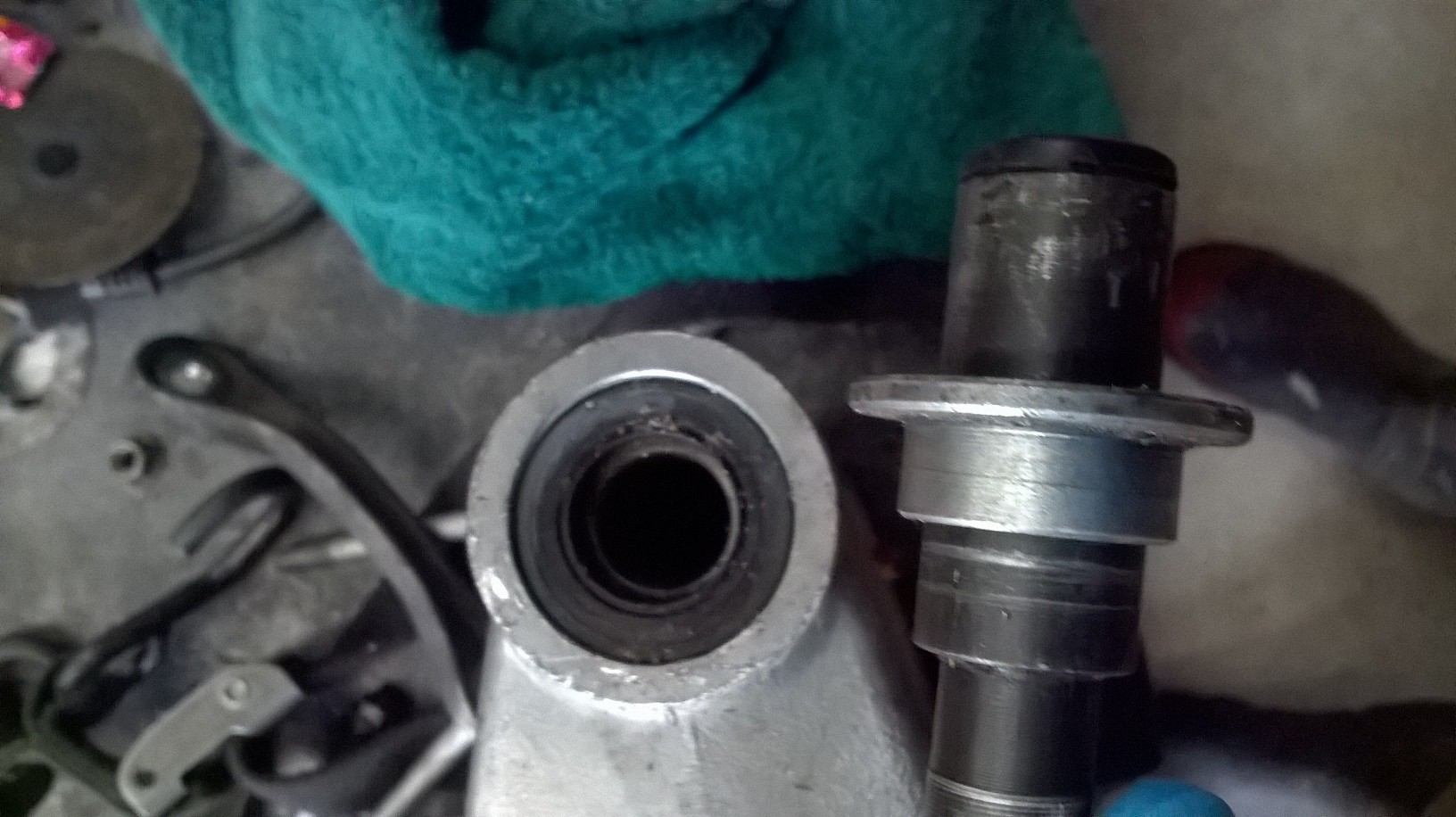

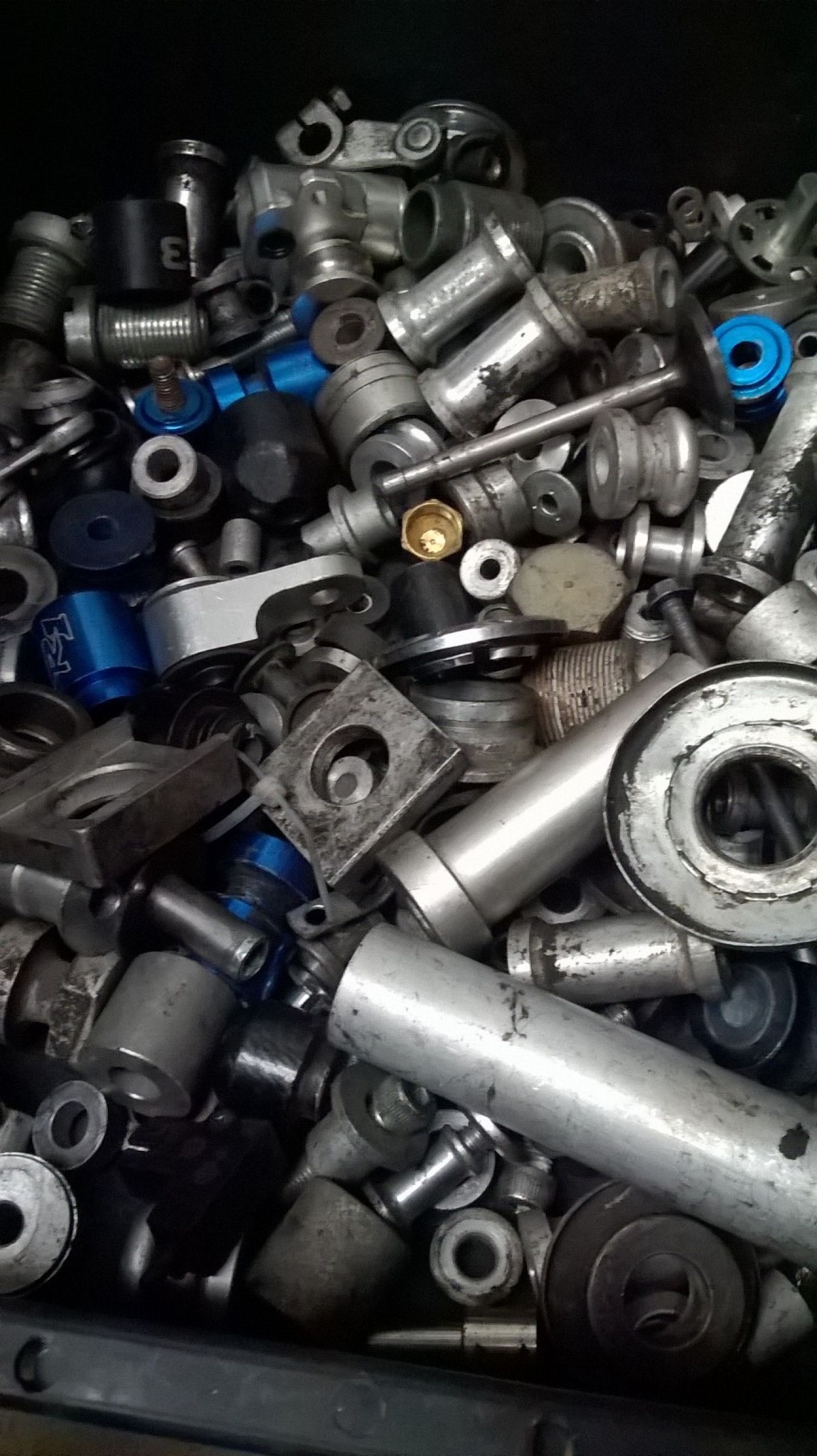

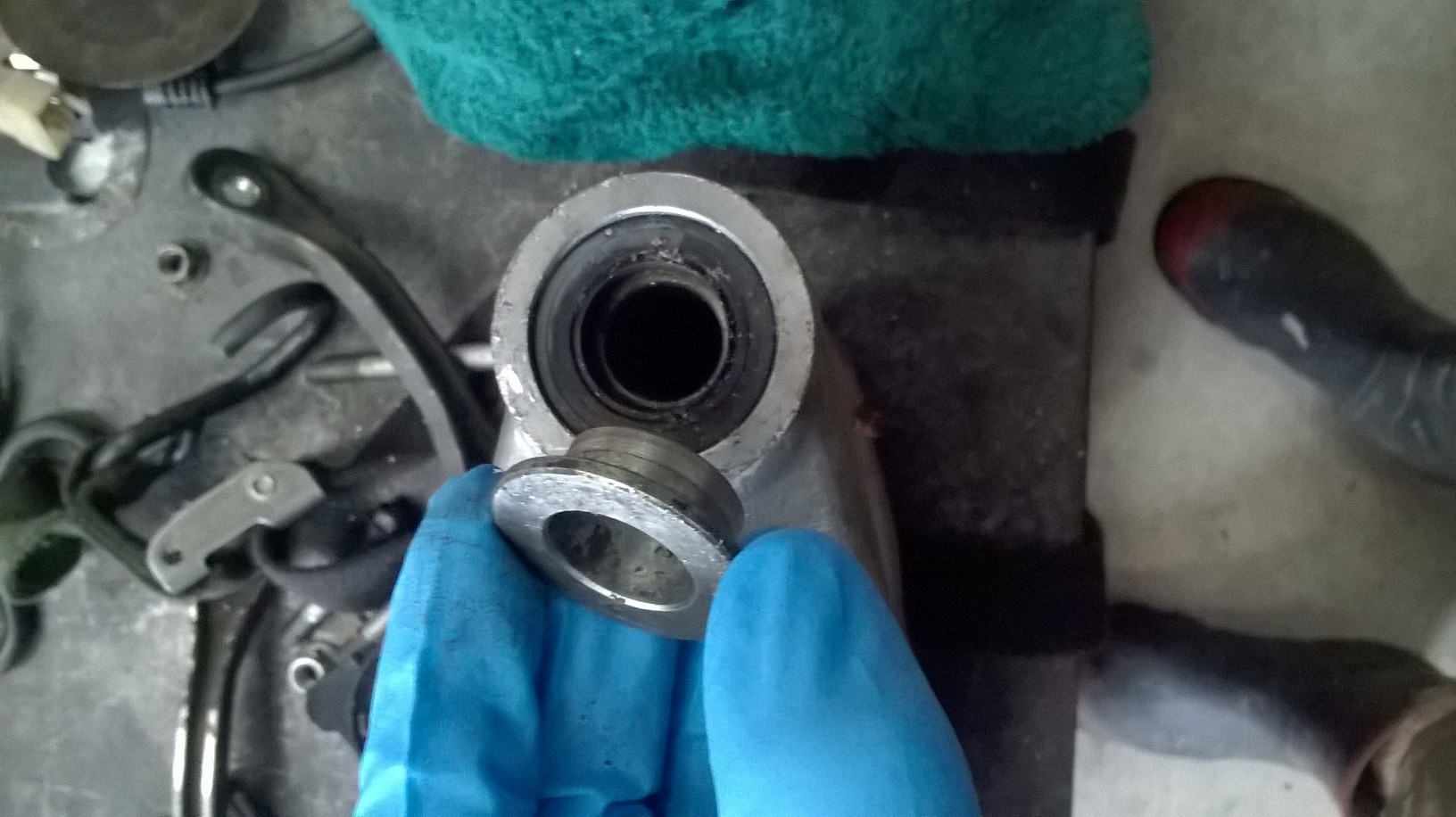

Now that the frontend is fitted and good to go, time to sort the back. Onto the swingarm first. Can't really get much else done until it is in, sitting correctly, and bolted up. The ZZR1100 swingarm has a 19mm axle which is bigger than the standard the old GPZ one. I want to use the GPZ one as it will be a heck of alot easier than trying to sort out the frame to accept the larger axle. I dived into my box of random spacers to see what might work. Funny thing is I found a spacer from god knows what that was perfect fit and size for the right side of the swingarm. Seriously, it was the exact specs for what I needed! Very jammy. On the left I found a spacer with the correct internal specs, just had to give it a bit of love on the lathe to get it to fit into the left side. Fitted it up and straight in and bolted up. Spot on! If anyone out there wants the spacer specs just shout out. Onto getting the linkage and shock fitted correctly tomorrow and then onto the rear rim.











Please Log in or Create an account to join the conversation.

Kiwi GPZ 29 Feb 2016 22:14 #713157

  • larriken
  • larriken's Avatar Topic Author
  • Offline
  • User
  • Posts: 558
  • Thank you received: 61

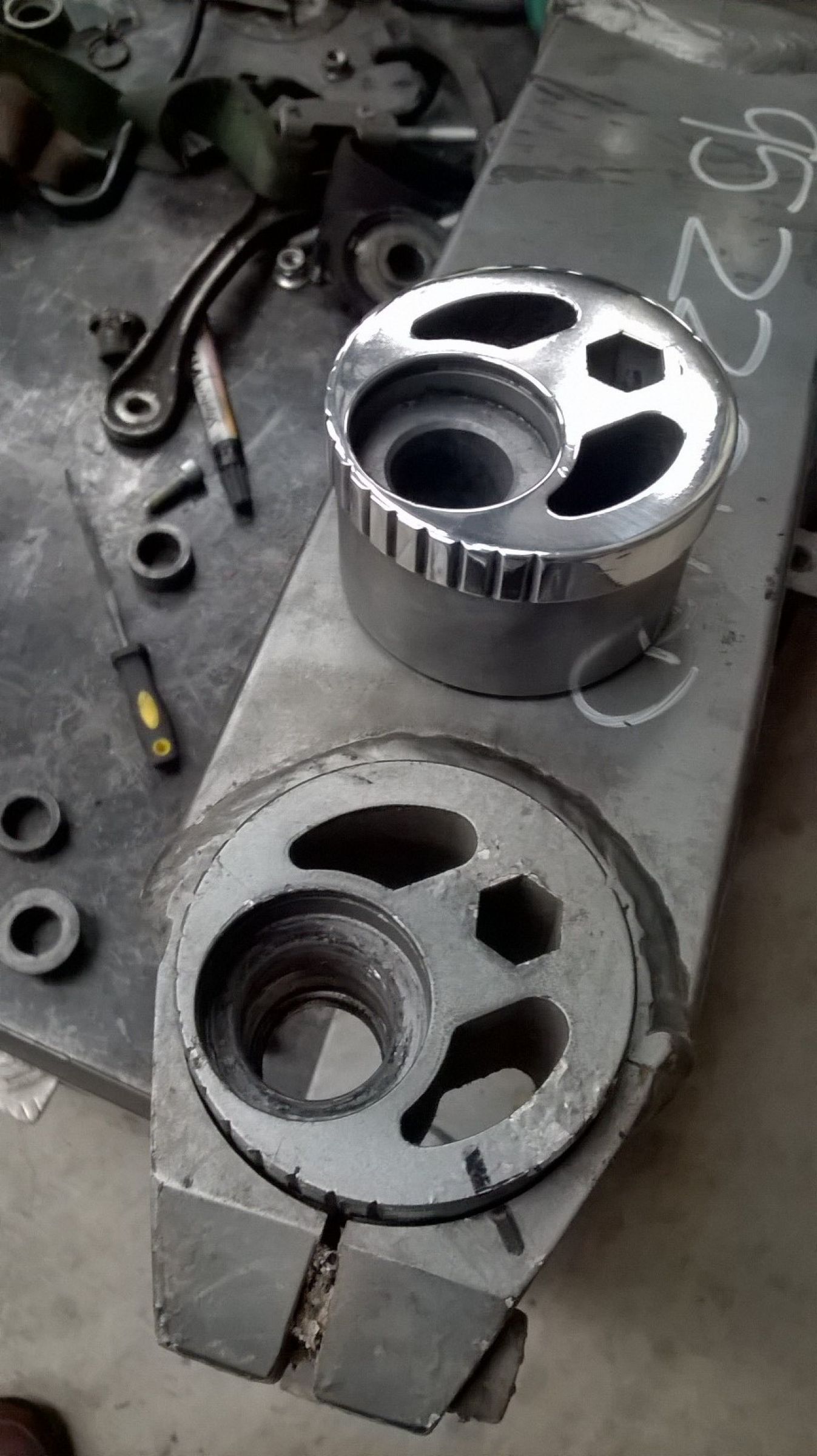

Because I just can't help myself I had to start polishing one of the rear axle adjusters in the swingarm. I love the look of this style of adjuster which is why I chose the ZZR1100 swingarm as it looks very similar to the original GPZ one but is bigger enough for the new rear rim. Also would have gone with an early Triumph triple one as well but couldn't track one down for the right price.

Attachments:

Please Log in or Create an account to join the conversation.

Kiwi GPZ 01 Mar 2016 01:34 #713167

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2543
  • Thank you received: 664

larriken wrote: I had a set of GSXR ones on the shelf and they fit spot on. Bolted them up and you would not believe it but the spacing for the disc rotors was perfect. I don't think that has ever happened before when I have put together mismatched parts!!

larriken wrote: Funny thing is I found a spacer from god knows what that was perfect fit and size for the right side of the swingarm. Seriously, it was the exact specs for what I needed!



This machine was meant to be

Please Log in or Create an account to join the conversation.

Kiwi GPZ 01 Mar 2016 07:09 #713198

  • Irish-Kawi
  • Irish-Kawi's Avatar
  • Offline
  • User
  • Posts: 498
  • Thank you received: 37
Very nice Larriken, keep up the good work ;)

- Brett

EDIT: Larriken, on the first page I read that you said the 1100 foot pegs fit the 750 and vice versa, can I just confirm with you that's true? Any modifying needed at all etc? I've started to compile a list of parts that swap to the 83'-85' GPz's and wanted to confirm. Is that the passenger pegs or the rider's pegs or both do you know?
All the gear all the time!

1985 Kawasaki GPz 750 (ZX750-A3) 15,000 original miles www.kzrider.com/forum/11-projects/601230...z750-refresh-project

Father - Husband - Bourbonr - Rider

Please Log in or Create an account to join the conversation.

Last edit: by Irish-Kawi.
