Stock Air Box VS Pod Filters
- KZQ
- Topic Author
- Offline
- Administrator
- Walking Behind the Corn May Not Be All That!
Less
More
15 Dec 2020 10:07 #840100
by KZQ
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Stock Air Box VS Pod Filters was created by KZQ
So you've removed the carbs for a proper cleaning and now you're having problems getting the boots between the carbs and the air box back on. Pod air filters seem to be a much easier option. What kind of problems must be addressed to make Pod air filters work correctly?
Bill
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Please Log in or Create an account to join the conversation.
- KZQ
- Topic Author
- Offline
- Administrator
- Walking Behind the Corn May Not Be All That!
Less
More
- Posts: 4837
- Thank you received: 1418
15 Dec 2020 10:10 #840101
by KZQ
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Replied by KZQ on topic Stock Air Box VS Pod Filters
The stock air box serves to equalize the air flow between the individual carbs. Individual pod filters can experience different air flows caused by wetting from rain and exposure to side winds.
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Please Log in or Create an account to join the conversation.
- bluej58
- Offline
- Sustaining Member
- The chrome don't get you home
Less
More
- Posts: 2484
- Thank you received: 511
15 Dec 2020 17:06 - 15 Dec 2020 17:11 #840127
by bluej58
78 KZ1000 A2A
Replied by bluej58 on topic Stock Air Box VS Pod Filters
I have a stock air box and have used the same K&N washable air filter for about 70,000 miles, I clean it probably 3 times a season at the same time I clean and check the points, usually when I feel the bike is lagging a bit,
I will also add some Heet gas additive with a fill up just in case it's due to water in the fuel.
That usually takes care of it.
I've always thought that the stock box was very reliable and smooth in all types of weather conditions.
Plus I'm no tuning guru
I will also add some Heet gas additive with a fill up just in case it's due to water in the fuel.
That usually takes care of it.
I've always thought that the stock box was very reliable and smooth in all types of weather conditions.
Plus I'm no tuning guru
78 KZ1000 A2A
Last edit: 15 Dec 2020 17:11 by bluej58.
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1117
- Thank you received: 401
15 Dec 2020 17:32 #840130
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic Stock Air Box VS Pod Filters
The ethanol in your gas (if you fill up at a normal gas pump) may serve the same purpose as HEET.
HEET's active ingredient is methanol.
HEET's active ingredient is methanol.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Please Log in or Create an account to join the conversation.
- 750 R1
- Offline
- User
Less
More
- Posts: 1215
- Thank you received: 394
16 Dec 2020 14:27 #840175
by 750 R1
Replied by 750 R1 on topic Stock Air Box VS Pod Filters
The airbox and stacks provides a stable smooth laminar flow to and through the carbs, the rubbers that go into the airbox from the carbs are part of this. CV's can be a nightmare to set up with pods, usually requiring a jet kit and a lot of screwing around to get close to right, If some sort of velocity stack is used it is easier. The VM's are a bit easier to set up but again, stacks of some sort make it much easier. If I were you I'd just buy new stacks/rubbers between the carbs and airbox, or just soak your stiff ones in wintergreen oil to soften them up, adding some acetone to the wintergreen oil helps as well, as the stacks/rubbers harden due to out gassing, the acetone restores a bit of that..
The following user(s) said Thank You: KZQ
Please Log in or Create an account to join the conversation.
- KZQ
- Topic Author
- Offline
- Administrator
- Walking Behind the Corn May Not Be All That!
Less
More
- Posts: 4837
- Thank you received: 1418
22 Dec 2020 15:52 - 22 Dec 2020 15:53 #840418
by KZQ
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Replied by KZQ on topic Stock Air Box VS Pod Filters
I'm thinking that this will cover the topic of "Pods and why you shouldn't"
So you've removed the carbs for a proper cleaning and now you're having problems getting the boots between the carbs and the air box back on. You’re thinking If I just get some pod filters I wouldn’t have to be messing around trying to get these rubber boots over the carbs and into the air box, and that would be correct, except that you’re now on your own as far as tuning and airflow go.
The stock box provides a reliable and smooth airflow in all types of weather conditions, not so with pod filters which can experience different air flows caused by wetting from rain and exposure to side winds.
The airbox and stacks provide a stable smooth laminar flow to and through the carbs, the rubbers (boots) that go into the airbox from the carbs are part of this. CV's can be a nightmare to set up with pods, usually requiring a jet kit and a lot of screwing around to get close to right, If some sort of velocity stack is used it is easier. The VM's are a bit easier to set up but again, stacks of some sort make it much easier.
Folks here at KZR know that it’s better to just buy new stacks (rubber boots between the carbs) and airbox, or just soak your stiff ones in wintergreen oil to soften them up, adding some acetone to the wintergreen oil helps as well, as the stacks/rubbers harden due to out gassing, the acetone restores a bit of that.
So you've removed the carbs for a proper cleaning and now you're having problems getting the boots between the carbs and the air box back on. You’re thinking If I just get some pod filters I wouldn’t have to be messing around trying to get these rubber boots over the carbs and into the air box, and that would be correct, except that you’re now on your own as far as tuning and airflow go.
The stock box provides a reliable and smooth airflow in all types of weather conditions, not so with pod filters which can experience different air flows caused by wetting from rain and exposure to side winds.
The airbox and stacks provide a stable smooth laminar flow to and through the carbs, the rubbers (boots) that go into the airbox from the carbs are part of this. CV's can be a nightmare to set up with pods, usually requiring a jet kit and a lot of screwing around to get close to right, If some sort of velocity stack is used it is easier. The VM's are a bit easier to set up but again, stacks of some sort make it much easier.
Folks here at KZR know that it’s better to just buy new stacks (rubber boots between the carbs) and airbox, or just soak your stiff ones in wintergreen oil to soften them up, adding some acetone to the wintergreen oil helps as well, as the stacks/rubbers harden due to out gassing, the acetone restores a bit of that.
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1985 ZN1300
Last edit: 22 Dec 2020 15:53 by KZQ.
The following user(s) said Thank You: Little B, 750 R1
Please Log in or Create an account to join the conversation.
- 750 R1
- Offline
- User
Less
More
- Posts: 1215
- Thank you received: 394
23 Dec 2020 00:49 - 23 Dec 2020 00:52 #840429
by 750 R1
Replied by 750 R1 on topic Stock Air Box VS Pod Filters

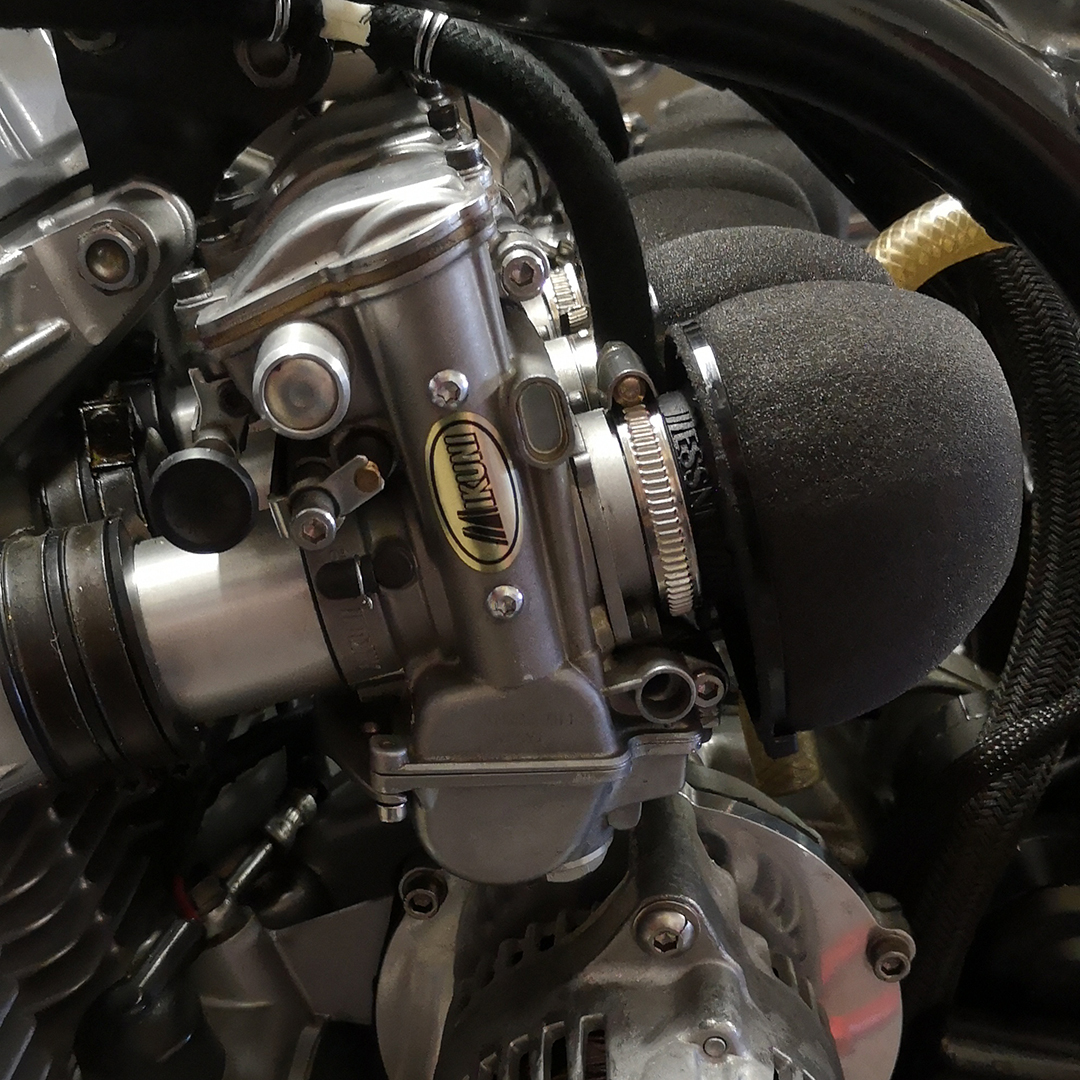

Funnily enough I am going to use A pod type set up on my 750R1 with BS34 CV's, the big difference is that the "pods I'm using have a triple velocity stack set up, most pods don't use velocity stacks. I will be using a stage 3 jet kit with these. I'm real lucky to have a friend who's extremely good at carb setups from his over 50 years of racing, in saying that, I'm still thinking about the possibility of adding side screens to stop sidewinds, If I have any trouble, By all reports I won't , just thinking ahead. Here's a look at the filters I have, If anyone is interested....
Last edit: 23 Dec 2020 00:52 by 750 R1.
Please Log in or Create an account to join the conversation.
- gordone
- Offline
- Sustaining Member
Less
More
- Posts: 1378
- Thank you received: 67
29 Dec 2020 23:54 - 29 Dec 2020 23:59 #840819
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Stock Air Box VS Pod Filters
If installing pods:
1. Quality pods?
2. Install air corrected jets?
1. Quality pods?
2. Install air corrected jets?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 29 Dec 2020 23:59 by gordone.
Please Log in or Create an account to join the conversation.
- Lord Osis
- Offline
- User
Less
More
- Posts: 34
- Thank you received: 5
03 Jun 2021 13:16 #849555
by Lord Osis
Replied by Lord Osis on topic Stock Air Box VS Pod Filters
on a 82 GPZ550 installing the carb rack onto the boots between cylinder and carbs and boots between the carb and air box are a pain if you live in a cold weather area, so the trick is to heat them up with a hair drier, but don't go crazy on it
right now it's over 90 degrees here, I assembled it all and it was a breeze, well, compared to in the fall or early spring when it is cold,
so if you warm the boots up a bit, so they are pliable, it all goes together much easier
right now it's over 90 degrees here, I assembled it all and it was a breeze, well, compared to in the fall or early spring when it is cold,
so if you warm the boots up a bit, so they are pliable, it all goes together much easier
Please Log in or Create an account to join the conversation.
- BlackZ1R
- Offline
- User
- Kawasaki in my blood
Less
More
- Posts: 702
- Thank you received: 47
03 Jul 2021 19:56 #851222
by BlackZ1R
I have just started running a set of RPM dual pod foam(UNI??) filters on a ZRX that seem to perform a bit different than the gauze type pod filters. So far I like the performance and response compared to the APE filters on another ZRX with comparable tuning, will know more after more seat time.
Kawasaki
Someone once told me to marry that motorcycle I was riding ......there's times I wish I hadda listened .
Replied by BlackZ1R on topic Stock Air Box VS Pod Filters
Cool design. Is there any info out there on how these perform compared to your basic K&N/APE gauze pod filters? I finally found that these are designed and manufactured by Messner Moto after searching for them online, still no contact info or where they're located.Funnily enough I am going to use A pod type set up on my 750R1 with BS34 CV's, the big difference is that the "pods I'm using have a triple velocity stack set up, most pods don't use velocity stacks. I will be using a stage 3 jet kit with these. I'm real lucky to have a friend who's extremely good at carb setups from his over 50 years of racing, in saying that, I'm still thinking about the possibility of adding side screens to stop sidewinds, If I have any trouble, By all reports I won't , just thinking ahead. Here's a look at the filters I have, If anyone is interested....
I have just started running a set of RPM dual pod foam(UNI??) filters on a ZRX that seem to perform a bit different than the gauze type pod filters. So far I like the performance and response compared to the APE filters on another ZRX with comparable tuning, will know more after more seat time.
Kawasaki
Someone once told me to marry that motorcycle I was riding ......there's times I wish I hadda listened .
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- 750 R1
- Offline
- User
Less
More
- Posts: 1215
- Thank you received: 394
03 Jul 2021 22:02 #851224
by 750 R1
Replied by 750 R1 on topic Stock Air Box VS Pod Filters
Mirko Messner is the guy who makes, or has them made, you can contact him through his site, I have spoken to him a number of times, he;s also a member of the SOHC forum and has made some real nice parts for 750 Honda's, drop him a line here....
messnermoto.com/contact-us/
I haven't used mine yet, won't be long though an i expect them to work well based on their design, Mirko has been running these on his Honda for a couple of years now..
I haven't used mine yet, won't be long though an i expect them to work well based on their design, Mirko has been running these on his Honda for a couple of years now..
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
04 Jul 2021 06:24 #851231
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Stock Air Box VS Pod Filters
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: Little B, BlackZ1R, TheForumTroll, Mikaw
