Decal placement 78 KZ1000 14 Oct 2015 03:19 #694505

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 226
  • Thank you received: 16
Reaching out to anyone with 78 KZ1000 to take some measurements for decal placement, possibly front of tank to decal and bottom of tank. Greatly appreciated.

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 14 Oct 2015 05:03 #694509

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4797
  • Thank you received: 1953
LTD or Standard ?

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 14 Oct 2015 06:25 #694513

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 226
  • Thank you received: 16
Standard A2A sorry about that

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 15 Oct 2015 01:44 #694621

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2484
  • Thank you received: 511
I have a black tank from a 78 a2a with original paint and I will take measurements and pictures for you tonight after work ;)
78 KZ1000 A2A

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 15 Oct 2015 02:58 #694629

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 226
  • Thank you received: 16
That will be great thank you

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 15 Oct 2015 15:01 #694684

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2484
  • Thank you received: 511

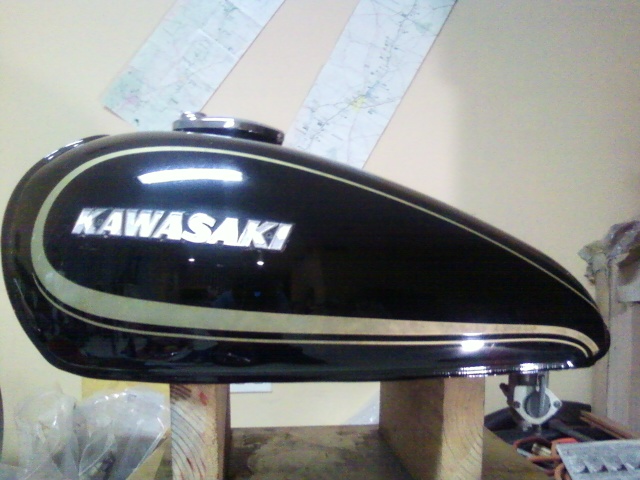

Here's a couple pics of the tank, I haven''t been able to locate my caliper, it is with all my other permission measuring tools :pinch:
Hang in there I'm still digging



78 KZ1000 A2A
Attachments:

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 16 Oct 2015 15:56 #694805

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2484
  • Thank you received: 511

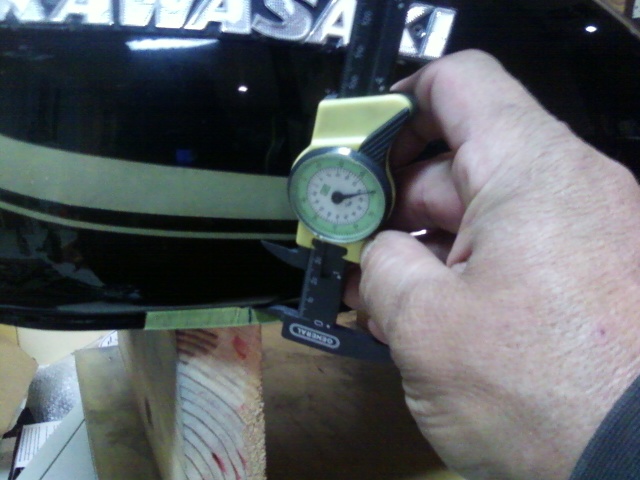

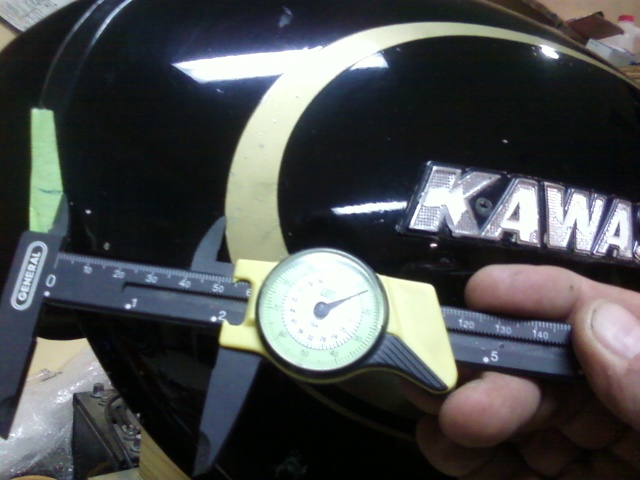

From the leading edge of the fuel tap to the forward measurement is 30 cm
The forward measurement up from the crease to the stripe is 35 mm
The the back measurement by the tap is from the crease to the stripe 25mm
The measurement even with bottom of the Kawasaki emblem from the crease to the stripe 54 mm
At the back of the tank were the 2 strips come together (in the crease) 22 mm between the stripes.
Good luck









78 KZ1000 A2A
The following user(s) said Thank You: Patton

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 17 Oct 2015 03:49 #694859

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 226
  • Thank you received: 16
That's great! Thanks for taking your time to do this, greatly appreciated

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 25 Nov 2015 18:15 #700562

  • Rockranch
  • Rockranch's Avatar
  • Offline
  • User
  • Posts: 434
  • Thank you received: 23
Do you have these pieces for that body?

Attachment 2015-07-19003003-3.jpg not found



Attachment 2015-07-19003002-2.jpg not found



Attachment 2015-07-19003005-3.jpg not found

mvent wrote: That's great! Thanks for taking your time to do this, greatly appreciated

(2)-1976 KZ900B-LTD's
1-all stock low mileage...
1 modified
1977 KZ1000 (awaiting resurrection!) :)
...and an old school Honda CB750 Chopper is next on my bucket list!

Oh...and a Pocket Rocket lol!!!
Attachments:

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 25 Nov 2015 18:20 #700563

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
I gotta say, that looks sharp.
Steve

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 25 Nov 2015 18:25 #700565

  • Rockranch
  • Rockranch's Avatar
  • Offline
  • User
  • Posts: 434
  • Thank you received: 23
Either they need the tank, or the tank needs them. They are lonely without the matching tank. That's why I mentioned them to M........'Vroom-vroom'!
(2)-1976 KZ900B-LTD's
1-all stock low mileage...
1 modified
1977 KZ1000 (awaiting resurrection!) :)
...and an old school Honda CB750 Chopper is next on my bucket list!

Oh...and a Pocket Rocket lol!!!

Please Log in or Create an account to join the conversation.

Last edit: by Rockranch. Reason: unf

Decal placement 78 KZ1000 16 Mar 2021 15:26 #845023

  • Kaylinator
  • Kaylinator's Avatar
  • Offline
  • Sustaining Member
  • Posts: 342
  • Thank you received: 74
Reviving an old thread.

Any chances someone has a stock tailpiece the can shoot some measurements off of for me?
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Please Log in or Create an account to join the conversation.
