Clymer says to take off front wheel for brake pads
  • Page:
  • 1
  • 2

TOPIC:

Clymer says to take off front wheel for brake pads 21 Jul 2023 07:43 #887468

  • treyhova
  • treyhova's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
Do I really need to take off the front wheel? Can’t I just remove the caliper?
79 KZ650 single disc.

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 21 Jul 2023 07:53 #887470

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 879
  • Thank you received: 265
You could probably try & find out. It is only 2 bolts after all. On my bike, I HAVE to take the calipers off to remove the front wheel.
Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI Mikuni RS34s W/ K&N pods

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 21 Jul 2023 07:57 #887471

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22435
  • Thank you received: 2621
YES

Attachments:

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 21 Jul 2023 08:06 #887472

  • Moose1800
  • Moose1800's Avatar
  • Offline
  • Sustaining Member
  • Posts: 302
  • Thank you received: 260
I don't know about the 650 but on a 900/1000 no need to remove the front wheel to change pads.
The following user(s) said Thank You: SWest, Warren3200gt, treyhova

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 21 Jul 2023 08:08 #887473

  • treyhova
  • treyhova's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
How do y’all get the front wheel off the ground for service? I’ve read that people will place a wooden block under the crank case? Do you use a jack to do that?

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 22 Jul 2023 06:44 #887488

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2911
  • Thank you received: 429
"How do y’all get the front wheel off the ground for service? I’ve read that people will place a wooden block under the crank case? Do you use a jack to do that?"

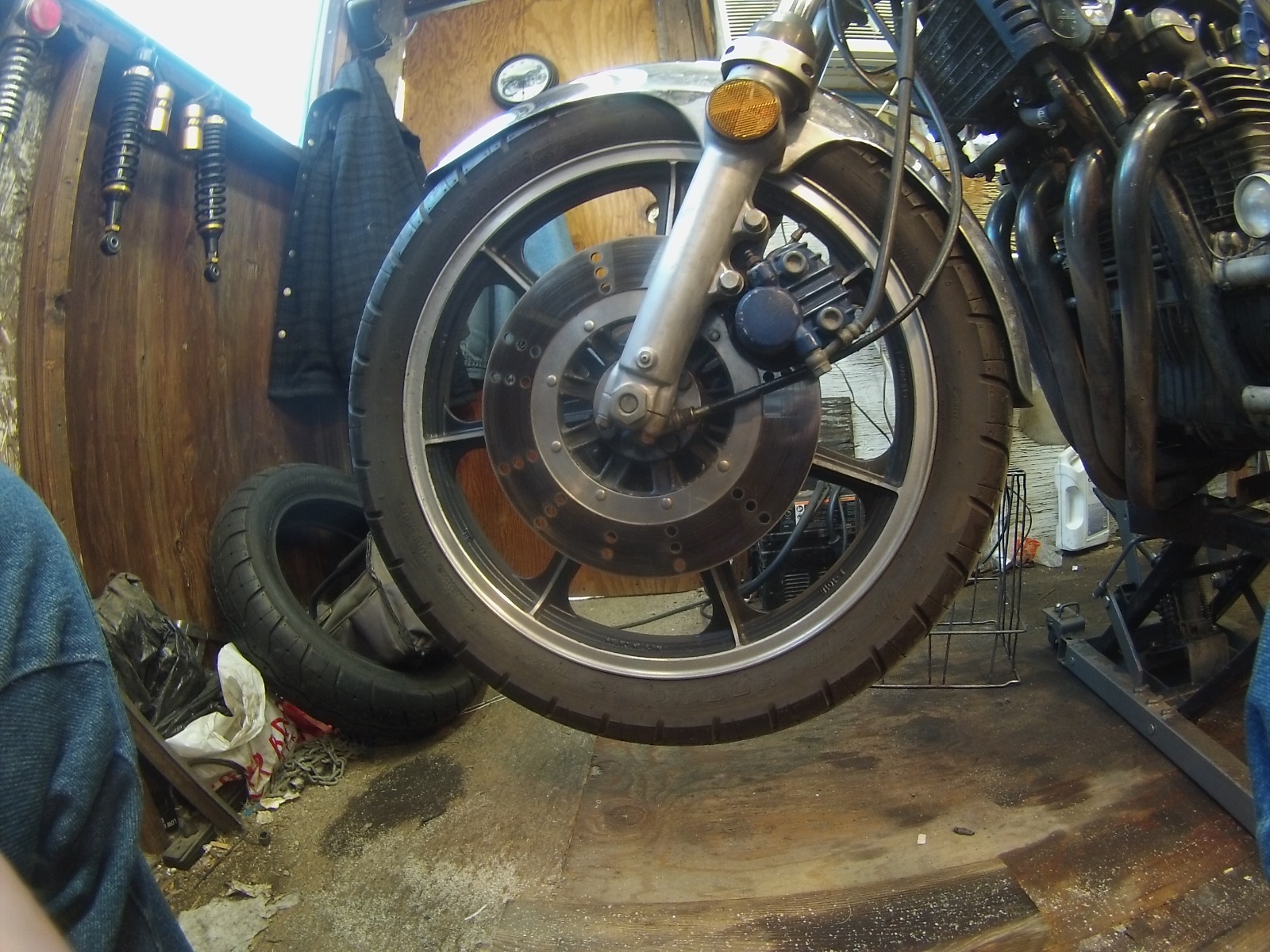

You could do something like this



You could do do it with a single 2 x 4 under the steering head but one bump could send the whole thing sidways...and down
1980 kz750E1, Delkevic exhaust
Attachments:

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 22 Jul 2023 08:12 #887491

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22435
  • Thank you received: 2621
Before I got my lift I used a bottle jack when it was on the center stand. Now I can do almost anything.

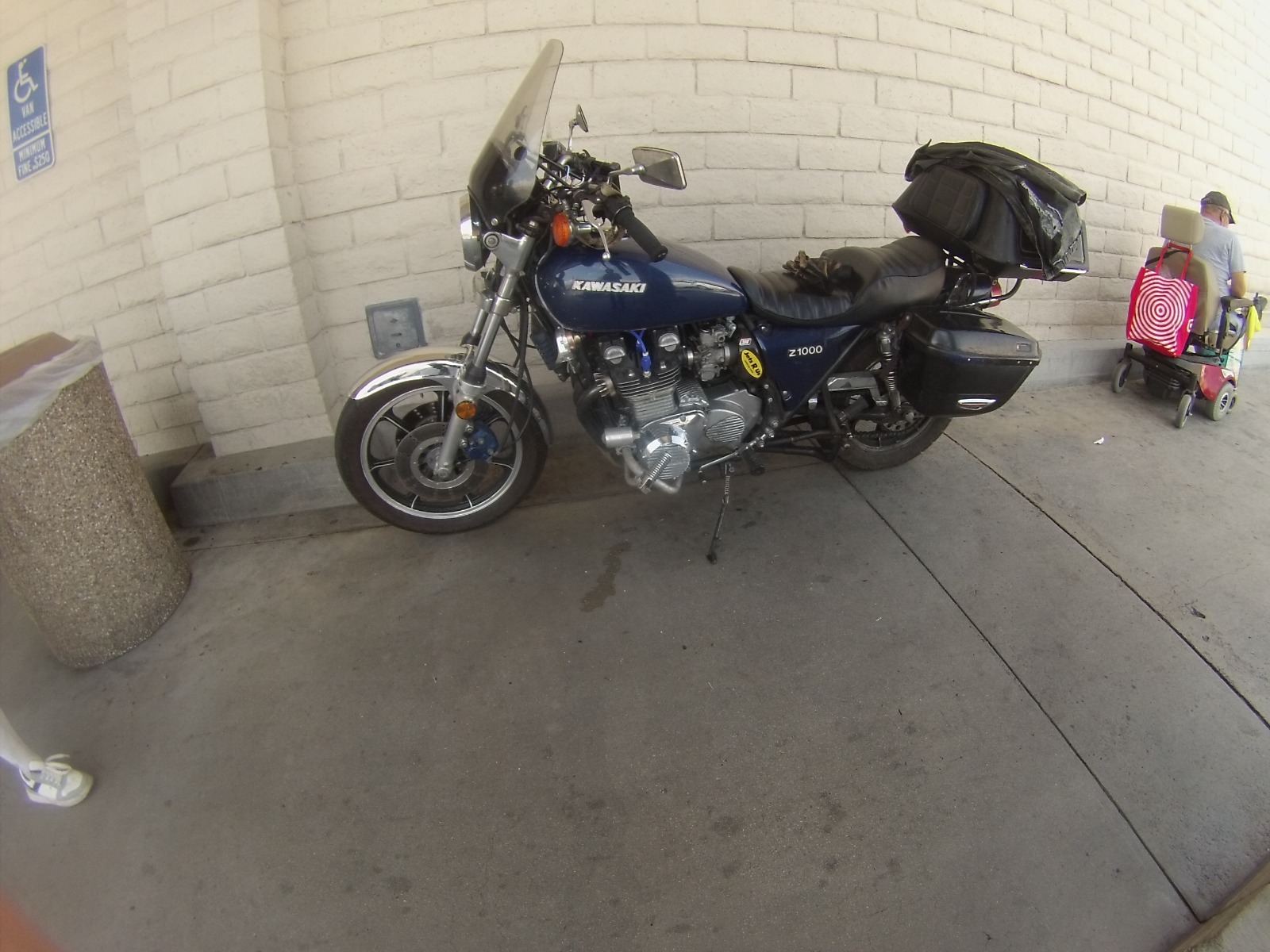

In order to remove my 110/90-19 wheel I have to remove the calipers and fender. The larger tire makes the bike more stable on and off the road and here in the desert that's a must.

Steve

Attachments:

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 22 Jul 2023 19:49 #887504

  • RonKZ650
  • RonKZ650's Avatar
  • Offline
  • User
  • Posts: 3697
  • Thank you received: 237
You definitely don't need to remove the wheel to replace pads. Remove the caliper, push back the piston, put in the pads. I can't believe any manual would say remove the wheel. Throw that manual in the trash.
321,000 miles on KZ's that I can remember. Not going to see any more.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 23 Jul 2023 00:48 #887506

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3197
  • Thank you received: 1789

You definitely don't need to remove the wheel to replace pads. Remove the caliper, push back the piston, put in the pads. I can't believe any manual would say remove the wheel. Throw that manual in the trash.
The only thing I would add is before you push the piston back remove the reservoir cap on the master cylinder (when you push the piston back fluid is displaced into the reservoir, if the cap is on this can cause pressure and force fluid out of the vent)
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 23 Jul 2023 04:10 #887507

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2928
  • Thank you received: 1022
It's not all that difficult to remove the wheel and it exposes the brake pads for a change out.  Like many other tasks it's just one way to do it.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 23 Jul 2023 15:44 #887519

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7220
  • Thank you received: 2067

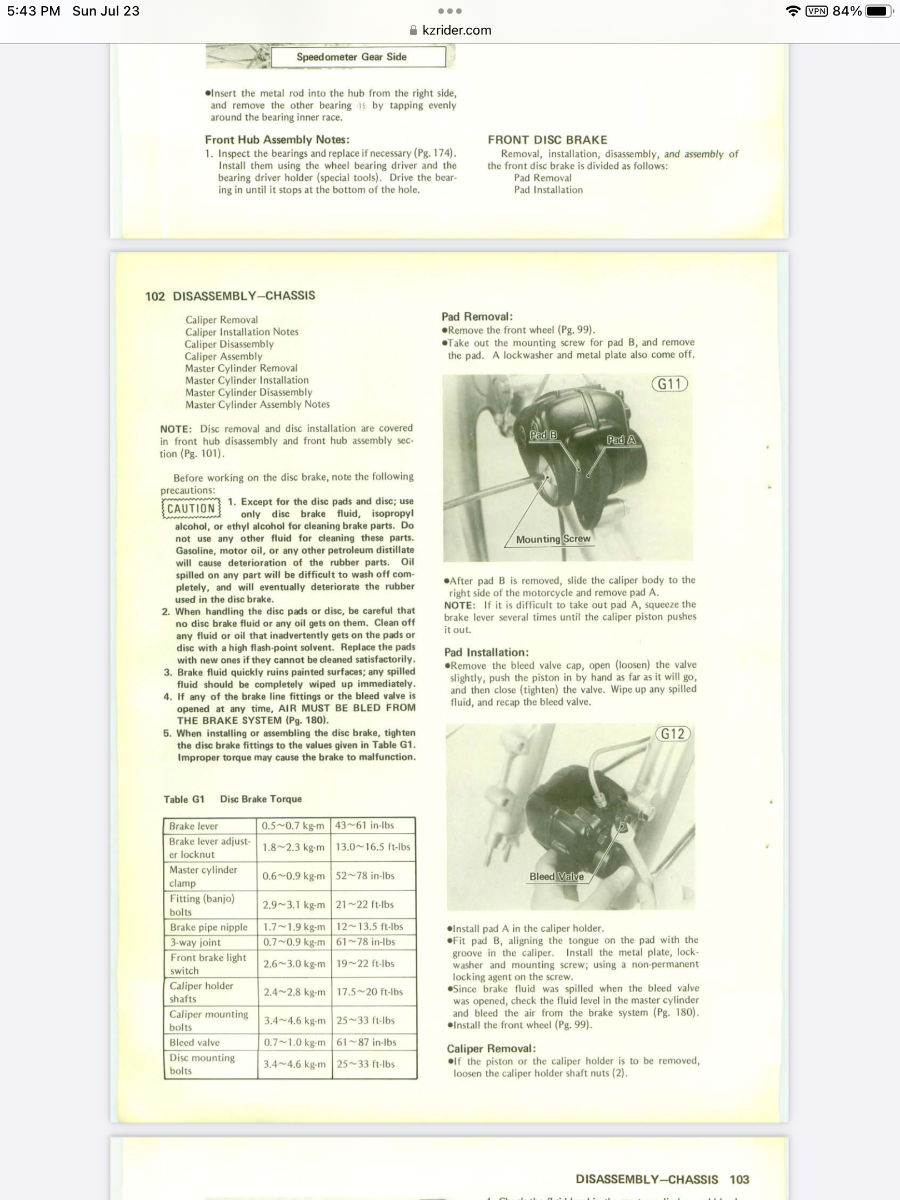

The factory service manual says to remove the wheel.


1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Attachments:

Please Log in or Create an account to join the conversation.

Clymer says to take off front wheel for brake pads 23 Jul 2023 16:06 #887521

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22435
  • Thank you received: 2621
Mine come right off and they have to come off to remove the wheel.
The following user(s) said Thank You: slayer61

Please Log in or Create an account to join the conversation.
