Rear master cylinder help
- Duckworth
-
- Offline
- User
-
Registered
- Posts: 1
- Thanks: 1
Re: Rear master cylinder help
29 Mar 2022 13:18 - 29 Mar 2022 15:32
Hey folks. My first KZ and my first post here. I’ve had my challenges with my ‘78 KZ750. While restoring entirely everything, my rear brakes gave me almost as much fits as installing a Thunderheart wiring system.

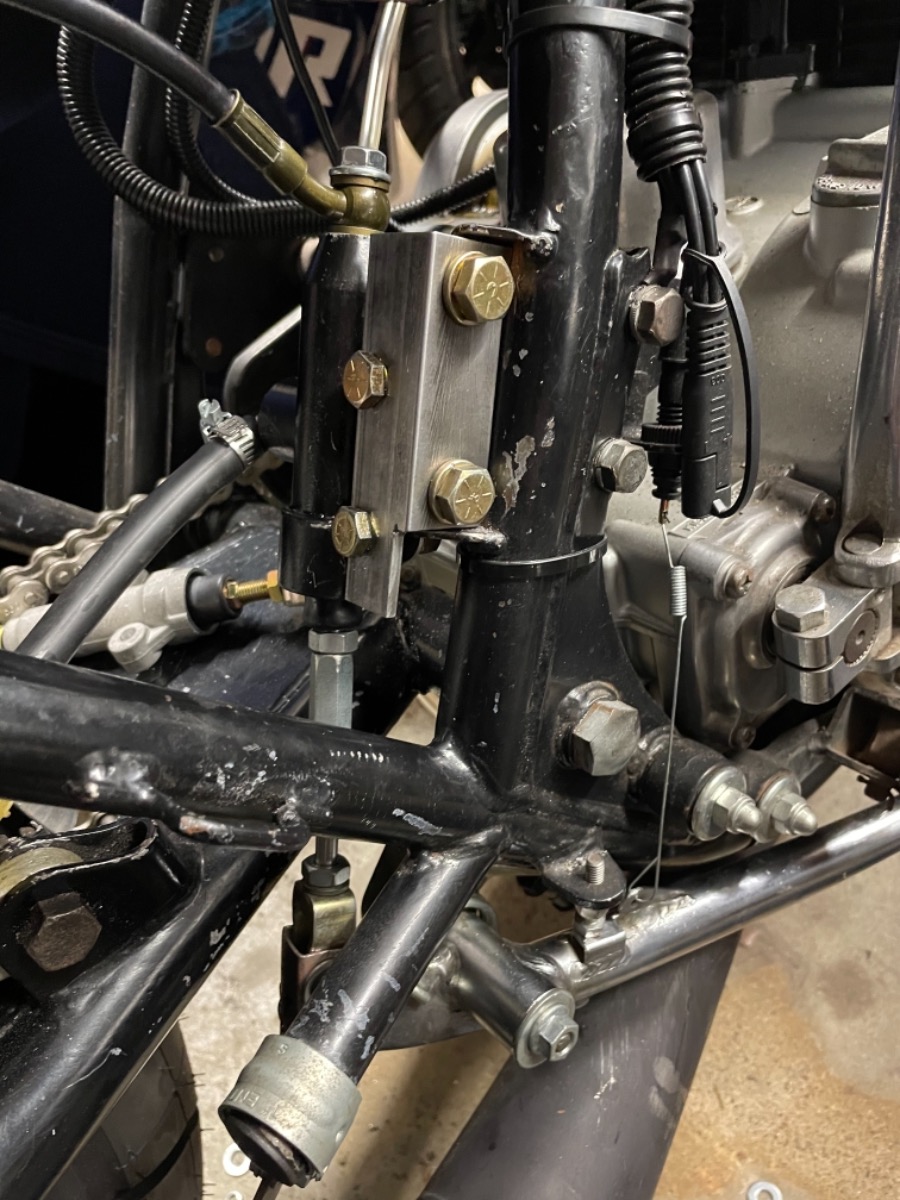

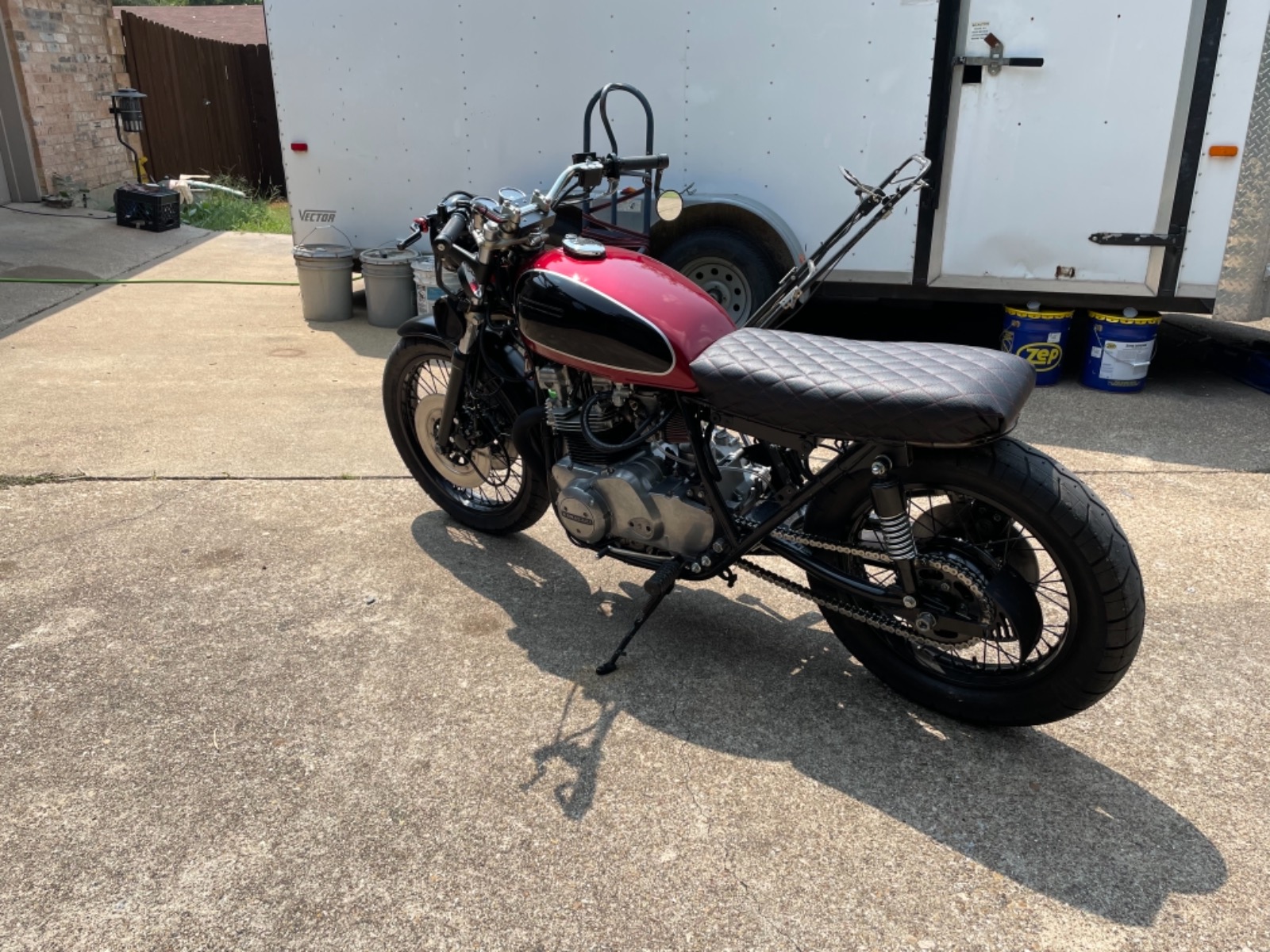

Angle iron to the existing frame mount set up a 21mm piston aftermarket cylinder. Used a coupling cylinder in between the MC and pedal to dial in tension then built a second attachment of square iron to get that aftermarket end to fit snug in the larger OEM pedal extension.
Yes it’s all convoluted and exhausting but I’d hoped if I got this to work and passed it on then someone more skilled than I would run with it.
Much love my new fam!
Angle iron to the existing frame mount set up a 21mm piston aftermarket cylinder. Used a coupling cylinder in between the MC and pedal to dial in tension then built a second attachment of square iron to get that aftermarket end to fit snug in the larger OEM pedal extension.
Yes it’s all convoluted and exhausting but I’d hoped if I got this to work and passed it on then someone more skilled than I would run with it.
Much love my new fam!
Last edit: 29 Mar 2022 15:32 by Street Fighter LTD.
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
-
Registered
- Posts: 7942
- Thanks: 2512
Re: Rear master cylinder help
30 Mar 2022 04:40
What is the problem?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
-
Registered
- Posts: 5116
- Thanks: 3133
Re: Rear master cylinder help
30 Mar 2022 15:03
Just an observation, having the high pressure pipe arching upwards above the calliper is likely to trap air bubbles and make bleeding very difficult (IMO)
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- Mikaw
-
- Offline
- Sustaining Member
-
Registered
- Posts: 4836
- Thanks: 1851
Re: Rear master cylinder help
30 Mar 2022 17:30
Another observation. The actuator rod appears to not be inline with the M/C body. Eventually the continued forcing of the piston agains the wall of the bore could lead to premature failure. I hope that never happens. I’d correct the rod and bores alignment.
