ZN1100 Frankenbike with points ! 20 Feb 2019 06:27 #798925

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • User
  • Posts: 44
  • Thank you received: 8
The ZN seal od is about 1.185, the id about 1.250. The seal is an NGK AC1803F.

The od number I posted isn't right, I'll measure it again in the morning. My dyslexia is acting up again........
1981 KZ650 CSR
1985 ZN 1100 LTD
1982 GS1100GL
1979 Puch Maxi ( sold to buy the 650 )
1987 GL1200 Interstate
1986 GL1200 Aspencade (parts donor)

Please Log in or Create an account to join the conversation.

Last edit: by jljim.

ZN1100 Frankenbike with points ! 20 Feb 2019 15:10 #798947

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22451
  • Thank you received: 2629
I measured in MM's. I'll use the calipers and set it to inches. I'll post them a little later.
Steve

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 16:51 #798952

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22451
  • Thank you received: 2629
The seal OD is 1.573" , ID is .965" +/- .
Steve

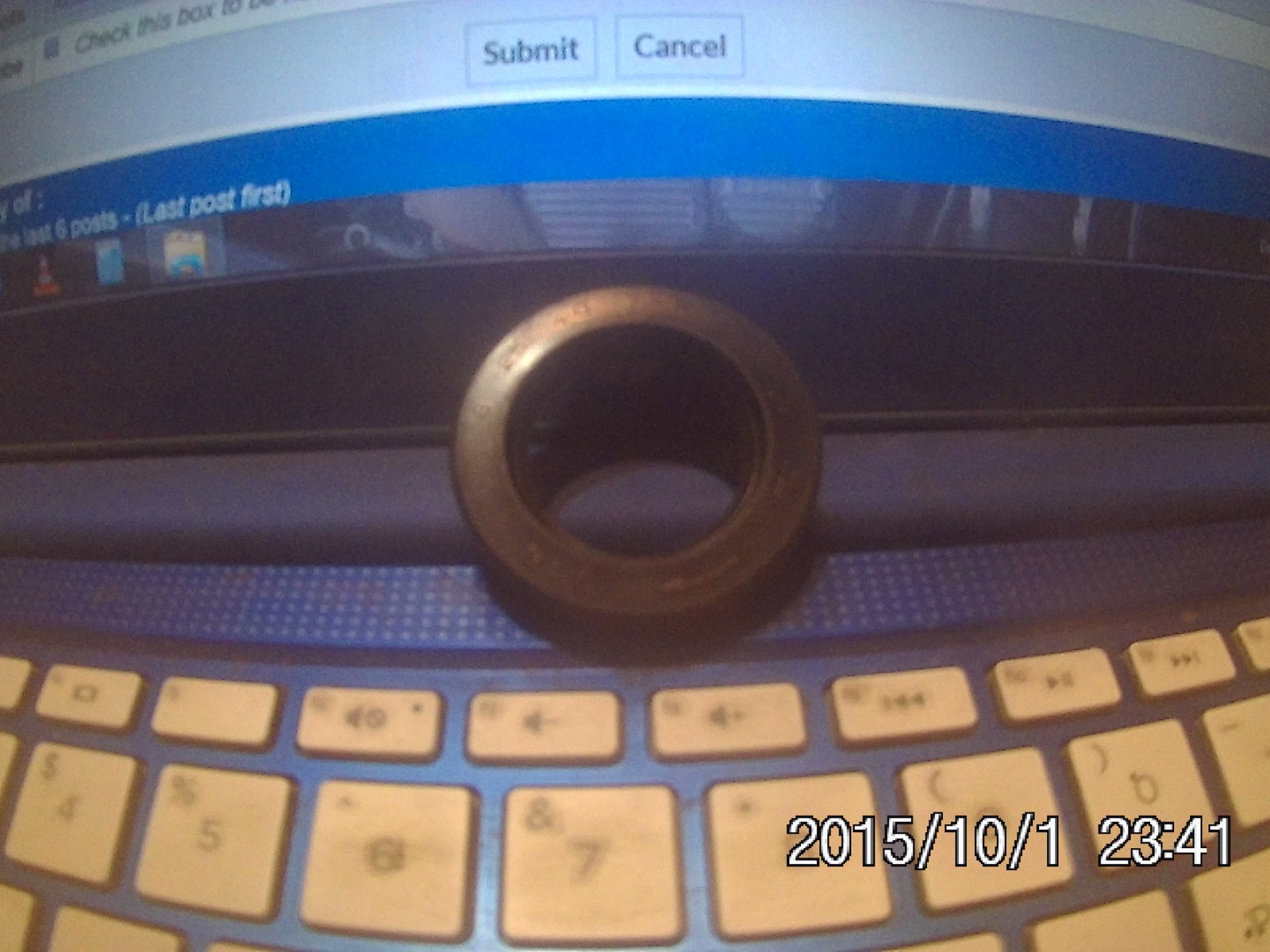

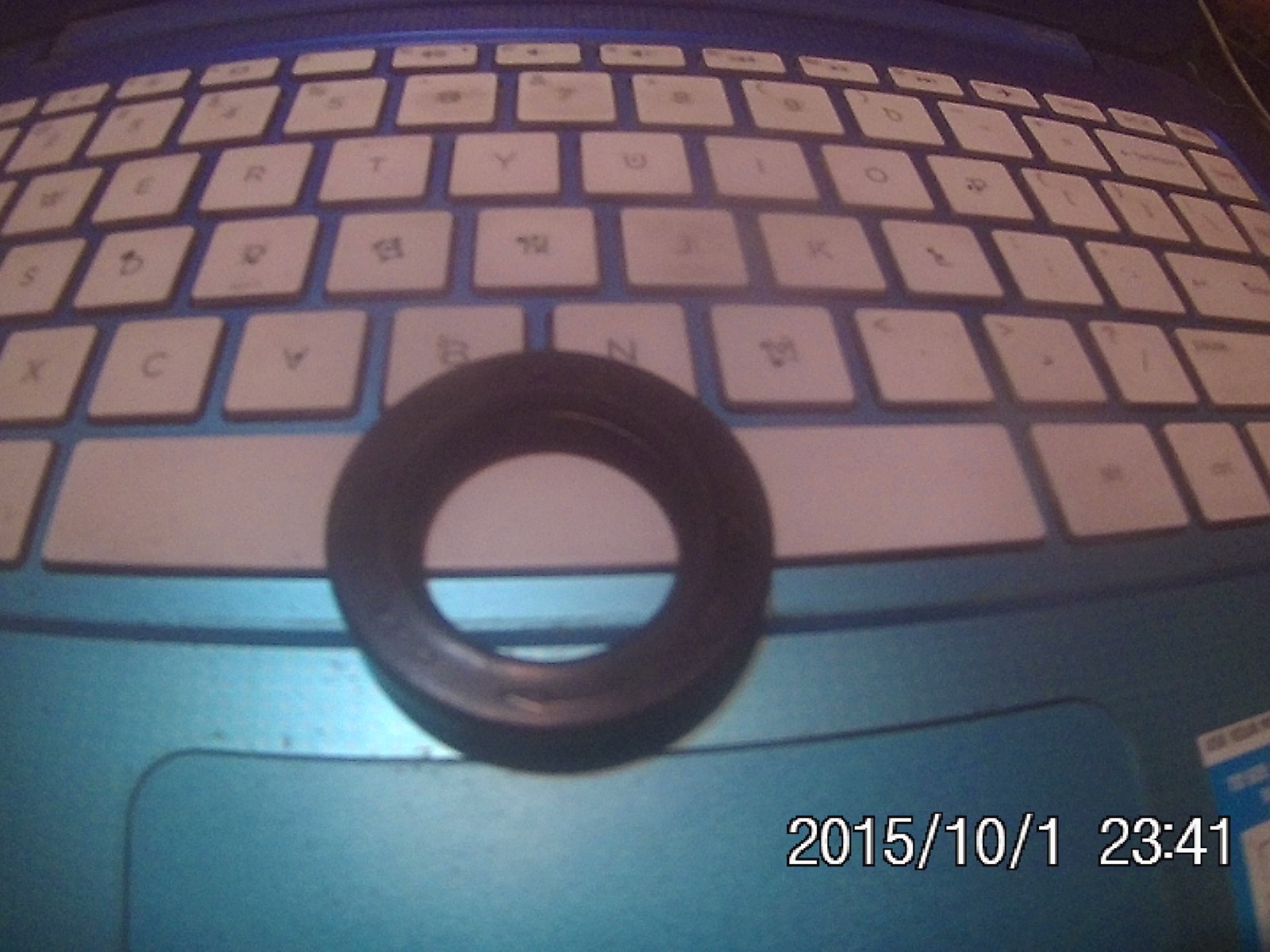

Spare one
Attachments:

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 17:01 #798953

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7227
  • Thank you received: 2071
If you scroll down the figment chart, you will see that the ZN uses the very same seal as all the J model engines , that is all KZ1000 and 1100 from 1981 onward. It also fits all the 1000 Concours and others.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 17:44 #798954

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22451
  • Thank you received: 2629
The crank pins are larger right?
Steve

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 18:45 #798959

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7227
  • Thank you received: 2071
www.partzilla.com/product/kawasaki/92049...93b1c3b98ae90d11ac68
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 21 Feb 2019 03:54 #798977

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • User
  • Posts: 44
  • Thank you received: 8
Measured the seal again this morning. The ID listed is about right, 1.250" or about 32 mm. The OD is about 1.890" or 48 mm. The seal part number is listed for a lot of other models but maybe not for the r/h housing ?
1981 KZ650 CSR
1985 ZN 1100 LTD
1982 GS1100GL
1979 Puch Maxi ( sold to buy the 650 )
1987 GL1200 Interstate
1986 GL1200 Aspencade (parts donor)

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 06 Aug 2019 07:29 #808793

  • Reese4u27
  • Reese4u27's Avatar
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
This 1984 ZN1100B I have is kinda weird...my rotor/advancer looks nothing like the ones I’ve seen on the kz’s ...I just ordered a factory oem electronic ignition...I have the factory kz1000 inner cover...and hoping I can use my original rotor...I read this in hopes I can get help so...help me out fellas!!
