Greetings All,

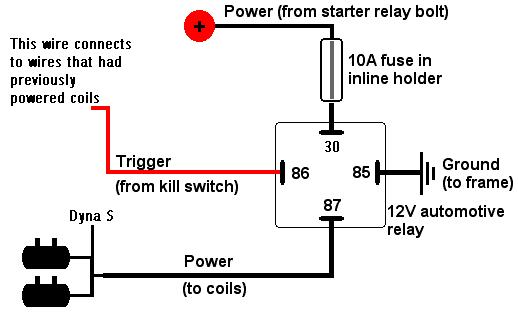

I have recently tried the wired George mod on my 78' KZ650 due to the lack of voltage going to my coils. I installed the 10A inline fuse as recommended but when I turned my key on the fuse blew. After several attempts with the same result I increase the fuse size to a 20A. After about 50 failed kicks (I believe my starter clutch is bad) I decided to take of the engine side cover and smelt a burning plastic smell. This is when I noticed that the points were glowing red and eventually melted the metal in the locations shown on the attached picture. Can anyone help me with what I may have done wrong? Thanks in advanced.

Prior to you fiddling around with the Wired George mod when was the last time you replaced and properly adjusted the points, and when was the last time the engine ran ok? Ed

Sounds like you have wired the relay terminals incorrectly or have a bad relay. Your live must be going dircetly to earth to blow the fuse like that.

The description leads us to believe +12v is going straight to ground through the points. That is, the points are at full battery potential without any load (the coils).

What are the colors of the wires in stock wiring harness going to:
The relay coil terminals (where are you picking up voltage and ground to energize the relay coil)?
The relay common terminal (where are you tapping into battery voltage to power the coils)?
The relay NO terminal (where are you sending voltage taken from relay common when the relay coil energizes and the NO terminal closes)?

As an aside, if the points were glowing red they're probably shot. 20 amps is waayyy too high for the load fuse.

We're running 7 amp fuses on the load side, 3 amp fuses on the relay coil side our Z1's with the coil relay mod. They're over-fused at that.


Good Ridin'
slmjim & Z1BEBE

Ed,

I have never replaced or adjusted the points...still a beginner at this.
I got the bike running about 3 month ago and every time I ride it seems like something isn't right (i.e... sluggish start, backfiring, pinging sound, sooty plugs).

In that case I would urge you to first perform the routine scheduled maintenance as specified in the Kawasaki Service Manual. Otherwise you will be chasing problems that may easily be corrected by doing the recommended routine maintenance. If you don't perform the normal maintenance first you may actually cause more problems than you correct. Modifying a bike that hasn't had routine maintenance performed sounds like a really bad idea to me. Ed

Ed,

i just purchased a new set of points since the old ones are trashed. Once i install them i will take your advise and review the manual and perform the routine maintenance. Thanks for you help. I will keep you updated.

Do you have the instructions for installing the new points? Ed

Rather than do the WG mod just sort out the bad connections in the loom that drop the voltage in the first place and you won't need a relay at all.
The "mod" is not an upgrade but a shortcut bodge to mask existing problems in the loom .
Then get rid of the points and fit a Dyna 'S' to solve all your ign problems for good.

I do not have the instructions, but im sure i can find them.

To install points in the KZ650:
The manual has several pages of instructions, pictures, etc. on how to set the timing using the static method plus timing light, plus dwell meter. I can give you a fairly easy way that will get you in a pretty close ballpark without a timing light or dwell meter, but you will need a 0.35 mm feeler gauge and a multi-meter or other device to test continuity. To be very precise, the timing light and dwell meter will be needed.

Before attempting to replace or adjust the points the following is important to understand; timing is comprised of two separate components, and BOTH of these components MUST be set properly if the engine is to run well:

--- The GAP - this is the distance the points spread apart when fully open. The GAP is the element that determines the DWELL. In essence, the DWELL is the number of degrees of points cam rotation that the points are closed and this controls the amount of time the coils receive a charge before firing the spark plugs.

--- The TIMING of the initial opening of the points (the point at which the continuity across the points breaks). This controls the precise instant that the coils receive the signal to fire the spark plugs.

Remove the points cover on the right side of engine. Under it you will see 2 sets of points. The set on the left fires cylinders 1 & 4; the set on the right fires 2 & 3. When replacing points observe carefully how the little bits and pieces are arranged where the wires attach. Some of those pieces are actually insulators and if you leave any of them out or put them back in the wrong place the points will be grounded and won't work. Take a very close look at the contact surfaces of the points. If they are pitted you really should replace them. You can sand down pitted points, but they will quickly pit again. Replace one set of points at a time so you can look at the other set in case you get the little bits confused.

Use a 17 mm wrench to turn the nut NEAR the end of the crankshaft clockwise while looking in the hole above that nut. (Do NOT use a wrench on the smaller bolt on the very end of the crankshaft to turn the engine.) Inside that hole you will see a vertical pointer cast into the casing. As you turn the 17 mm nut you will see a 1 & 4 and F and T roll by and then you'll see a 2 & 3 and F and T roll by. Each F and T has a line next to it.

Here's the method I use for static timing. I turn OFF the ignition. I disconnect the green wire near one coil and the black wire near the other coil. (This is not in the book, but it makes checking continuity much easier for me.) After installing the new points or cleaning up the old ones, turn the 17 mm nut while watching the points. When points set 1&4 are at their widest gap adjust them (by loosening the 2 screws that hold the points to the backplate) so the gap equals 0.35 mm. Turn the 17 mm nut clockwise through a full revolution again and double check this gap. Then repeat this for points set 2&3. Now set your meter to test continuity and clip one wire to the leaf spring on points set 1&4 and clip the other wire to ground. Turn the 17 mm nut clockwise until the 1&4 "F" mark aligns with the pointer mentioned above. You want the continuity across point set 1&4 to just break when the F mark aligns with the pointer. The idea is that when the continuity just fails is when the points will fire their respective coil and cylinders. In order to adjust the point at which continuity fails you loosen the 3 screws that hold the backplate to the engine and slightly turn the backplate until the meter shows a break in continuity. Once you have the 1&4 set timed properly you can check the 2&3 set to make sure they break when the 2&3 F mark aligns with the pointer (they should or something is not right). Don't forget to plug in the green and black coil wires when you are done, and put a little grease on the rubbing block felt. Assuming you are using new points of the correct type this should enable you to get the timing very close. Trying this with old points may give poor results, especially if the points are pitted and/or the rubbing blocks are worn.

After you have set the gap (which in effect sets the dwell) and the timing using the method above you can use a dwell meter and timing light to fine tune dwell and timing. If you have followed the above procedure carefully, very little if any fine tuning will be needed.

Sorry this is so long. It's not as difficult as it sounds. Ed
