z1 floats 18 Nov 2019 05:54 #814134

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
What differs between 1975 and 76 to 80 floats, are they the same ?

Please Log in or Create an account to join the conversation.

z1 floats 18 Nov 2019 05:55 #814136

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

Please Log in or Create an account to join the conversation.

z1 floats 18 Nov 2019 05:56 #814137

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

Please Log in or Create an account to join the conversation.

z1 floats 18 Nov 2019 13:06 #814159

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
Not sure of the differences but they are not the same part numbers so they must be different somehow. Maybe diameter? Float valves are also different part numbers.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

z1 floats 19 Nov 2019 02:44 #814173

  • gazzz
  • gazzz's Avatar
  • Offline
  • Sustaining Member
  • Posts: 564
  • Thank you received: 313

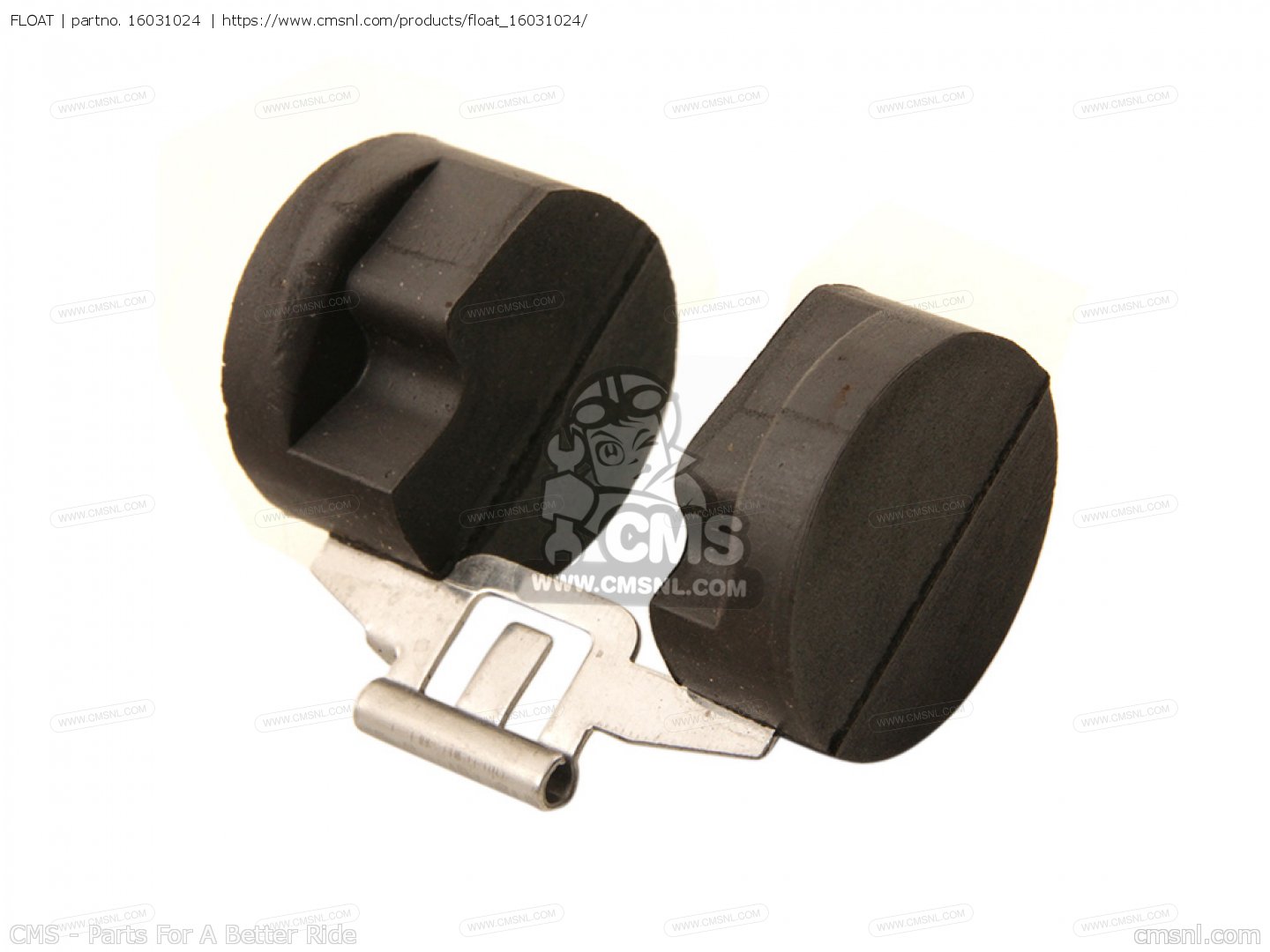

Floats on your photos has 16031-031 part number. They used in carburetors of 1976-1981 KZ1000 and KZ650

Part number of float for 1973-1975 Z1 is 16031-024. It has completely different (asymmetrical) design.

Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by gazzz.

z1 floats 19 Nov 2019 05:19 #814176

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
Part number changed in 76, they look the same to me, 1973 used wide and narrow float, the bowls and floats changed sometime in 74 from big drain to drain screw.
Very strange, I was opeing someone would know.

Please Log in or Create an account to join the conversation.

z1 floats 19 Nov 2019 06:14 #814183

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583
Z series Kawasaki Service Bulletin #SER 74 Z-31 dated 5-27-74 documents the changes to the carbs beginning with engine # Z1E-032866.
The (old) asymmetrical float # is 16031-024.
The (new) symmetrical float # is 16031-028.

Carb body ID #'s:
(old) 147 0, or 147 1, or 147 2.
(new) 217 0.

The following carb parts were changed at the same time:
Needle jet (P-8) #13017-064 > (0-8) #16017-086.
Needle jet holder 16047-002 > #16047-003 (different dimensions).
Pilot jet (#20) #92064-035 > (#17.5) #92064-042 (different dimensions).
Throttle valve (2.5 cutaway) #16025-051 > (1.5 cutaway) #16025-075.
Float bowls (large drain plug, all 4 cylinders) #16020-015 > (small drain screw) #16020-016 for cylinders 1 and 2 only. #16020-017 for cylinders 3 and 4 only.

Fuel level gauge:
(old) #57001-122
(new) #57001-208

We realize that this doesn't address the post-76 compatibility question, but perhaps will be helpful anyway.

EDIT 1: - KZRider.com continues to fail with a 403 error code when we attempt to access it only from home with Firefox or any other browser. The obscure browser/VPN workaround we have to use for KZRider doesn't often play nice with attachments. Don't know why. We posted the referenced service bulletin as attachments in both .pdf and .jpg. but cannot tell if they're visible to the members.
73z1, if you cannot see the service bulletin please send us a PM with your email & we'll send it to that way.

EDIT 2: We can see the .jpg's correctly, but not the .pdf's. That's progress of sorts If anyone can see the .pdf's please let us know via PM.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Attachments:
The following user(s) said Thank You: gazzz

Please Log in or Create an account to join the conversation.

Last edit: by slmjim+Z1BEBE. Reason: EDIT 1: KZRider website failure - 403 error re: attachments. EDIT 2: visibility re: attachments.

z1 floats 19 Nov 2019 07:19 #814189

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22347
  • Thank you received: 2599
The first two downloads fine and the other two shows up well.
Steve
The following user(s) said Thank You: slmjim+Z1BEBE

Please Log in or Create an account to join the conversation.

z1 floats 19 Nov 2019 11:10 #814196

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
Slimjim,
Thanks for your note and help, and everyone's help.
The 75 and 76 floats look the same to me, I bought a 76 float for $15, will report when received (75 float was $40).
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

z1 floats 19 Nov 2019 11:19 #814198

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22347
  • Thank you received: 2599
The VM 26 floats and slides were the same as my VM 28's. I switched them but had to buy 2.5 needle valves due to the bike starving for fuel on the grade against the wind. The jets fit but were too small for my 1015, V/H and Andrews cam setup.
Steve

Please Log in or Create an account to join the conversation.

z1 floats 22 Nov 2019 03:49 #814343

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 491
  • Thank you received: 166
I believe there is a slight difference in the Late 74-75 Z1 float. I have ran across this doing this era of carbs. The early "big 17mm" bowl drain floats are completely different so that is obvious. The difference I believe is the slight change of positioning of how the tang assy is moulded into the float material. Either float Will work though. Best tip is to assemble attaining as close to perpendicular relationship of float needle to float tang as possible. If needed a slight bend of the brass as it enters each float may be required or shimming with an extra washer under needle seat. Don't stack too many shim washers, binding may occur between float seat and brass dowel where float pin goes thru. Of course depressing after each tweek to assure complete depression of float/float needle pin spring does not hit the upper chamber of carb casting.

Please Log in or Create an account to join the conversation.

z1 floats 22 Nov 2019 05:04 #814344

  • 73z1
  • 73z1's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
Thanks for the note, usps tracking, float coming today, I will report.
