750/4 Airboxes

18 Feb 2017 09:46 - 18 Feb 2017 09:49
#754489
I'd like to add airbox covers on my 750E. Later year bikes had them to dress up the appearance of the airbox. As near as I can figure there are two different shapes, those for the shaft drive 750's and those for the R1/L model bikes, but I'm not sure which if either would fit my bike. I'm thinking the shaft drive version but looking for confirmation. The difference seems to be the shape at the top; the shaft drive airbox version seems more pointy at top and the R1/L airbox covers are wider, suggesting a deeper airbox?

Input appreciated.



Last edit: 18 Feb 2017 09:49 by Nessism.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7766
  • Thanks: 3154

Re: 750/4 Airboxes

18 Feb 2017 16:09
#754520
Think I figured this out...

The R1/L airbox caps square off and terminate just above the ribs on the airbox. The Spectre airbox covers extend all the way up to the top of the airbox so the caps are taller. I think all the bikes use the same airbox.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: 750/4 Airboxes

18 Feb 2017 16:25 - 18 Feb 2017 16:42
#754523
Someone over at the KZ650.info site posted some photos comparing airboxes & his pics indicated that the shaft drive airboxes were different from a 750 chain drive, but I don't recall what chain drive model or in exactly what way. I think it was the air filter housing area --- the shape was different. Before then, I would have thought all 750-4 airboxes were basically the same.

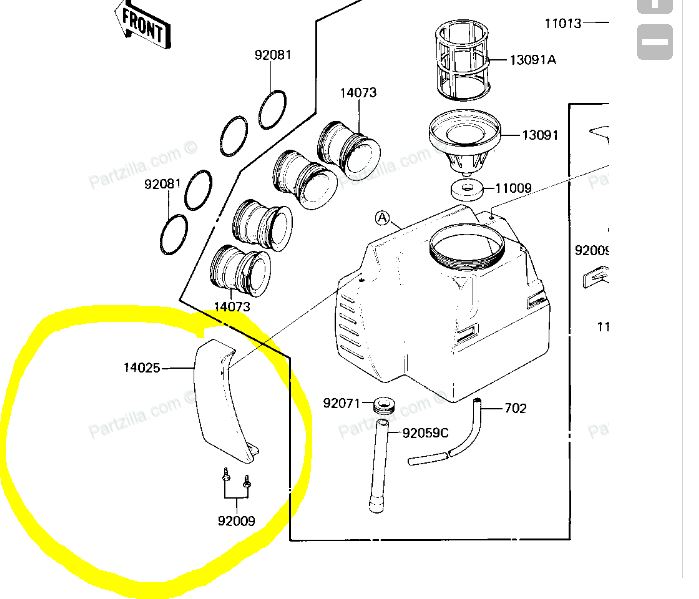

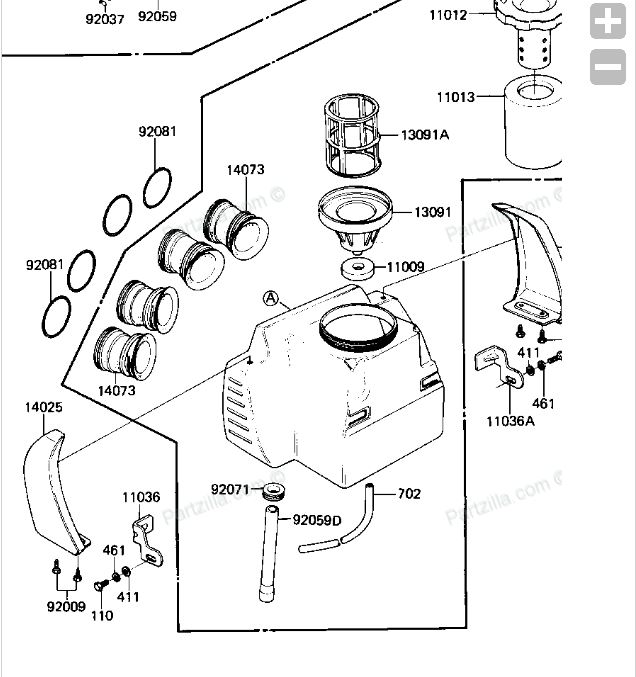

Partzilla indicates that the 750-F1/N1/N2 shaft and 750-R1/L3 & 700-A1/A2 chain drive models have the same airbox. Using eebbaayy, I would try comparing one or two of those to the 750E.
