Mitutoyo 2 in to 6 in Borehole Gauge 04 Feb 2021 15:35 #842989

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1919
  • Thank you received: 245
Dial Bore Gauge.

Search youtube for clearer instructions. If the video shows someone setting it up with a micrometer, thats what you need to watch. You cant use a caliper.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
The following user(s) said Thank You: Mikaw, Steel Legion

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 04 Feb 2021 16:14 #842993

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
I never thought to look on youtube, but there is a great official Mitutoyo video showing a number of different borehole gauges.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 04 Feb 2021 16:42 #842996

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

hardrockminer wrote: I never thought to look on youtube, but there is a great official Mitutoyo video showing a number of different borehole gauges.


Just jumped down that rabbit hole
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 05 Feb 2021 20:56 #843052

  • richard
  • richard's Avatar
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
I'd like to throw my 2 cents in

Your on the right track using the bore
Gauge,you'll want to slide the dial indicator
Up or down on the shaft until you have no more than one turn on the dial face ,the more times the needle goes around the more it compresses the spring,when retracting it has a better chance of snapping back and loosing calibration

As mentioned before,the kz bores are unfortunately a bit sloppy and sometimes out of specs

There's nothing wrong with using the honed
Bottom part of the bore for a comparison

If your using a mic then you need to measure the piston to understand the true clearance,you might not like what you see, remember this was 70s transportation
Not a 2020 H2R...LOL

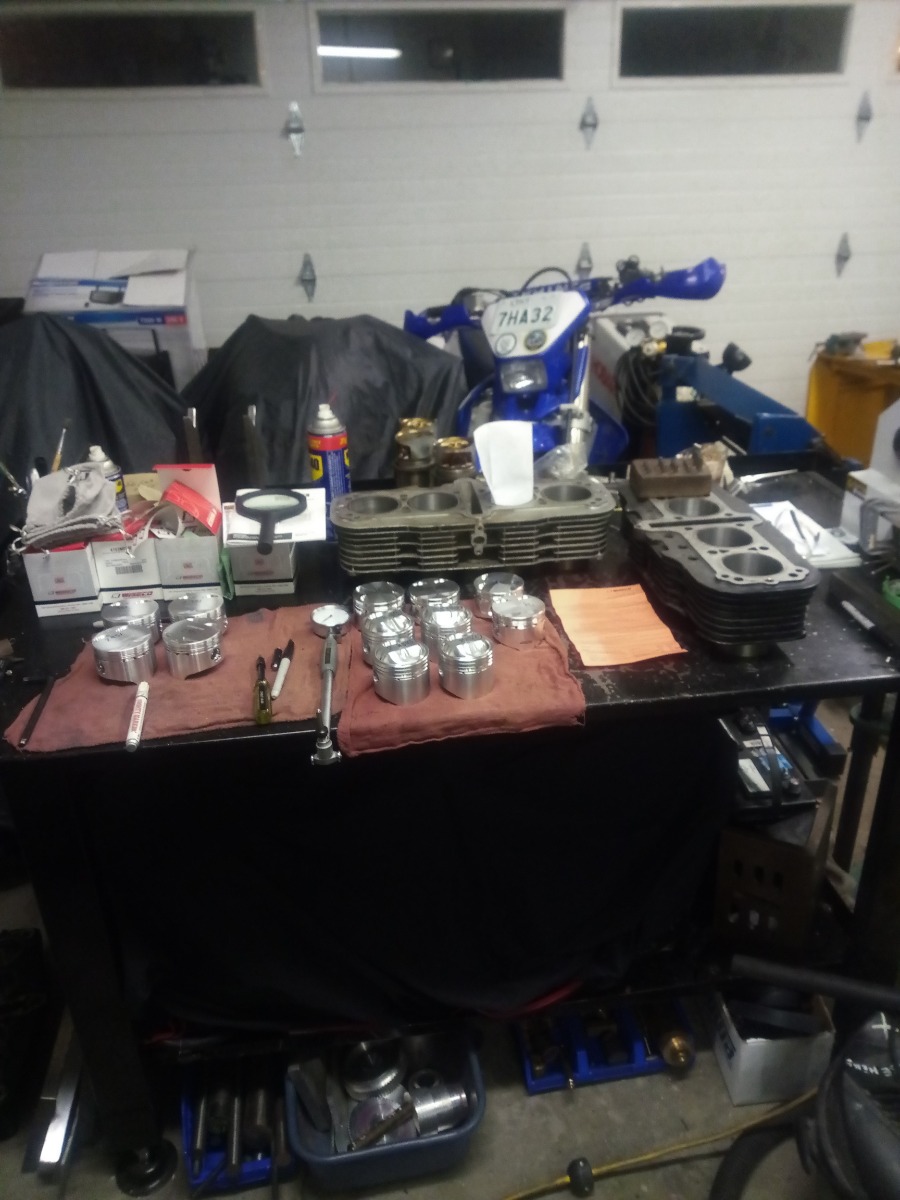

Attachments:
The following user(s) said Thank You: hardrockminer

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 06 Feb 2021 05:08 #843057

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
The 2 " to 3" mic arrived yesterday. Unfortunately it's only graduated in 0.001 so trying to set it to 0.2409 was a bit of a guesstimate. I measured all the bores and they were all fine. The outer limit on the spec is 0.0039 and the most I saw on the borehole mike was 0.0025. One strange thing though....after zeroing the borehole gauge and during measuring the bores, all of the deflections were negative on the dial gauge.

The barrels were also within tolerance on round.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 06 Feb 2021 06:08 #843059

  • richard
  • richard's Avatar
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
Sounds like your good to go
A good set of cylinders
The dial will turn counter clockwise
As the bore gets bigger ,the negative and positive on the dial face is just there for
Reference

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 06 Feb 2021 08:10 #843065

  • M_a_t_t
  • M_a_t_t's Avatar
  • Offline
  • Sustaining Member
  • Posts: 254
  • Thank you received: 41

richard wrote:


What are these machines called?
83 KZ1100A (shaft)
17 Versys X 300 abs
81 kz650h1
81 kz750e2
90 Honda CBR600F (brother's)

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 06 Feb 2021 13:35 #843087

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
>>>>>>>>>>>>>>>What are these machines called?
It is a boring bar, possibly kwik-way

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 06 Feb 2021 16:35 #843102

  • richard
  • richard's Avatar
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
Correct

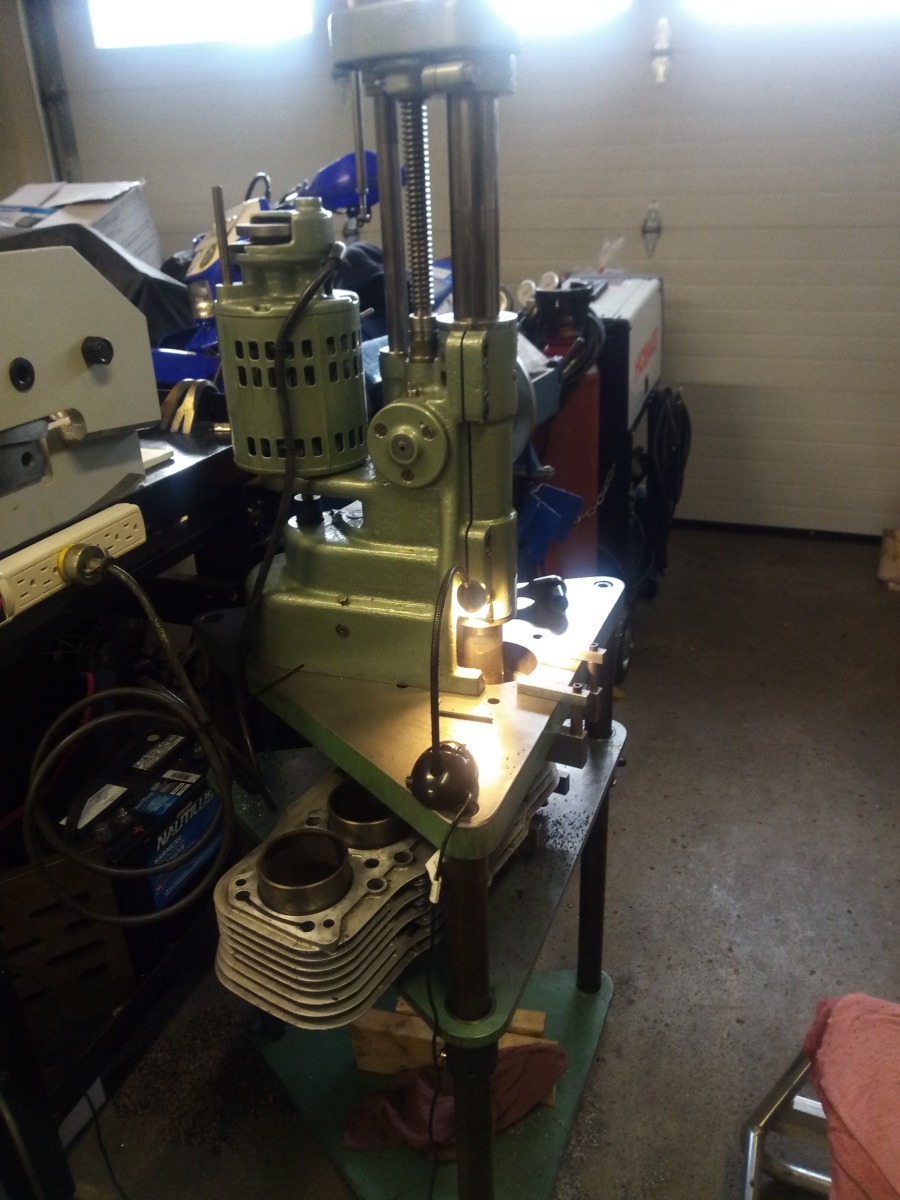

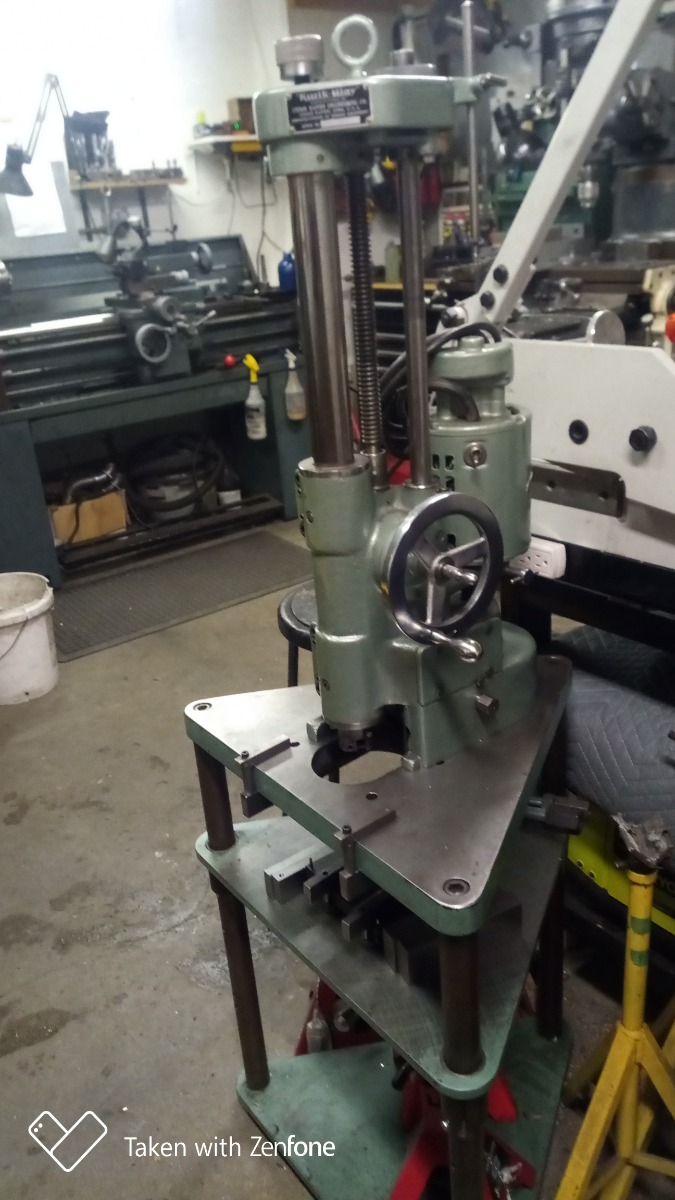

Kwik way boring bar
Attachments:

Please Log in or Create an account to join the conversation.

Mitutoyo 2 in to 6 in Borehole Gauge 09 Feb 2021 10:52 #843227

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 852
  • Thank you received: 254
SWEET!!!

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.
