Suzuki exhaust gasket?

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1462
  • Thanks: 82

Suzuki exhaust gasket?

14 Dec 2021 10:38
#859069
I need new exhaust gasket and remember someone advise to use Suzuki gasket because the was thicker and easier to get it air tight.

Do I remember correct? Do you know the part number?


thank you
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
The following user(s) said Thank You: BostonBob

Please Log in or Create an account to join the conversation.

  • Highway Magician
  • Highway Magician's Avatar
  • Offline
  • User
  • Posts: 80
  • Thanks: 33

Re: Suzuki exhaust gasket?

14 Dec 2021 10:45
#859070
14181-05020
Motorcycle builder since 1973. Master Tech. Current bike: 1982 GPZ1100B2.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2914
  • Thanks: 745

Re: Suzuki exhaust gasket?

14 Dec 2021 11:57 - 14 Dec 2021 12:23
#859072
Just ordered another set of those yesterday...

Ebay item 401309439864 (10 pack).

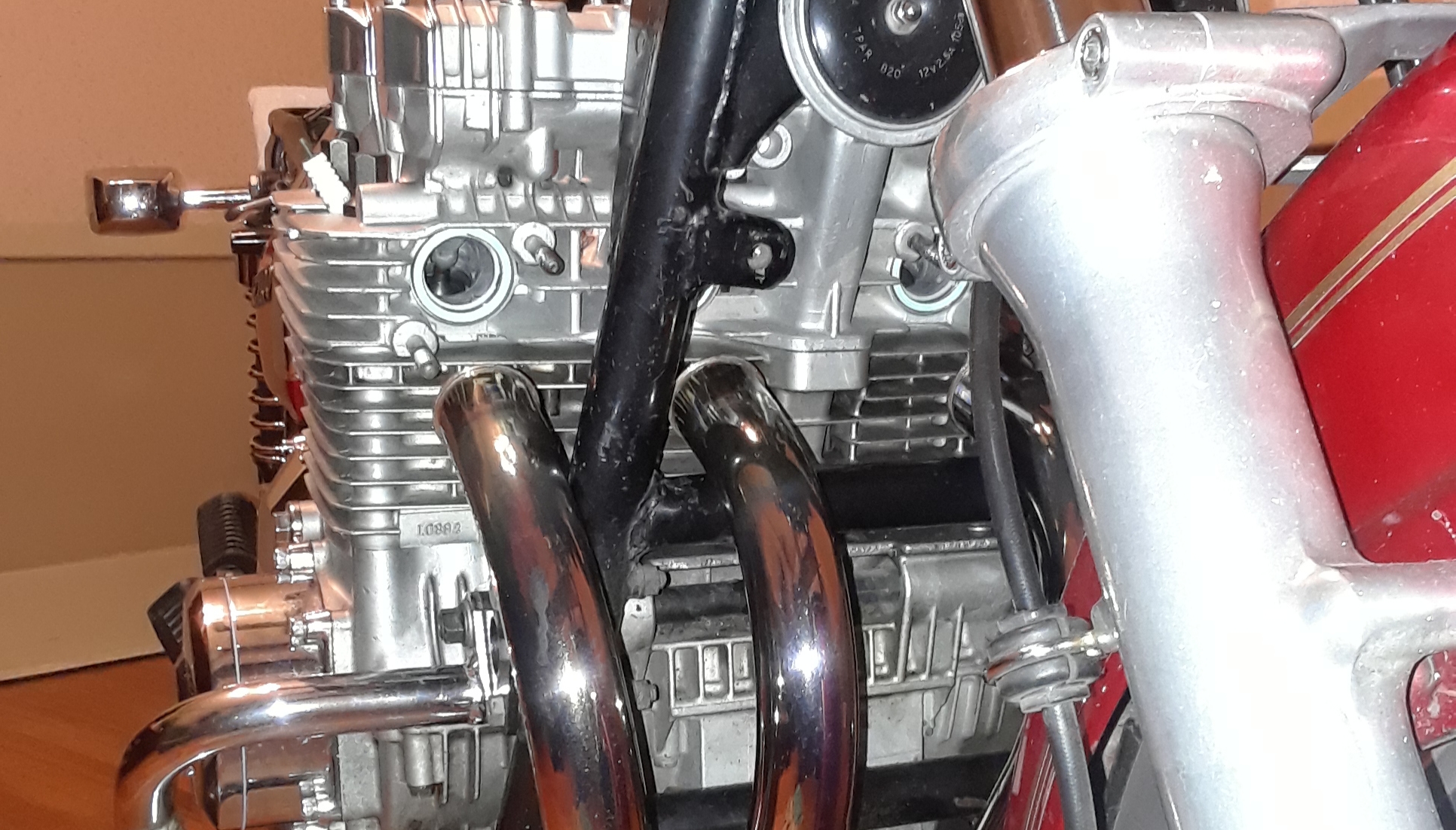

It helps to spray a light coat of repositionable contact adhesive on one side before sticking them to the head so they don't move.




[img
1982 KZ1100-A2
Last edit: 14 Dec 2021 12:23 by daveo.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1462
  • Thanks: 82

Re: Suzuki exhaust gasket?

23 Jan 2022 06:48 - 23 Jan 2022 06:49
#860915
These K&L has some quality as OEM? No risk of leaks etc... ?
K&L Supply - 16-6063 - Exhaust Pipe Gasket For Suzuki 14181-05020 32x42x5.0mm


They was way cheaper !
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 23 Jan 2022 06:49 by gordone.

Please Log in or Create an account to join the conversation.

  • H1Vindicator
  • H1Vindicator's Avatar
  • Offline
  • User
  • Posts: 711
  • Thanks: 97

Re: Suzuki exhaust gasket?

23 Jan 2022 09:36 - 23 Jan 2022 09:37
#860931
Those K&L gaskets are Made in Japan. So they will be good quality. Make sure they are the correct size.
Last edit: 23 Jan 2022 09:37 by H1Vindicator.

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23348
  • Thanks: 2882

Re: Suzuki exhaust gasket?

23 Jan 2022 15:00
#860948
One time use only. I won't buy again.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • ckahleer
  • ckahleer's Avatar
  • Offline
  • User
  • Posts: 459
  • Thanks: 150

Re: Suzuki exhaust gasket?

23 Jan 2022 20:37
#860971
Please explain. I thought all exhaust gaskets are one time use. Are the copper ring type reusable?
1997 ZL600
94 KE100
82 KZ305
85 VF1100c

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1462
  • Thanks: 82

Re: Suzuki exhaust gasket?

24 Jan 2022 00:29
#860978
K&L Supply - 16-6063 - Exhaust Pipe Gasket For Suzuki 14181-05020 32x42x5.0mmIs these correct size for my GPz750 head ?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • H1Vindicator
  • H1Vindicator's Avatar
  • Offline
  • User
  • Posts: 711
  • Thanks: 97

Re: Suzuki exhaust gasket?

24 Jan 2022 05:31 - 24 Jan 2022 05:41
#860986
OEM Suzuki gaskets might be reusable once or twice. ???  I'd be surprised if they can be reused more than that.  If they seal properly, I certainly wouldn't complain if they're single use. some guys don't like aftermarket but I've never had an issue w K&L parts.
Last edit: 24 Jan 2022 05:41 by H1Vindicator.

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1462
  • Thanks: 82

Re: Suzuki exhaust gasket?

24 Jan 2022 06:53 - 24 Jan 2022 06:53
#860991
When it comes to size, these K&L gasket is listed to size:
32x42x5.0mm

z1enterprises list OEM replacmeent gasket
To size:
31 x 39.4 x 2.8mm

OEM:
www.partzilla.com/product/kawasaki/11009...472b607db30284563d39

Will the K&L 32x42x5.0mm fit... they are bigger ?


1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 24 Jan 2022 06:53 by gordone.

Please Log in or Create an account to join the conversation.

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 840
  • Thanks: 241

Re: Suzuki exhaust gasket?

24 Jan 2022 07:20
#860992
I tried the Suzuki exhaust gaskets on my KZ-1000 but they were too thick.  Unfortunately, I wasn't able to start the nuts on the exhaust studs.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2914
  • Thanks: 745

Re: Suzuki exhaust gasket?

24 Jan 2022 07:29 - 24 Jan 2022 08:23
#860993
wrote:
When it comes to size, these K&L gasket is listed to size:
32x42x5.0mm

z1enterprises list OEM replacmeent gasket
To size:
31 x 39.4 x 2.8mm

OEM:
www.partzilla.com/product/kawasaki/11009...472b607db30284563d39

Will the K&L 32x42x5.0mm fit... they are bigger ?






Correct!

www.z1enterprises.com/copper-exhaust-gas...%2Fall-models%2F1981

Perhaps this one would fit better:
www.z1enterprises.com/exhaust-gasket.html

Or perhaps a 10-pack of the same for cheap:
Ebay item 143576808780

[img


.
1982 KZ1100-A2
Last edit: 24 Jan 2022 08:23 by daveo.

Please Log in or Create an account to join the conversation.
