Points housing?

spdygon
Topic Author
Offline
Platinum Member
Registered
Posts: 1012
Thanks: 117

Points housing?

01 Jun 2015 11:21

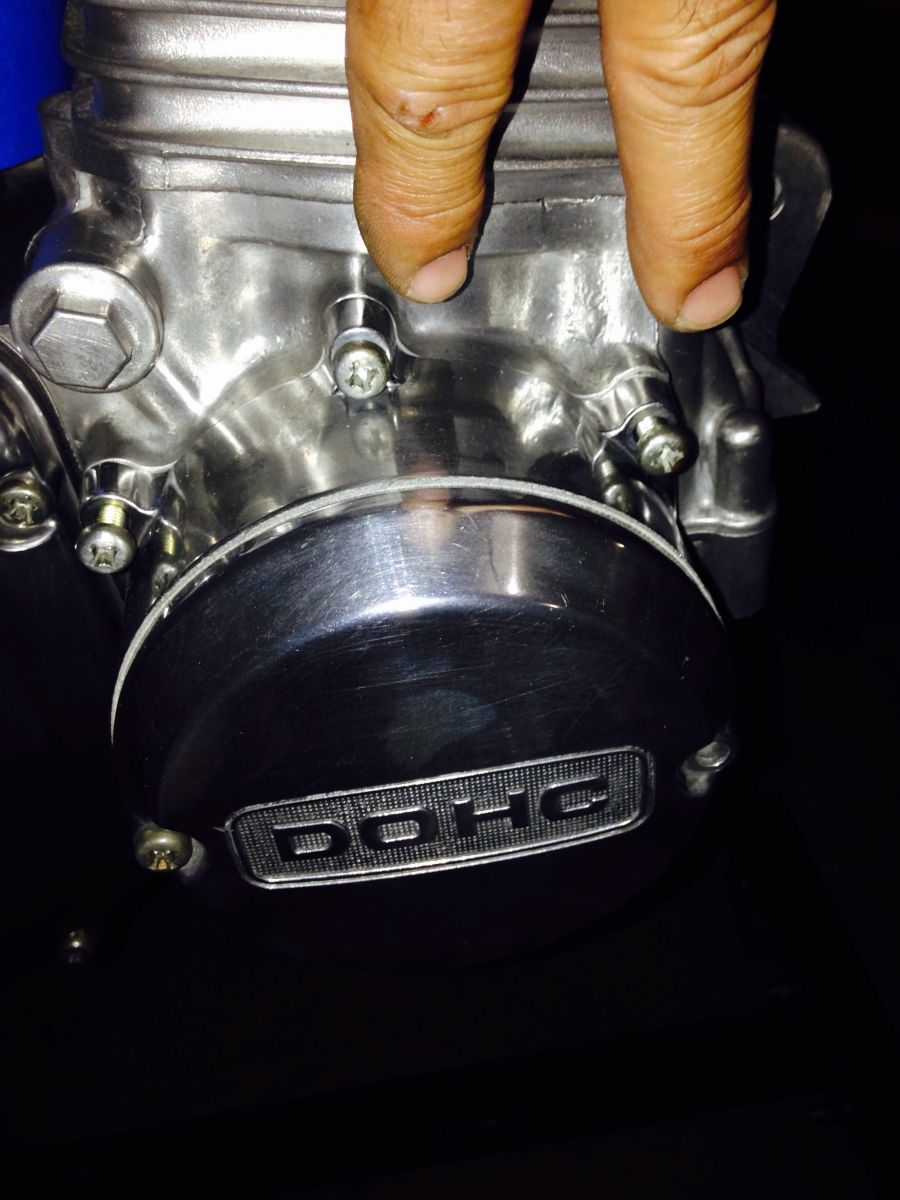

Pic above is the points housing.
When I removed those two screws....little oil came out...do I need to put some gasket sealer when I reinstall them.
I have a Manuel but did not find anything on that.
Thx

1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Attachments:


Please Log in or Create an account to join the conversation.

bountyhunter
Offline
User
Registered
Posts: 7246
Thanks: 338

Re: Points housing?

01 Jun 2015 13:07 - 01 Jun 2015 13:09

#674792

Don't think sealer is required. Probably won't hurt anything if you do.

1979 KZ-750 Twin

Last edit: 01 Jun 2015 13:09 by bountyhunter.

Please Log in or Create an account to join the conversation.

missionkz
Offline
Sustaining Member
Registered
Posts: 1622
Thanks: 184

Re: Points housing?

01 Jun 2015 15:01 - 01 Jun 2015 15:01

#674814

Hmmm... I am under the impression that there should be no liquid oil coming out from under that cover.... If yes, I would think you have a case crack or a crank end seal leak. Etc

Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado

Last edit: 01 Jun 2015 15:01 by missionkz.

Please Log in or Create an account to join the conversation.

spdygon
Topic Author
Offline
Platinum Member
Registered
Posts: 1012
Thanks: 117

Re: Points housing?

01 Jun 2015 15:10

#674818

There was no oil inside at all. Only when I removed those two screws very little on the tips.
I'll use some non Harding sealent.
Thx

1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Please Log in or Create an account to join the conversation.

StreetfighterKz
Offline
User
Registered
Posts: 1543
Thanks: 145

Re: Re:Points housing?

01 Jun 2015 15:11

#674820

There is oil behind the inner cover. There should be no oil between the inner and outer points covers.

Looking at the parts diagram should show a gasket behind the inner cover and an oil seal in the middle of the cover. The only reason there is a gasket between the inner and outer covers is to keep out the elements.

Later, Doug

1978 z1000 Streetfighter
1976 z900 Stripfighter
1979 z650 Resto-Mod
1983 Gpz750 Resto-Mod
2018 Z900RS

Please Log in or Create an account to join the conversation.

spdygon
Topic Author
Offline
Platinum Member
Registered
Posts: 1012
Thanks: 117

Re: Points housing?

01 Jun 2015 15:14

#674822

U correct ....little oil came from inside the screw holes.

1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
Registered
10 22 2014
Posts: 23379
Thanks: 2901

Re: Points housing?

01 Jun 2015 15:52

#674830

There's a drain hole at the bottom. You need a seal or there's something a miss with the housing. Now that I don't have points, it doesn't matter if moisture gets in.
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

etbike3135
Offline
User
Registered
Posts: 381
Thanks: 50

Re: Points housing?

01 Jun 2015 15:56

#674831

2 of the top holes from the points housing are drilled right trough into the case at the factory. You can use yamabond on those 2 screws.

1973 Kawasaki Z1
18 years in dragbikes

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
Registered
10 22 2014
Posts: 23379
Thanks: 2901

Re: Points housing?

01 Jun 2015 15:57

#674832

Wait a minute. Do you mean the outside screws where your fingers are? The gasket should seal them.
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

9er rider
Offline
Sustaining Member
Registered
Keep a cool tool
Posts: 578
Thanks: 87

Re: Points housing?

16 Jun 2015 06:14

#676781

I have the same problem, The P.O. just had to use a chisel to get the housing off and a leak at those two screws persist Its driving me nutz

76 kz 900 1075 76 kz 900 a4 78 kz 1000 ltd

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
Registered
10 22 2014
Posts: 23379
Thanks: 2901

Re: Points housing?

16 Jun 2015 07:30

#676799

Coat the treads with a little silicon.
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

The following user(s) said Thank You: 9er rider

Please Log in or Create an account to join the conversation.

spdygon
Topic Author
Offline
Platinum Member
Registered
Posts: 1012
Thanks: 117

Re: Points housing?

23 Jun 2015 17:53 - 23 Jun 2015 17:54

#677999

Well as I waited for complete engine gasket kit to arrive. ...over the last week still notice oil coming from the top holes.
Went back over my 77-78 Kawasaki Manuel and found that the top three do need non-permanent locking agent.

1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Attachments:


Last edit: 23 Jun 2015 17:54 by spdygon.
