Kz 750 road racer , dry clutch project 03 Jan 2021 14:03 #841133

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15

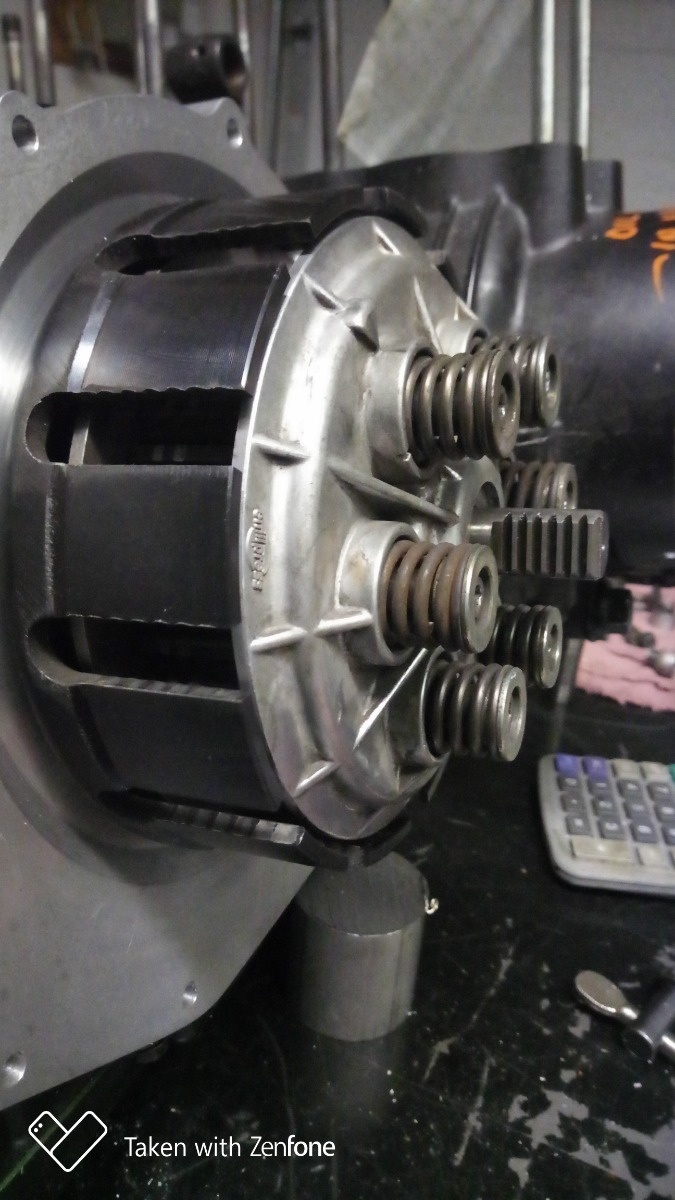

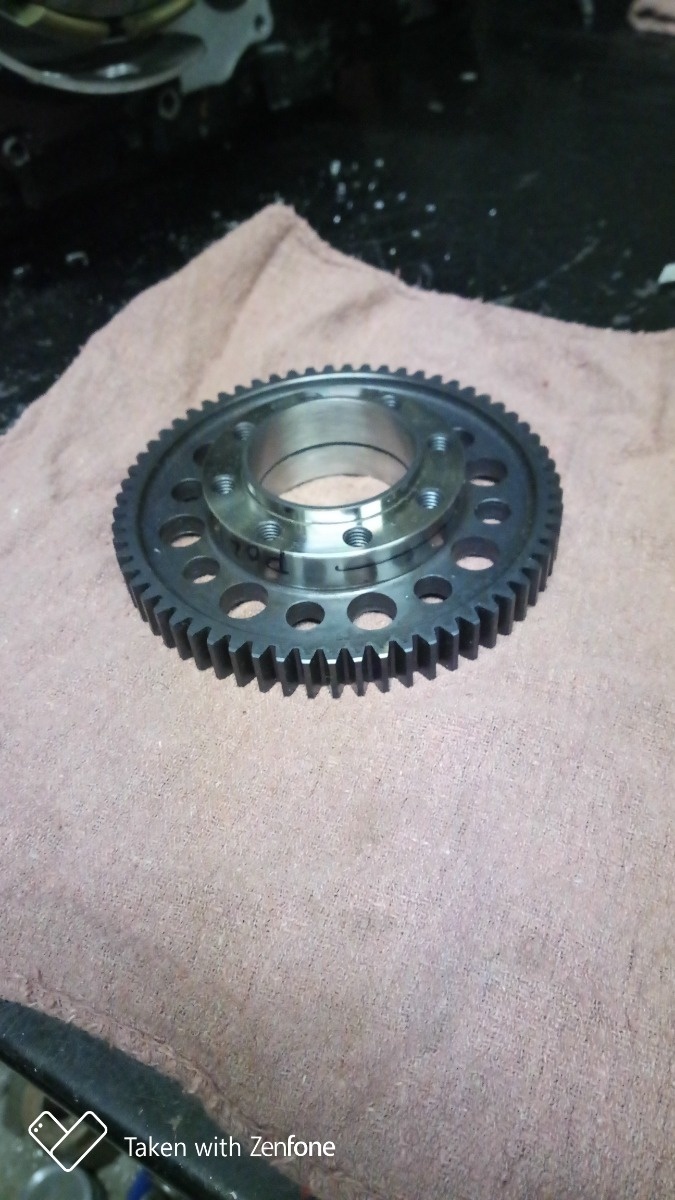

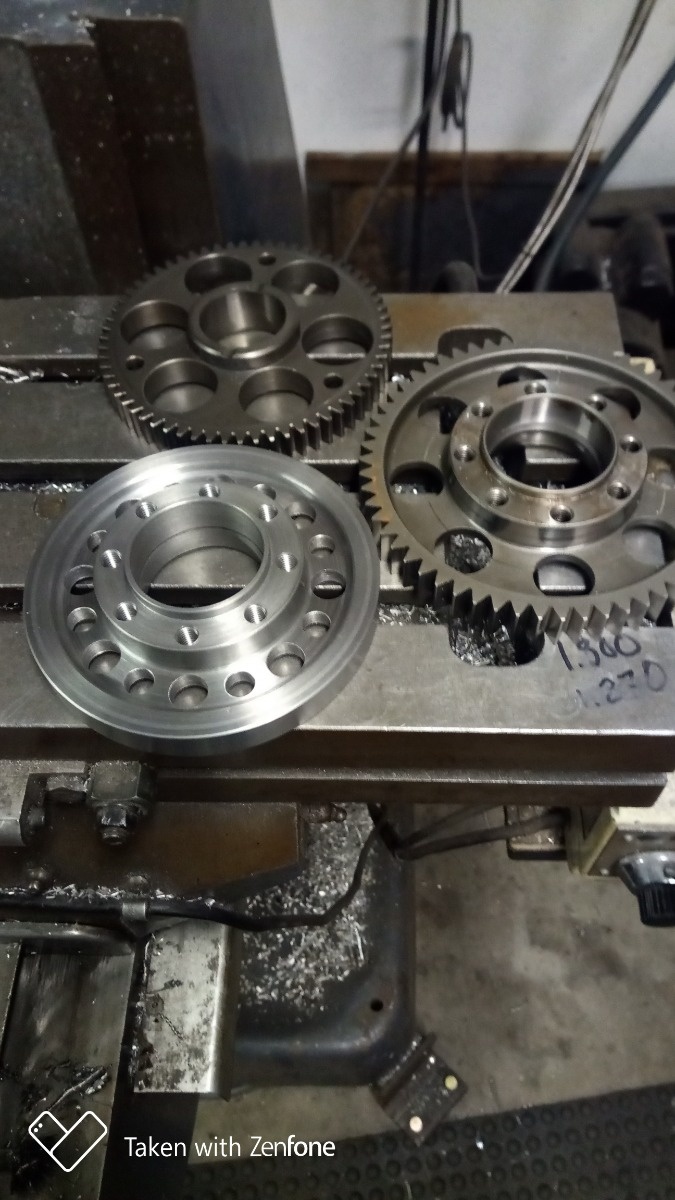

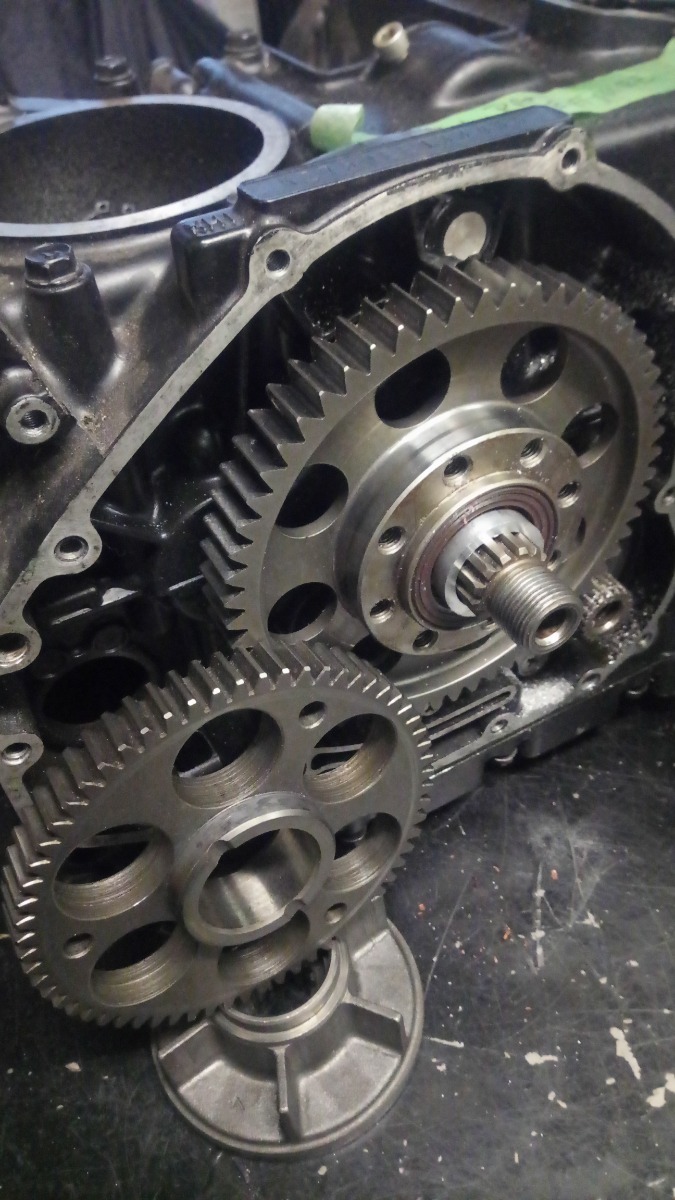

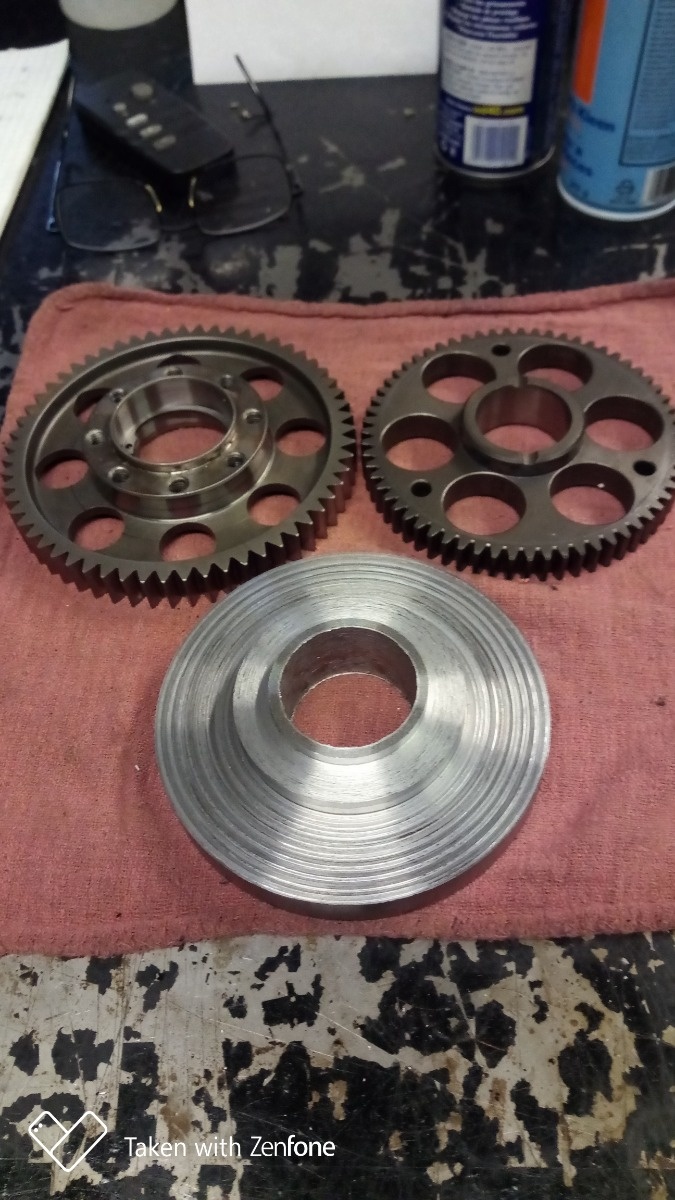

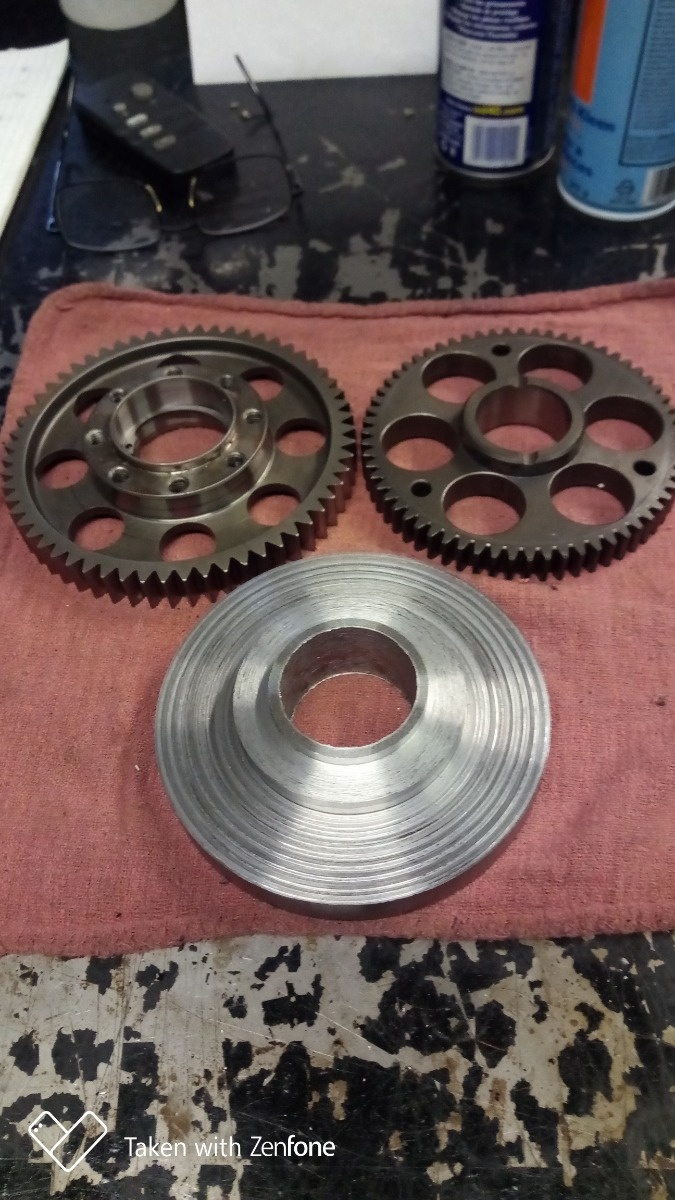

The main gear that supports the Ducati basket and main seal was made from 4140 annealled ,it's essentially a Ducati gear with Kawasaki gear pitch cut on to it ,then carburized to 58 rockwell, then machine the seal and bearing after returned from heat treat

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 03 Jan 2021 15:41 #841137

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2910
  • Thank you received: 429
Awesome work!!!
1980 kz750E1, Delkevic exhaust

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 03 Jan 2021 16:10 #841140

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494

richard wrote: Gizmo is my remote starter


I was looking at the piece where the starter motor usually is, with the two AN fittings and hoses coming out of it.

'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 03 Jan 2021 16:34 #841142

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
Sorry I read that wrong

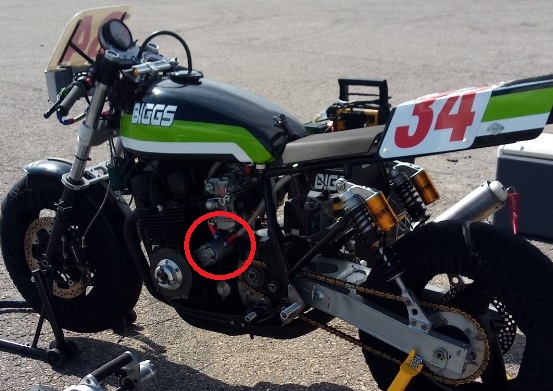

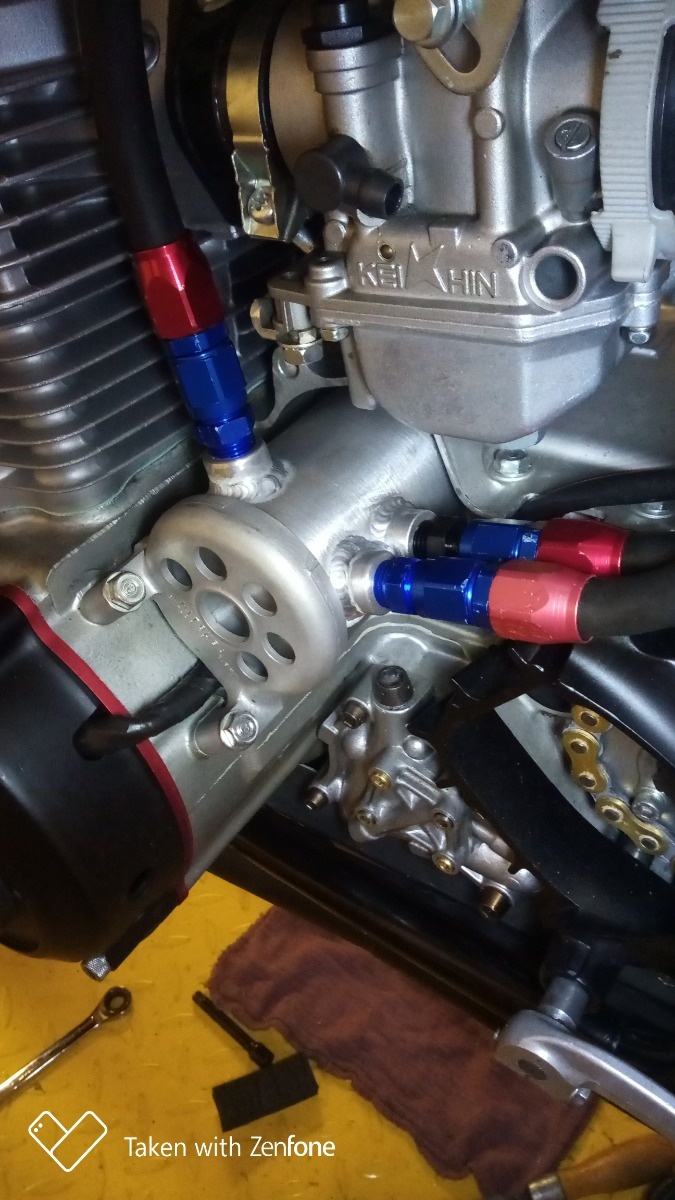

It's a catch tank to catch oil vapors from getting on the track
Had a spot where the starter use to be so put it there

Did this one for a Honda CB
Same idea
Attachments:

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 03 Jan 2021 18:44 #841145

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15

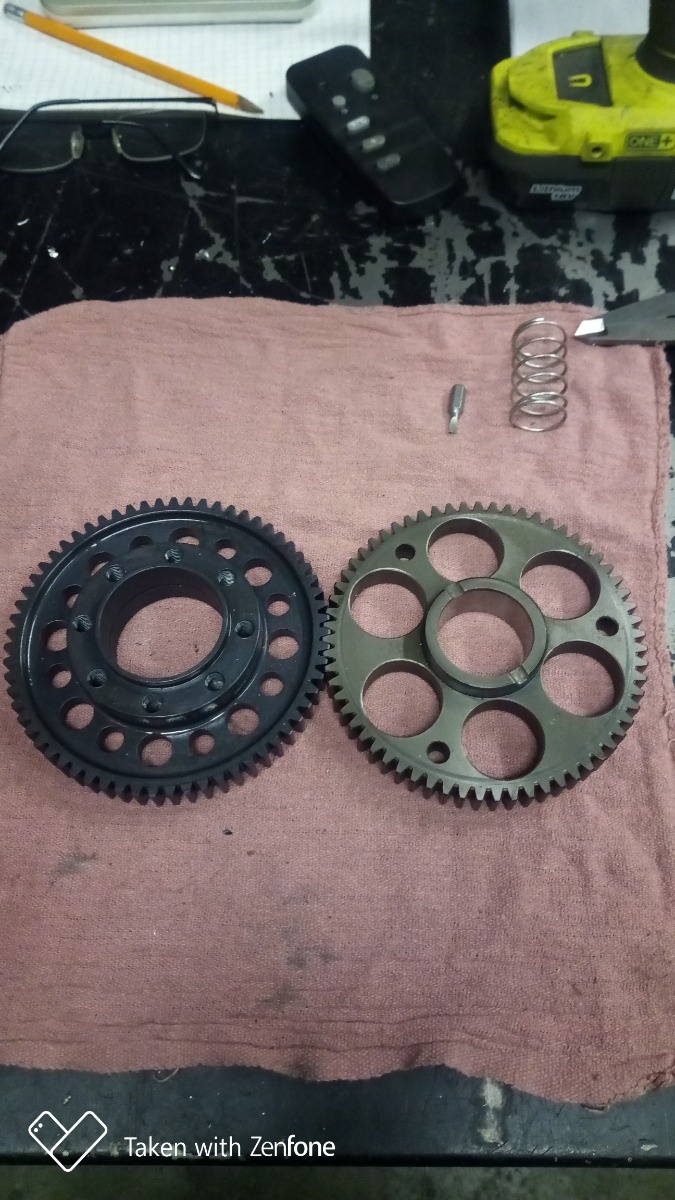

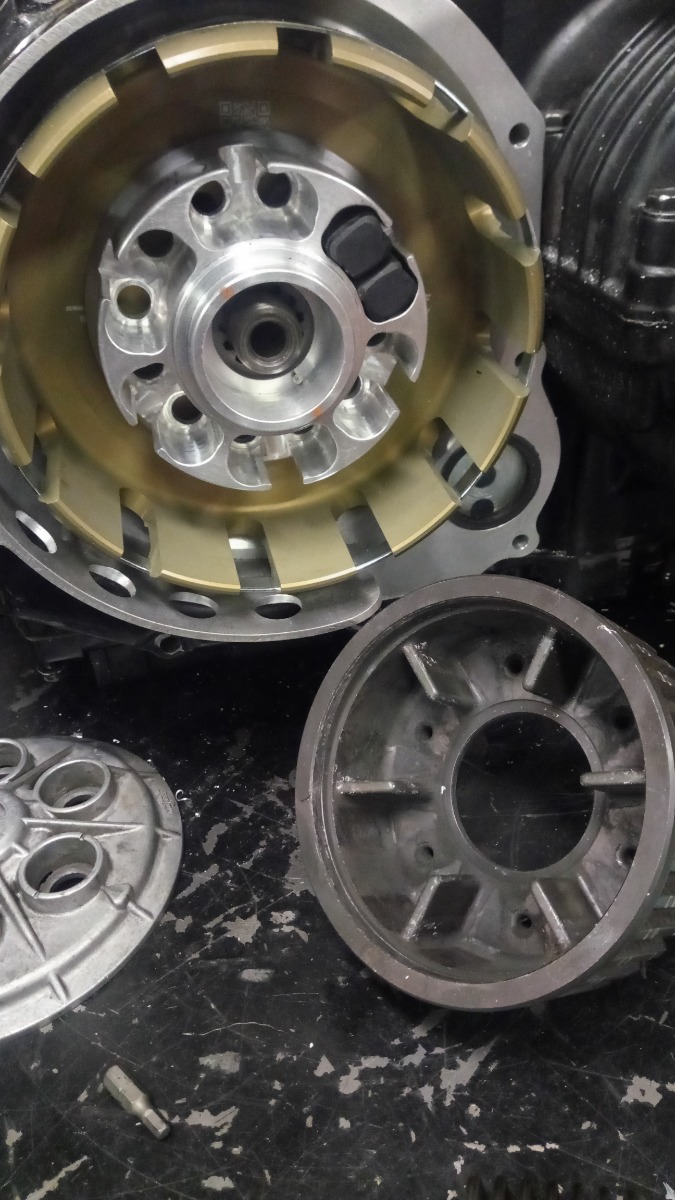

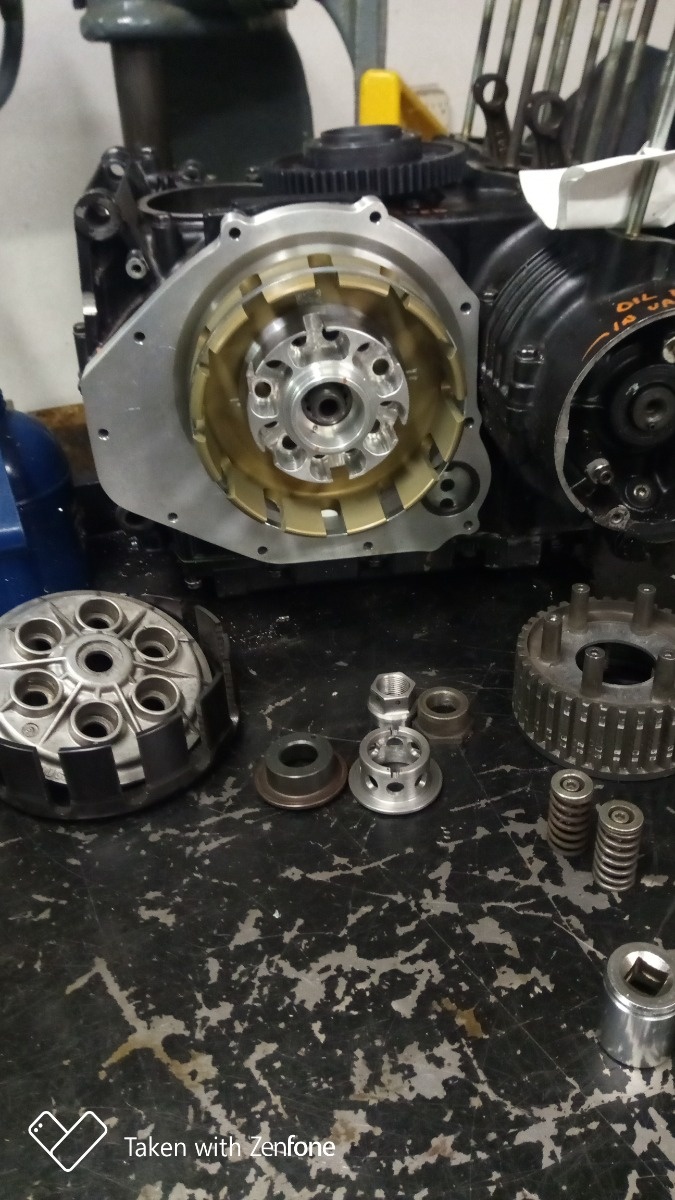

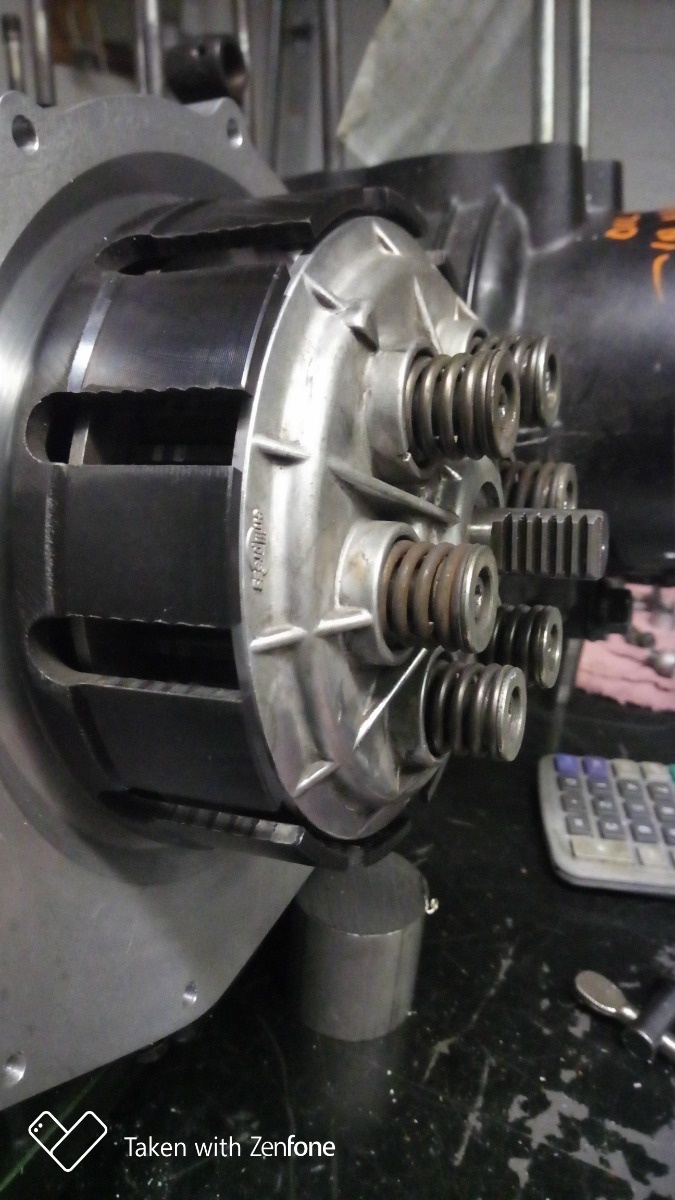

These pictures show the black steel Ducati

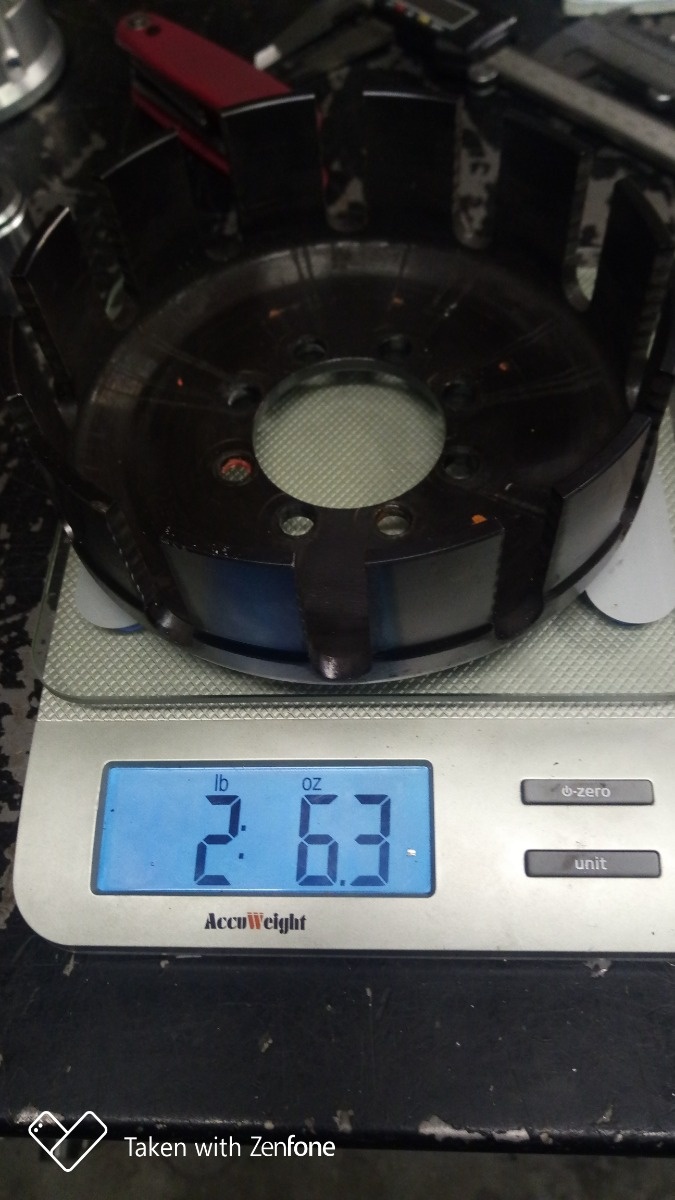

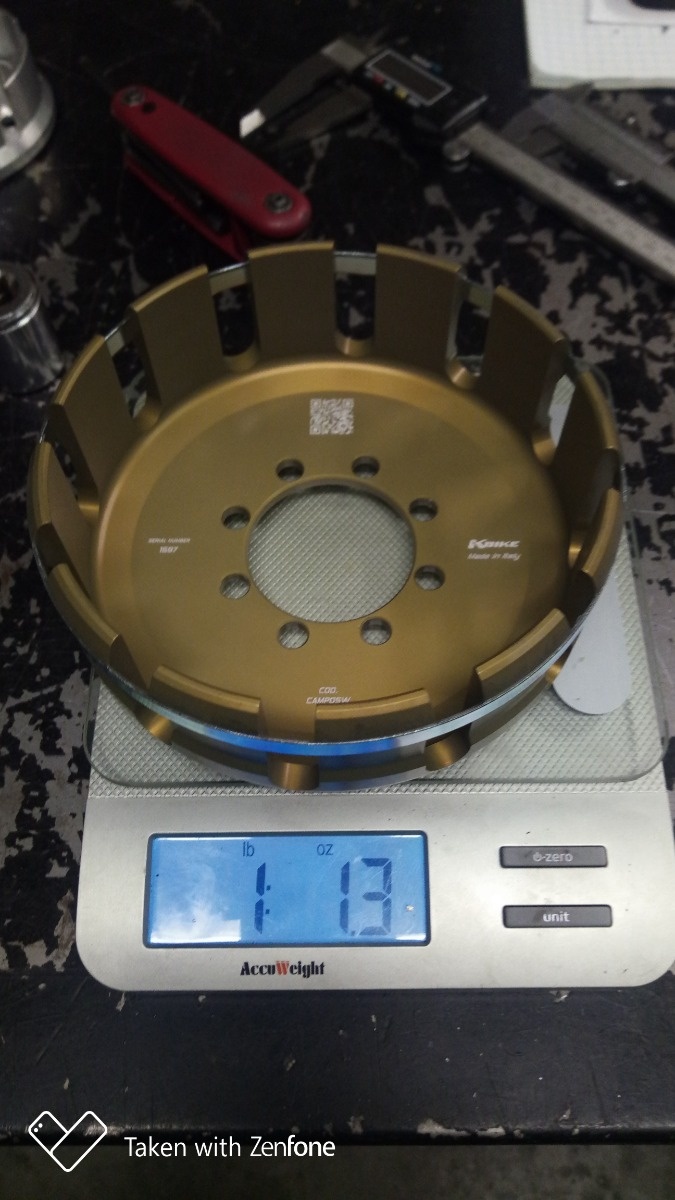

Basket weight,to get the full affect of the dry clutch I went with an after market aluminum basket
Attachments:

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 03 Jan 2021 23:22 #841168

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2543
  • Thank you received: 664
its a shame the damper basket is hidden. are you machining this stuff manually? nice work.

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

Kz 750 road racer , dry clutch project 04 Jan 2021 04:53 #841173

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
If you mean the Kawasaki basket damper
It's all gone including the drive gear attached to it,I couldn't find pics on how the Kawasaki guys did it,so figure use Ducati
It's smaller diam,lighter,it's proven and piles of parts,it's a matter of changing things to kawasaki spline and making it all work

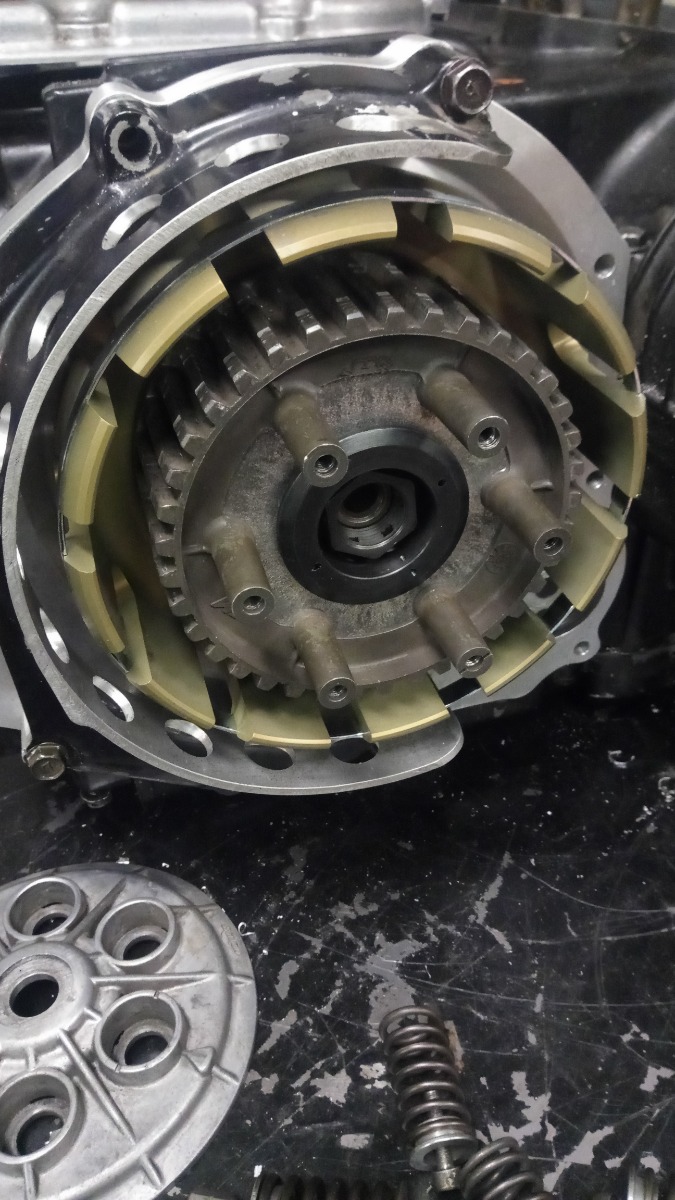

The other pics show the cover
It's carved from a 84 gpz750 clutch cover

Yes all done manual from my mill and lathe in my garage

Only thing outsourced was gear cutting and heat treat


The following user(s) said Thank You: slayer61

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 04 Jan 2021 08:23 #841178

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 874
  • Thank you received: 256
Absolutely brilliant. Very well done. I'm quite envious.
Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI Mikuni RS34s W/ K&N pods

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 04 Jan 2021 09:14 #841180

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
Not out of the woods yet I haven't
Bolted it to my race bike yet

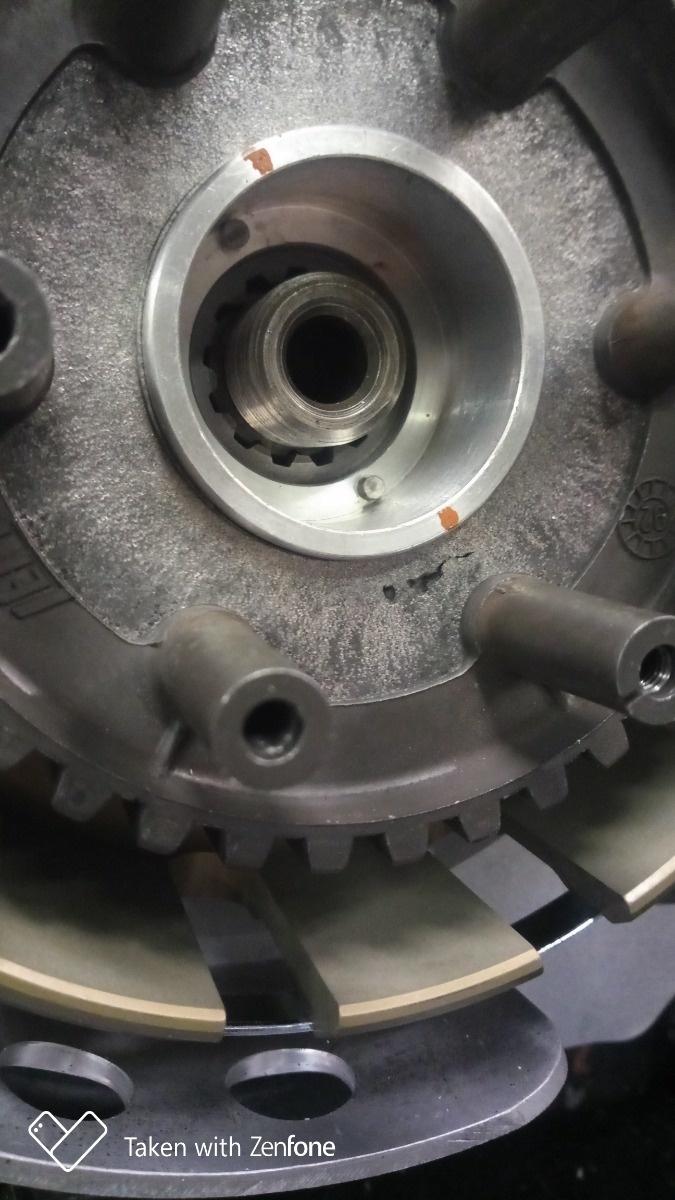

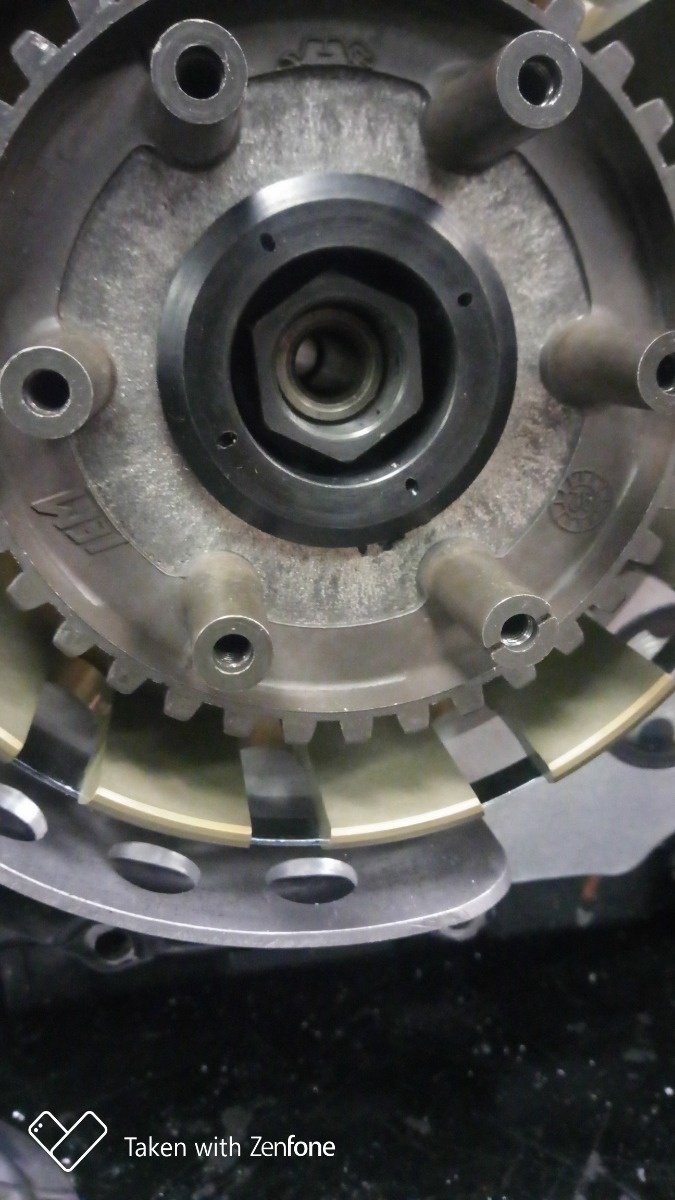

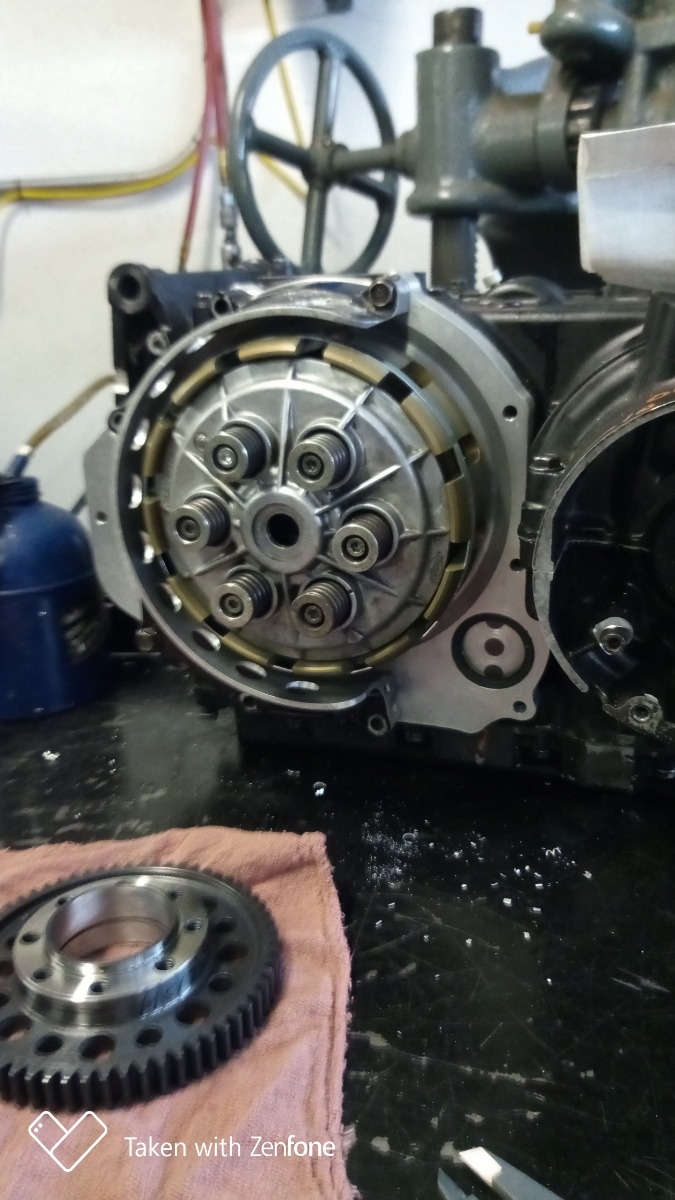

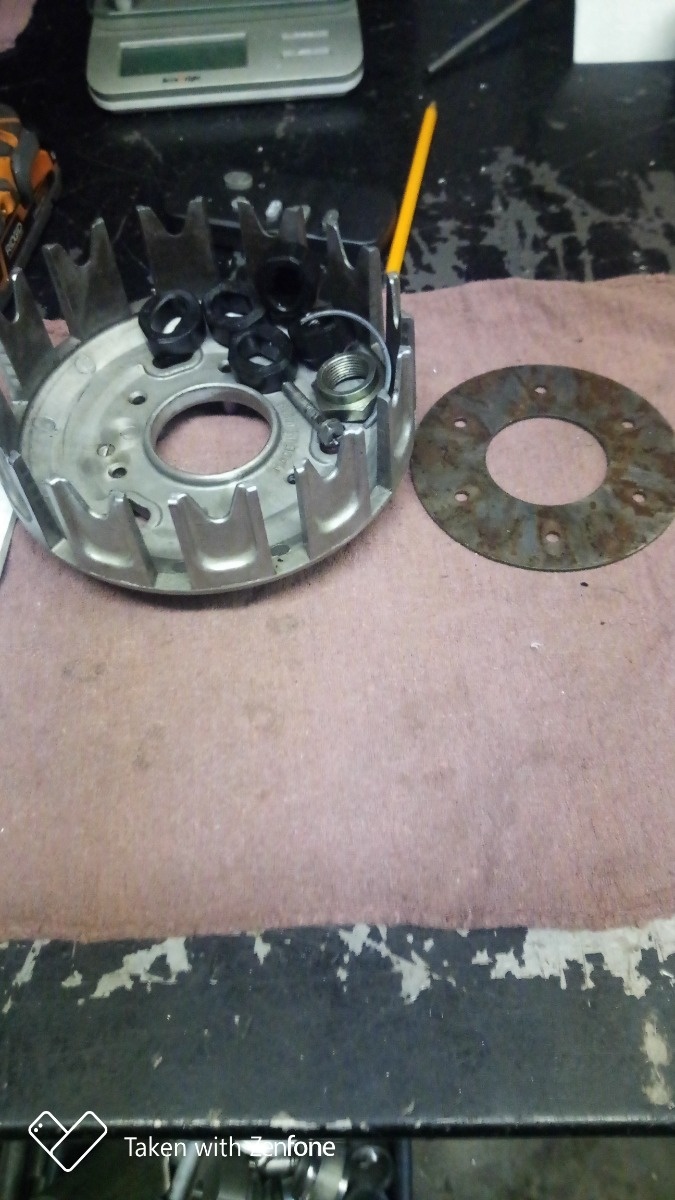

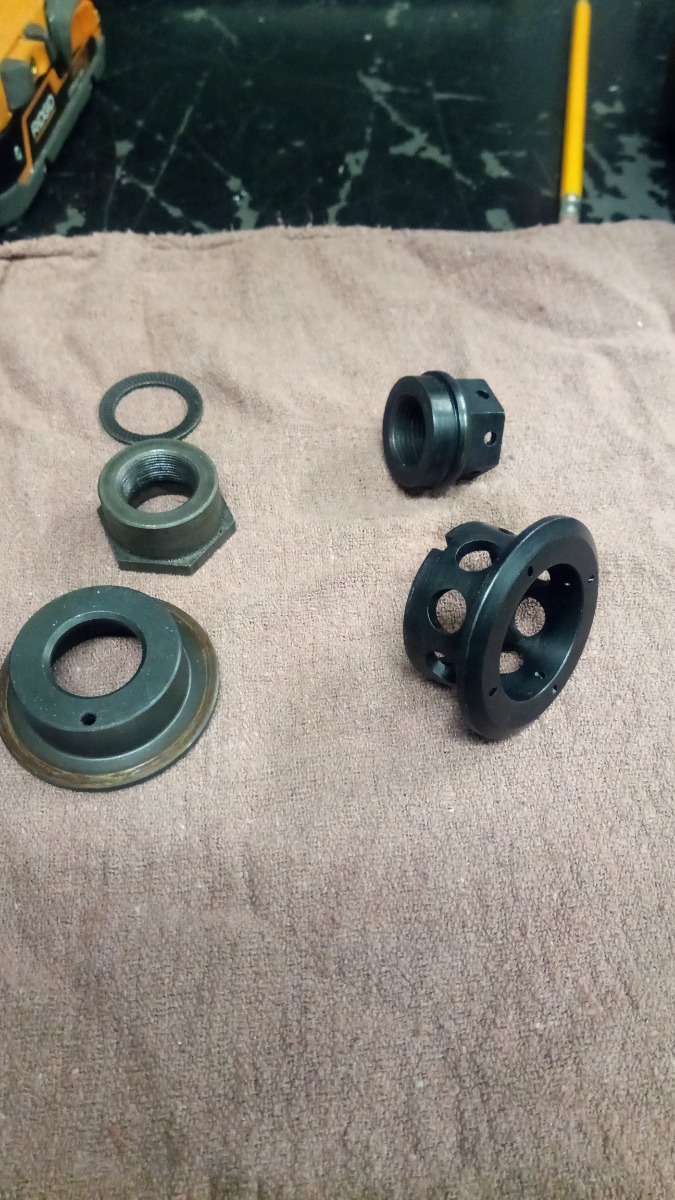

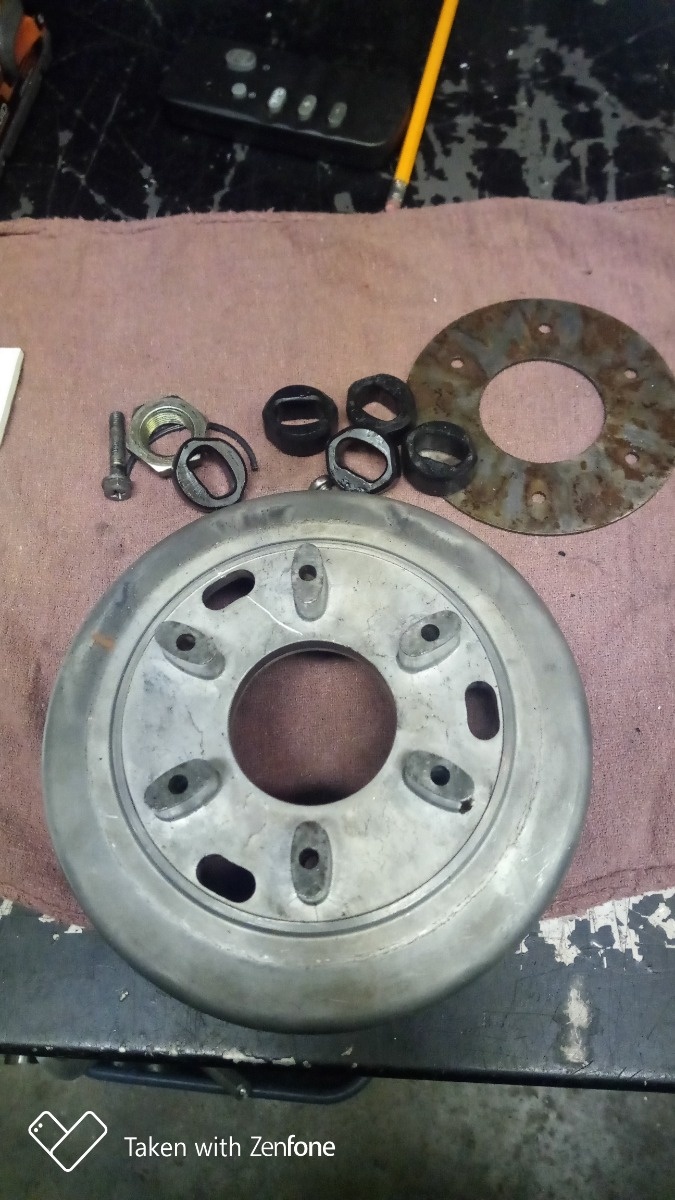

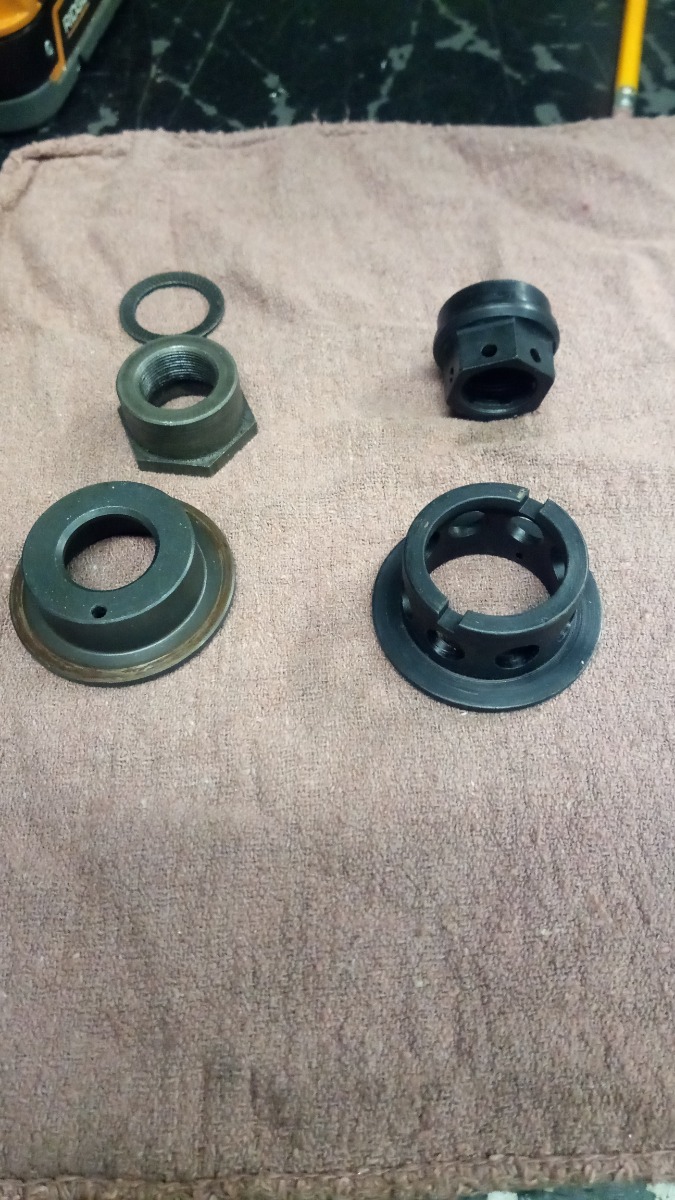

Black hardware on the left is Ducati
Made the hardware on the right
From 4140 pre heat to fasten Ducati clutch drum to kawi spline
Tiny holes are for lock wire
Large holes for weight

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 04 Jan 2021 10:20 #841183

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1221
  • Thank you received: 664
I LOVE your thinking and the workmanship!!!!! Wish I had your ability. I love the sound of a dry clutch. I have one on my GSXR750 LTD.

Does the Ducati dry clutch have that same great sound??

Are you going to add some type of filler cap so you can add oil in that fancy cover you made up??

Can't wait to see your next post!!!!!!!!
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.

Please Log in or Create an account to join the conversation.

Kz 750 road racer , dry clutch project 04 Jan 2021 12:02 #841184

  • richard
  • richard's Avatar Topic Author
  • Offline
  • User
  • Posts: 85
  • Thank you received: 15
Filler cap on its way
Will be tight thought

Know someone local that has a few
Limited Suzukis with the dry clutch
Very cool bike

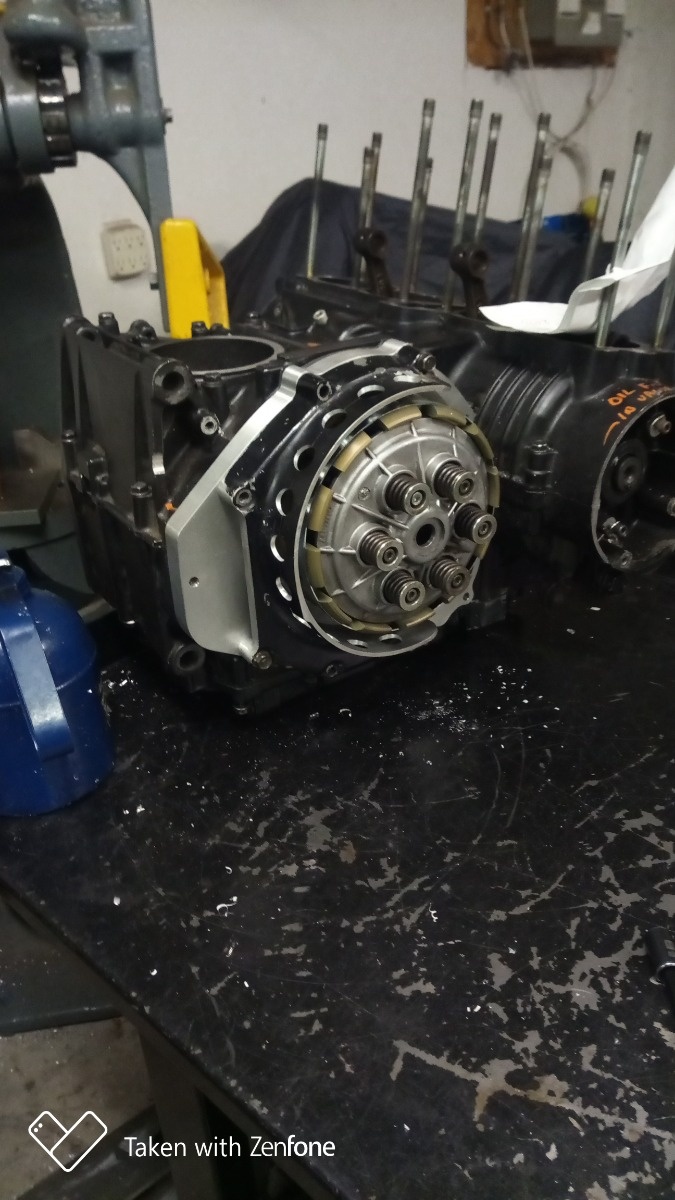

Top shows how the cush drive works

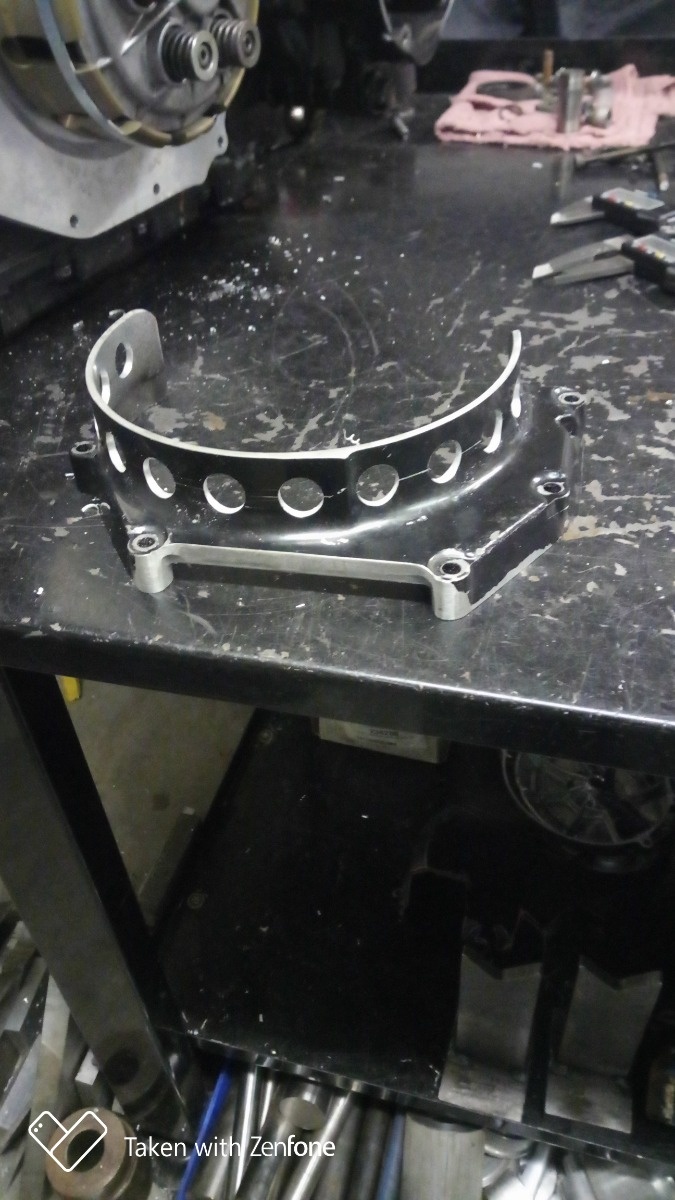

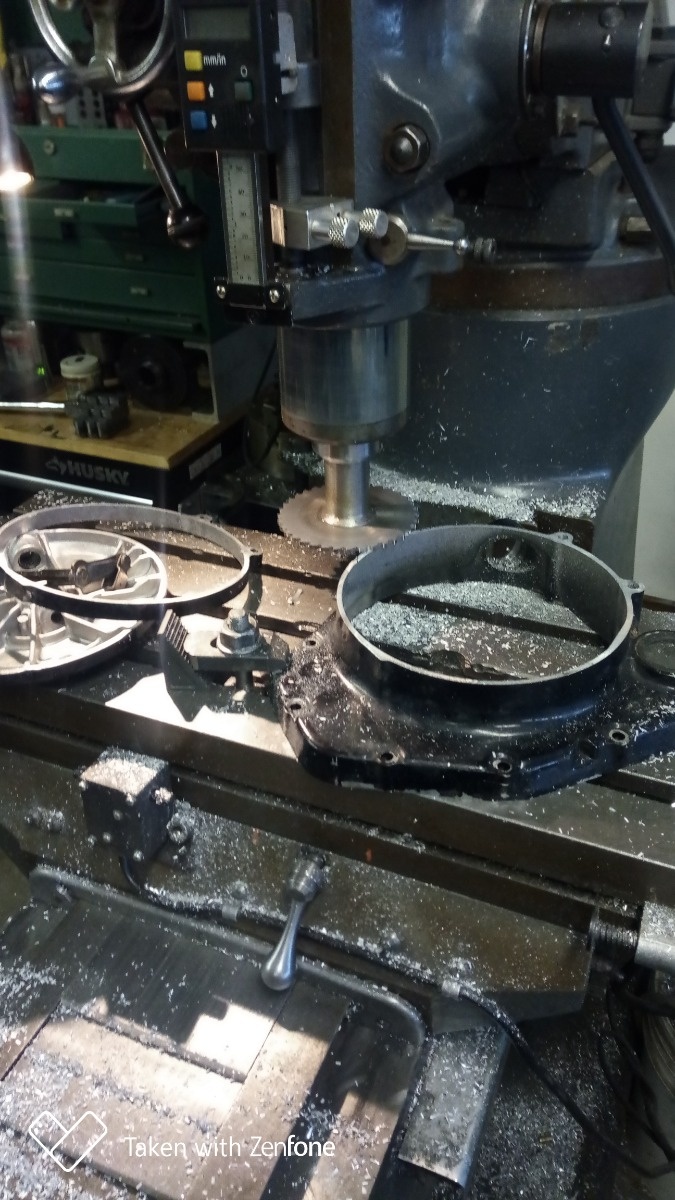

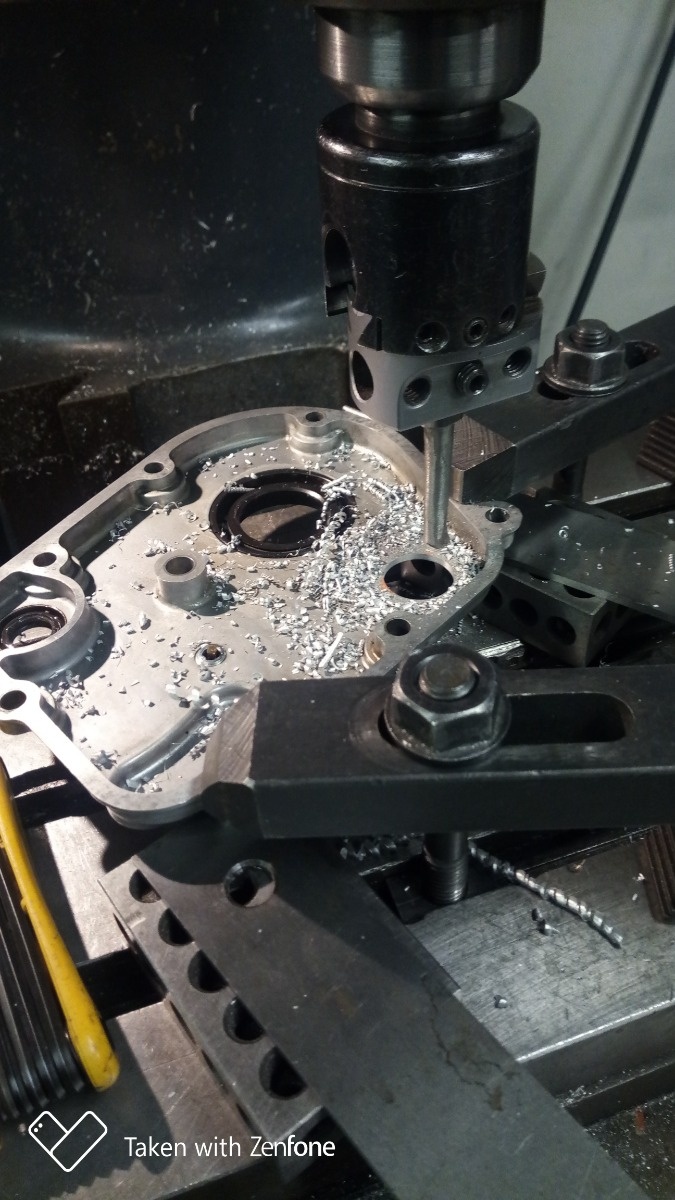

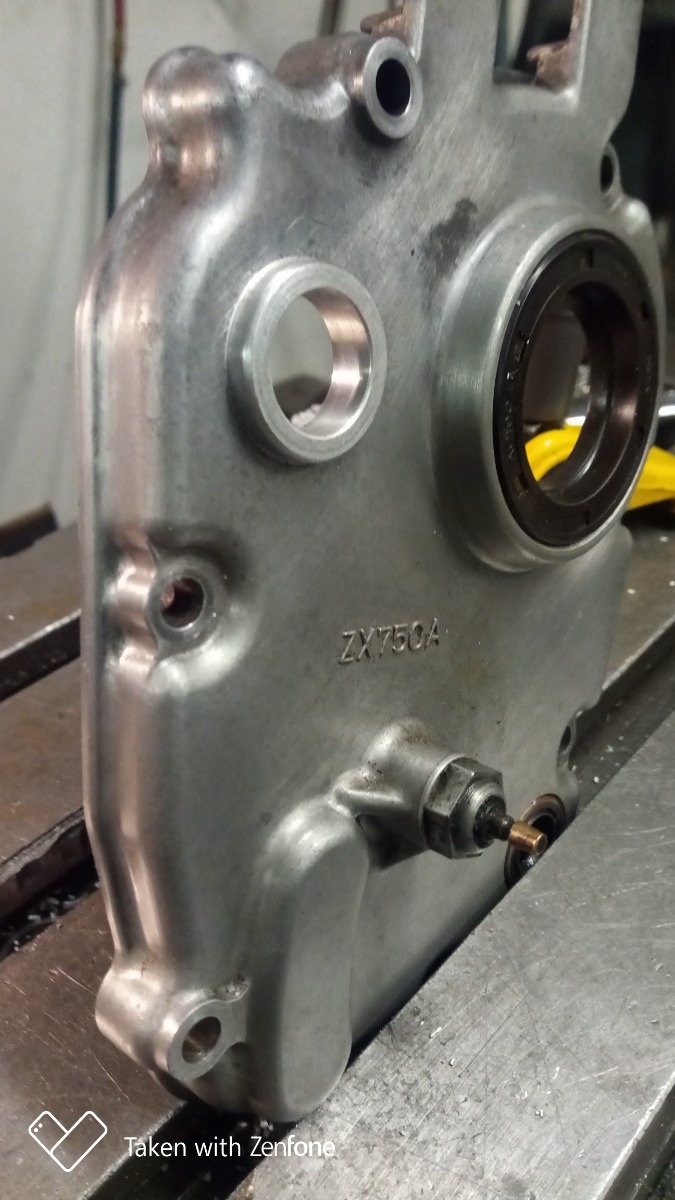

Bottom 2 pics are the covers being modified
To accept clutch push rod

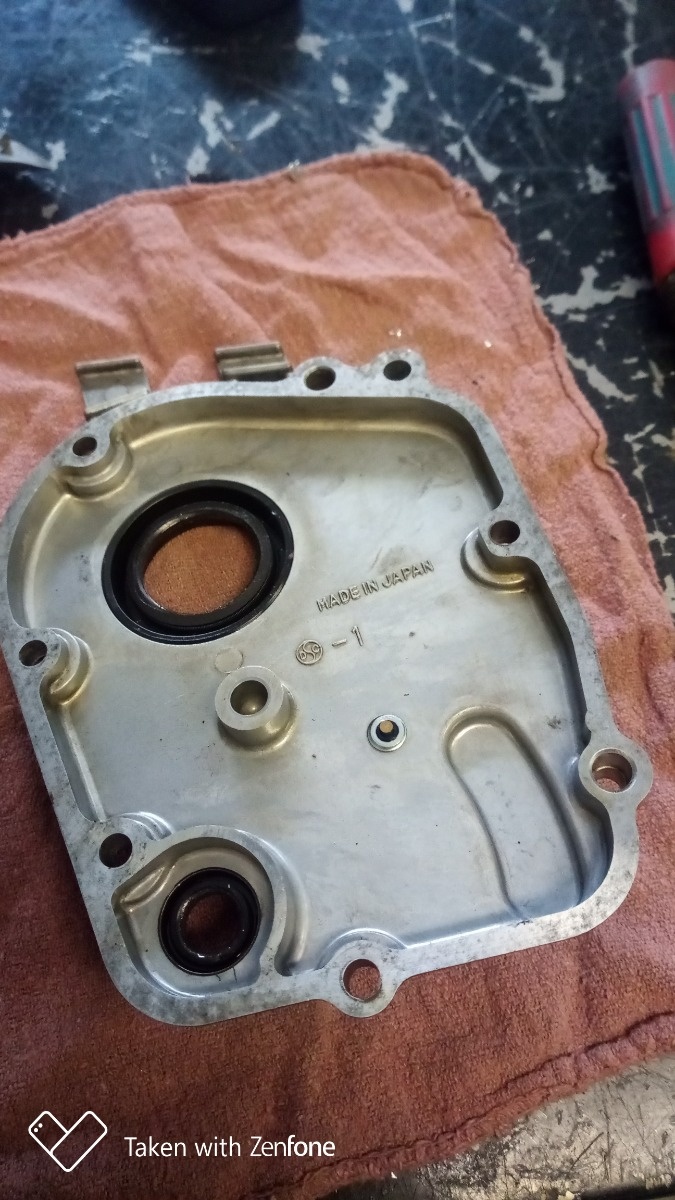

Unfortunately only had 83 to 85 gpz covers without the hole ,this was faster than searching for the proper one's

Attachment not found

Attachment not found

Attachment not found


At this point things will slow down a bit until
The bike goes on the lift, unfortunately motor needs to be pulled and split due to the fact the 83 motor had a plug were the rod ran through
Attachments:

Please Log in or Create an account to join the conversation.
