1978 KZ1000-A2 "Barn find"

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 07:31
#842156
I have been lucky and never had a clutch problem so I’m not speaking from experience but, I’d suggest you pull the clutch spring plate. That will allow you to check the springs against the specs in the manual. Pull the pusher and ball. Clean them and the bore and install them with a light coating of high temp bearing grease. Wouldn’t hurt at that point to pull the steels and fiber plates just for inspection. While the plates are out inspect the sides of the basket fingers for grooves. I’d also go to the sprocket cover and pull it and the push rod to check it isn’t bent. Give it a slight lube and reinstall. Also pull the clutch release and clean out all the old grease and re-lube it.... might just be a combination of slightly sticky items that appear ok individually.

Either way it’s not wasted time, just good maintenance
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3029
  • Thanks: 1132

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 08:07
#842158
I agree. You may have a broken clutch spring.

When you pull the clutch cover you can save your oil by having the bike on its side stand.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

  • Kaylinator
  • Kaylinator's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 341
  • Thanks: 74

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 08:16
#842161
Honestly, how likely is it that the clutch spring could be broken at 8000 miles?
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Please Log in or Create an account to join the conversation.

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 840
  • Thanks: 241

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 08:24
#842165
Anything and I mean ANYTHING is possible. If it's man-made it can be man-broke.....

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 14:37
#842193
hardrockminer wrote: When you pull the clutch cover you can save your oil by having the bike on its side stand.

Great tip Thank you
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3029
  • Thanks: 1132

Re: 1978 KZ1000-A2 "Barn find"

22 Jan 2021 16:44
#842209
Rick H. wrote: Anything and I mean ANYTHING is possible. If it's man-made it can be man-broke.....

Rick H.

Reminds me of an old joke. They designed a new aptitude test and gave it to a mechanic, an electrician and a miner. The three were told to go into separate rooms and see what they could make with 3 steel balls. After an hour they checked the mechanic and he had put them under a board to make a dolly. The electrician put his together and made the base for a lamp. And when they checked to see what the miner had done....he had lost one, broken one and was carrying the third one out in his lunch kit.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: cb900f, Rick H.

Please Log in or Create an account to join the conversation.

  • Kaylinator
  • Kaylinator's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 341
  • Thanks: 74

Re: 1978 KZ1000-A2 "Barn find"

29 Jan 2021 14:26
#842644

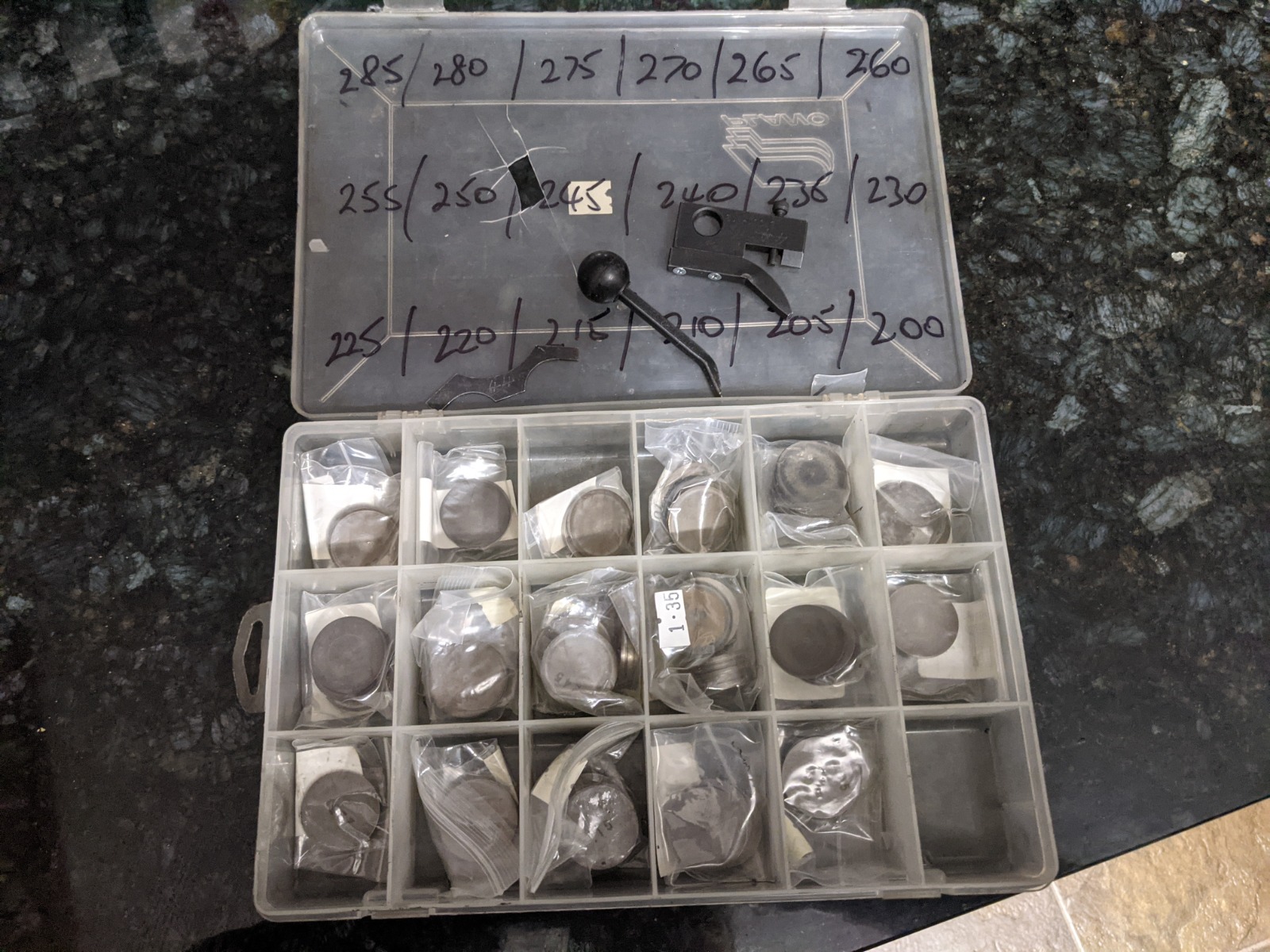

Valve shims showed up today. No one seemed to have kits online, so I turned to eBay, and got a pretty incredible deal from a shop that went out of business. Included shim tools. There's enough shims here that I could probably take out what I need with a few to spare, then turn around and resell the kit to recoup my money.

As great as it is that the shims are here, probably won't get after it for a bit. The big side of the shop is going to be getting the floor epoxied, so my side has just become temporary storage.
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Attachments:

Please Log in or Create an account to join the conversation.

  • Kaylinator
  • Kaylinator's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 341
  • Thanks: 74

Re: 1978 KZ1000-A2 "Barn find"

31 Jan 2021 18:32 - 31 Jan 2021 18:34
#842764
Managed to get in to the shop before it got filled up with stuff and get valve clearances done. That dealt with the issue of low compression on cylinder 3.

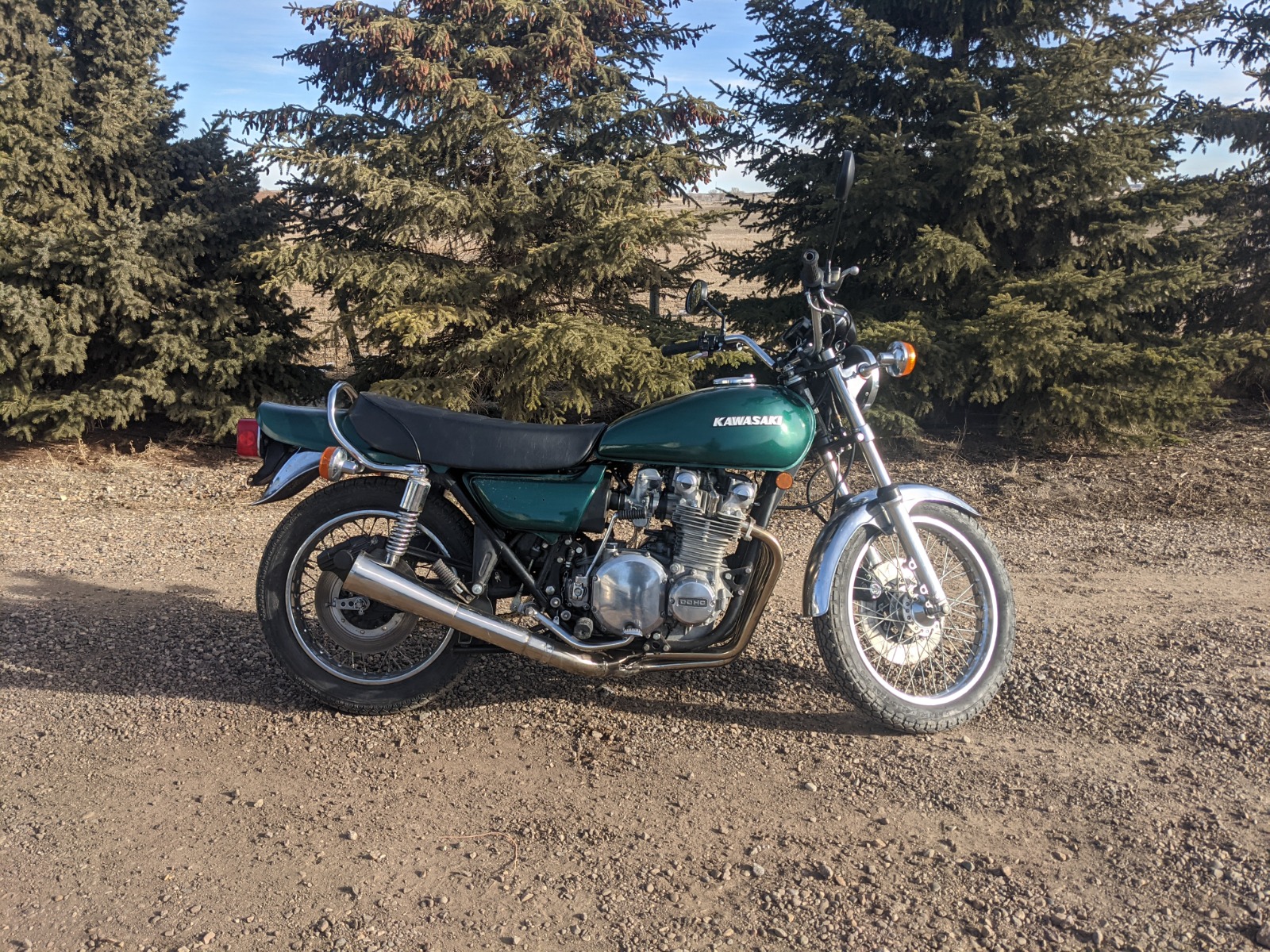

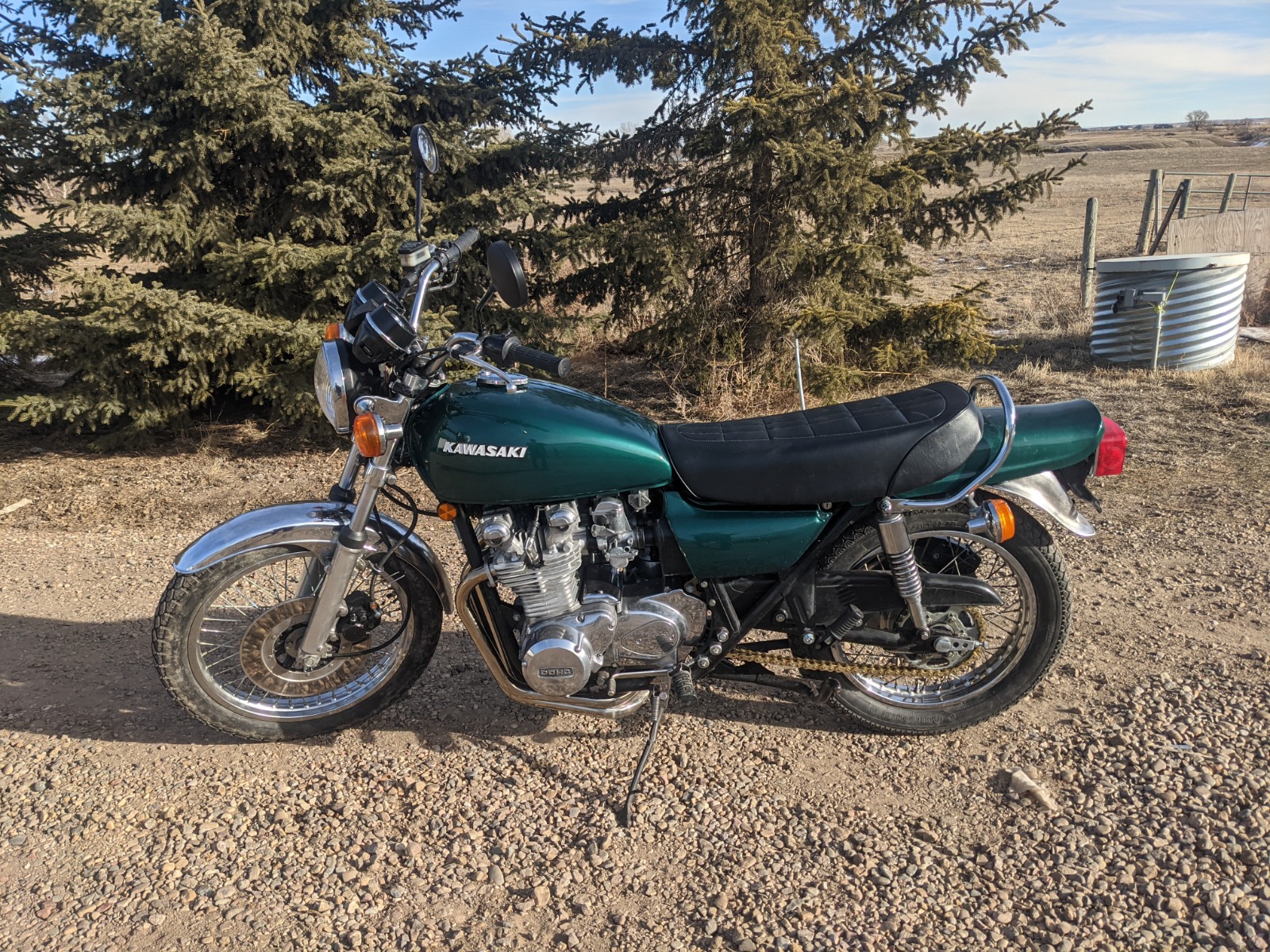

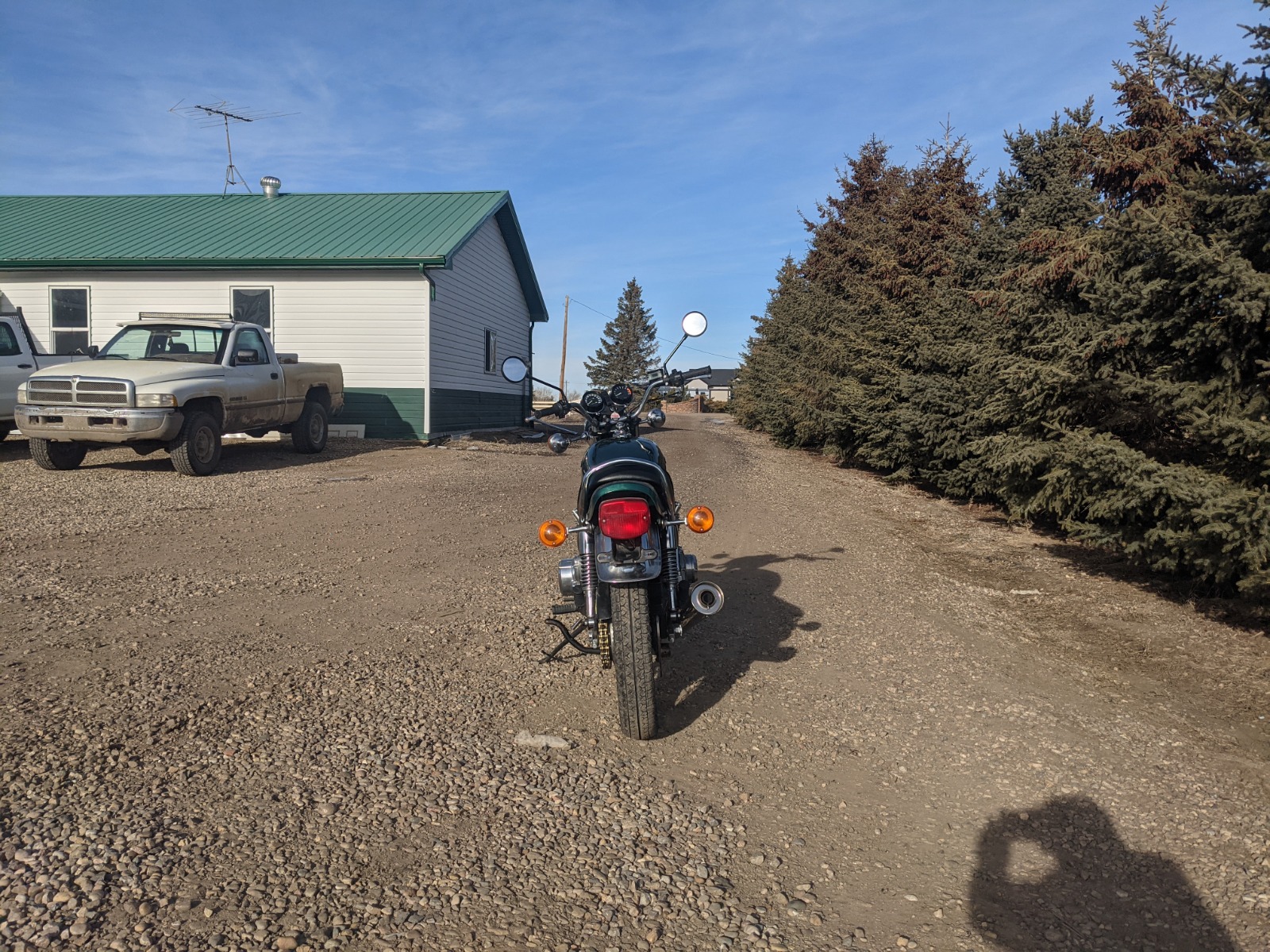

Also got the carbs reinstalled and got it back outside in the sun.
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Attachments:

Last edit: 31 Jan 2021 18:34 by Kaylinator.

Please Log in or Create an account to join the conversation.

  • Kaylinator
  • Kaylinator's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 341
  • Thanks: 74

Re: 1978 KZ1000-A2 "Barn find"

31 Jan 2021 18:38
#842765
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: 1978 KZ1000-A2 "Barn find"

31 Jan 2021 19:13
#842766
It’s come a long way. Great job.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

  • KZJOE900
  • KZJOE900's Avatar
  • Offline
  • Admin
  • Posts: 1972
  • Thanks: 445

Re: 1978 KZ1000-A2 "Barn find"

01 Feb 2021 05:06
#842773
Delkevic sounds great. Sounds nicely tuned! Excellent accomplishment . Well done.
Current project 76 KZ900 (This was a Vetter model)
76 KZ900
81 XJ550H SECA (Current Project)
82 XJ550R SECA
Past:
86 FJ1200
74 Z1900
72 CB450
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • User
  • Posts: 1084
  • Thanks: 310

Re: 1978 KZ1000-A2 "Barn find"

01 Feb 2021 07:51 - 01 Feb 2021 07:51
#842781
It sounds great! Where in Alberta are you located? I have a brother in Calgary, and he has been under snow since October.
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker (lost in the shop fire)
Last edit: 01 Feb 2021 07:51 by Skidmark.
