Re: Starting a rusty '82 KZ750

13 May 2019 06:20
#803777
Nessism wrote: Valve adjustment is critical since the valves tighten with mileage and once all the clearance is gone the valves will hang open and burn, along with the valve seats. It should go without saying that the valves must be checked and adjusted as needed.

Acknowledged. Anything else I should inspect/replace in the top end since I'm likely opening it up?
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7658
  • Thanks: 3030

Re: Starting a rusty '82 KZ750

13 May 2019 09:12
#803791
Valve cover gasket and maybe the rubber cam plugs. The cams have to come out of the engine to adjust the shims. Loudx has a warning you should review regarding releasing the cam chain tensioner spring before reinstalling the tensioner after the work is done.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: Tvag06

Please Log in or Create an account to join the conversation.

  • Tvag06
  • Tvag06's Avatar Topic Author
  • Offline
  • User
  • Posts: 116
  • Thanks: 5

Re: Starting a rusty '82 KZ750

29 May 2019 11:04
#804788
Checked all Intake and Exhaust valve clearances using .05, .10, .17 and .20 mm gauges(I didn't have a .15 so I used a .17mm gauge).
Exhaust(mm) .10 .17 .17 .10
Intake(mm) .10 .05 .05 .10
I was able to swap the Intake and Exhaust shims from #2 (2.45 and 2.50 respectively) to get them both in spec. I ordered a 2.50mm for exhaust #3 (2.55) and 2.50mm for intake #3 (2.45) along with the new valve cover gasket. Cleaned the old gasket mtrl off the cover last night will clean the up the other surface tonight.

Nessism wrote: Valve cover gasket and maybe the rubber cam plugs. The cams have to come out of the engine to adjust the shims. Loudx has a warning you should review regarding releasing the cam chain tensioner spring before reinstalling the tensioner after the work is done.

I wasn't able to find any post by this individual. Can you give me more insight? I have the automatic tensioner and all I did was unscrew the cap the protrudes out to the right (per the manuals instruction). Thanks again.
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7827
  • Thanks: 2421

Re: Starting a rusty '82 KZ750

29 May 2019 21:49
#804834
He made a typo. The user name is loudvhx.

Here is the link.
s3.amazonaws.com/gpzweb/CamsKZZXZR550500...KZZXZR550500400.html
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: Tvag06

Please Log in or Create an account to join the conversation.

  • Tvag06
  • Tvag06's Avatar Topic Author
  • Offline
  • User
  • Posts: 116
  • Thanks: 5

Re: Starting a rusty '82 KZ750

30 May 2019 14:22
#804887
TexasKZ wrote: He made a typo. The user name is loudvhx.

Here is the link.
s3.amazonaws.com/gpzweb/CamsKZZXZR550500...KZZXZR550500400.html

Thanks Tex. BTW I just got back from Houston. Nice down there.
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom

Please Log in or Create an account to join the conversation.

  • Tvag06
  • Tvag06's Avatar Topic Author
  • Offline
  • User
  • Posts: 116
  • Thanks: 5

Re: Starting a rusty '82 KZ750

31 May 2019 06:13
#804937
Parts were supposed to arrive today but look like they will be delayed. That's ok because I have yet to clean the gasket scuzz off the engine. I don't want to damage anything or get any particulate into the engine while I clean. I was thinking of using brake cleaner, a razor and a vacuum. A little apprehensive on using a metal razor on that mating surface tho. Other thoughts?
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7827
  • Thanks: 2421

Re: Starting a rusty '82 KZ750

31 May 2019 07:02
#804942
A hard plastic scraper may be less risky than a razor. They are cheap and should be available anywhere house paint is sold.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: Tvag06

Please Log in or Create an account to join the conversation.

  • Tvag06
  • Tvag06's Avatar Topic Author
  • Offline
  • User
  • Posts: 116
  • Thanks: 5

Re: Starting a rusty '82 KZ750

03 Jun 2019 10:40
#805076
Got the shims in. I installed them. Don't have a torque wrench the proper size so picking that up tonight then reinstalling the cams, checking the clearances to verify they are now in spec then reinstalling the valve cover, hoses and rectifiers (I hope). Then we'll see if that fixed the tap tap tap-a-roo.

On of the rubber camshaft plugs fell out during my inspection. The rest are solidly in place. Can I reinstall it with Permatex High Tac or a gasket maker? High Tac seems like it's better for this application.
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7658
  • Thanks: 3030

Re: Starting a rusty '82 KZ750

03 Jun 2019 13:53
#805082
Yes, the plugs can be installed with sealer on the curved section after cleaning off any oil.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

  • Tvag06
  • Tvag06's Avatar Topic Author
  • Offline
  • User
  • Posts: 116
  • Thanks: 5

Re: Starting a rusty '82 KZ750

03 Jun 2019 15:54 - 03 Jun 2019 16:37
#805095
Tvag06 wrote: Checked all Intake and Exhaust valve clearances using .05, .10, .17 and .20 mm gauges(I didn't have a .15 so I used a .17mm gauge).
Exhaust(mm) .10 .17 .17 .10
Intake(mm) .10 .05 .05 .10
I was able to swap the Intake and Exhaust shims from #2 (2.45 and 2.50 respectively) to get them both in spec. I ordered a 2.50mm for exhaust #3 (2.55) and 2.50mm for intake #3 (2.45) along with the new valve cover gasket. Cleaned the old gasket mtrl off the cover last night will clean the up the other surface tonight.

After installing new shims, reinstalling the cams and torquing them down I got new numbers that do not compute.
HERE ARE THE ORIGINAL MEASUREMENTS AGAIN
# valveExhaust (1st)Ex-Shim (1st)Intake (1st)In-Shim (1st)
1.10.10
2.17250.05245
3.17255.05245
4.10.10

HERE ARE THE MEASUREMENTS AFTER ADJUSTING SHIMS
# valveExhaust (2nd)Ex-Shim (2nd)Intake (2nd)In-Shim (2nd)
1.13.10
2.23245.05250
3.20250.04250
4.13.15

I torqued it all down according to spec. The only difference is I had purchased a new feeler gauge to measure more accurately this time. I didn't think to measure using the original feeler gauge before I pulled the cams again. Assuming the gauge is accurate and comparable to the original gauge, am I missing something? How can I see no change in the #2 and #3 intake and an increase in gap in the #2 and #3 exhaust? :S :dry:
'80 KZ440D - Stripped for rebuild - kzrider.com/kunena/11-projects/611352-st...ng-a-rusty-80-kz440d
'04 Suzuki DL650 K4 V Strom
Last edit: 03 Jun 2019 16:37 by Tvag06.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4408
  • Thanks: 2259

Re: Starting a rusty '82 KZ750

03 Jun 2019 16:28 - 03 Jun 2019 16:30
#805100

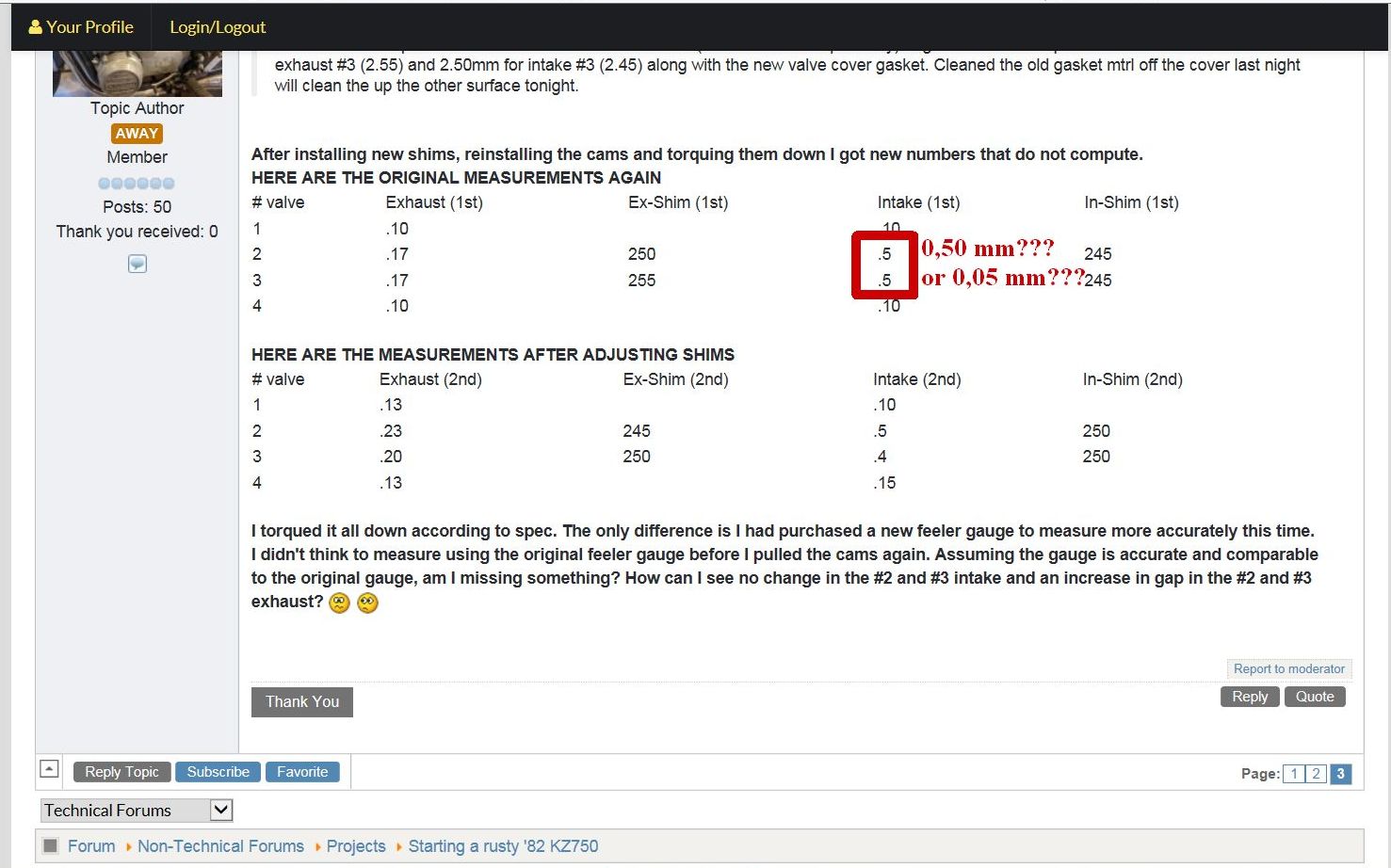

Are you sure you do the right measurement before and after or is it a typo???
