1983 KZ1000P bobber build ... MUTT #3

650ed
Offline
User
Posts: 15343
Thanks: 2830

Re: Re:1983 KZ1000P bobber build ... MUTT #3

19 May 2015 08:48

Forget about the seat pan for now. You first should weld in a piece to connect the rear left and right frame rails or you will have independent rear suspension on the bike (not a good thing). You don't want to be riding a flexible flyer. :laugh: The piece you weld in may influence the shape of the seat pan you design; that's why I suggest you do the welding first. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

19 May 2015 08:55

#672728

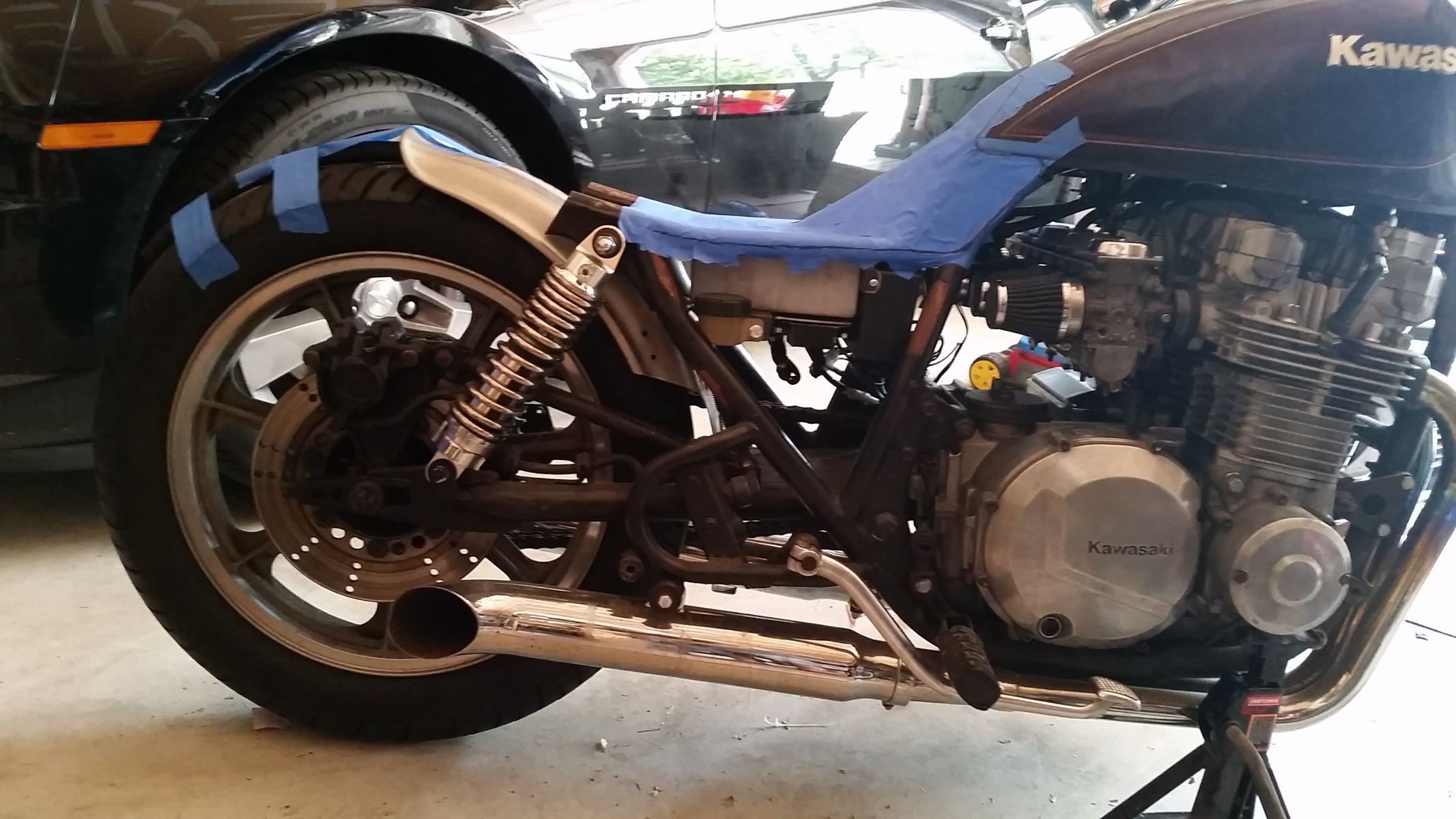

^ exactly why I said the rear isn't complete. It was just easy to fool around with the tape last night, haha

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

19 May 2015 13:24 - 29 May 2015 18:37

#672756

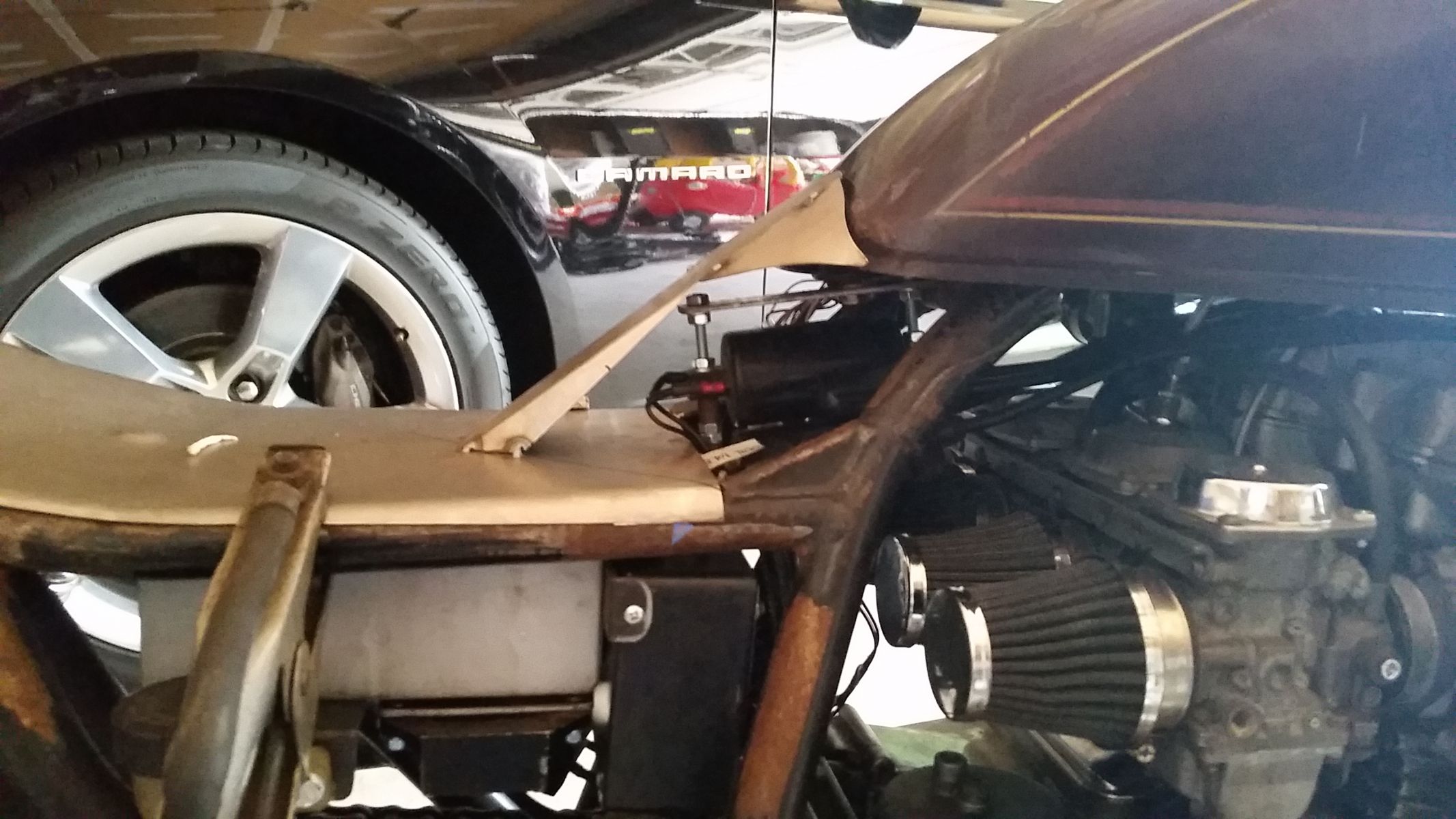

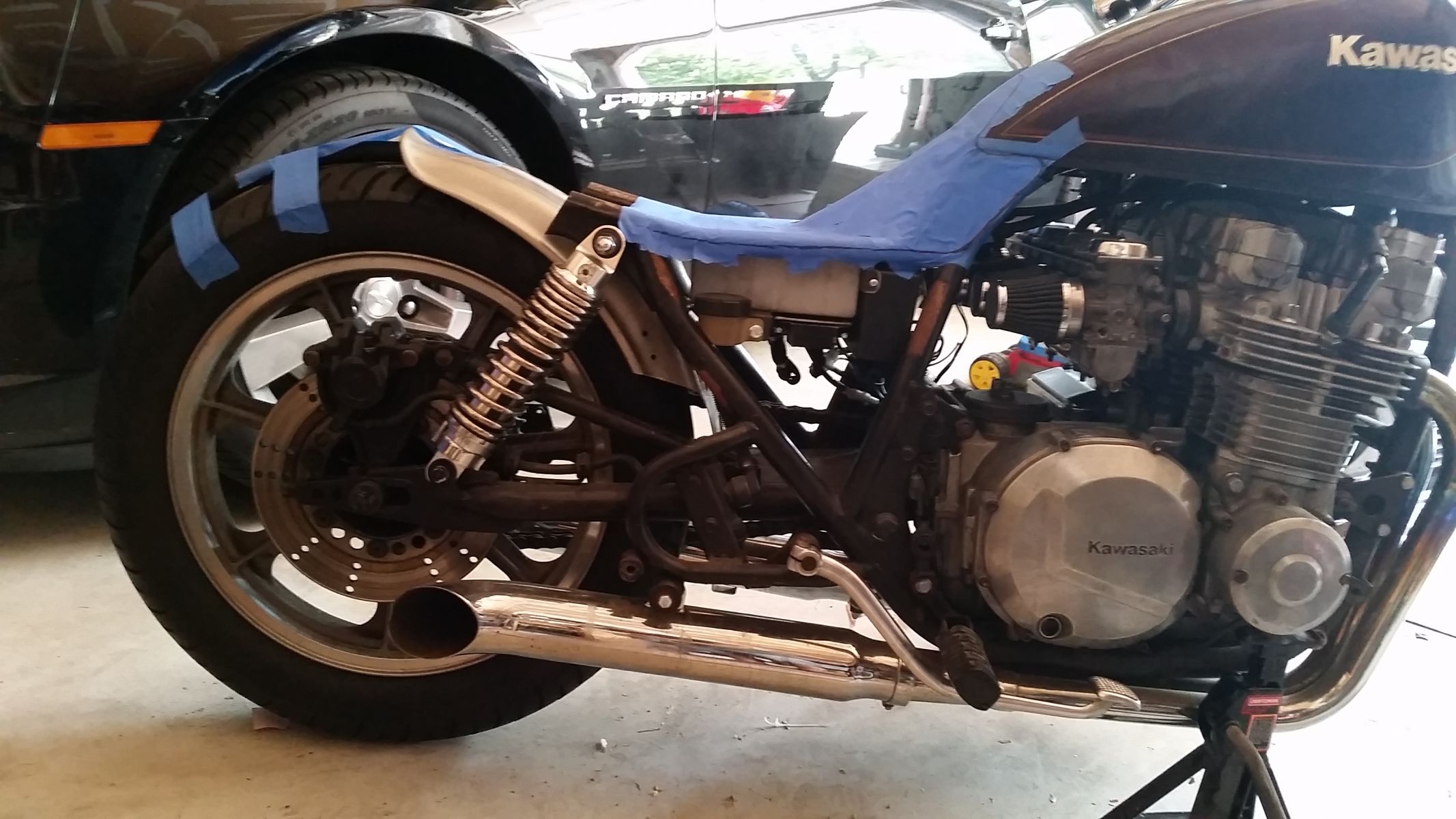

Cut the rear fender a bit to fit and used a 5/8 heater hose to space it off the tire. Side with the chain is cut perfect for clearance, did the same on the side with the brake, and it's a bit too much; will tack a slice back later.
Now to mounting it permanently and then getting a hoop bent up for the rear brace.

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Attachments:

Last edit: 29 May 2015 18:37 by Mean Green Z28.

Please Log in or Create an account to join the conversation.

531blackbanshee
Offline
Vendor
Posts: 7447
Thanks: 798

Re: Re:1983 KZ1000P bobber build ... MUTT #3

19 May 2015 14:29

#672763

i'm diggin the fender placement :evil: !

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

25 May 2015 12:06 - 29 May 2015 18:32

#673648

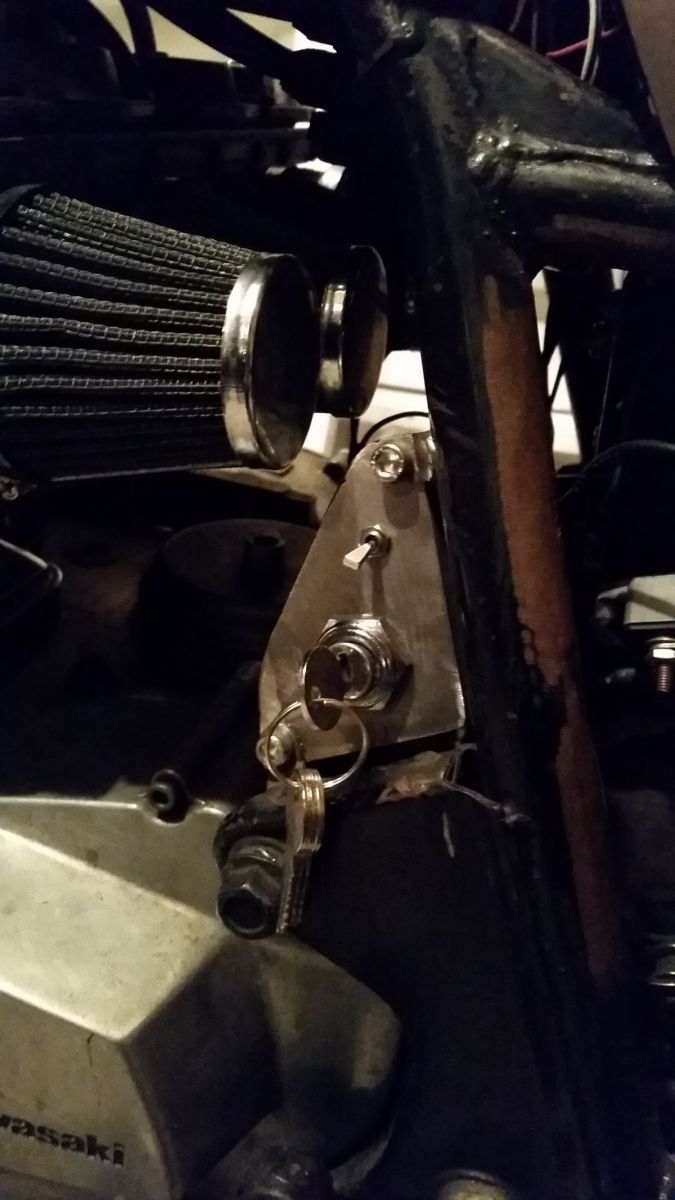

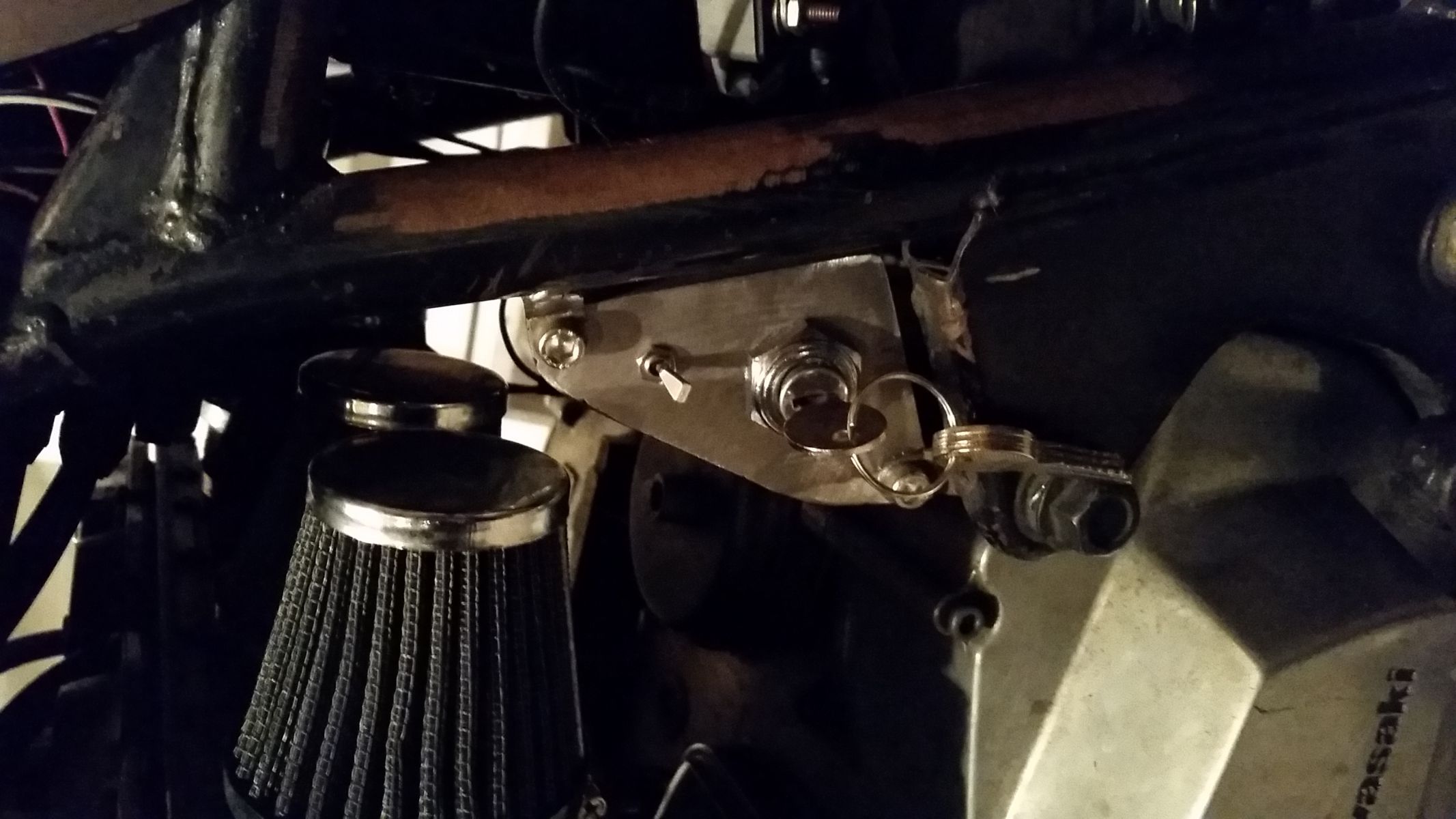

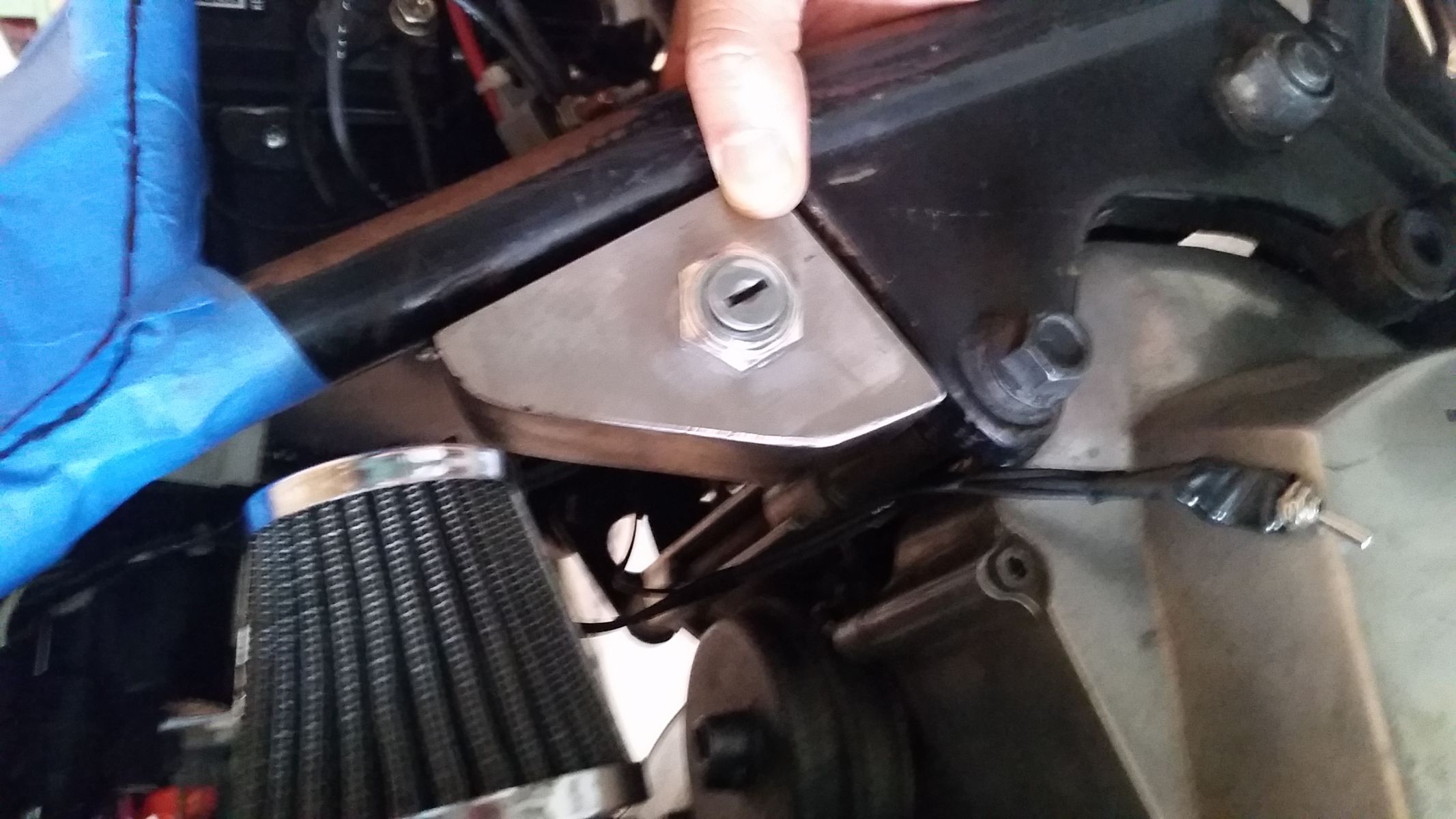

Made a little box for the ignition and hi-lo switch ... was gonna permanently weld it in but may do little mounting tabs with button head screws

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Attachments:

Last edit: 29 May 2015 18:32 by Mean Green Z28.

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

27 May 2015 05:50 - 29 May 2015 18:31

#673963

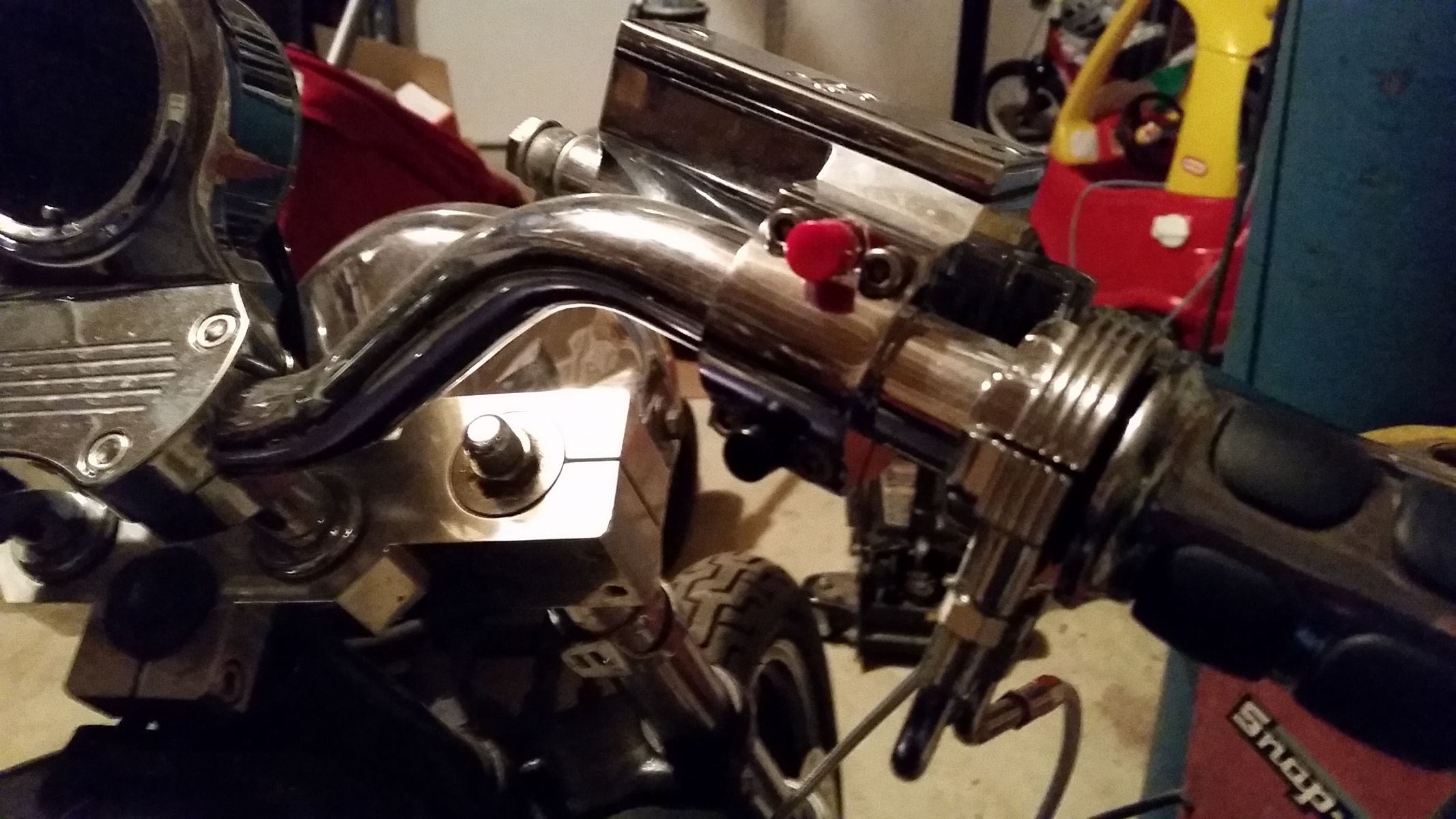

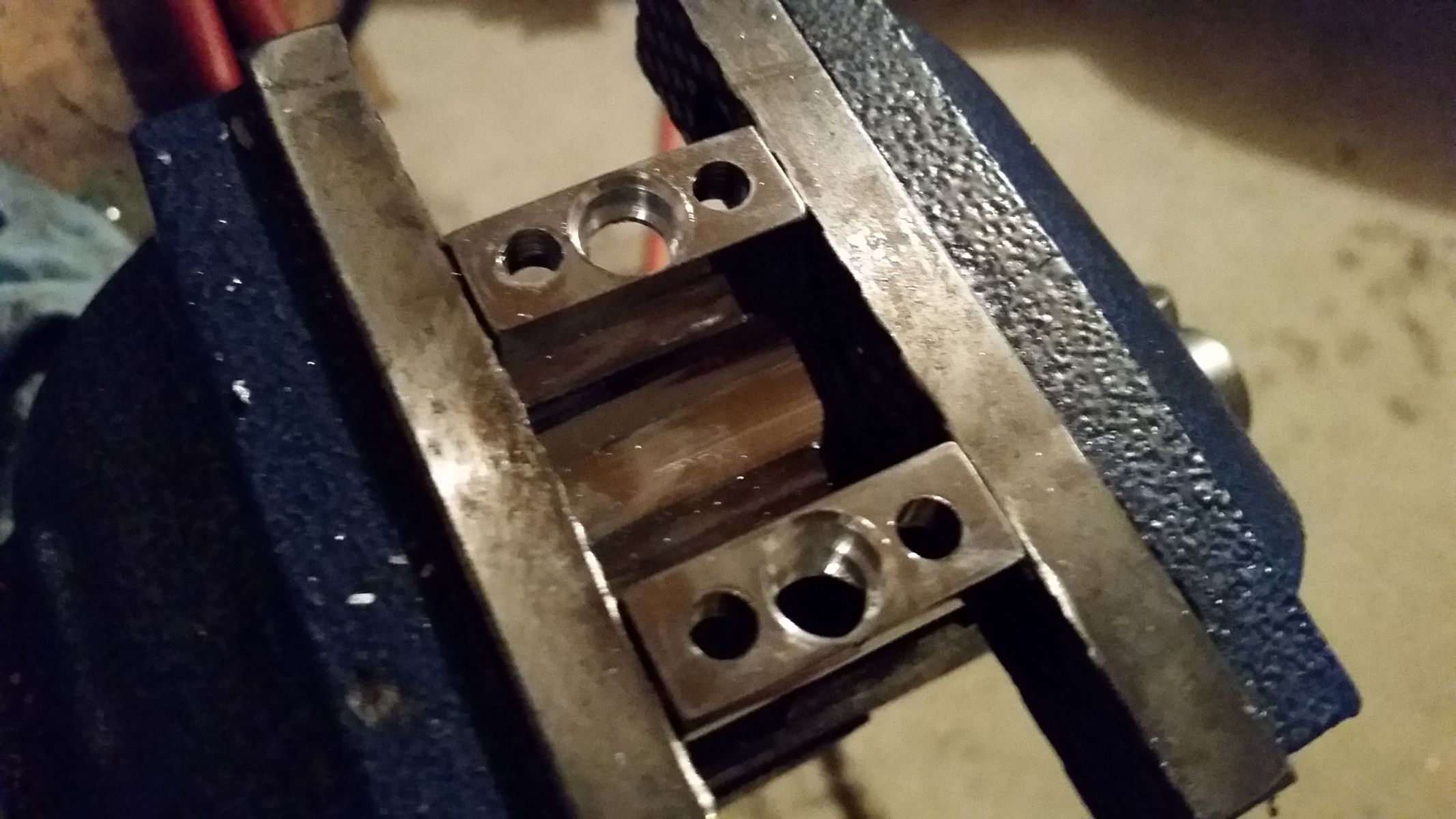

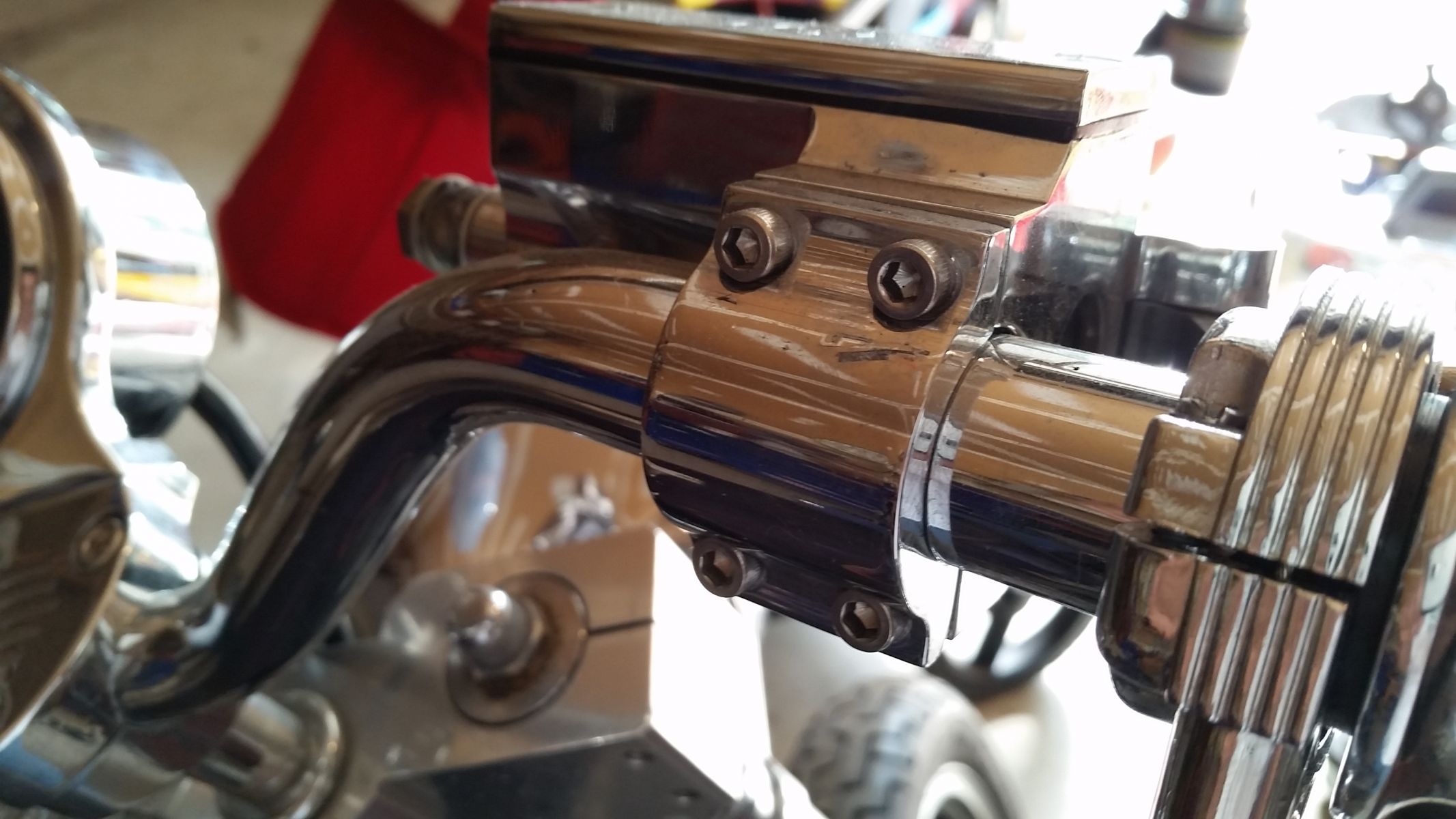

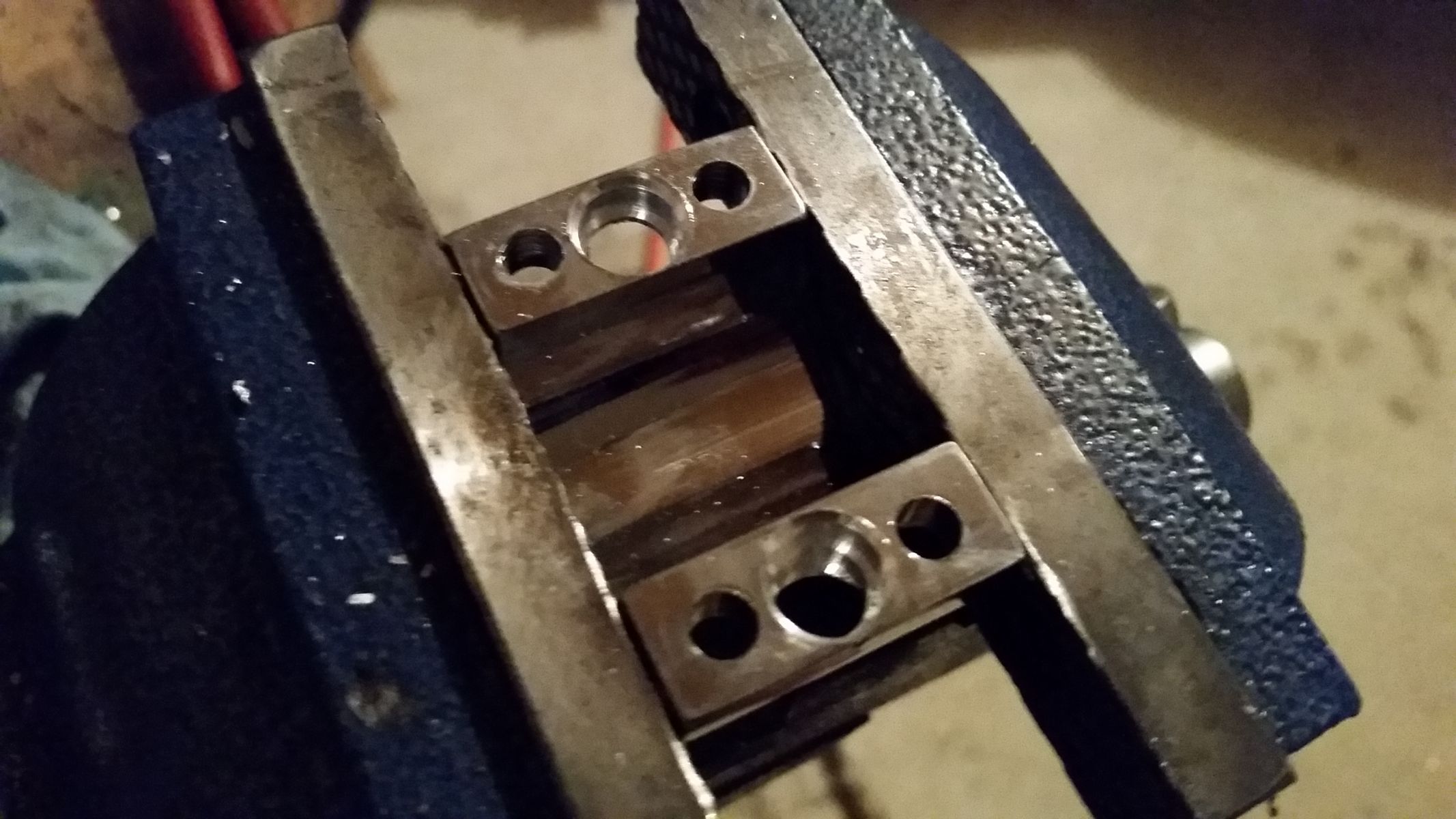

Made my own switch clamp instead of buying them for $150 each

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Attachments:

Last edit: 29 May 2015 18:31 by Mean Green Z28.

Please Log in or Create an account to join the conversation.

531blackbanshee
Offline
Vendor
Posts: 7447
Thanks: 798

Re: 1983 KZ1000P bobber build ... MUTT #3

27 May 2015 06:18

#673967

looks good man! :evil:

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

27 May 2015 15:02 - 27 May 2015 15:03

#674058

Said F U to fiberglass and started making the seat pan out of metal ... Rear hoop is being ordered today, found it on ebay in the dimensions I need. Could make it locally, but the guy doesn't have the correct die for the bend and would have to piece it together.

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Last edit: 27 May 2015 15:03 by Mean Green Z28.

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

27 May 2015 15:05 - 29 May 2015 18:31

#674061

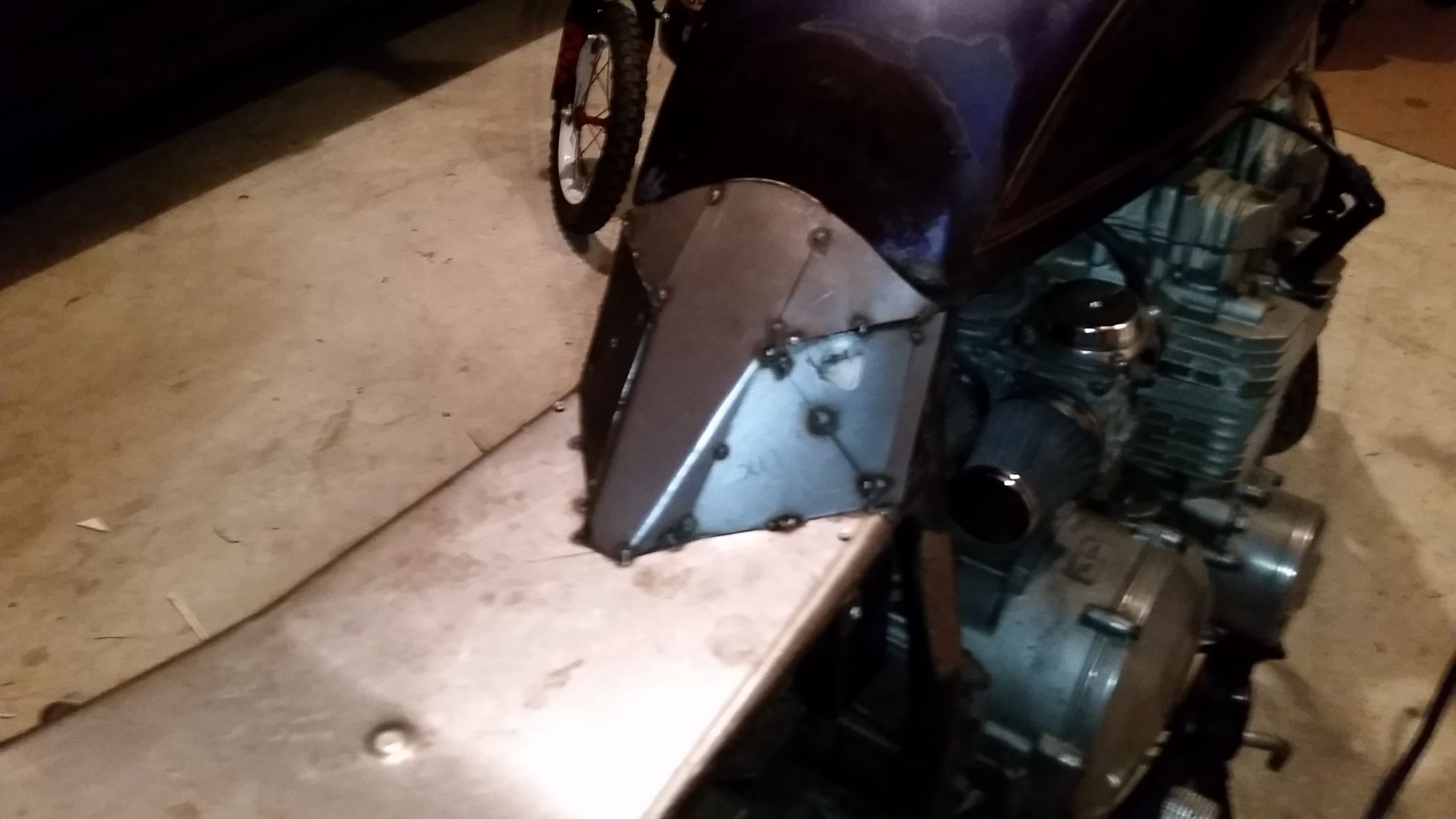

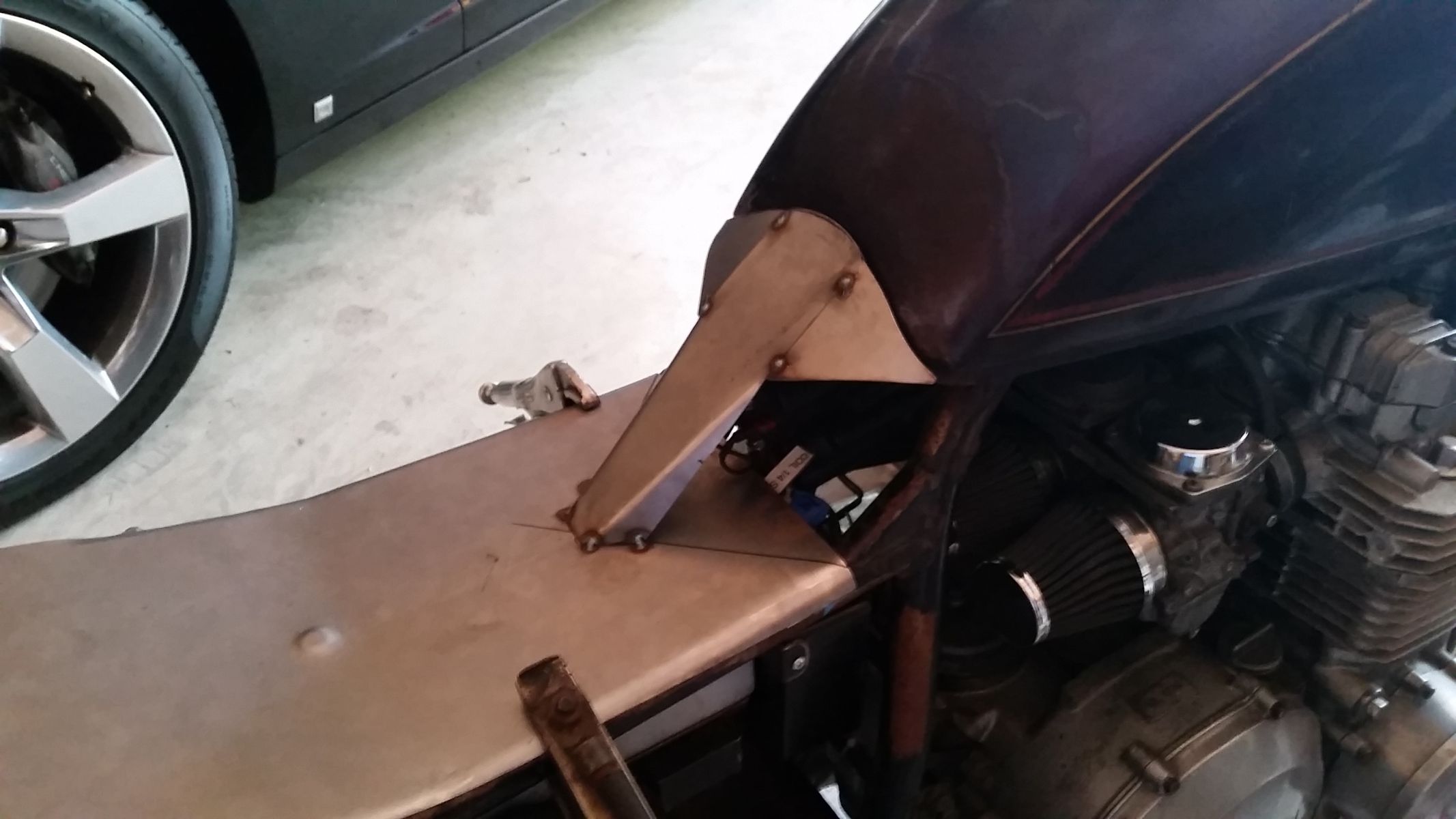

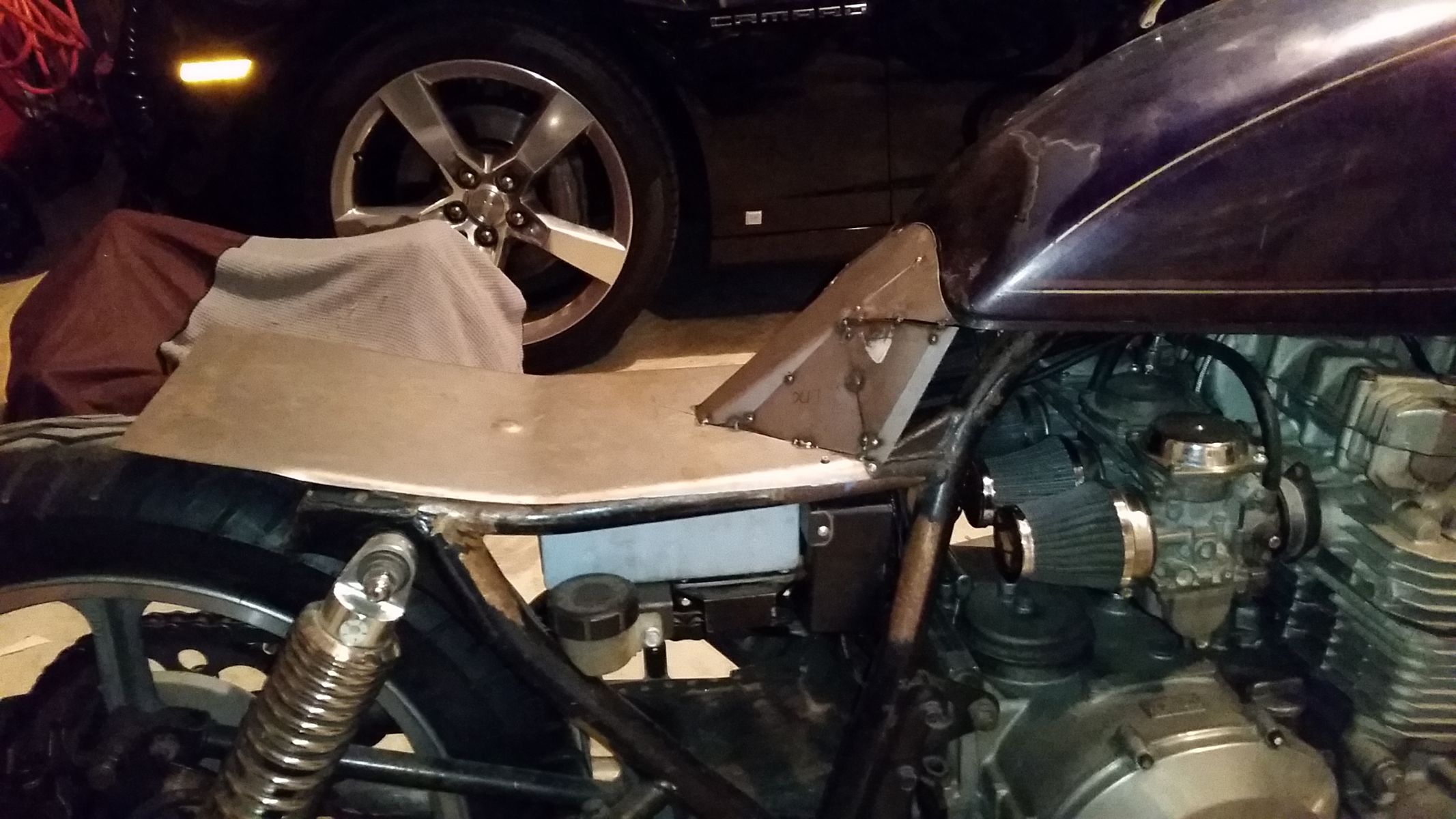

Pics. of progress of seat pan (front section) before I ran out of sheet metal. Home Depot trip!!!

2010 Camaro 2SS
1983 Kawi KZ1000P ... bag of bolts

Attachments:

Last edit: 29 May 2015 18:31 by Mean Green Z28.

Please Log in or Create an account to join the conversation.

Mean Green Z28
Topic Author
Offline
User
Kawasaki NooB
Posts: 97
Thanks: 5

Re: Re:1983 KZ1000P bobber build ... MUTT #3

29 May 2015 04:44 - 29 May 2015 18:31

#674326

Almost done with the front section of seat pan, just need to do the two sides that flank the sides of the tank. The rear hoop is in the mail, then I'll finish the rear
