KZ305 Air Box Boot Alternative (3D Print/Rubber Coupling) 10 Nov 2019 09:07 #813792

  • esquare12
  • esquare12's Avatar Topic Author
  • Offline
  • User
  • Posts: 17
  • Thank you received: 1
Hello,

Thought I'd share an idea I am working on to fix my KZ305 air leak issues through the air box. Would appreciate any feedback or input to improve the design.

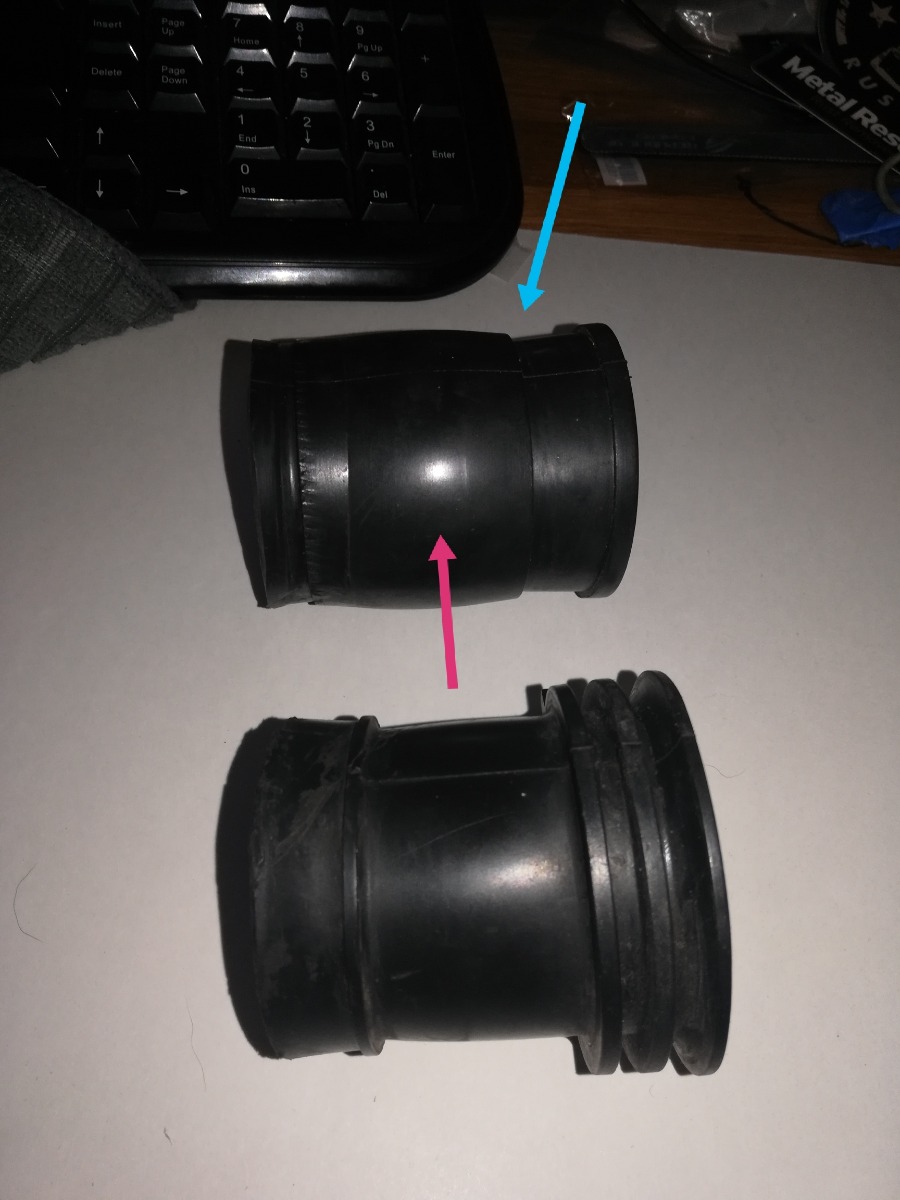

The original boots that came with the bike are very stiff and have shrunk over time causing them to be too short to properly grab the carb opening when clamped. After searching for quite a bit and not being able to find good replacements I tried using a PVC flex coupling since the dimension were close enough to make it work. The coupling has two recessed sections (blue arrow) for clamps which match the opening on the box snugly. After trimming the excess I was able to clamp it down to the carb to make it work for a while. Over the course of a few months the boot started to bulge (red arrow) due to the compression between the box and the carb. It also got a bit stiff and started to deform on both the clamped end and the free end on the box. I suspected I had air leaks since I couldn't get the bike to run properly and the idle was all over the place.


After thinking for a bit I though I could try making an adapter that I could secure to the air box opening, with a section coming out where I could mount the free end of the hose and clamp it. For the first test I'll use the PVC hose again but the plan would be to use 2in/55mm fuel filler hose since the PVC doesn't play well with fuel.

The adapter itself printed in a bit less than 6 hours and it consists of two pieces.

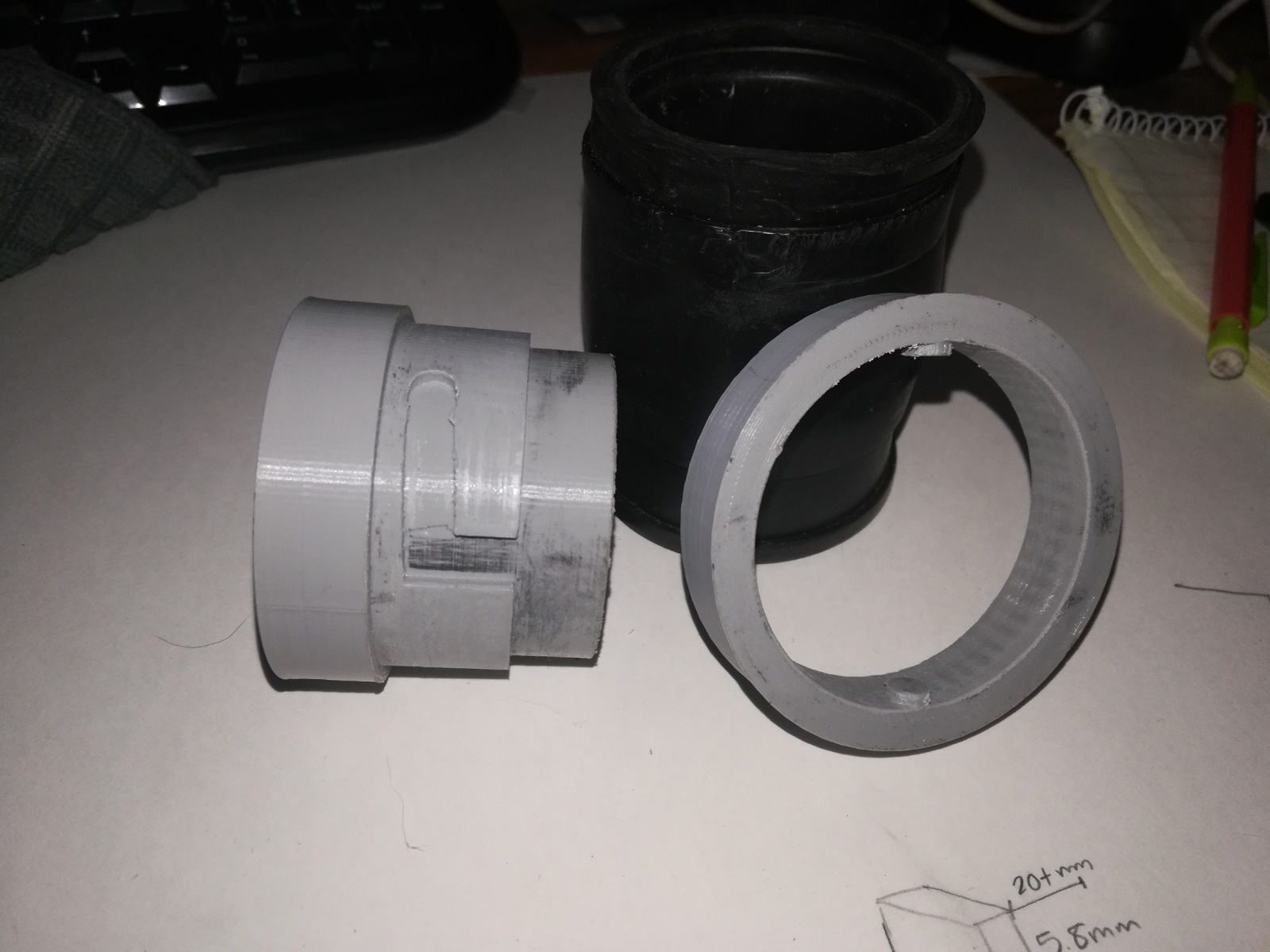

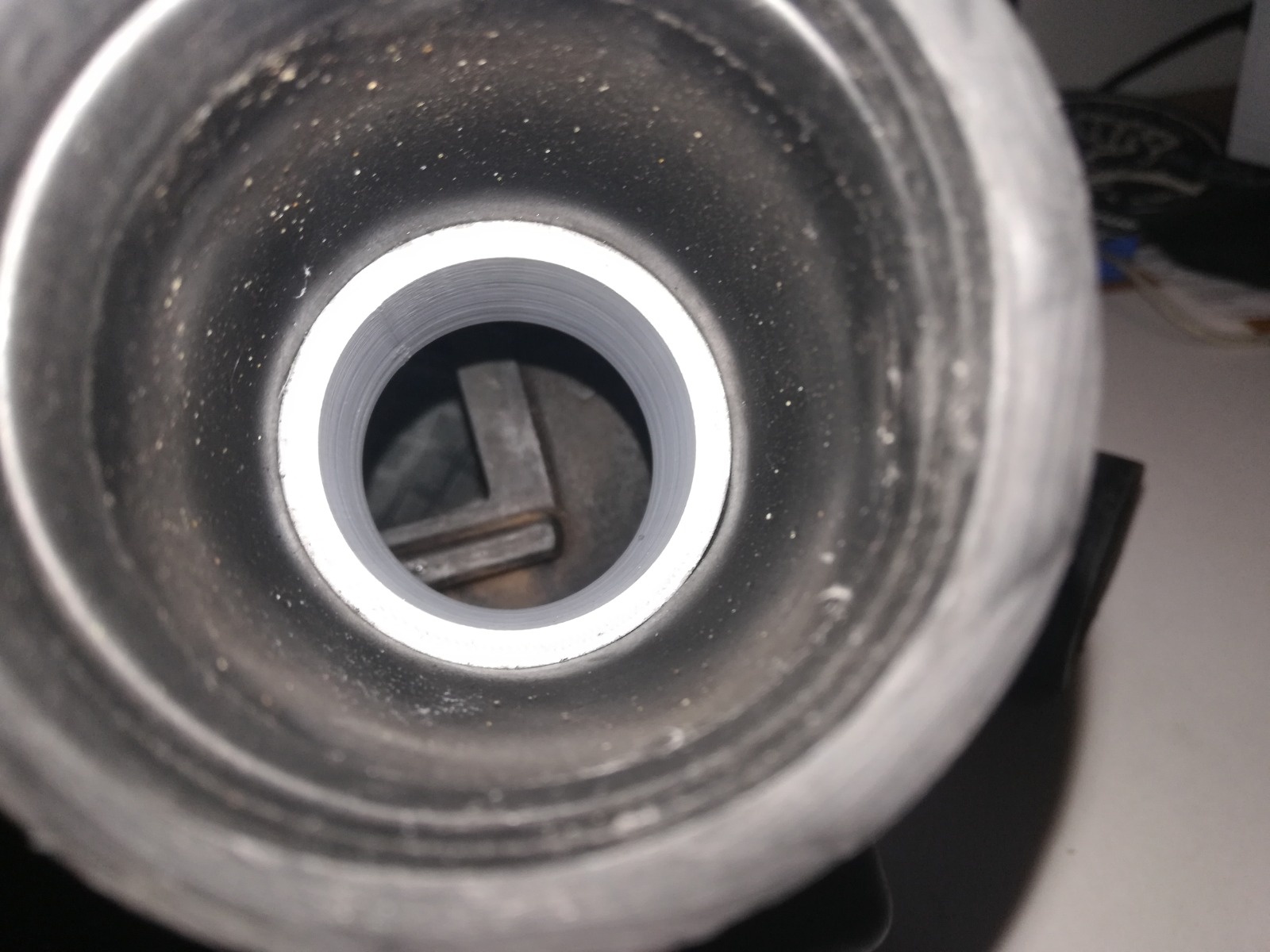

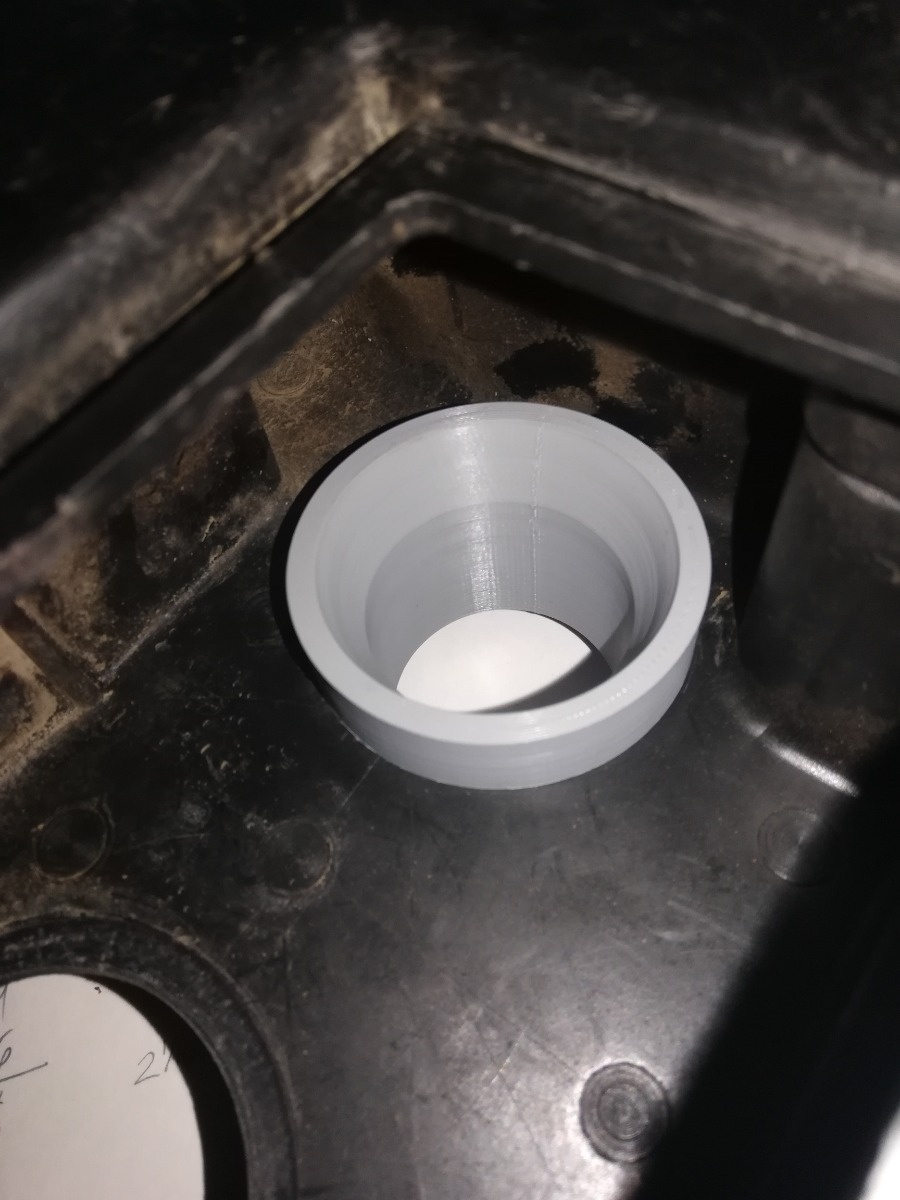

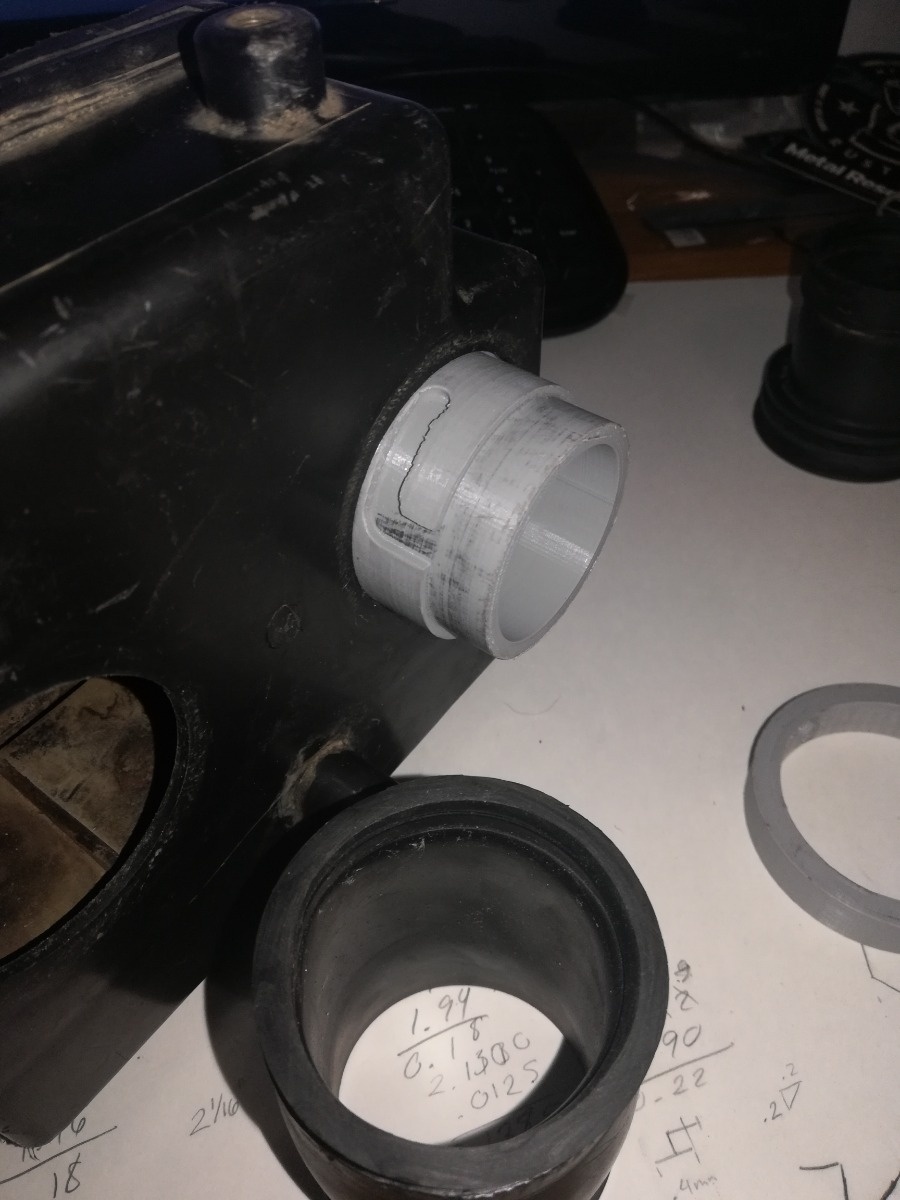

Piece A goes inside the box and has a taper to simulate the shape of the original rubber boot curved intake. This is easier to print but I might try a round shape later. The flange on the inside sits flush against the flat face of the box. The part that comes out of the box has two channels for Piece B to slide into. The channels are 180 degrees apart to provide good support and are angled with a slight taper to end in a snug fit.

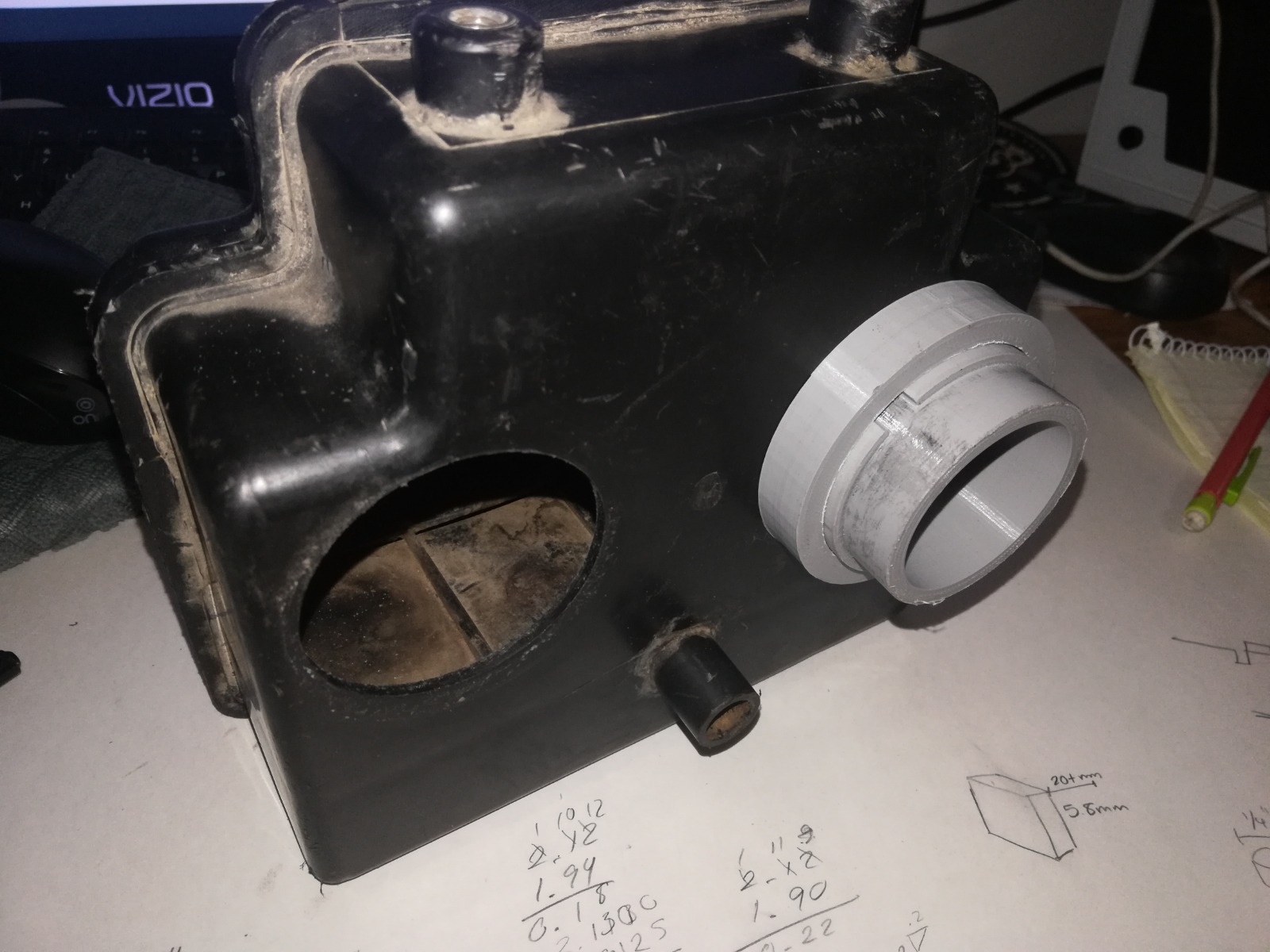

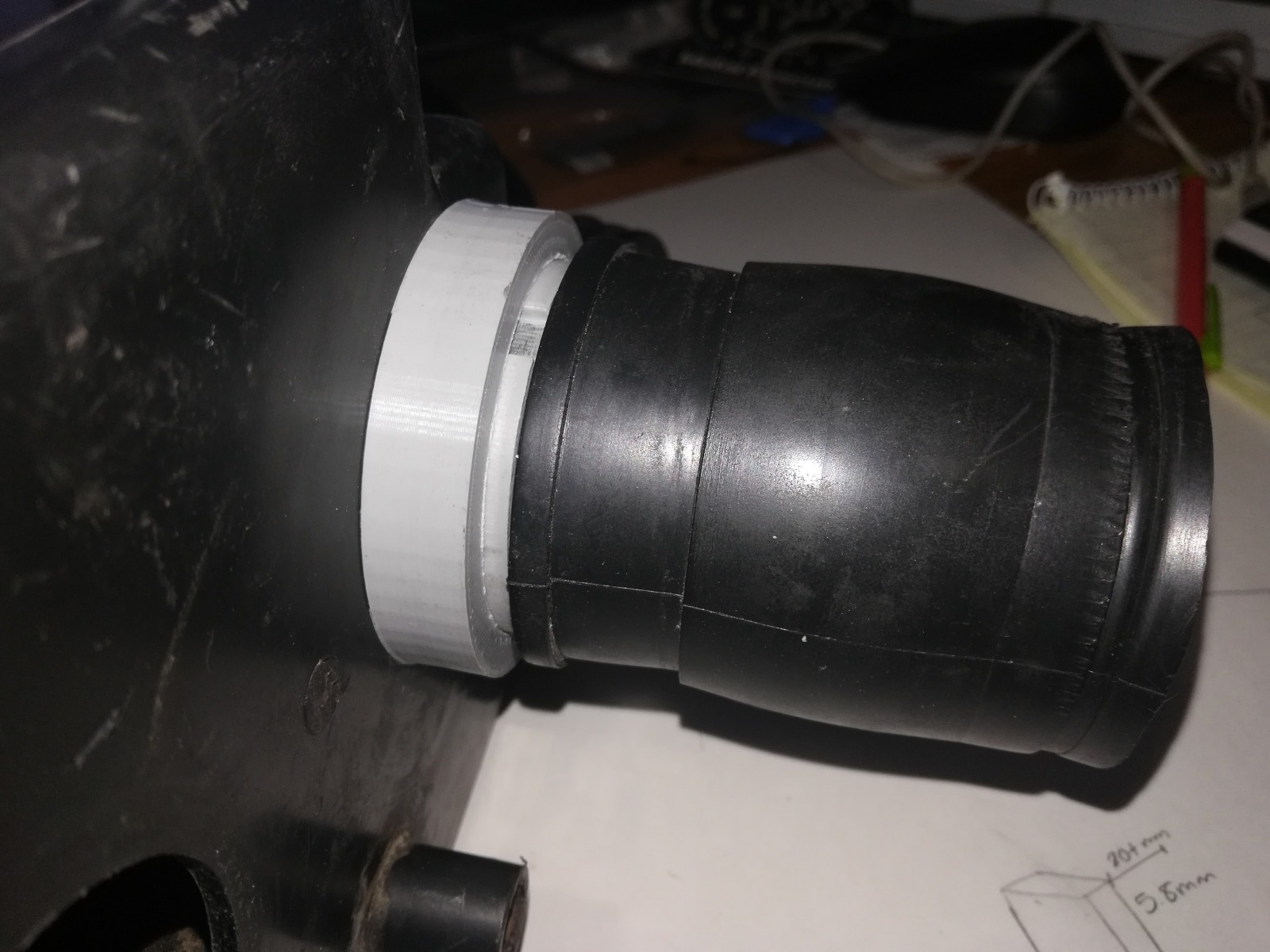

Piece B also sits flush against the (outer) flat surface of the box. It acts like a nut as it clamps to the air box face while it is turned. Time will tell if vibrations will knocked it loose, but right now it is a pretty tight/friction fit (finished parts still required some finishing with some files to get the right fit).Once assembled I ended up with a 3/8"-1/2" between the end of the adapter and the edge of the carb opening. I missed the chance to take photos of the assembly during the first mock up but the trimmed section of hose fit perfectly over the adapter and the carb. Should now be able to use two band clamps to secure it.





PLA plastic can supposedly handle fuel but this will also be tested once the bike is back on the road (prob. next summer, 41degF right now). I also plan on putting some pieces in gasoline during the winter to see what happens.
