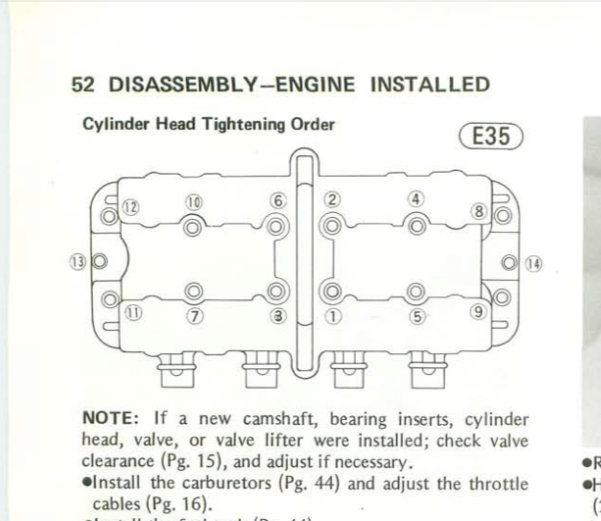

Need to helicoil threads for head bolt #13 (#13 in tightening sequence)

03 Jun 2021 03:35
#849521
Just not sure as to specific size of helicoil and drill bit needed for repair. Anyone know? Thanx
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Need to helicoil threads for head bolt #13 (#13 in tightening sequence)

03 Jun 2021 12:33
#849552
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Need to helicoil threads for head bolt #13 (#13 in tightening sequence)

03 Jun 2021 12:39
#849553
They are M6 x 45. Same has cam cover bolts, and cam cap bolts. I get the pitch later
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4408
  • Thanks: 2259

Re: Need to helicoil threads for head bolt #13 (#13 in tightening sequence)

03 Jun 2021 13:42
#849557
wrote:
They are M6 x 45. Same has cam cover bolts, and cam cap bolts. I get the pitch later

M6 pitch is 1,00 mm

www.gewinde-normen.de/en/iso-coarse-thread.html
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3128
  • Thanks: 1735

Re: Need to helicoil threads for head bolt #13 (#13 in tightening sequence)

03 Jun 2021 15:28
#849561

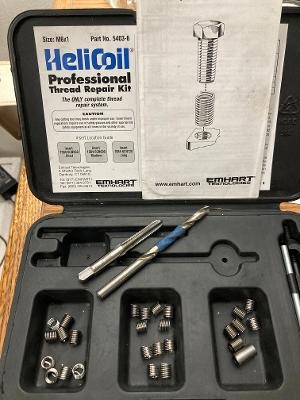

Kit you need is m6 x 1 mm.
