New coils and getting shocked!!

Hi

I put those same 3 ohm dyna s coils on my 83 gpz 1100. You mention shrink wrap.

Are you saying that that portion of the coil must not touch the frame?

jess wrote: Hi
I put those same 3 ohm dyna s coils on my 83 gpz 1100. You mention shrink wrap.
Are you saying that that portion of the coil must not touch the frame?

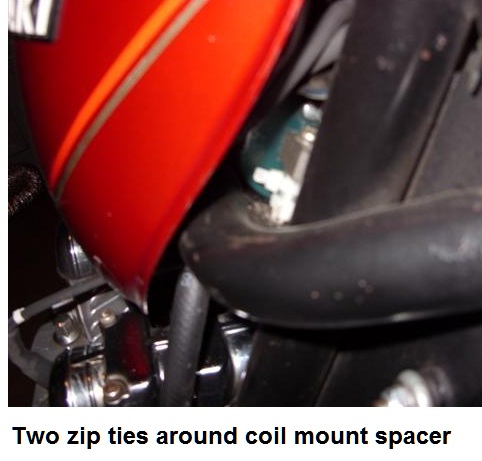

I fitted a tie-wrap (aka cable wrap or zip tie) around the coil mount spacers that are close to the screw heads.




But any of several methods may be used to insulate a screw head from the coil mount spacer.

Another method would be fitting a non-conductive spacer, such as a spacer made of nylon or plastic.


Each coil has two primary terminals. And each terminal has a screw for attaching a wire.

One of the screw heads is the screw that attaches a red or red/yellow wire (brown wire used in the above pic) , which wire carries battery positive voltage whenever the ignition switch is ON.

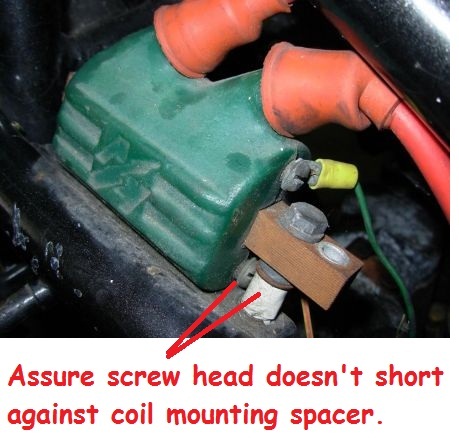

It must not be allowed to short to ground, such as touching a metal coil mount spacer.


The other screw head is the screw that attaches a black or green wire, which wire must also not be allowed to short to ground, such as touching a metal coil mount spacer.

Typically, only one of the two screw heads is located near a coil mounting spacer.

Good Fortune!
