kz750 custom swingarm fab

TOPIC:

kz750 custom swingarm fab 17 Apr 2015 07:42 #668374

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
vic,
i am pretty sure i used 1/4 x 2" .
i'm not currently close to it.
but,
i will verify that and let you know for sure.
it worked out real nice.

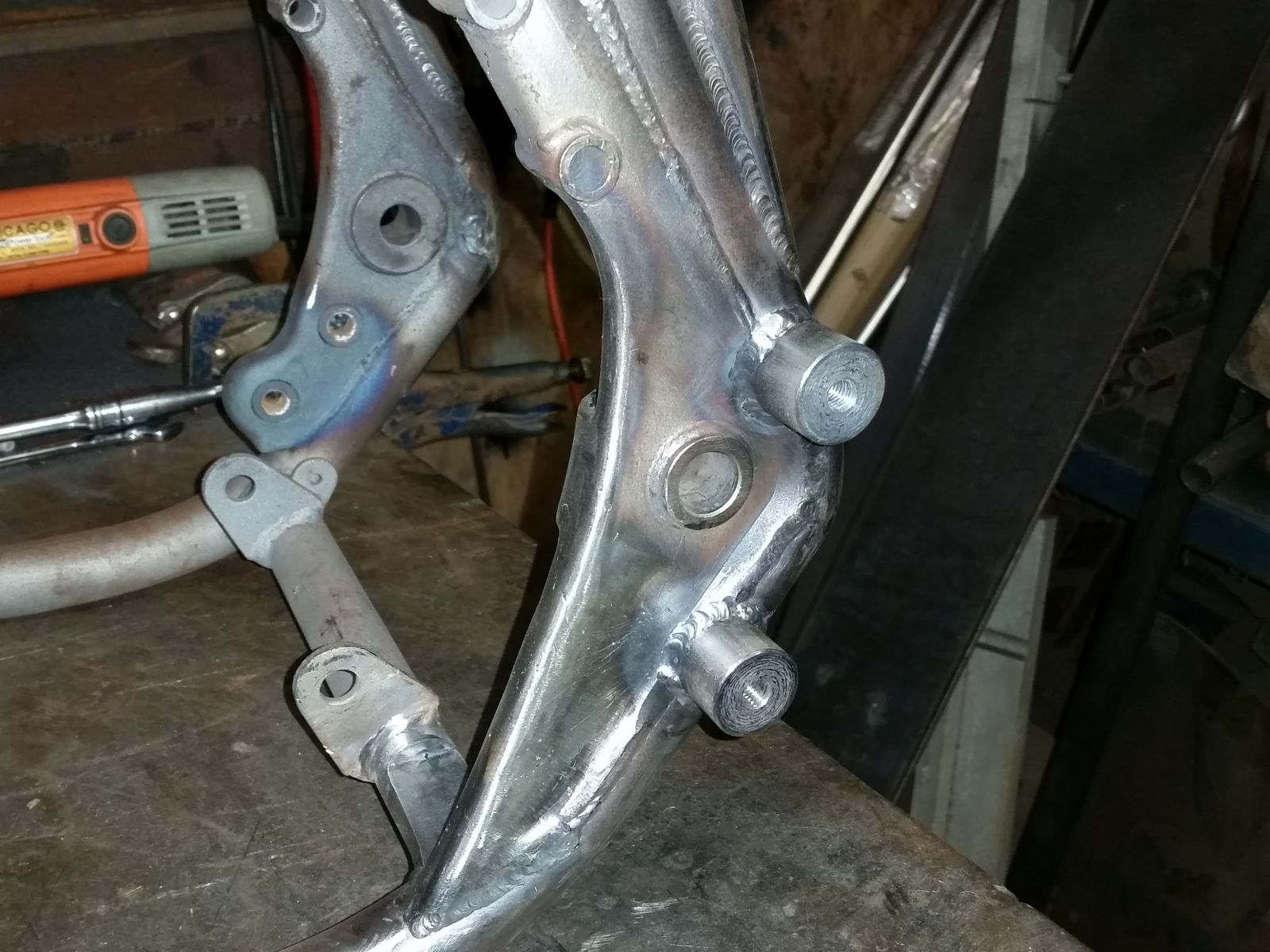

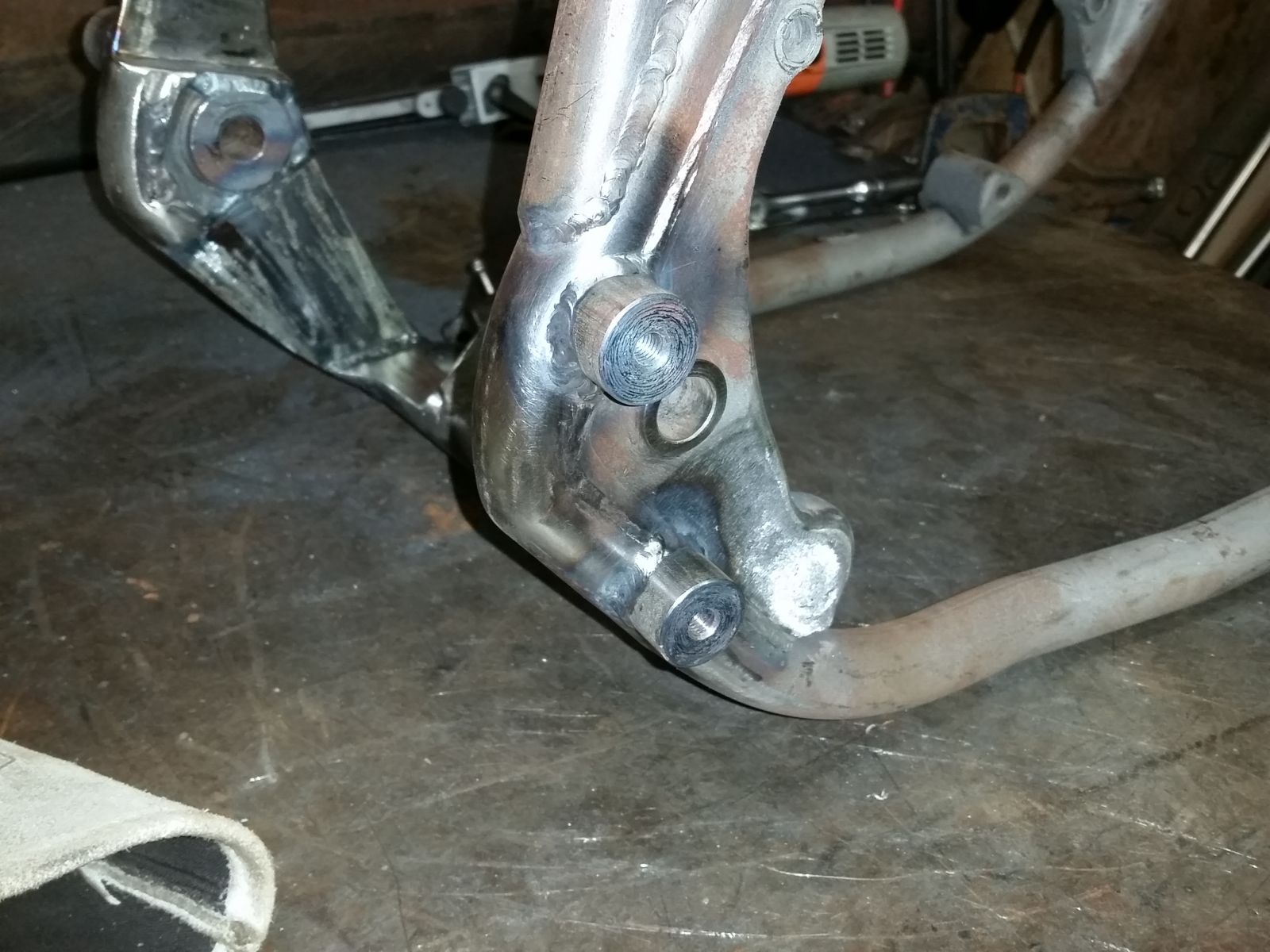

i machined some bungs to mount the rearsets,and got them welded on.

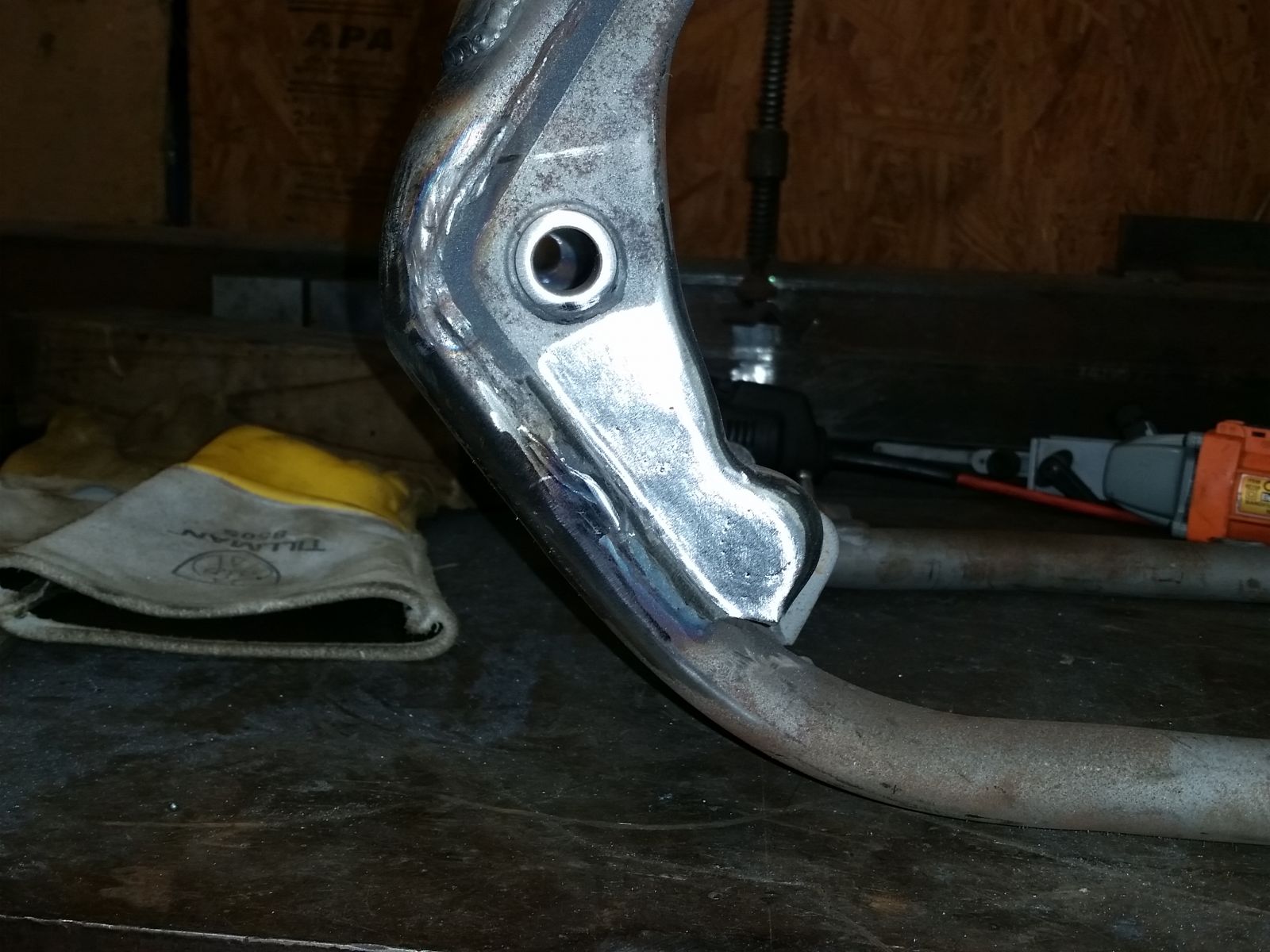

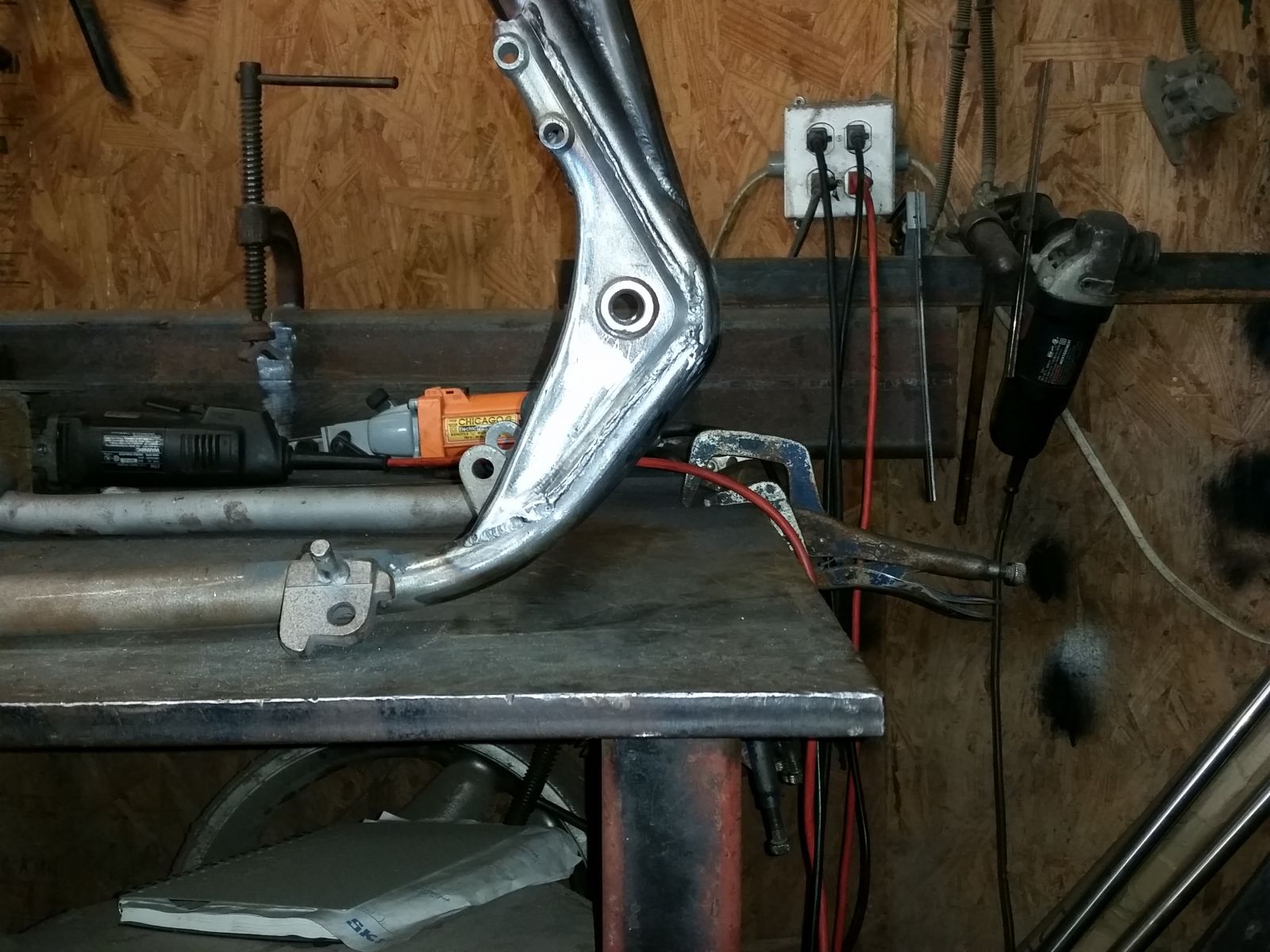

here is both sides cleaned up,





with bungs welded on,






leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 17 Apr 2015 07:45 #668376

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

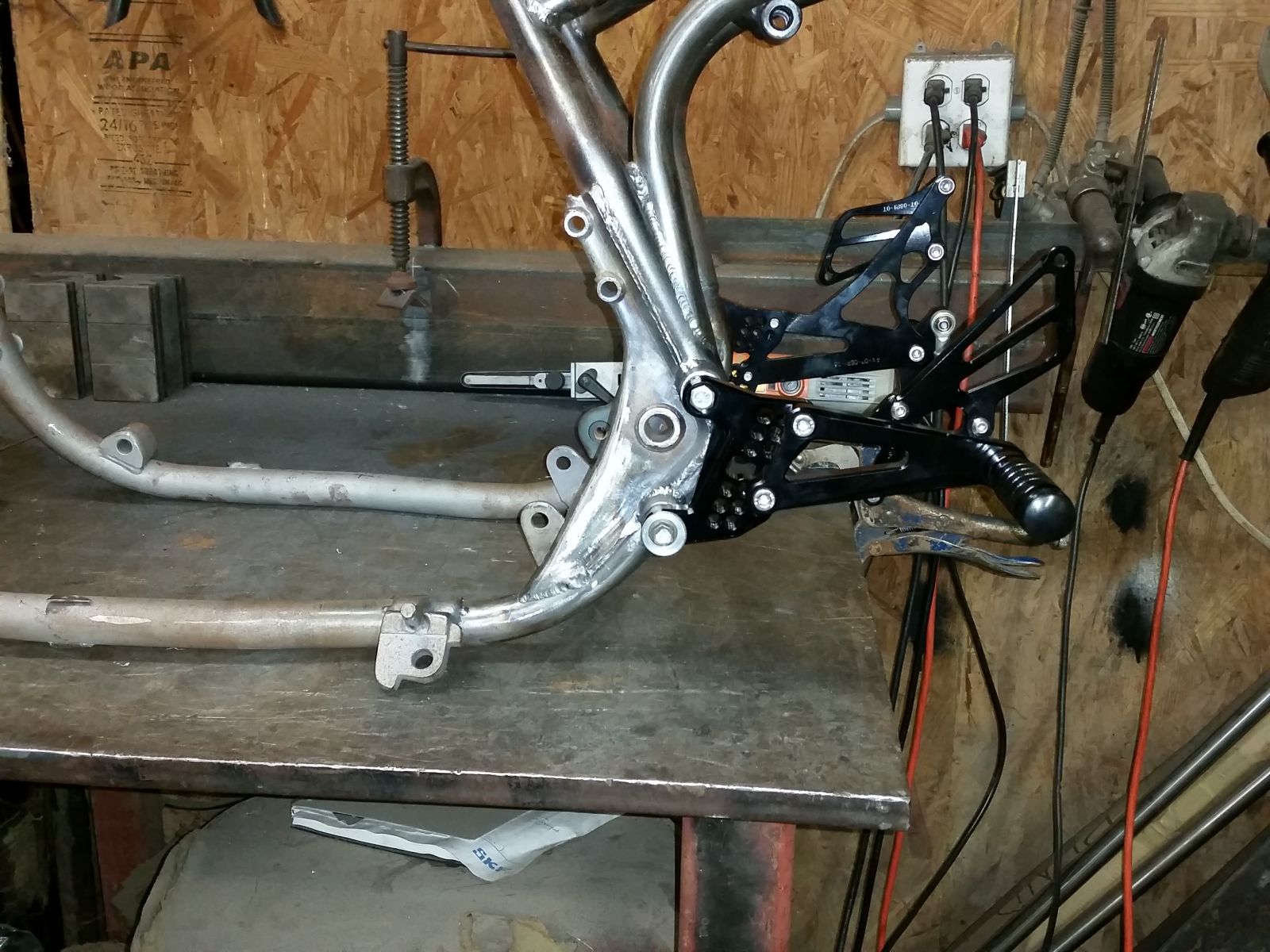

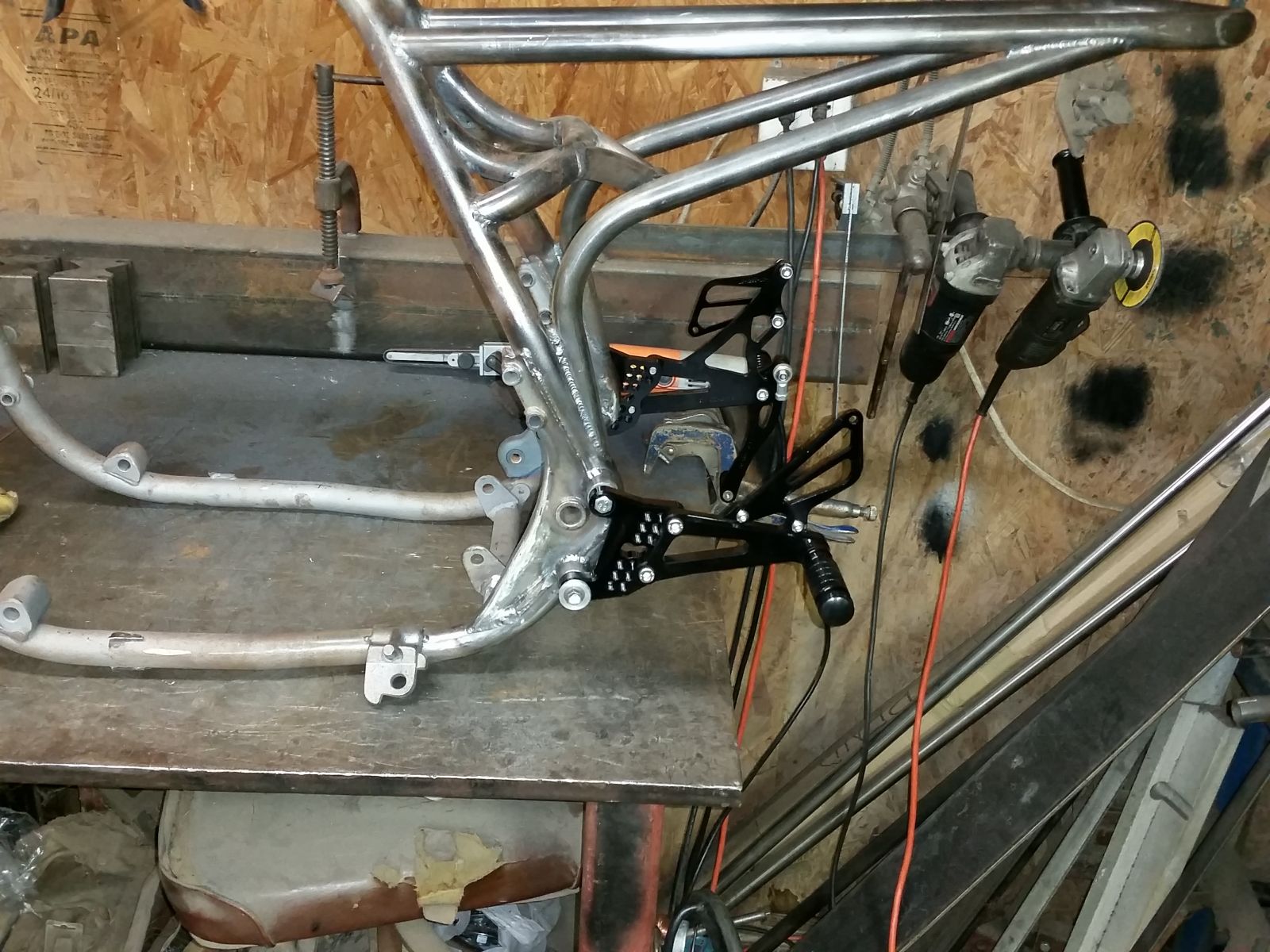

here with the adjustable rearsets mounted,







leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:
The following user(s) said Thank You: 80B4

Please Log in or Create an account to join the conversation.

Re:kz750 custom swingarm fab 17 Apr 2015 08:00 #668379

  • StreetfighterKz
  • StreetfighterKz's Avatar
  • Offline
  • User
  • Posts: 1510
  • Thank you received: 117
That rearset setup looks vaguely familiar. ;)

Great work as always Leon.

Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
The following user(s) said Thank You: 531blackbanshee

Please Log in or Create an account to join the conversation.

Re:kz750 custom swingarm fab 17 Apr 2015 13:25 #668418

  • bluezbike
  • bluezbike's Avatar
  • Offline
  • Sustaining Member
  • Posts: 598
  • Thank you received: 104
Really nice work Leon, especially the chain "tunnels"........that chain looks pretty l-o-o-o-o-n-n-g-g-g......is there a plan to support it?
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 17 Apr 2015 20:25 #668469

  • Bovine
  • Bovine's Avatar
  • Offline
  • User
  • Posts: 25
  • Thank you received: 5
Leon,
Keep the pics coming, Nice work, that thing is SICK! Don't forget to go RIDING!!!
The following user(s) said Thank You: 531blackbanshee

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 20 Apr 2015 06:33 #668840

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
bluezbike,
thanks for the kind words.
the chain is long,the pics i posted it is hanging pretty slack.
i am hoping to get away without running a spring loaded chain tensioner wheel.
but,
if we have to we will.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 20 Apr 2015 19:56 #668962

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
Vic,
I used 1 1/2" x 1/4 " flat stock between the rear upper mounts.

Leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 20 Apr 2015 20:04 #668964

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2544
  • Thank you received: 664
i was looking at the bike yesterday and the airbox pretty much touches the back of the engine, so I wont be doing a brace above the pivot. thanks for the info though.

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 08 May 2015 12:37 #671148

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

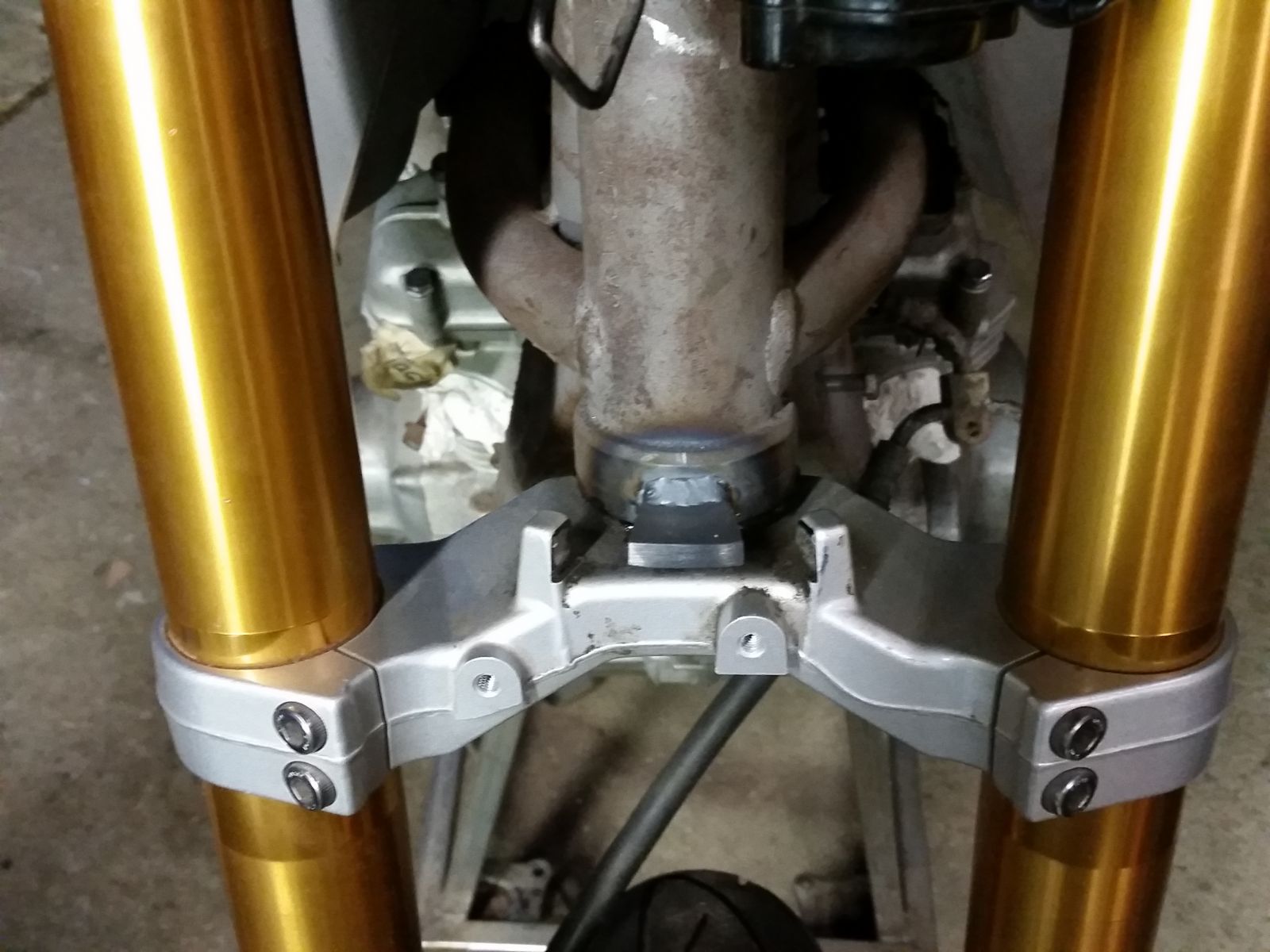

i finished the steering stop last night.
so unless i have missed something i believe i have fulfilled my commitment and am ready to hand the bike back to it's owner to finish up.

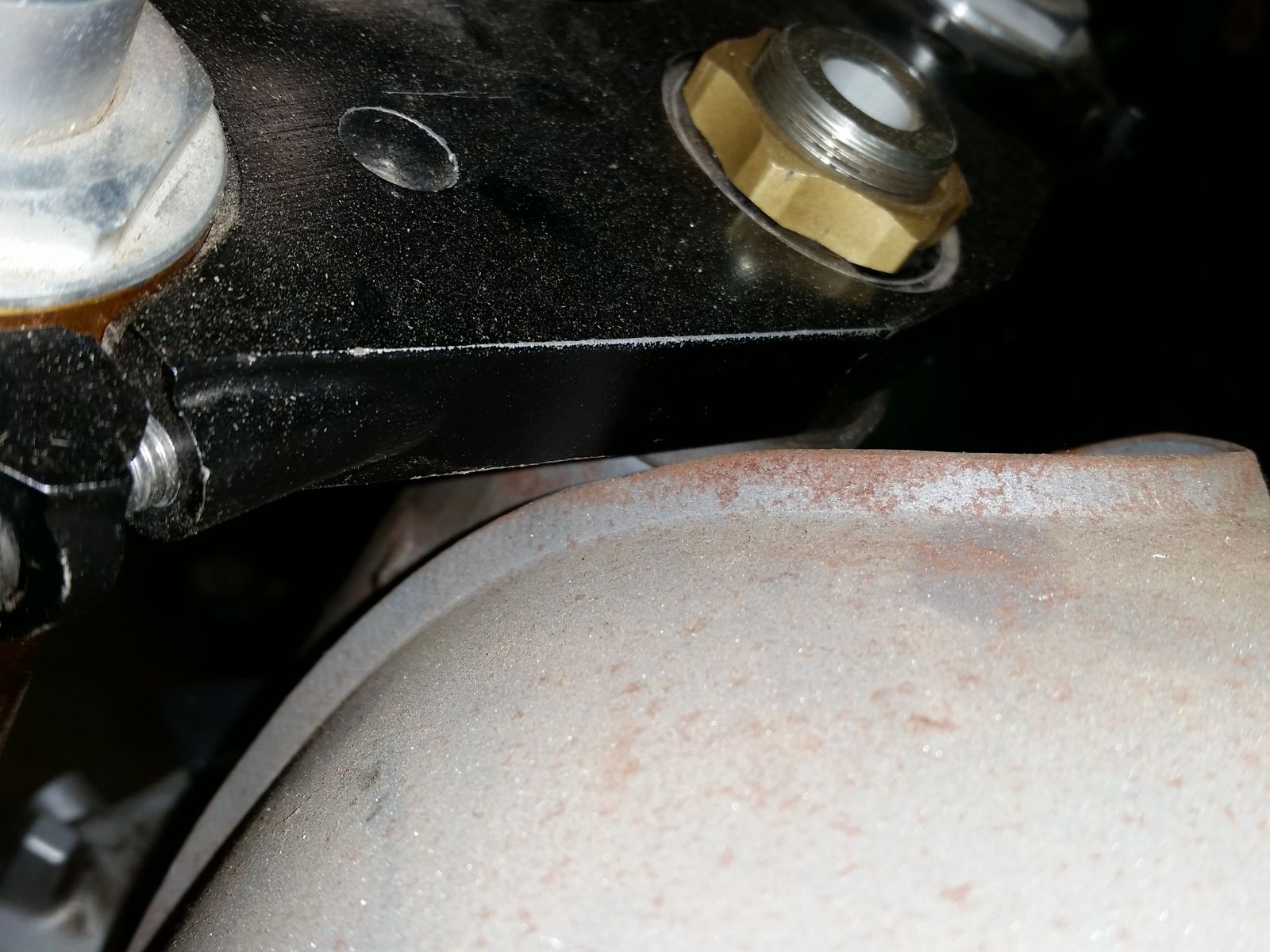

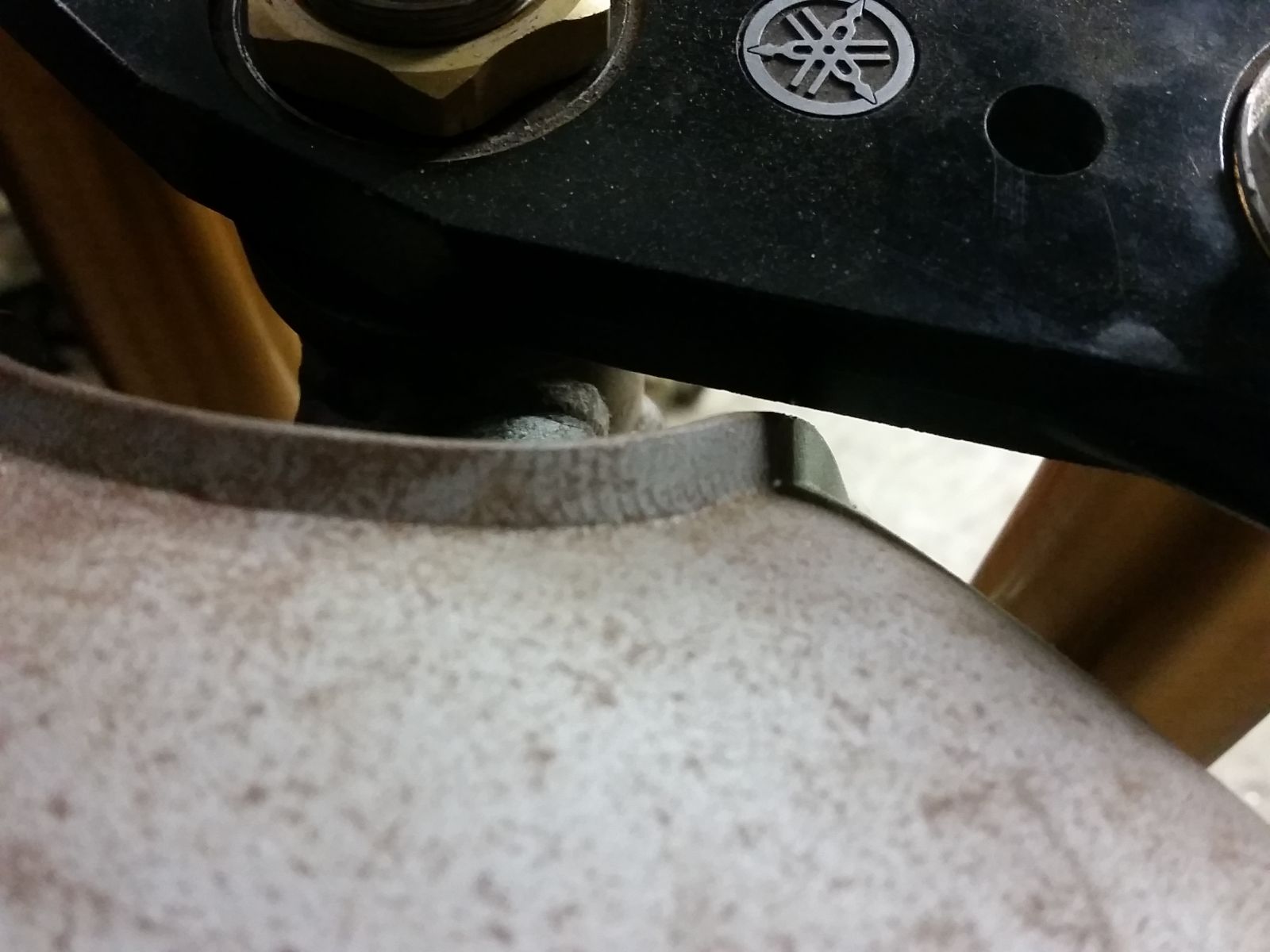

this allowed me an eighth of an inch clearance between the triples and the tank,with no rubbers.




hopefully i get pics when it's done and i will update this thread.

thanks for lookin,

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:
The following user(s) said Thank You: 80B4

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 22 May 2015 13:59 #673182

  • 80B4
  • 80B4's Avatar
  • Offline
  • User
  • Posts: 447
  • Thank you received: 105
I've just finished this for my twin.
1980B4 1000
1978 Z1R
1978 B3 750
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 80B4.

kz750 custom swingarm fab 22 May 2015 14:13 #673187

  • 80B4
  • 80B4's Avatar
  • Offline
  • User
  • Posts: 447
  • Thank you received: 105
Another view.
1980B4 1000
1978 Z1R
1978 B3 750
Attachments:

Please Log in or Create an account to join the conversation.

kz750 custom swingarm fab 24 May 2015 20:05 #673587

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2544
  • Thank you received: 664
wow! nice work. It that for the stock forks?

Please Log in or Create an account to join the conversation.
