Front Fork Diassembly Tool/Adapter
- Rick H.
-
Topic Author
- Offline
- User
-
Registered
- Posts: 840
- Thanks: 241
Re: Front Fork Diassembly Tool/Adapter
03 Jan 2020 06:21Kidkawie wrote: Spring compression/pressure on the damper is all thats needed. I service/tune modern MX suspension, that "special tool" is not needed, otherwise you would see a bunch of them for sale.
I understand what you are saying Kidkawie. After reading a bunch of old posts on this subject it's pretty clear that many have accomplished holding the damper rod in several ways. Most times by simple friction holding the rod with a broom stick or wedging a broom stick between the rod end and fork cylinder. While these may all work to one extent or another I was looking for a different solution that will handle even the most stubborn of removal situations and the obvious answer is a socket to receive the damper rod end, or an adapter of some sort to do the same thing. With all the advancements in machining and tool design I would think making this adapter would be doable, but at what cost? So now that I know what the adapter looks like I can show pictures to some of my friends that are tool makers/machinists and see what they have to say.
90% of the time there is always a "work around" when the situation calls for a special tool, like removing plastic push pins on car bodies today, but the special pliers made for that function sure make it easier and save time. I still remember trying to get old GM door and window handles off when they used U-shaped clips to hold them on. I was too broke or cheap at the time to buy the special tool for the job and would fiddle around with a couple of small screwdrivers trying to push the clips off. When I bought the special tool for the job I thought I died and went to heaven it was so easy! Slip the tool behind the handle, line up the clip slot and push clip out. Almost took longer to type that out then do the job.
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
1977 Kawasaki KZ-1000A1
Please Log in or Create an account to join the conversation.
- rangeroy
-
- Offline
- User
-
Registered
- Posts: 48
- Thanks: 23
Re: Front Fork Diassembly Tool/Adapter
04 Jan 2020 06:27
this is probably as good on how to dismantle forks/replace seals as anything IMHO
1977 z650
Please Log in or Create an account to join the conversation.
- Mikaw
-
- Offline
- Sustaining Member
-
Registered
- Posts: 4836
- Thanks: 1851
Re: Front Fork Diassembly Tool/Adapter
04 Jan 2020 15:57
Rick H...
If price is acceptable I’d be interested in a socket...
If price is acceptable I’d be interested in a socket...
1976 KZ 900 A4
kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Rick H.
-
Topic Author
- Offline
- User
-
Registered
- Posts: 840
- Thanks: 241
Re: Front Fork Diassembly Tool/Adapter
05 Jan 2020 06:49Mikaw wrote: Rick H...
If price is acceptable I’d be interested in a socket...
Now that I know the details of this socket/adapter I will track down one of my machinist buds and see if they can't make something up for me. I will let you know what I find out.
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
1977 Kawasaki KZ-1000A1
Please Log in or Create an account to join the conversation.
- Rick H.
-
Topic Author
- Offline
- User
-
Registered
- Posts: 840
- Thanks: 241
Re: Front Fork Diassembly Tool/Adapter
14 Feb 2020 10:47
To bring closure to this thread, I had a friend make up a couple of sockets similar to the Kawasaki factory damper socket. They aren't exactly the same but they work quite well for holding the damper rod. Mikaw was kind enough to borrow his damper rod to me for fitting purposes. The two initial sockets were made using a computerized EDM process which as it turned out took quite some time. All total it was a 5 hour process for two sockets from start to finish. If my friend were to do this again he told me he would use a different more mechanical process on a mill.
In any event, if anyone should desire to have one of these sockets please let me know. The one I have works just as it should and I believe the one Mikaw has works just as good. My "guess" as to cost at this time would be around $75.00 for the socket plus shipping. At todays shop labor rates that is a bargain, but shipping and insurance would be extra. From what I can find out this socket, part # 57001-176, fit many Kawasaki models but is no longer available. I have no idea what the last retail was on it because quite simply, no one has one for sale. I have a couple of pics of the final prototype. Later ones will no doubt look a bit different. One end fits the damper rod cap and the other fits a 3/8" extension but is a "push" fit.
If you are interested in one of these please let me know via PM and I will compile a list and keep everyone updated on the process. And yes you can keep using a broomstick if you like.....
Rick H.
In any event, if anyone should desire to have one of these sockets please let me know. The one I have works just as it should and I believe the one Mikaw has works just as good. My "guess" as to cost at this time would be around $75.00 for the socket plus shipping. At todays shop labor rates that is a bargain, but shipping and insurance would be extra. From what I can find out this socket, part # 57001-176, fit many Kawasaki models but is no longer available. I have no idea what the last retail was on it because quite simply, no one has one for sale. I have a couple of pics of the final prototype. Later ones will no doubt look a bit different. One end fits the damper rod cap and the other fits a 3/8" extension but is a "push" fit.
If you are interested in one of these please let me know via PM and I will compile a list and keep everyone updated on the process. And yes you can keep using a broomstick if you like.....
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
1977 Kawasaki KZ-1000A1
Attachments:
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
-
Registered
- Posts: 3054
- Thanks: 1155
Re: Front Fork Diassembly Tool/Adapter
14 Feb 2020 16:27
I gave the broomstick back to my wife. She's flying in a couple of days.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- bluej58
-
- Offline
- Sustaining Member
-
Registered
- The chrome don't get you home
- Posts: 2481
- Thanks: 511
Re: Front Fork Diassembly Tool/Adapter
14 Feb 2020 18:23 - 15 Feb 2020 05:20
I've done a few fork seal jobs and never needed to make a broom stick style tool but I finally had trouble with one spinning on my wife's Yamaha and needed one

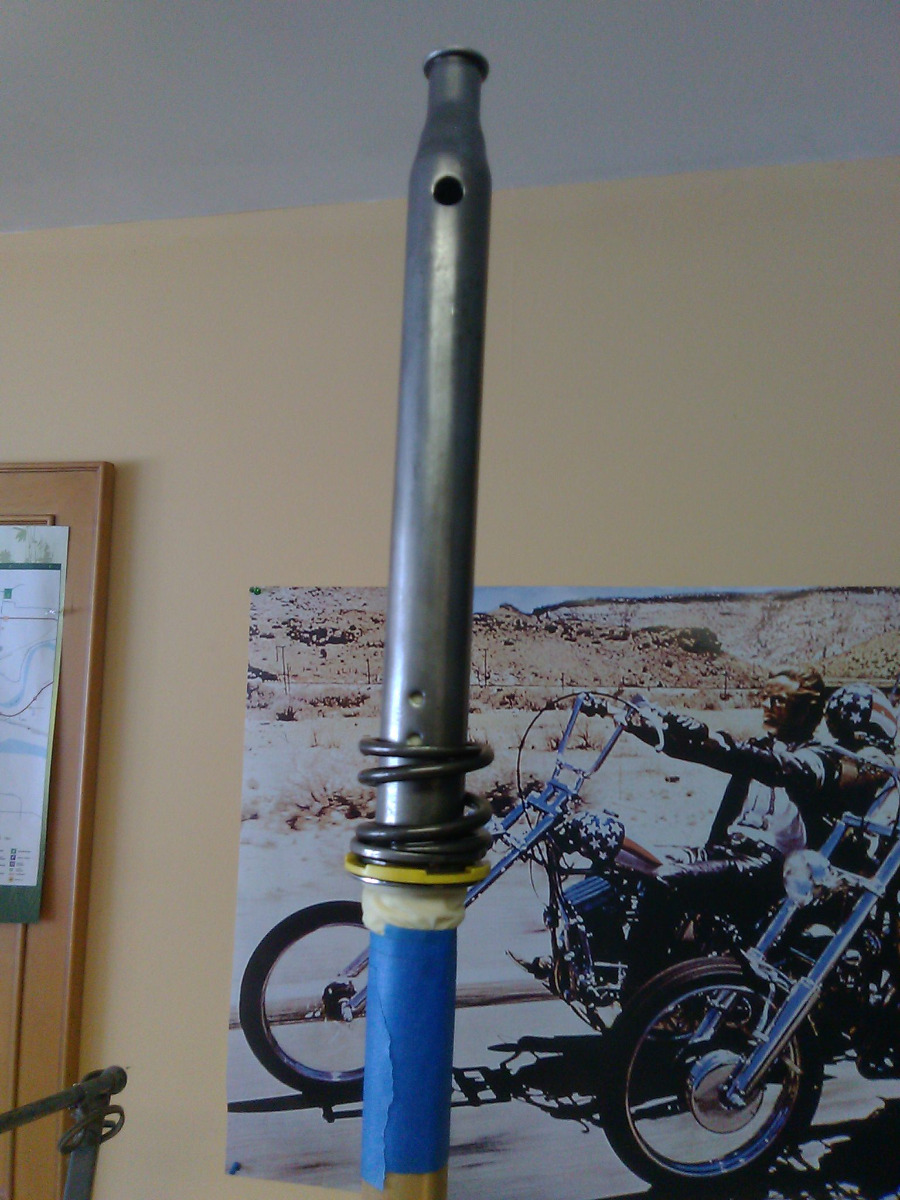

So here is my version using latex glove fingers to help grab metal and it worked well.
So here is my version using latex glove fingers to help grab metal and it worked well.
78 KZ1000 A2A
Attachments:
Last edit: 15 Feb 2020 05:20 by bluej58.
Please Log in or Create an account to join the conversation.
- Rainman
-
- Offline
- Sustaining Member
-
Registered
- and a little Kaw shall lead them
- Posts: 597
- Thanks: 76
Re: Front Fork Diassembly Tool/Adapter
14 Feb 2020 18:34Ouch, that's hard rockminer, and on Valentines Day no less, but funny none the less.hardrockminer wrote: I gave the broomstick back to my wife. She's flying in a couple of days.
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
The following user(s) said Thank You: hardrockminer
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
-
Registered
- Posts: 3054
- Thanks: 1155
Re: Front Fork Diassembly Tool/Adapter
14 Feb 2020 19:56
If I ever find a fork with a condom in it I'll know who rebuilt it!
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: bluej58
Please Log in or Create an account to join the conversation.
- Kidkawie
-
- Offline
- User
-
Registered
- I bleed premix
- Posts: 1913
- Thanks: 243
Re: Front Fork Diassembly Tool/Adapter
15 Feb 2020 08:16
RaceTech TFDH01
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
1994 KX250 Supermoto
2004 KX125
Please Log in or Create an account to join the conversation.
- Rick H.
-
Topic Author
- Offline
- User
-
Registered
- Posts: 840
- Thanks: 241
Re: Front Fork Diassembly Tool/Adapter
15 Feb 2020 09:47
Well I can only assume there must be some confusion over what the Kawasaki tool #57001-176 actually did. In simple terms it was an oddball socket that Kawasaki designed with a female opening in it to accept a similarly oddball shaped fork damper cap. I still don't know how using a broomstick one is able to grab hold of a damper cap that has no indentation in it to accept anything what-so-ever other than a large Kawasaki designed odd shaped socket. I can only assume those that use the broomstick are lucky enough that sheer friction between the damper cap and broomstick is enough to break the bond of the bottom retaining bolt and the damper rod. The Race Tech rod will not work in this application.
Rick H.
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
1977 Kawasaki KZ-1000A1
Please Log in or Create an account to join the conversation.
- Mikaw
-
- Offline
- Sustaining Member
-
Registered
- Posts: 4836
- Thanks: 1851
Re: Front Fork Diassembly Tool/Adapter
15 Feb 2020 10:09 - 15 Feb 2020 10:10
Rick, they have different damper/cylinder then our forks. My ‘78 has the type the are using the “broomstick” trick on. The top of the cylinder is a female design. Some are smooth and some like the 650 forks have a hex machined into them. Either way it’s a female that needs a male tool. Our cylinder has a male boss. No way a male to male connection will work. See photo of factory tool that Kaw supplied for the cylinder with female top.
1976 KZ 900 A4
kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
Last edit: 15 Feb 2020 10:10 by Mikaw.
The following user(s) said Thank You: Rick H.
Please Log in or Create an account to join the conversation.
