Re: 2 Things Kawasaki

12 Feb 2018 05:49 - 12 Feb 2018 05:50
#778577
martin_csr wrote: 1. 17mm is the wrench size. The bolt is probably an M12 (ie, 12mm threads).

2. You'll need to figure out why the thing melted. something obviously shorted, but what?

I searched the forum and other forums for background on this issue. Nothing shorted. It seems the KZ650 specifically had this nearly universal (among KZ650 owners) issue with the fuse box: the main fuse comes loose from the fuseholder part of the fuse box, , touches the plastic and shorts a fuse.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin
Last edit: 12 Feb 2018 05:50 by 650Dude.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: 2 Things Kawasaki

12 Feb 2018 05:52 - 12 Feb 2018 05:53
#778578
Do you have a pic of the melted stuff?

My bike has the original fuse box. motorcycle electrics shouldn't be anything to avoid working on. I didn't know much a few years ago.
good tools are handy. for starters get some terminal pin extractors & a ratcheting crimper w proper crimper dies for open barrel terminals for in case you have to replace a brass terminal.
1981 KZ650 Competition Sports and Road
Last edit: 12 Feb 2018 05:53 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4411
  • Thanks: 2263

Re: 2 Things Kawasaki

12 Feb 2018 06:01 - 12 Feb 2018 06:02
#778579
650Dude wrote
....the 20A was blown and the metal part melted against the fusebox.

A little math: 20 Amps x 12 Volts = 240 Watts of power consumption over a long time !!!! = a lot of heat (melting fuse box) = fuse holder loose = short cut to the other fuse holder = fuse blowing !!!

You must have an unnoticed "near by short cut" in your wiring harness or switch assay or other electric component to ground negative.

What have you do or change last before the issue begins?

Michael
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 12 Feb 2018 06:02 by Scirocco.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4411
  • Thanks: 2263

Re: 2 Things Kawasaki

12 Feb 2018 06:11 - 12 Feb 2018 06:14
#778580
Not every fuse reacts like other fuses.

There are different kinds of the same 20 Amp fuses with different reaction times : ultra slow / slow /normal / quick / ultra quick !!!
To protect the circuit or circuit board or components for damages.
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 12 Feb 2018 06:14 by Scirocco.

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23339
  • Thanks: 2877

Re: 2 Things Kawasaki

12 Feb 2018 07:05
#778584
I would like to see what the fuses look like in the Z1E item. New or old style fuses? A common mistake is putting a higher amp fuse in place of the blown one. Adding a higher watt headlight or more accessories can cause overheating.
Pic of what you have now?
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4411
  • Thanks: 2263

Re: 2 Things Kawasaki

12 Feb 2018 07:23
#778587
Adding a higher watt headlight or more accessories can cause overheating.
Pic of what you have now?

That´s SWest i am talking about!!! Some issues are self made, because not everybody know´s OHM´S (Ω) law.

U(volts) = R(resistances) x I (current)
U = R x I
R = U / I
I = U / R
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23339
  • Thanks: 2877

Re: 2 Things Kawasaki

12 Feb 2018 07:50
#778590
Had to learn the hard way. 100 watt Marshal halogen pencil beam headlight, overloaded rectifier, regulator, cooked battery and burned wires taught me well.
The fuse blocks are the weakest link so of course the main will get hot. They do with a normal system.
A aftermarket blade style main is the only way to go IMO.
Besides, it left a slot open for my cigarette lighter.:whistle:
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Banned
  • Posts: 543
  • Thanks: 19

Re: 2 Things Kawasaki

12 Feb 2018 12:26
#778618
SWest wrote: I would like to see what the fuses look like in the Z1E item. New or old style fuses? A common mistake is putting a higher amp fuse in place of the blown one. Adding a higher watt headlight or more accessories can cause overheating.
Pic of what you have now?
Steve

As I mentioned, this is/was a common problem that plagued KZ650s. Its not a short.

Additionally, on the inner part of the fuse box it tells you what size fuses should be used. I have never in my life, in any vehicle, put in the wrong amp size fuse.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Banned
  • Posts: 543
  • Thanks: 19

Re: 2 Things Kawasaki

12 Feb 2018 12:30
#778619
Scirocco wrote: 650Dude wrote
....the 20A was blown and the metal part melted against the fusebox.

A little math: 20 Amps x 12 Volts = 240 Watts of power consumption over a long time !!!! = a lot of heat (melting fuse box) = fuse holder loose = short cut to the other fuse holder = fuse blowing !!!

You must have an unnoticed "near by short cut" in your wiring harness or switch assay or other electric component to ground negative.

What have you do or change last before the issue begins?

Michael

Once again, its NOT a short. This is was a common problem, defect with the KZ650 fuse box.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23339
  • Thanks: 2877

Re: 2 Things Kawasaki

12 Feb 2018 12:37
#778623
Mine has the same problem. The original style fuses are hard to get now. That's why I asked about the Z1E aftermarket one.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Banned
  • Posts: 543
  • Thanks: 19

Re: 2 Things Kawasaki

12 Feb 2018 12:47
#778626
SWest wrote: Mine has the same problem. The original style fuses are hard to get now. That's why I asked about the Z1E aftermarket one.
Steve

Bussman makes the original fuses and I find them without a prob at autozone....thankfully!
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2947
  • Thanks: 461

Re: 2 Things Kawasaki

12 Feb 2018 12:51 - 12 Feb 2018 12:53
#778627
SWest wrote: Mine has the same problem. The original style fuses are hard to get now. That's why I asked about the Z1E aftermarket one.
Steve

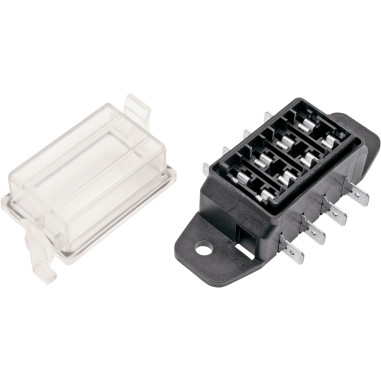

Most motorcycle shops in Canada sell stuff from the Drag Specialities Fat Book and I'm sure its probably the same in the US so a couple of years back I went into my local tiny shop and asked them to get me one of these

And they did and I picked it up a week later.

The following link has a catalog # and description and price
www.dragspecialties.com/products/?productId=472917
1980 kz750E1, Delkevic exhaust
