The tachometer that originally came on the bike may have been replaced without replacing the entire cluster.

Patton wrote: Is there a connector between tach and main wiring harness to check for being clean and tight?

The bike at hand originally had a manual tach drive that has been replaced with an electronic tach/voltmeter combo unit.

The original wiring harness would not have a connector for an electronic tach.

Perhaps the combo unit is itself without fault, but wired incorrectly.

The wiring diagram from the KZ750 without the PUSH/VOLTS button could be instructive in this regard.

Good Fortune!

1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

Patton
Offline
KZr Legend
Registered
Posts: 18568
Thanks: 2102

Re: 1981 kz1000...some questions on my bike there

19 Oct 2014 06:30

#651103

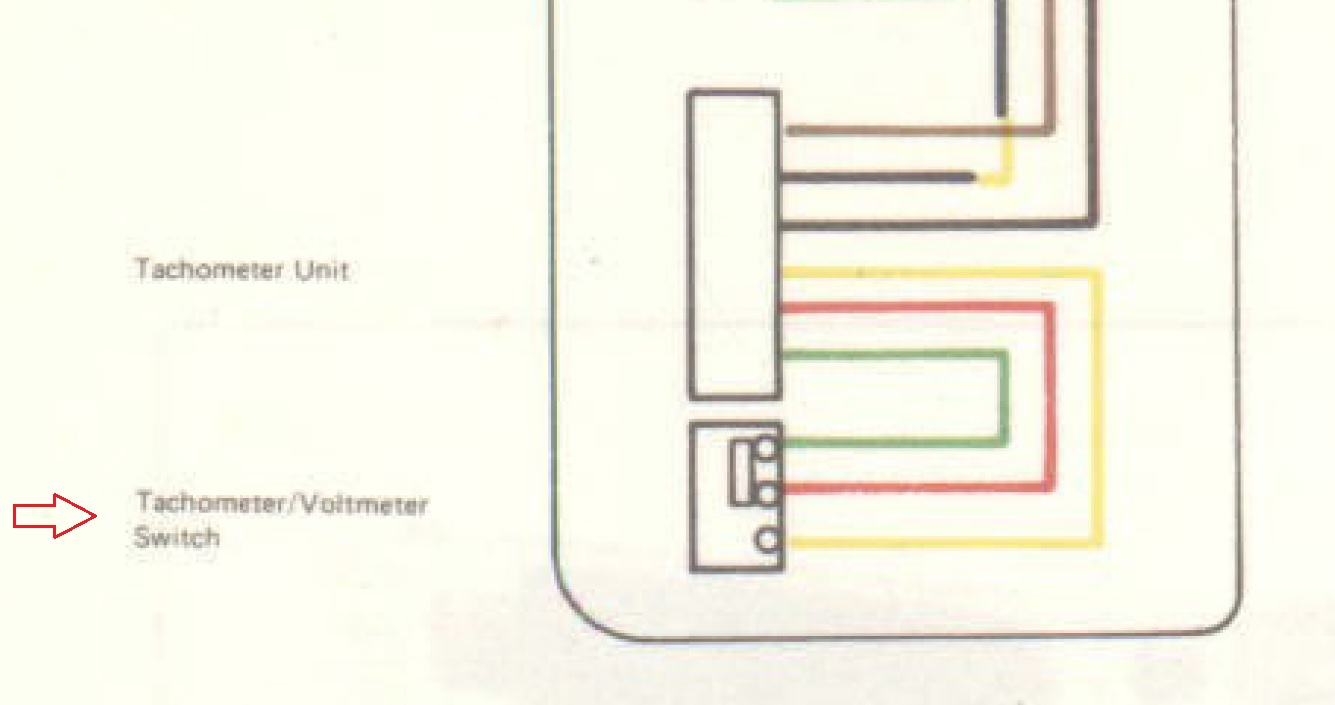

Here's a direct link to the KZ750-N1 wiring diagram in KZr's FILEBASE, which shows wiring for the tach with voltmeter.
www.kzrider.com/filebase/search/finish/1-general/264-z750n1

Note that the diagram shows a switch between tach and voltage.

Good Fortune!

1973 Z1
KZ900 LTD

Attachments:
