Kz 900 what is this?

  • Tomolu5
  • Tomolu5's Avatar Topic Author
  • Offline
  • User
  • Posts: 421
  • Thanks: 45

Kz 900 what is this?

29 Jul 2012 19:46
#539437

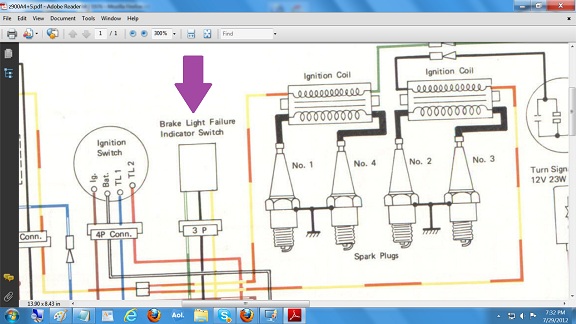

I can't find this on the wiring diagram, and curiosity is killing this cat. It comes out of the harness right next to the connector for the hazard lights.

Attachment uploadfromtaptalk1343601970905.jpg not found


The one on the bottom
Mine:
04 Honda rebel 250(wifes)
04 GSXR 750(bolt on galore)
98 CBR 600F3(filter, pipe, adjustable cam sprokets, dyno tune)
76 KZ900A (LTD gauge pods, crash bars, LTD(style)pipes, dyna coils and ignition,headwork and mild port cleanup by cavanaugh racing, K&N filter pods, heck I dunno.

Attachments:

Please Log in or Create an account to join the conversation.

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • User
  • Thanks: 0

Re: Kz 900 what is this?

29 Jul 2012 19:50 - 29 Jul 2012 19:54
#539439
light checker

it will turn on a red light on gauge panel....letting you know that a bulb is out. should be three wires.
Last edit: 29 Jul 2012 19:54 by 4TheKZ1000.

Please Log in or Create an account to join the conversation.

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2825
  • Thanks: 529

Re: Kz 900 what is this?

29 Jul 2012 20:32
#539455
It is in the rear brake light circuit. Rear brake light go's out. Tach light will flash
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thanks: 2100

Re: Kz 900 what is this?

29 Jul 2012 20:41 - 29 Jul 2012 20:42
#539457

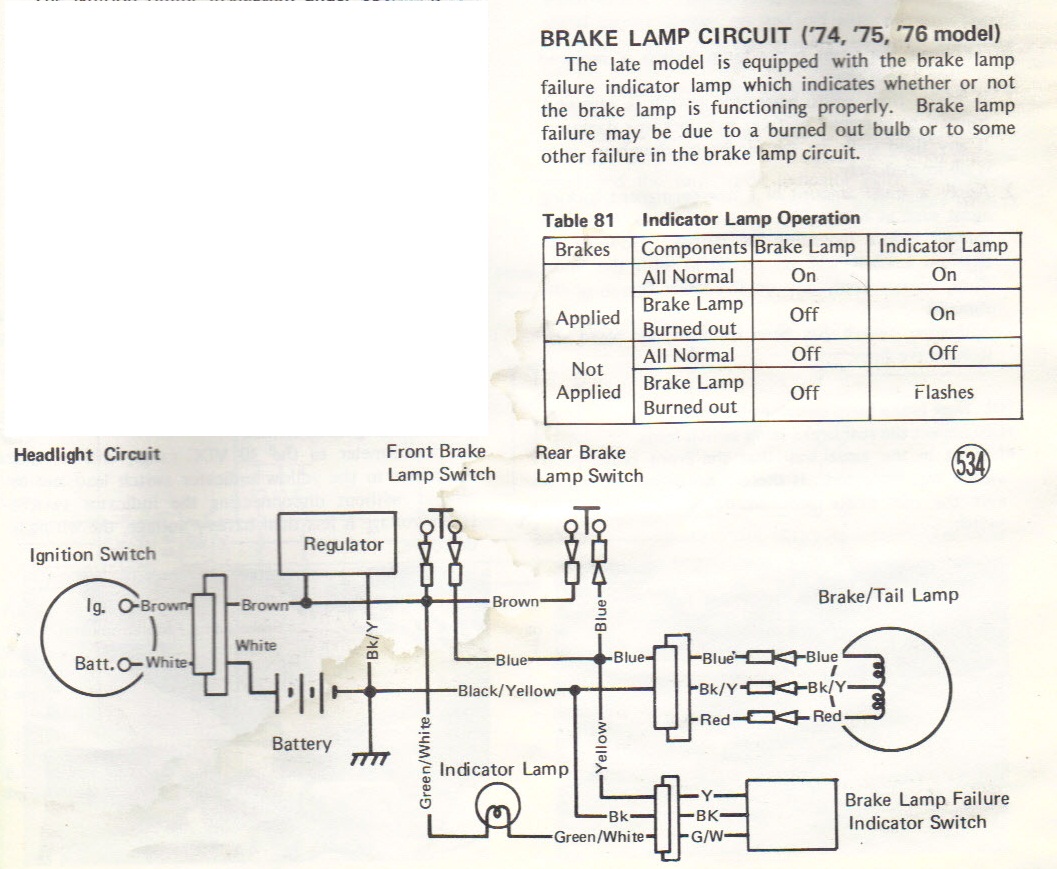

As known, the brake-light-warning idiot light is supposed to remain dark while cruising along without any application of either brake.

During brake application, the idiot light is supposed to burn a steady bright red.
(This lets the world know that the idiot light bulb and its related circuitry are functional).

Here's the "warning" part:
When the rider notices the idiot light is "blinking" when supposed to be dark while cruising along without either brake applied, the "blinking" idiot light is warning the rider that "the next time brake is applied, the rear brake light ain't gonna light up."
Such warning typically results from a blown brake light filament in the rear bulb, but may also result from other deficiencies such as a bad wire, loose connector, etc.

Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 29 Jul 2012 20:42 by Patton.
The following user(s) said Thank You: Tomolu5
