Re: Identify these carbs?
03 Oct 2014 14:18
The "correct" float height is whatever it happens to be when producing the proper fuel level as shown by the clear tube test.
Where the fuel level is really screwed up, setting the upside-down on-the-bench dry-measured float height should get back in the ball park.
But even with float heights set exactly the same, measured fuel levels will likely vary among the carbs.
When the fuel levels are within specs (important), the measured float heights will likely all be slightly different (unimportant).
Carbs care about actual fuel level. Carbs don't care about what the measured float height happens to be so long as the fuel level is within specs.
The desired objective is to achieve correct fuel levels -- not measured float heights.
The clear tube test shows the actual fuel level inside the float bowl.
The tang adjustments are done incident to achieving the correct fuel level.

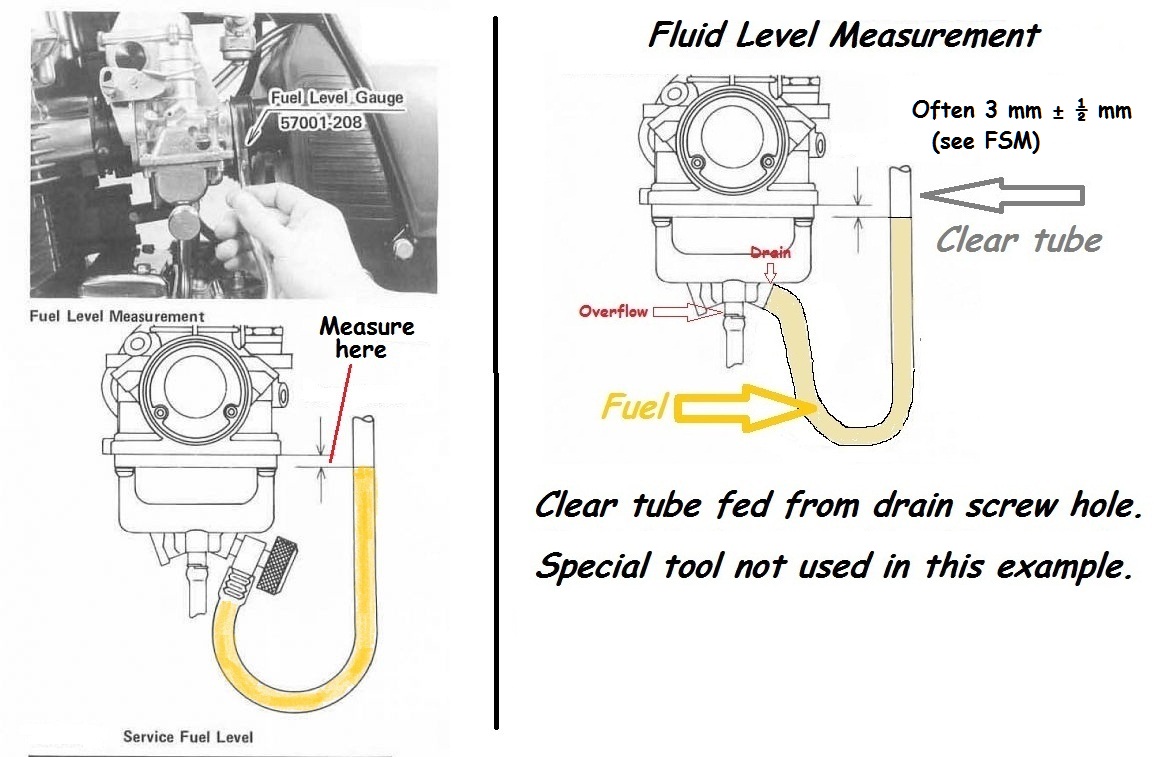

The above illustration depicts a clear tube of appropriate outside diameter being self-threaded/wedged into the float bowl drain hole, whereby the special tool is unnecessary.
Some minimal leakage won't affect the results, because fuel volume entering the bowl exceeds any leakage.
When gasoline fumes get bothersome while clear tube testing between float height adjustments, I have used common household rubbing alcohol instead of gasoline. The slightly heavier alcohol won't significantly affect the float buoyancy.
Odorless mineral spirits may also be used, which is even closer to the density of gasoline.
The kitchen table is often found to be a good comfortable place to do this testing and adjusting.
A time-saving tip (courtesy of wiredgeorge) is to use only a single screw to hold the float bowl onto the carb during the clear tube test, which makes it easier and faster to r&r the bowl between tang adjustments.
Likely won't leak at all, but minimal leakage through the gasket area won't invalidate results of the clear tube test.
Good Fortune!
Where the fuel level is really screwed up, setting the upside-down on-the-bench dry-measured float height should get back in the ball park.
But even with float heights set exactly the same, measured fuel levels will likely vary among the carbs.
When the fuel levels are within specs (important), the measured float heights will likely all be slightly different (unimportant).
Carbs care about actual fuel level. Carbs don't care about what the measured float height happens to be so long as the fuel level is within specs.
The desired objective is to achieve correct fuel levels -- not measured float heights.
The clear tube test shows the actual fuel level inside the float bowl.
The tang adjustments are done incident to achieving the correct fuel level.
The above illustration depicts a clear tube of appropriate outside diameter being self-threaded/wedged into the float bowl drain hole, whereby the special tool is unnecessary.
Some minimal leakage won't affect the results, because fuel volume entering the bowl exceeds any leakage.
When gasoline fumes get bothersome while clear tube testing between float height adjustments, I have used common household rubbing alcohol instead of gasoline. The slightly heavier alcohol won't significantly affect the float buoyancy.
Odorless mineral spirits may also be used, which is even closer to the density of gasoline.
The kitchen table is often found to be a good comfortable place to do this testing and adjusting.
A time-saving tip (courtesy of wiredgeorge) is to use only a single screw to hold the float bowl onto the carb during the clear tube test, which makes it easier and faster to r&r the bowl between tang adjustments.
Likely won't leak at all, but minimal leakage through the gasket area won't invalidate results of the clear tube test.
Good Fortune!
1973 Z1
KZ900 LTD
KZ900 LTD
Attachments:
