wanting to eliminate my keyed ignition 26 Mar 2017 21:42 #757781

  • cbrianroll
  • cbrianroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 82
  • Thank you received: 6
Hey guys, I want to remove my keyed.ignition switch and am having a hard time finding info on it. Want to put in a push button start, kill switch, and secret power kill. I'm hoping to save me a bunch of time chasing wires and such. Any help with rewiring where the ignition plugged in would be very appreciated!! Thanks.
1980 kz550ltd

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 05:17 #757797

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
bare bones for mattylight ... see pages 11-20.
note: some are no longer available (pgs. 1-10).

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

wanting to eliminate my keyed ignition 27 Mar 2017 07:14 #757811

  • MDZ1rider
  • MDZ1rider's Avatar
  • Offline
  • User
  • Posts: 381
  • Thank you received: 118
The factory wiring diagram for your bike will show contacts for each of the ignition switch positions. Duplicate the functions with what ever switches you choose. You didn't list the year/model of your bike, but most KZ's have a push button start. The keyed switch opens/closes power circuits to the lights and or ignition.
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 08:32 #757814

  • theApehouse
  • theApehouse's Avatar
  • Offline
  • User
  • Posts: 41
  • Thank you received: 11
Alternatively, you could by a cheap motorcycle alarm off ebay with a remote start feature, and instead of hooking up the starter, have it so when you press button on the remote, the alarm disarms and simultaneously turns ignition system on. Then you just sit on bike and press starter button.
Or use the starter button on the remote for turning ignition system on.
1987 KZ1000P, dynatek 2.2 coils

www.youtube.com/channel/UC3VtY1XWwKH3zK2trI2Hz1w
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by theApehouse.

wanting to eliminate my keyed ignition 27 Mar 2017 10:56 #757826

  • cbrianroll
  • cbrianroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 82
  • Thank you received: 6
Thanks guys, sorry...it's a 1980 kz550ltd. I have the manual with the schematic. Original controls are garbage, thought I'd relocate hidden switches. I was thinking the main kill would turn on all power then have a normal push start button somewhere. I originally had some pics from loudhvx I had seen somewhere, and now there gone. I'm a bit slow with electronics....lol
1980 kz550ltd

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 11:51 #757831

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2910
  • Thank you received: 429

MDZ1rider wrote: The factory wiring diagram for your bike will show contacts for each of the ignition switch positions. Duplicate the functions with what ever switches you choose. You didn't list the year/model of your bike, but most KZ's have a push button start. The keyed switch opens/closes power circuits to the lights and or ignition.


If you want a main power switch then you could wire an on/off toggle switch just after the main 20 amp fuse and place it under the seat.
Like MDZ1rider said check your wiring diagram which should have a table at the bottom showing what is connected to what when the ignition is switched on.

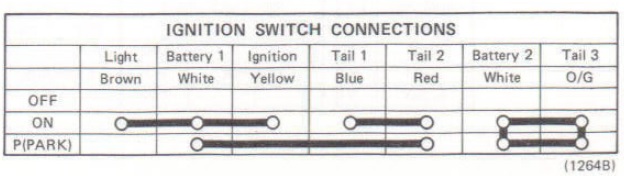

The pic below is an example only and may not work for your bike


Connect the wires (in the headlight shell) as shown in your version of the above pic and remove ignition switch.
Use the conventional kill switch and start button at the right handlebar cluster. You want these buttons at your right thumb not hidden away somewhere.

If you dont want to chase wires the my only other suggestion would be to use the old ignition switch and keep it permenantly in the ON position by breaking off the key or welding it there and using the toggle and right handlebar cluster switches as described above
1980 kz750E1, Delkevic exhaust
Attachments:
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by JR.

wanting to eliminate my keyed ignition 27 Mar 2017 12:22 #757834

  • cbrianroll
  • cbrianroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 82
  • Thank you received: 6
My diagram sucks...lots of little non colored lines....takes me a while to sort things out, was thinking of scanning it and coloring it myself. Not that I'm gonna do it but I'm wondering why can't we use solid wire instead of strand?
1980 kz550ltd

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 12:36 #757836

  • Nerdy
  • Nerdy's Avatar
  • Offline
  • Sustaining Member
  • Posts: 980
  • Thank you received: 362

cbrianroll wrote: Not that I'm gonna do it but I'm wondering why can't we use solid wire instead of strand?



I believe solid wire is more likely to crack due to vibration and other stresses.

Houses get solid wire; vehicles get stranded wire. :)
1979 KZ400 Gifted to a couple of nephews
1967 Yamaha YCS1 Bonanza
1980 KZ440B
1981 Yamaha XT250H
1981 KZ440 LTD project bike
1981 GPz550
2013 Yamaha FZ6R
The following user(s) said Thank You: GPz550D1, theApehouse

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 13:07 #757839

  • cbrianroll
  • cbrianroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 82
  • Thank you received: 6
Interesting...never would have thought of that.
1980 kz550ltd

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 13:24 #757840

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
Also, stranded wire is more flexible than solid, so it's much easier to work with when routing it along a very crooked path and much easier to move around when necessary. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: theApehouse

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 18:25 #757898

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
Also, you should use open barrel terminals & bullets and make the crimps using an open barrel crimper --- the crimps are very strong. same as stock. Cycleterminal is where I got most of my electrical stuff. They have a nice selection. including a nice waterproof bullet terminal 10-pack & terminal covers.
The following user(s) said Thank You: theApehouse

Please Log in or Create an account to join the conversation.

wanting to eliminate my keyed ignition 27 Mar 2017 22:04 #757917

  • cbrianroll
  • cbrianroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 82
  • Thank you received: 6
Thanks for all the info guys, really apreciate....now I need to order barrel con. And crimper.
1980 kz550ltd

Please Log in or Create an account to join the conversation.
