I recently bought a 1976 Kz 750. Im trying to find a wiring diagrahm to build a custom wiring harness Because the wiring harness I bought is not the right one. I cant seem to find the information I need to either make my own harness or buy the one I need. Any help on this would be greatly apprecatied. I would love to get this bike out and on the road!!!
thanks

Two places to look:
1. The upper right corner of the home page, under "Filebase", might have a diagram.

2. Here, as it's for later models, but I'd think the wiring will be similar:
kz.bike-night.com/manual.html

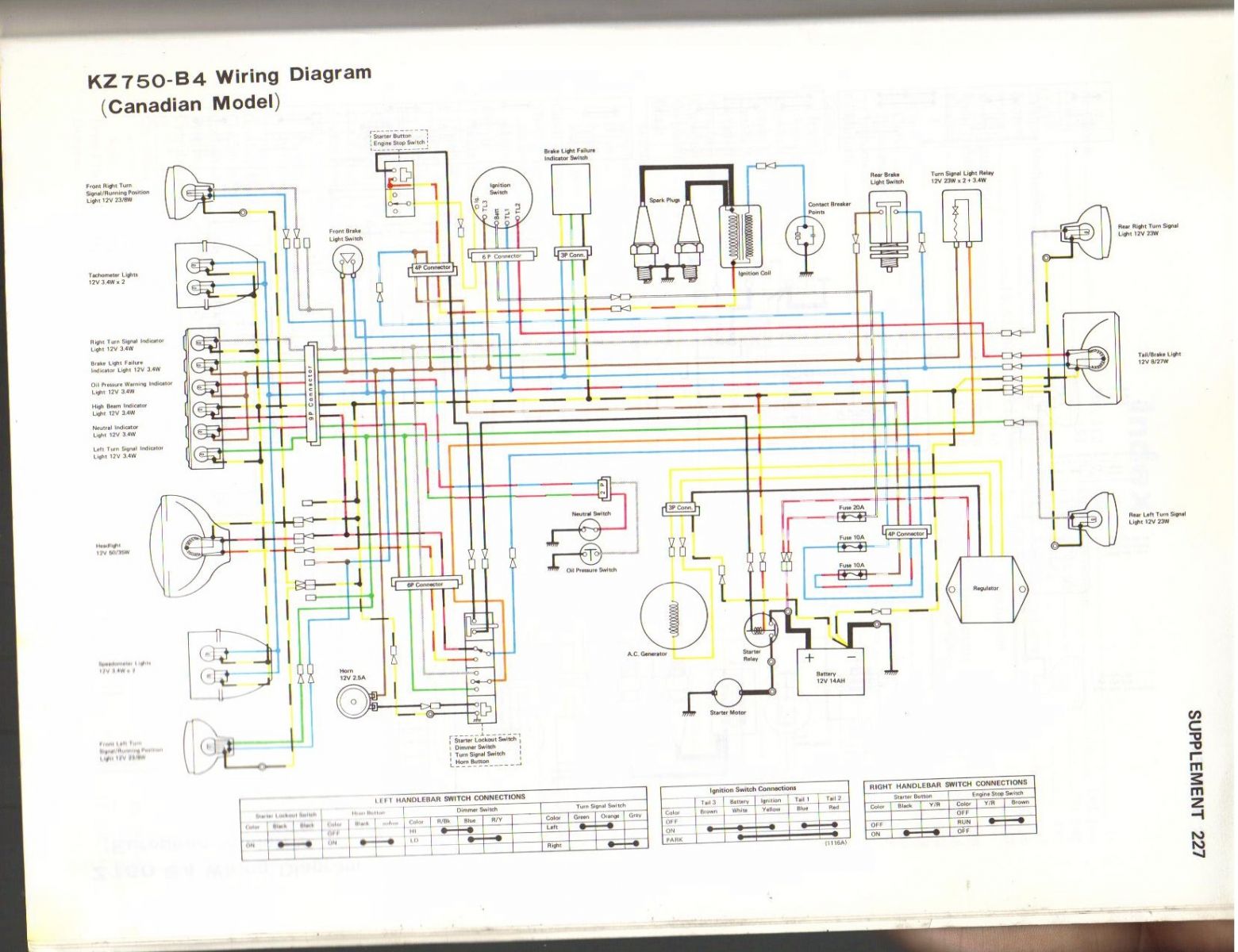

Welcome Jessikaly, This is for the 79 KZ750 B4 (different stator/regulator/rectifier and no headlamp on/off switch). Other than that the same.

Jessikaly wrote: I recently bought a 1976 Kz 750. Im trying to find a wiring diagrahm to build a custom wiring harness Because the wiring harness I bought is not the right one. I cant seem to find the information I need to either make my own harness or buy the one I need. Any help on this would be greatly apprecatied. I would love to get this bike out and on the road!!!
thanks

Hello, Jessikaly, and WELCOME to KZrider!

... or buy the one I need.... -- could inquire: www.cwswiring.com/

Good Fortune!

on the enigine there are two wires that come up and plug in to something. I need to know what those wires are for. I was thinking if there was a wiring diagram for the engine or something i could at least look at to see what those wires are for or what they go to. But I did just print that page off (the wiring diagram) .. also it is a kz750 twin . Im thinking that it is a b1 but im not sure as to how they were all diffrent? I have nothing though for the most part. I bought a wairing harness off ebay but it isnt the right one dang ebay!!! thanks for your help!!! its greatly appreciated!!!

HEY thanks for the website link!! will do some searching around on there to see what i can find!!

I do not have one for the B1 but do for the B2

Here's a link to the KZ750-B1 wiring diagram in KZr's FILEBASE:

www.kzrider.com/filebase/doc_download/281-z750b1

how do you know what submodel you have?
i have a 77 kz750 twin

rabies wrote: how do you know what submodel you have?
i have a 77 kz750 twin

Here's a list of the various KZ750 models from Kawasaki.com. If yours is a 1977 model it is a KZ750-B2. Ed
