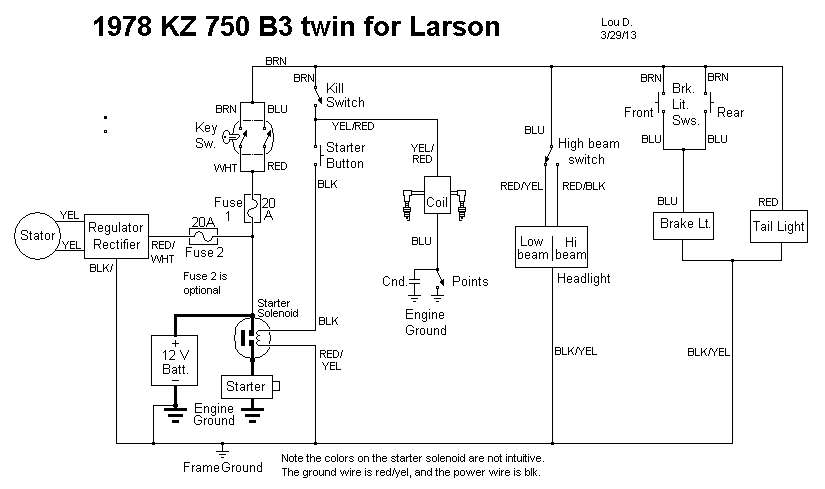

loudhvx wrote: 1978 KZ750B3 twin for Larson

Would I be able to go battery less on a 78 750? With battery my bike usually takes about 3 or more kicks to start. And if possible would you be able to do this schematic bare bones for kick only? Thanks for your help in advance.

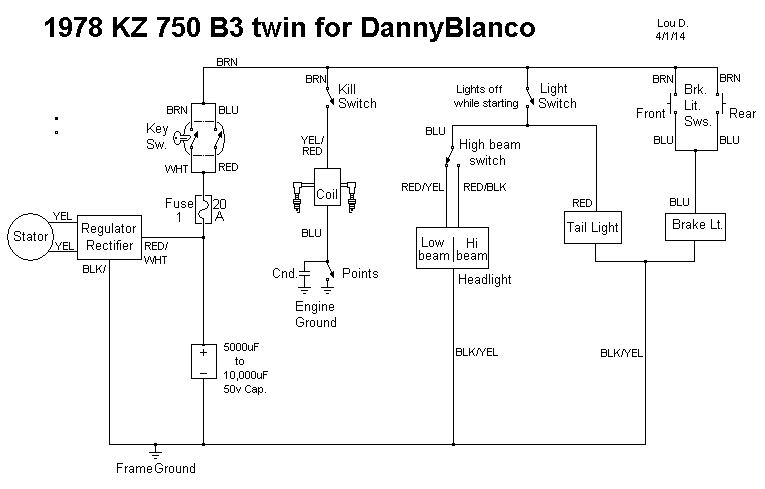

Batteryless 1978 Kawasaki KZ750B3 twin for DannyBlanco

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1978 Kawasaki Kz750B3 twin batteryless for DannyBlanco
Kz750B Kz750 B3 Kz 750 B 750B3 750B

Thanks I really appreciate it Loudvhx.

if i may sir. could i get a bare bones diagram for a 1982 honda cm 450. i want a toggle switch on/off instead of igniton. headlight bright only. tail light. and brake light. electric start only it doesnt have a kick start. if you could include what guage the wires need to be that would be awesome. when the toggle switch turns on lights go on and it can be started. toggle switch off kills the bike. not sure if thats possible but thats what i am ideally going for...thanks in advance dude...really a great service your doing here spreading the knowledge.

Sorry, I don't have any info on a cm450.

No problem sir. Thanks anyway. I have learned a lot just reading this thread.

Im looking for a bare bones wiring diagram,for a 83 kz550f1

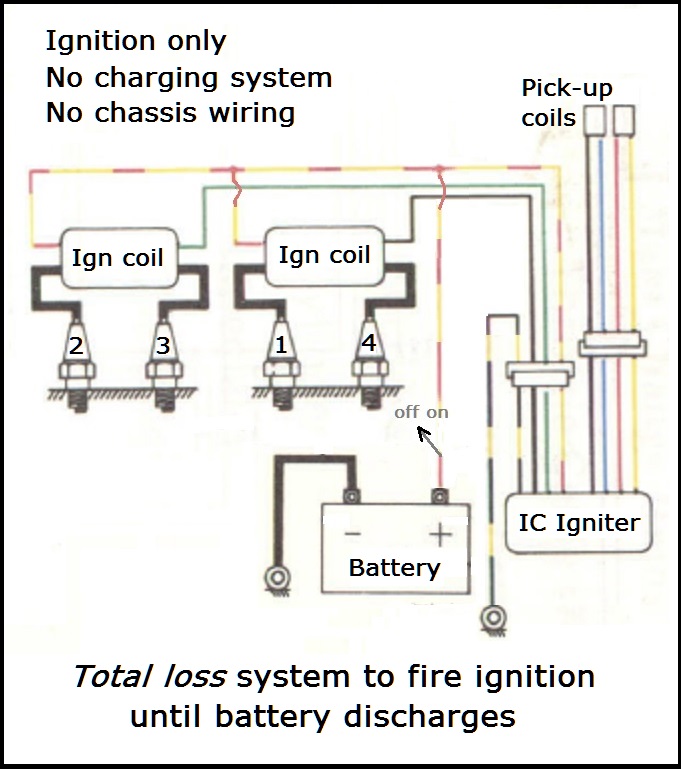

For reference --- Here's the essential wiring needed for Kawasaki's electronic ignition, with a battery, to kick-start or bump-start the engine and keep the ignition firing until the battery discharges.

There's no charging system (i.e., no generator, rectifier or regulator), and no chassis wiring for lights, switches, etc.

Most likely a little too spartan for most street riders, but could be okay for an hour or so of daylight racing.





Good Fortune!

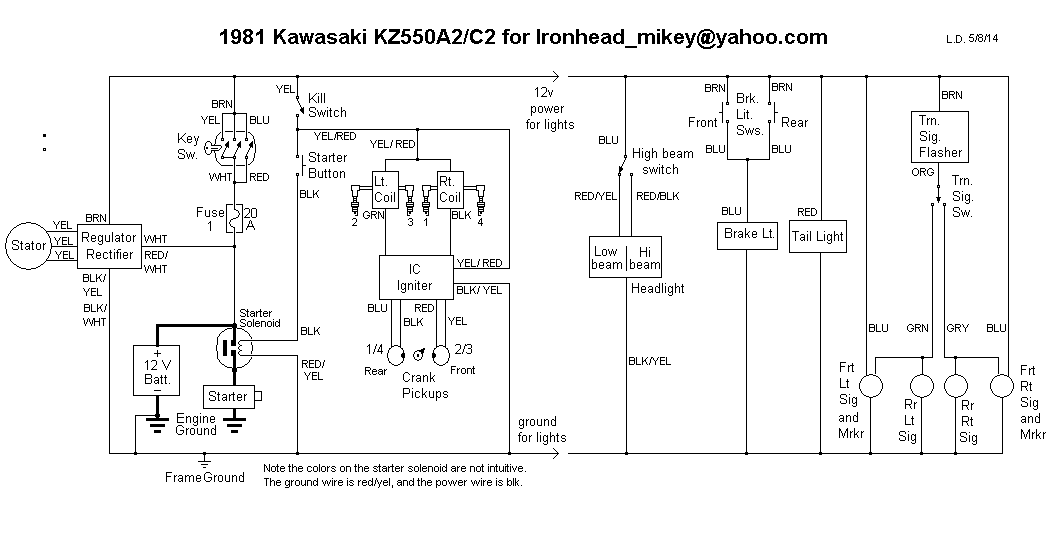

1981 KZ550A2 or 1981 KZ550C2 for This email address is being protected from spambots. You need JavaScript enabled to view it.
5/8/14

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz550 for IronHeadMikey
Kz 550

@loudhvx are you still making these diagrams?? If so, I really could use your help.

I have a 1981 GPZ1100B1 which was converted from FI to carb. Right now, my bike is in need of wiring magic. I saw this thread, and can not start to say what amazing work you've done to help everyone out.

With that being said.. I have a wiring nightmare that needs addressing. I would love to have the bike bare bones as possible, and need your expertise. The bike needs the following...

-Battery
-Headlight
-Tail light
-Signals
-Series of toggle switches to replace key'd ignition.
-Button start/kill
-Retain original charging system

The toggle switches will be hidden at my disclosure. The bike will not run gauges or require any safety lights (neutral, blinkers, oil..)

Can you help a fellow rider out?

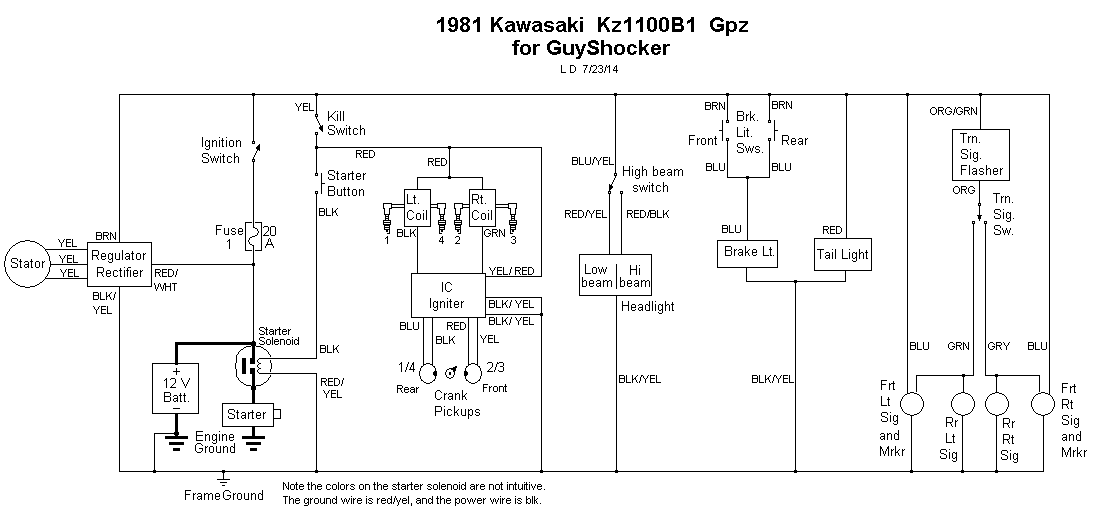

1981 Kawasaki KZ110B1 Gpz for GuyShocker

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz1100B1 for GuyShocker
Kz1100B Kz1100 B1 Kz 1100 B 1100B1 1100B

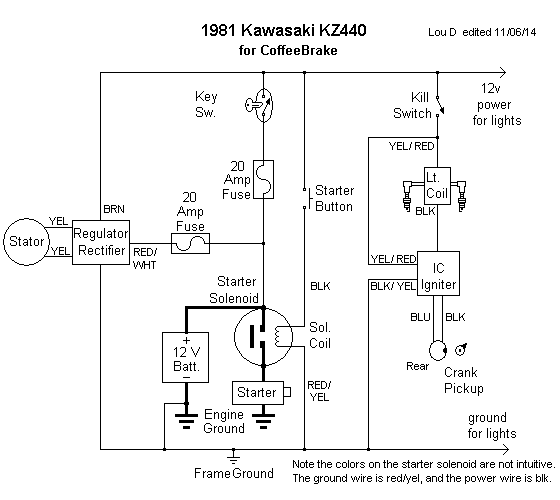

1981 KZ440 for user CoffeeBrake on the twins forum.

EDIT 5/2/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz440 for CoffeeBrake
Kz 440
