1980 750H bare bones for mattylight

TOPIC:

1980 750H bare bones for mattylight 06 Apr 2012 12:41 #514373

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

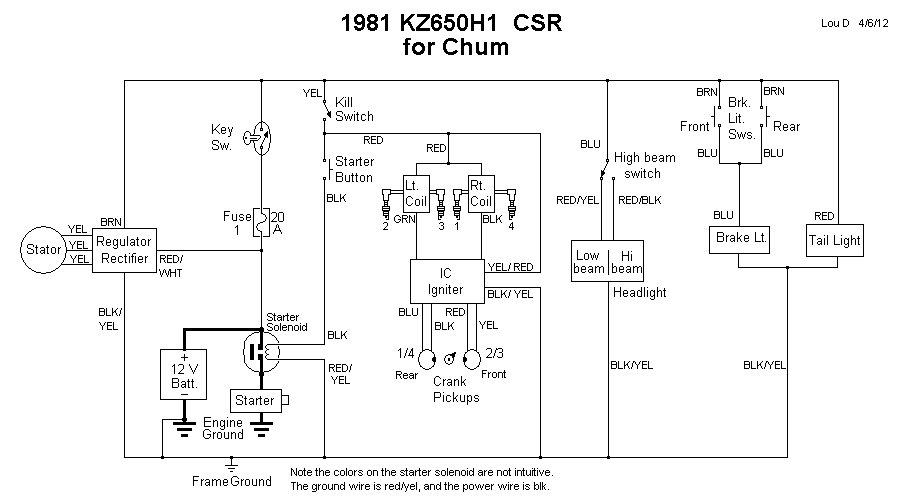

1981 KZ650 H1 CSR for Chum.



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz650H1 for Chum
Kz650H Kz650 H1 Kz 650 H 650H1 650H
Attachments:
The following user(s) said Thank You: Chum

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 03 May 2012 12:28 #519568

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

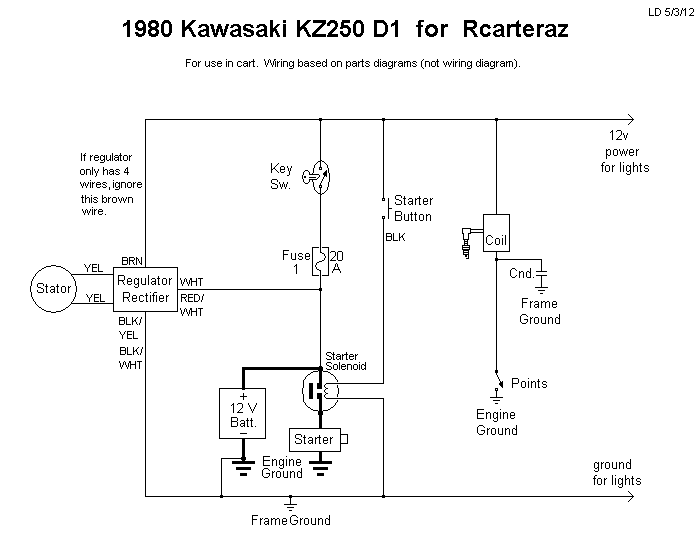

1980 KZ250 KZ 250 D1 for Rcarteraz.
For use on cart.
No wiring diagram available. Wiring based on parts diagrams.



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1980 Kawasaki Kz250D1 for Rcarteraz
Kz250D Kz250 D1 Kz 250 D1 250D1 250D
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 13 May 2012 03:14 #521976

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

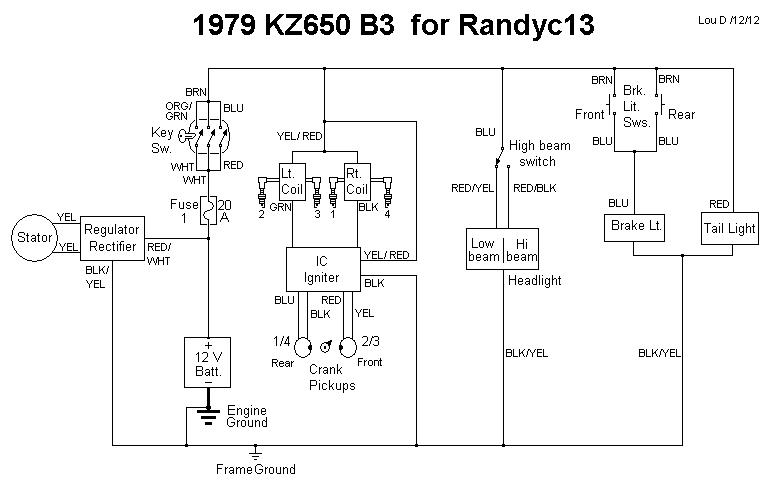

1979 KZ650 B3 for Randyc13



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1979 Kawasaki Kz650B3 for Randyc13
Kz650B Kz650 B3 Kz 650 B 650B3 650B
Attachments:
The following user(s) said Thank You: randyc13

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 13 May 2012 03:47 #521979

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

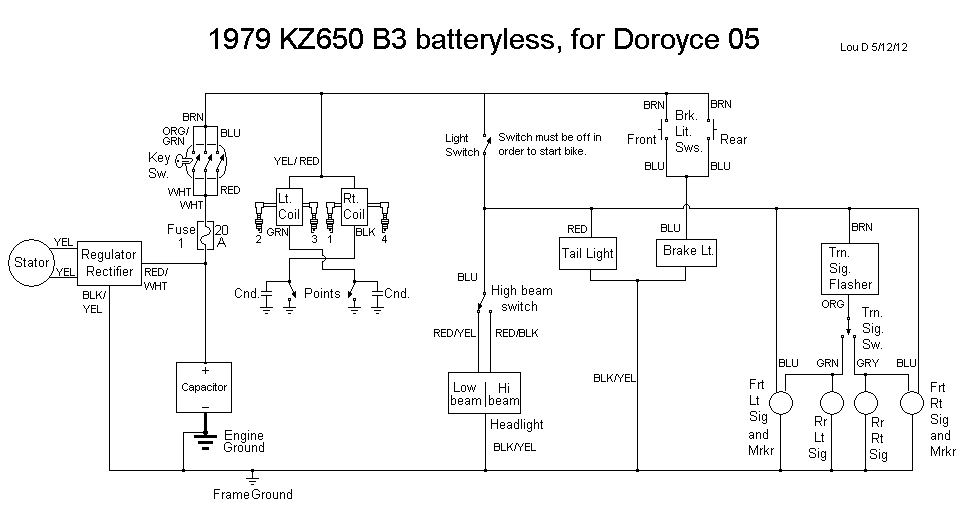

1979 KZ650 B3, batteryless, for Doroyce05.
EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1979 Kawasaki Kz650B3 no battery batteryless for Doroyce05
Kz650B Kz650 B3 Kz 650 B 650B3 650B
Attachments:
The following user(s) said Thank You: doroyce05

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 20 May 2012 12:44 #523542

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

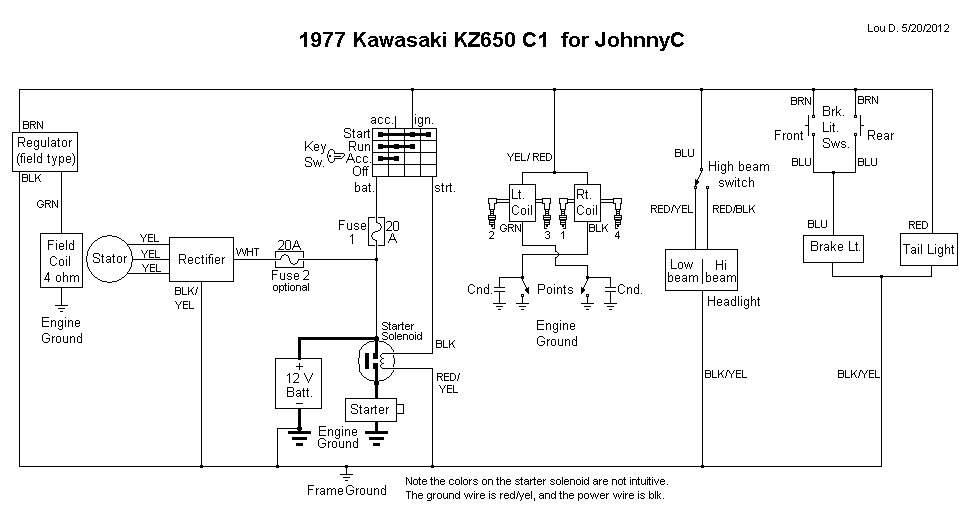

1977 KZ650 C1 for JohnnyC



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1977 Kawasaki Kz650C1 with aftermarket ignition switch for JohnnyC
Kz650C Kz650 C1 Kz 650 C 650C1 650C
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 07 Oct 2012 03:16 #552880

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

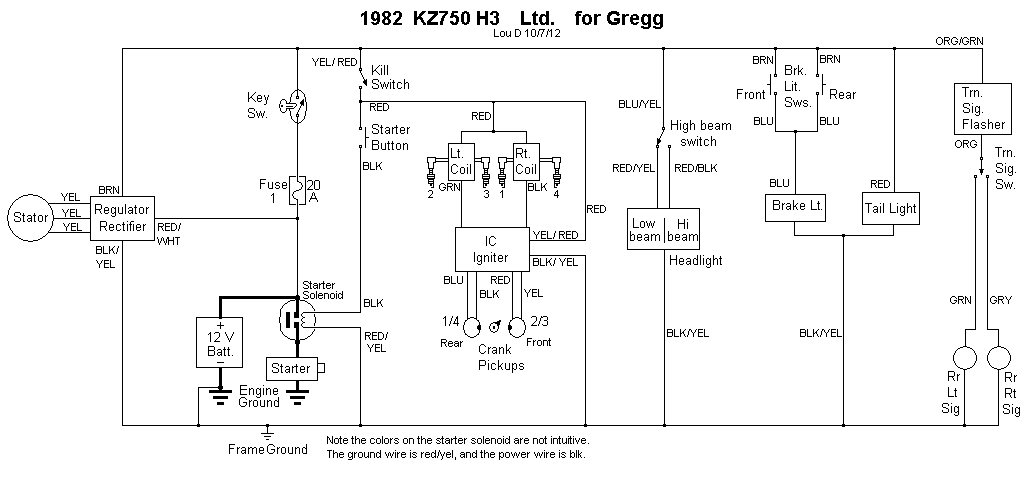

1982 KZ750 H3 for Gregg.


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1982 Kawasaki Kz750H3 for Gregg
Kz750H Kz750 H3 Kz 750 H 750H3 750H
Attachments:
The following user(s) said Thank You: 82bobber750h2

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 07 Oct 2012 10:25 #552897

  • 82bobber750h2
  • 82bobber750h2's Avatar
  • Offline
  • User
  • Posts: 1
  • Thank you received: 0
thanks so much loudhvx wasent able to find that anywhere

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 19 Dec 2012 16:19 #563699

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

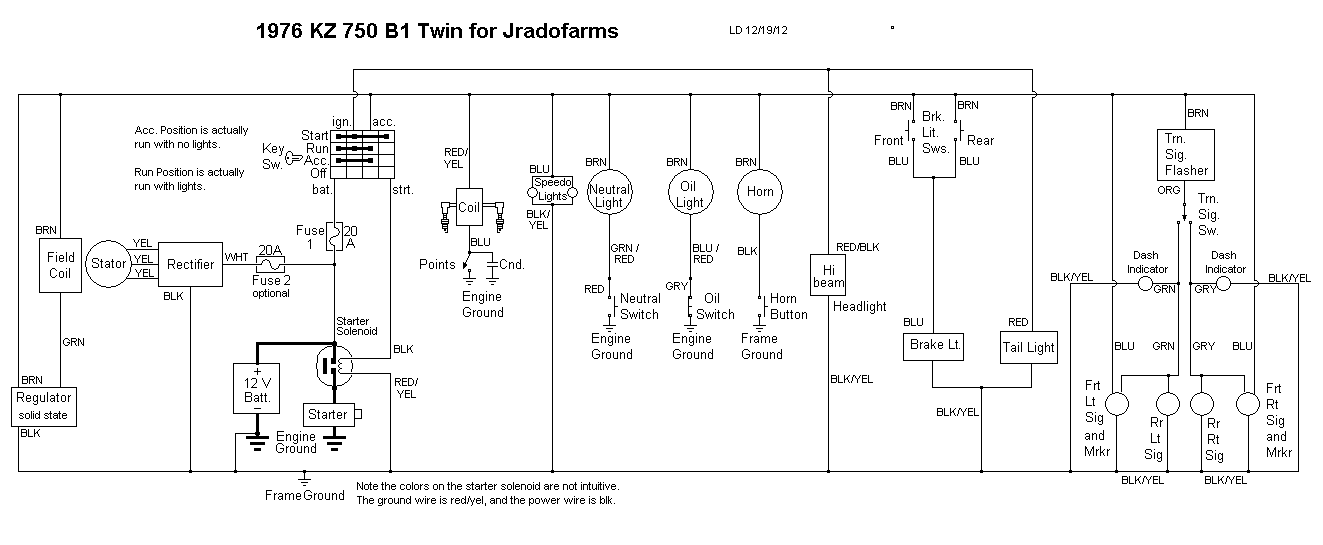

1976 KZ750 B1 twin for Jradofarms.



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1976 Kawasaki Kz750B1 twin with aftermarket ignition switch for Jradofarms
Kz750B Kz750 B1 Kz 750 B 750B1 750B
Attachments:
The following user(s) said Thank You: Jradofarms

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 03 Jan 2013 15:01 #565702

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

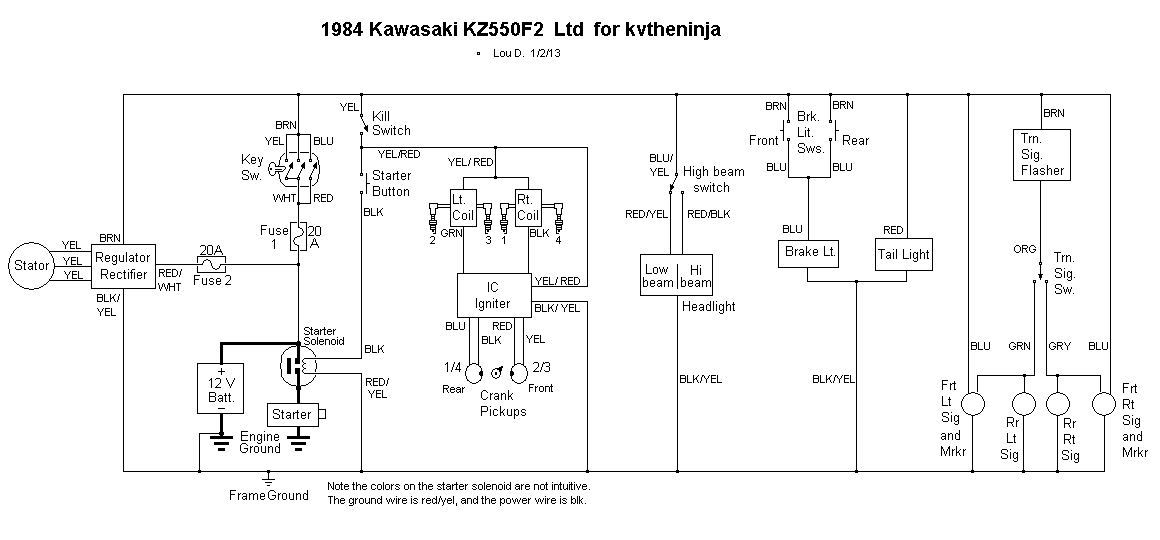

1984 KZ550F2 Ltd, (based on 1983 F1 wiring), for kvtheninja


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1984 Kawasaki Kz550F2 Ltd for Kvtheninja
Kz550F Kz550 F2 Kz 550 F 550F2 550F
Attachments:
The following user(s) said Thank You: kvtheninja

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 03 Jan 2013 15:38 #565713

  • kvtheninja
  • kvtheninja's Avatar
  • Offline
  • User
  • Posts: 1
  • Thank you received: 0
Thanks for the help. I'm going to try to get the new wiring done this weekend.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 08 Jan 2013 18:41 #566391

  • NickMac
  • NickMac's Avatar
  • Offline
  • User
  • Posts: 33
  • Thank you received: 0
Loudhvx
,
I just wanted to thank you for all the posting you have done on this topic.. This has helped immensely with my build.

I have a 77 kz650b and am wondering if the 77 kz650c diagram you posted a few times is applicable to my bike?

Thanks,
Nick

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 08 Jan 2013 19:39 #566402

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Thanks Nick, and yes the 77 KZ650B basic wiring should be the same as the 77 KZ650C.
Later KZ650's used very different charging systems.

The way to know if your 650 engine is in fact a 1977 version, is to look on the alternator cover. In the middle of the face of the cover, there should be 3 philips-head screws in a triangle pattern. Later models did not have the screws.

Please Log in or Create an account to join the conversation.
