TOPIC: Kz400 carb holder options?

Kz400 carb holder options? 2 years 9 months ago #489795

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
Okay fellow members I have an 76 kz400 d3 and a 77 a1 that are in need of holders. Have read of guys using kawa part# 16065-1002 as alternatives, but have my doubts. Had a guy from the u.k. measure his nos set and they measured 36mm while mine are 42mm. Am I to get them and gamble or just wait? Anybody out there know if my old ones expanded..... Please help me out guyz
Last Edit: 2 years 9 months ago by uglee. Reason: Text correction
The administrator has disabled public write access.

- 2 years 9 months ago #489819

  • martin_csr
  • martin_csr's Avatar
  • OFFLINE
  • Member
  • Posts: 2947
  • Thank you received: 298
.
1981 KZ650 Competition, Sports, and Road.
Last Edit: 1 year 6 months ago by martin_csr.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #489831

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
All the info I gathered only required slotting the bolt holes. Come on,anyone ever did anything with these carb holders so I dont miss out on a nos set? HELP ME!! I have no motorcycle ride.......
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #489841

  • loudhvx
  • loudhvx's Avatar
  • OFFLINE
  • Member
  • Posts: 6376
  • Thank you received: 317
According to Kawasaki, in the U.S., the KZ400 A1 is a 1977 model.

The 1976 models were S2 (special) and D3 (standard) models only.

In 1977 there was an A1 (deluxe), S3 (special), and a D4 (standard).

Up to 1977 all carbs were piston type CV.

In 1977, the S and D got diaphragm type CV while the A got piston type CV.

In 1978, the B1 took over as the "Standard", and it had diaphragm CV. And the C1 took over as the "Special", and it also had diaphragm carbs. The A2 (deluxe) changed over to diaphragm CV carbs also.

The 1979 H1 (Ltd) along with B2 (standard), had diaphragm CV carbs.

So, it will depend on what year/model the engine is from to know what holders to get, and I'm not even sure which models use which size because Kawasaki.com seems to be inconsistent. There are apparently 3 part numbers:
16065-037
16065-048
16065-1002

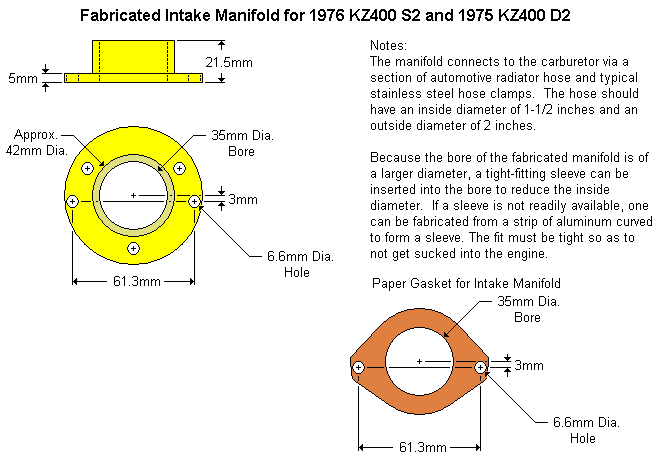

I've made some holders for the piston carbs. Here are the dimensions I came up with.
It's for a 76 S2 and a 75 D2, which according to Kawasaki.com is the same holder on a 77 A1, but that is not absolute, especially since the later D models show a different number. It's all very confusing.



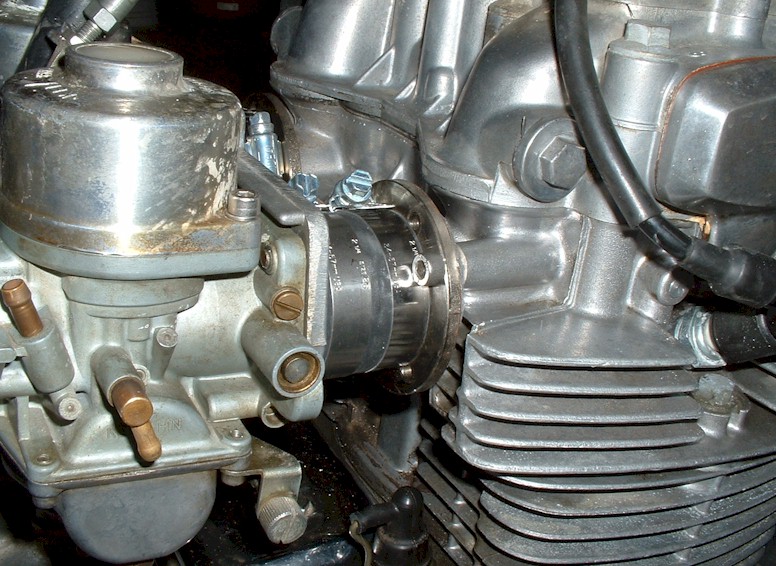

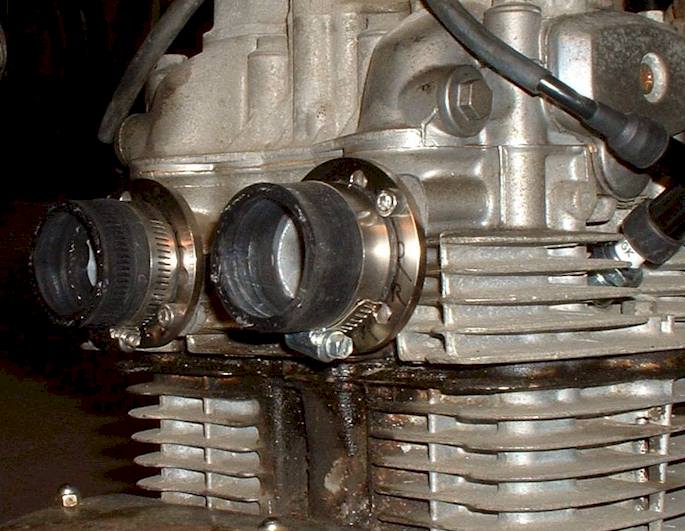

I then attached the carbs with a section of heater hose. It's ugly, but worked great.




Last Edit: 2 years 9 months ago by loudhvx.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #489851

  • loudhvx
  • loudhvx's Avatar
  • OFFLINE
  • Member
  • Posts: 6376
  • Thank you received: 317
Alright. After a couple hours of diggin, here's what I have, but it doesn't really make total sense since the D3 and D4 use different carbs, but show the same carb holders...not impossible, but I wouldn't think it likely since the carbs are so different. Will have to investigate further later.

1974 D1 (Standard) : piston CV with 16065-037

1975 D2 (Standard) : piston CV with 16065-037
1975 S1 (Special) : piston CV with 16065-037

1976 D3 (Sandard) : piston CV with 16065-048
1976 S2 (Special) : piston CV with 16065-037

1977 A1 (Deluxe) : piston CV with 16065-037
1977 D4 (Standard) : diaphragm CV with 16065-048
1977 S3 (Special) : diaphragm CV with 16065-037

1978 A2 (Deluxe) : diaphragm CV with 16065-037
1978 B1 (Standard) : diaphragm CV with 16065-1002
1978 C1 (Special): diaphragm CV with 16065-1002

1979 B2 (Standard) : diaphragm CV with 16065-1002
1979 H1 (Ltd) : diaphragm CV with 16065-1002
Last Edit: 2 years 9 months ago by loudhvx.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #489896

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
Thanks for the info loud. Correction on the bikes..... Bobber is 76(9/75) while the other is 77 A1(1/77) both use piston type carbs. Now I know that the 16065-1002 will not work. Got one rigged up wish i could post a pic!! Not wat I wanted to do so i'm depressed at the moment
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490006

  • loudhvx
  • loudhvx's Avatar
  • OFFLINE
  • Member
  • Posts: 6376
  • Thank you received: 317
I hear your pain. Been through it a couple times.

If the bobber has a front disk brake and electric start, then it is likely a 76 D3.

The 76 S2 had drum in front, no electric starter, and I think no tach.

The D3 is listed as having different holders than the S2 or the A1. I can't imagine what the difference would be since the D3 and A1 use the same carb rack. Maybe the motors are different.

But just a heads up that you may actually have to seek out two different sets of holders.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490070

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
The bobber is a d3 I now remember that from the original owners manual that I lost!! The carbs are thesame cause I mismatched them together. So that means 037 and 048 are NOT the same....both no longer available also. This sucks big time!!!
Last Edit: 2 years 9 months ago by uglee. Reason: Wrong info
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490324

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
So kzriders no luck yet but did see some universal ones on ebay. Wish somebody had a solution 2 this issue.... Anybody ever use these so-called universal carb holders??
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490340

  • Patton
  • Patton's Avatar
  • OFFLINE
  • Moderator
  • Posts: 16651
  • Thank you received: 979
uglee wrote:
So kzriders no luck yet but did see some universal ones on ebay. Wish somebody had a solution 2 this issue.... Anybody ever use these so-called universal carb holders??
:unsure: Item number?
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490403

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
item.mobileweb.ebay.com/viewitem?itemId=...HING&nid=43288548079

Hope the link posted..... What bout macyhining the carbs down??
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490444

  • Patton
  • Patton's Avatar
  • OFFLINE
  • Moderator
  • Posts: 16651
  • Thank you received: 979
uglee wrote:

From the listing:

NEW RUBBER INTAKE MANIFOLD MADE BY MIKUNI.

UNIVERSAL FIT FOR MANY MAKES, MODELS AND YEARS.

AVAILABLE IN 60mm, 70mm & 75mm CENTER TO CENTER BETWEEN STUD / BOLT MOUNT HOLES.

AVAILABLE FOR CARBURETORS BETWEEN 26mm-40mm.

MOUNTS TO FLAT SURFACE, HAS BUILT IN O-RING SEAL.

LAYING FLAT MANIFOLD IS 25 MILLIMETERS TALL.
Last Edit: 2 years 9 months ago by Patton.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490447

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
I don't think they will be the correct height.... Would it make a difference?
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490467

  • Patton
  • Patton's Avatar
  • OFFLINE
  • Moderator
  • Posts: 16651
  • Thank you received: 979
uglee wrote:
I don't think they will be the correct height.... Would it make a difference?

:unsure: height??

Holes in a carb holder must match mounting studs on the engine head (center-to-center distance between studs should equal center-to-center distance between holes in carb holder).

Inside diameter of the holder must be sufficiently adjustable in order to snugly tighten around the outside diameter of the carb.

:unsure: What is center-to-center distance on the bike at hand (to compare with the information furnished in the ad)?

Good Fortune! :)
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490487

  • loudhvx
  • loudhvx's Avatar
  • OFFLINE
  • Member
  • Posts: 6376
  • Thank you received: 317
Also, notice the center-to-center line of the mounting holes is offset by 3mm from the center of the bore. (in the diagram I posted)
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490505

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
The ebay holders are way too short....... Back on the junkyard hunt tomorrow!whippeeeeee
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490526

  • Patton
  • Patton's Avatar
  • OFFLINE
  • Moderator
  • Posts: 16651
  • Thank you received: 979
Patton wrote:
...From the listing:
...LAYING FLAT MANIFOLD IS 25 MILLIMETERS TALL...

AVAILABLE IN 60mm, 70mm & 75mm CENTER TO CENTER BETWEEN STUD / BOLT MOUNT HOLES....
uglee wrote:
The ebay holders are way too short....

Wonder how tall are the oem carb holders?

Wonder if the ebay carb holder has sufficient distance between the mount holes (appears to need an additional 1.3 mm), or enough material to elongate each hole?





Wonder if the ebay holder has the needed 3mm offset below center-line between mount holes?

Unfortunately, the drawings of Mikuni's offerings appear not to have the needed 3mm offset below center-line between mount holes.




Good Fortune! :)
Last Edit: 2 years 9 months ago by Patton.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490527

  • Patton
  • Patton's Avatar
  • OFFLINE
  • Moderator
  • Posts: 16651
  • Thank you received: 979
Any details available as to diy construction of the metal flange?

And source/type of sufficiently large "heater" hose?

Good Fortune! :)
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 9 months ago #490614

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
Well guyz looks like i'll be going with part 16065-1135{thanks Chris from z1}..... So now is the price hunt... Anybody git 2 carb holders for a kz1000p cheapers than 30 bucks? Dont need 4 that z1 offers at $60 but that is a good price. Gonna check the dealer first thing in the morning.
The administrator has disabled public write access.

Kz400 carb holder options? 2 years 5 months ago #514642

  • uglee
  • uglee's Avatar
  • OFFLINE
  • Member
  • New 2da game but Tru 2this thang!!!!!
  • Posts: 161
Was scared to rig up the holders so today got lucky with a set off ebay!! Carbs cleaned again waiting 2 fire the lil scot up in da morning(fingers crossed).....
